Полуприцеп-цистерна KÄSSBOHRER Tankauflieger K.STN L 30

Описание

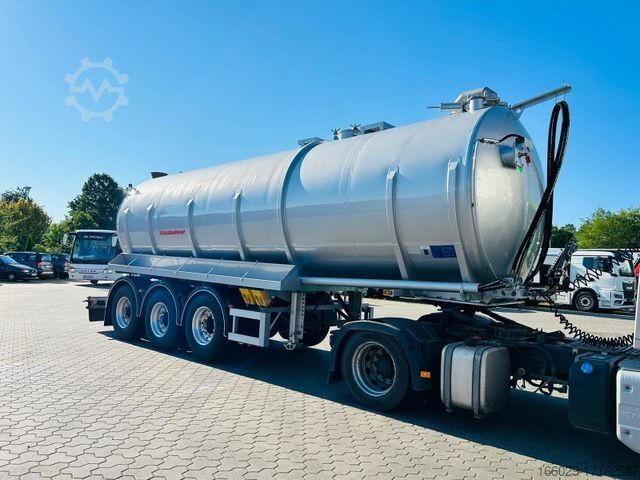

Kässbohrer K.STN L 30 stainless steel tank trailer 30m³ for liquid manure
TECHNICAL INFORMATION: External length 9,180 mm
* Height (empty vehicle) 3,960 mm
* Axle distance 5,000 mm
* Rear overhang 3,050 mm
* Fifth wheel height 1,320 mm
* Tank diameter 2,200 mm
TECHNICAL DIMENSIONS: Volume 30.0 m3
* Empty weight 6,045 kg
* Axle capacity is 27,000 kg
* Kingpin capacity of the fifth wheel load is 12,000 kg
* The operating temperature is 80°C
* Test pressure (+H bar) 0.5 bar
* Total weight 39,000 kg
TANK: Cylindrical tank container, with a slope to prevent residual quantities in the tank, made of AISI 304 (DIN 1.4301) stainless steel
* Number of manholes 1pc.

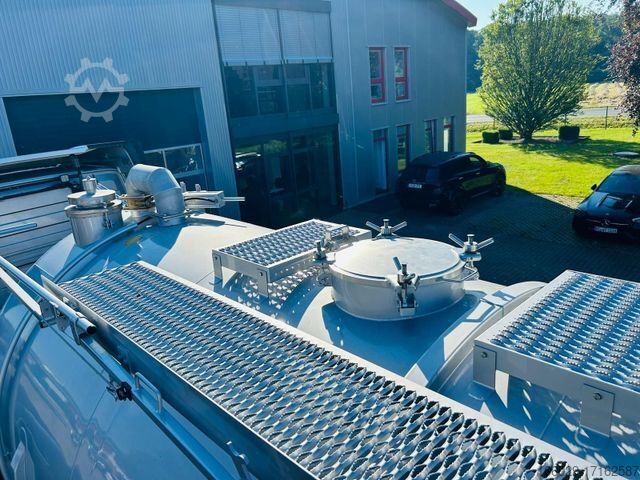

* Manholes size DN450, 4 x nut tightening with hinged dome cover
* Aluminium walkway

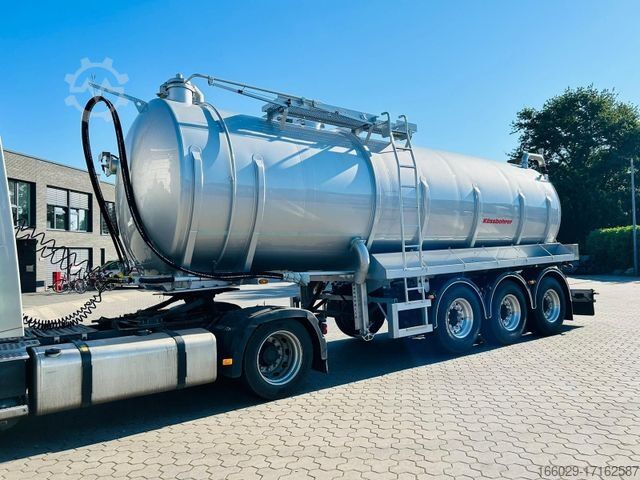

* Access ladder on the left side of the tank

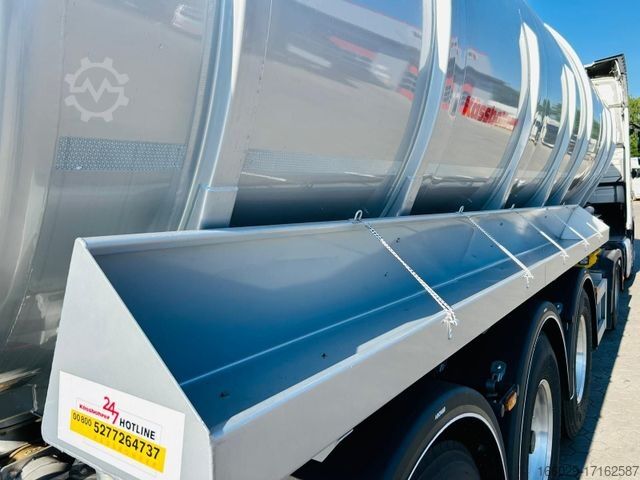

* 1 x 5 M hose holder, large aluminium box open at the top
* Straight flange as preparation for cleaning pipe
* 1 x 8" pipe with flange at the top of the rear of the tank, for discharge by suction
* 1 x 8" pipe with square flange at the front right of the tank, as preparation for a filling indicator
* 6" preparation for a ventilation line
* Preparation for pressure valve
* Preparation for vacuum valve and vacuum
DISCONNECTION SYSTEM: A transparent pipe made of hard plastic with a diameter of 4" is included at the rear in order to be able to read the level of the transported goods in the tank from the outside
* 1 x 8" plastic filling funnel in front of the suction line at the top of the rear of the tank

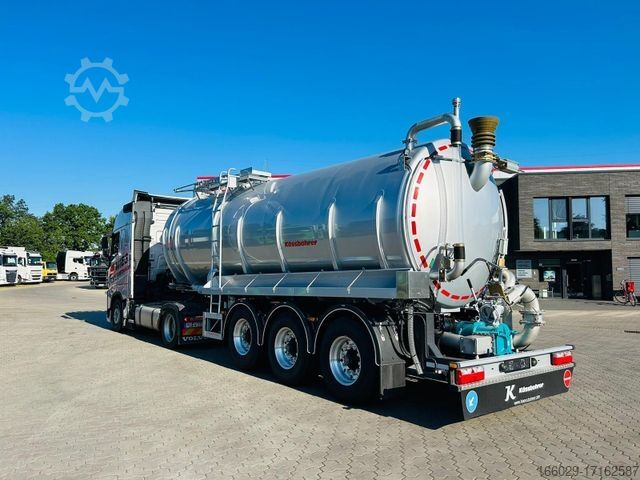

* Börger FL1036 hydraulically driven pump with carbon steel housing
* When discharging with the pump, a 6" Perrot coupling with hook closure, which is used on slurry vehicles, is attached to the outlet line.
* The outlet of the outlet line is equipped with 1 manually controlled 6" brass slide valve
* At the inlet of the mixing line in the tank there is 1 x 4" pneumatically controlled gate valve. 1 x pneumatically controlled 8" slide valve made of brass at the inlet of the tank suction line
Pjc R Nc Ifoun Em Nsnsgn
* 1 x 6" pneumatic vent valve with brass slide
* When unloading with a pump, there is a 6" swivel joint to be able to run the discharge line outlet at the rear of the vehicle from left-right-middle
* 2x6" pneumatic slide valve
DRIVE: Chassis is made of a special aluminum alloy that offers high quality and high strength
* BPW axles 3x9 tons with air suspension and disc brakes
* 1st axle can be lifted

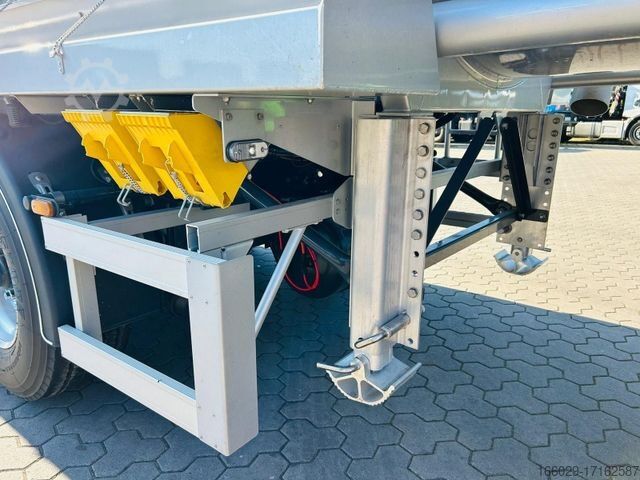

* Aluminum supports

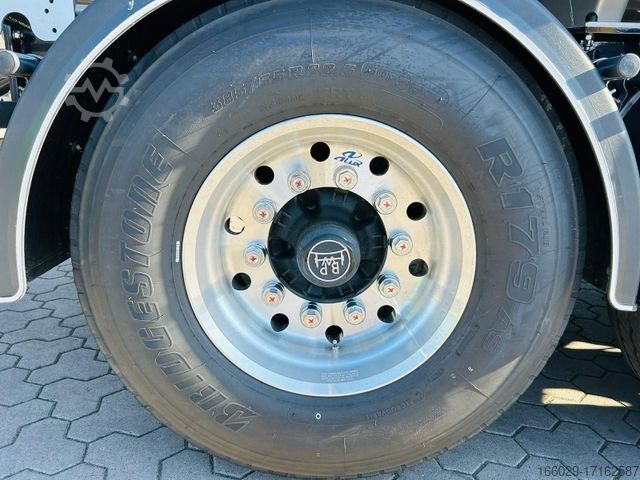

* Tires 385/65 R 22.5"
* Aluminum rims

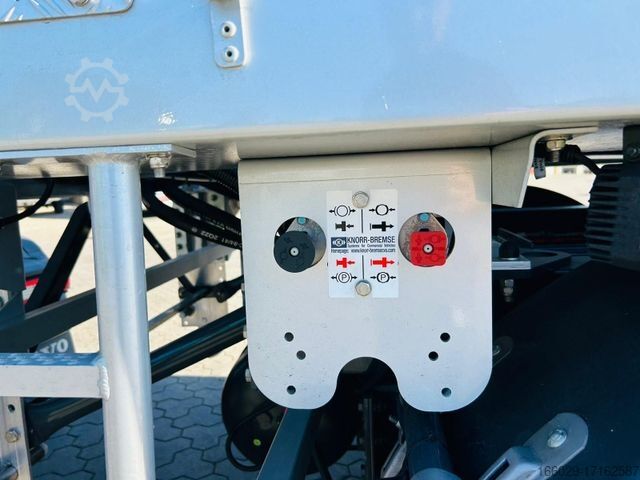

* KNORR-ILVL electronic air suspension ECAS
OTHER: 1 x bracket suitable for connecting a pump, welded to the frame underrun protection mat in accordance with the regulations
COLORS: Color of the chassis MB 7350 Nova gray (glossy)
* Color The container RAL 9005 black
Painting of the tank in BLACK
The photos may show different equipment.
The text of the construction description is binding!!!
