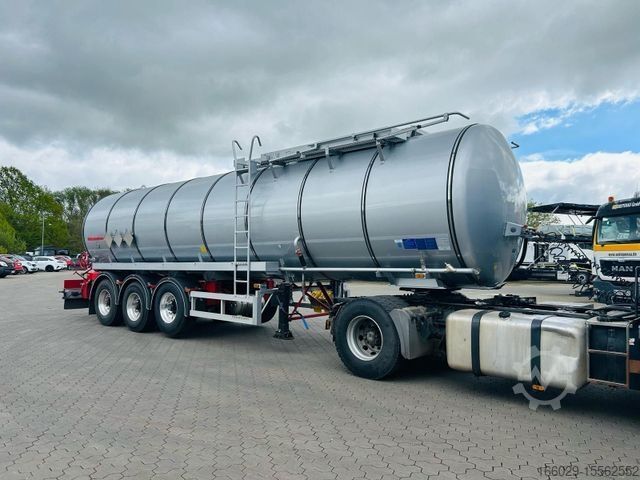

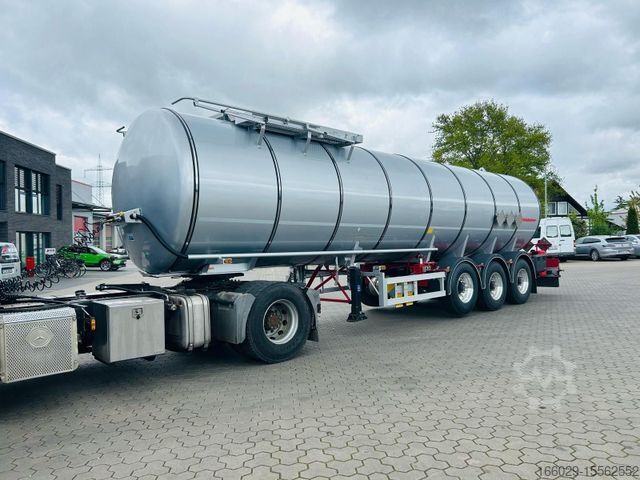

Полуприцеп-цистерна KÄSSBOHRER Edelstahl Tankauflieger Bitumen 32m³

Описание

Kässbohrer stainless steel tank trailer for bitumen 32m³
TECHNICAL INFORMATION:
* Vehicle code K.STS 32 / 1 - 10 / 24
* ADR suitable for the transport of dangerous goods
* ADR tank code ADR tank code L4BH
* Tank diameter 2,000 mm
* External length 11,250 mm
* Height 3,600 mm
* Axle distance (Wb) 6,300 mm
* Axle distance (A) 1,310 mm
* Rear overhang 3,580 mm
* Fifth wheel height 1,220 mm
TECHNICAL CAPACITY:
* Volume 32.0 m3
* Empty weight ±%3 6,400 kg
* Axle load 27,000 kg
* King pin capacity 12,000 kg
* The operating temperature is 250 °C
* Test pressure (+H bar) 4.0 bar
* The operating pressure is 2.0 bar
* Total weight 39,000 kg
TANK:
* Cylindrical tank container with a slope to prevent residual quantities in the tank, made of AISI 321 (DIN 1.4541) stainless steel with ADR code L4BH
* Vacuum valve The operating pressure is 0.21 bar
* 1 x thermometer is included
* Number of chambers 1 compartment
* Insulation thickness The container is insulated with 100 mm thick glass wool
* Insulation lamination Aluminum coating, CTP bomb
* Final bottom coating The insulation on the front and rear bottom of the tank is coated with glass fiber reinforced polyester (GRP)
* Stainless steel insulation rings fitted on the entire tank container
* Number of manholes 1 pc.

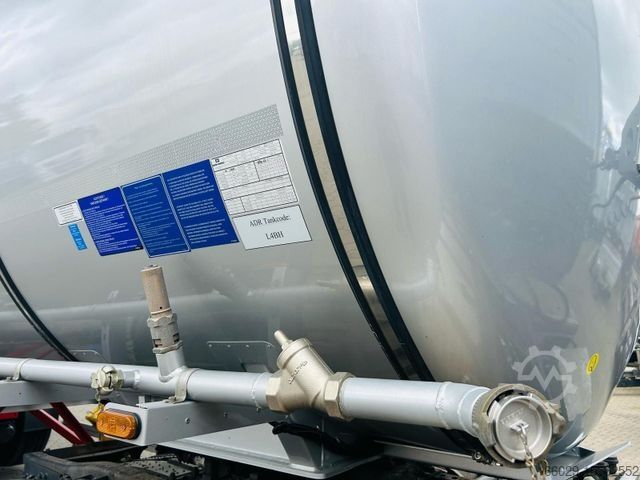

* 2" side air line made of aluminum on the right side of the vehicle. 2" TW coupling air line is included at the rear.
* 1 x pressure gauge is included on the side air line
* Equipped with a 1.5" air line for a higher delivery rate for bitumen and
* to free the hoses from residues of the transported goods after unloading
* 2" upper air line with 2-way sliding valve made of stainless steel

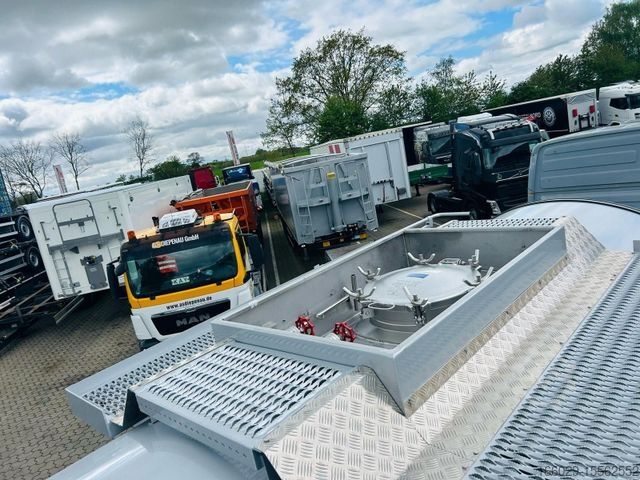

* Aluminium walkway on the dome area
* Mechanically foldable fall protection on the walkway in accordance with UVV
* Access ladder on the right side of the container
* The filling dome is on the front of the tank
* There are 4 baffles in the tank
DRAIN SYSTEM:

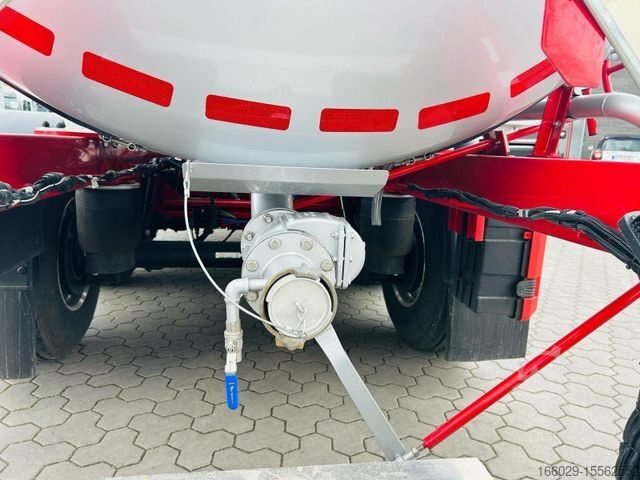

* There is a DN100 bottom valve with handwheel operation on the discharge line, in accordance with the EN 14433 standard for dangerous goods.
* Outlet line According to standard EN14433, outlet line starts with 4" bottom valve with handwheel control and leads to a 2nd safety valve for safe unloading (according to standard EN14432, 4" butterfly valve with mechanical control) and ends with a 3" TW coupling with internal thread and blind cover. A 1/2" sampling tap is included between the butterfly valve and TW coupling.
* 1 x 6 m hose holder in an open-top box made of aluminum
CHASSIS:
* BPW axle with air suspension and disc brake and 3 x 9 tonnes permissible load capacity
* BPW axles with 22.5" disc brake
* Lift axle system on the 1st axle works automatically

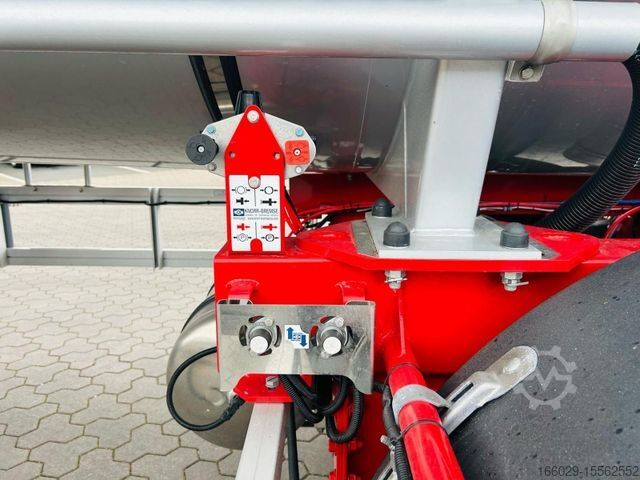

* KNORR-ILVL electronic air suspension ECAS

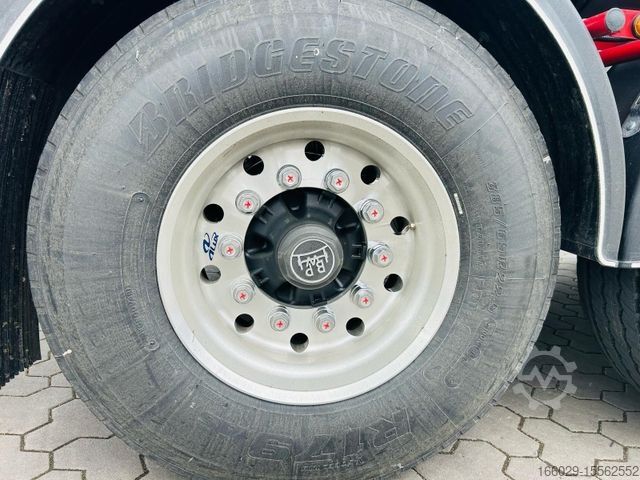

* Tire size 385/65 R 22.5" 6-way
* ALUMINUM rims
* 1 x work light on the tank

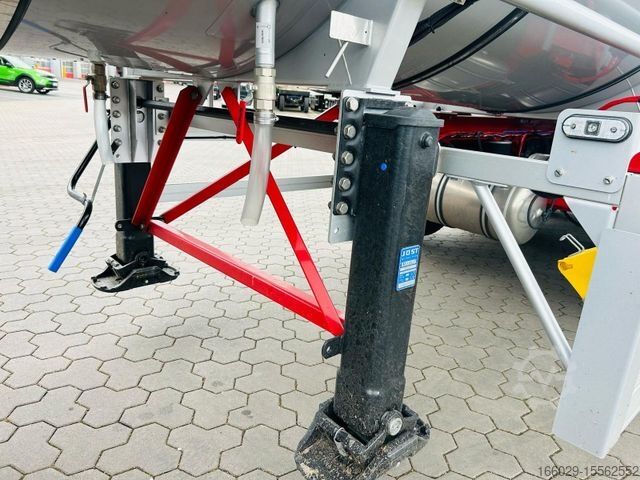

* Jost supports

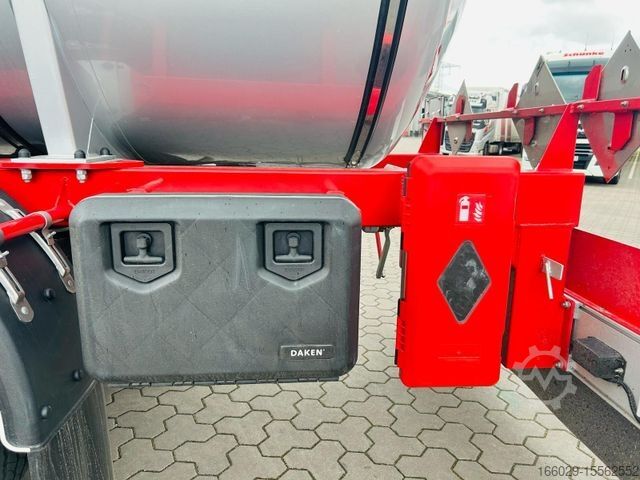

* 1 x plastic tool box, 400x480x600 mm
OTHER:
* ADR - Signum brand plate made of stainless steel, with a set of interchangeable numbers and foldable design
* Danger sign in rigid design
* Danger sign no: 3
* Danger sign no: 9
* Temperature sign
* Environmental protection sign
* 2 x fire extinguisher box without Fire extinguisher
COLORS:
* Chassis color RAL 3002 carmine red
* Container color RAL 9006 white aluminum + paint
Pjc R Njr I S H Eec Ifnegn
We are happy to provide you with further information
