Полуприцеп-цистерна

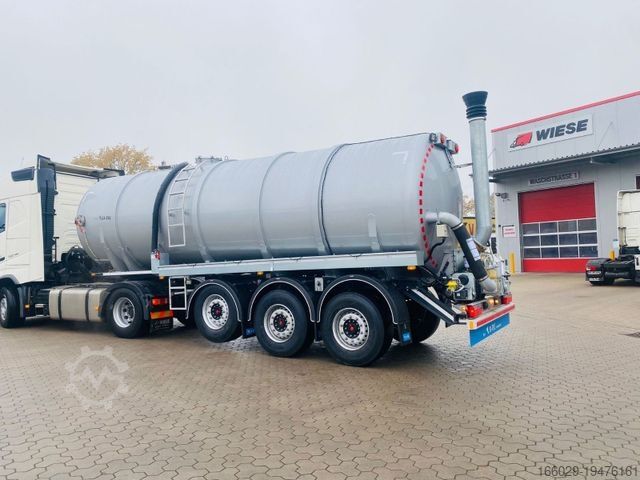

Полуприцеп-цистерна D-TEC Gülletanker SV 2011 "SV2006 BASIC"
Год выпуска
2025
Состояние
новое
Цена без учета НДС
15805600.00
Отправить сообщение
Описание
Equipment:* Tank volume 30m3, Ø2200mm, wall thickness 3mm, temperature 0-60°C
* Extended swivel pipe
* 4" flushing line with 2 free falls of 2.5", 1x at the front and 1x in the middle of the tank.
* Flushing line on the left side ü Tension cables over the hose trays

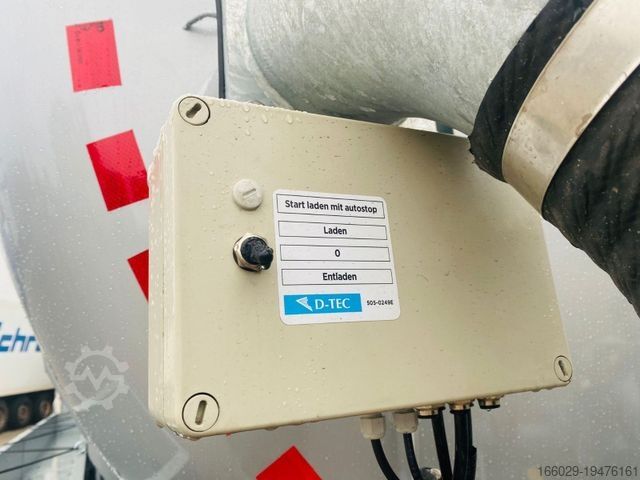

* Automatic pump shutdown. ü Axle also equipped with anti-spray mat
* Bracket with 2 wheel chocks

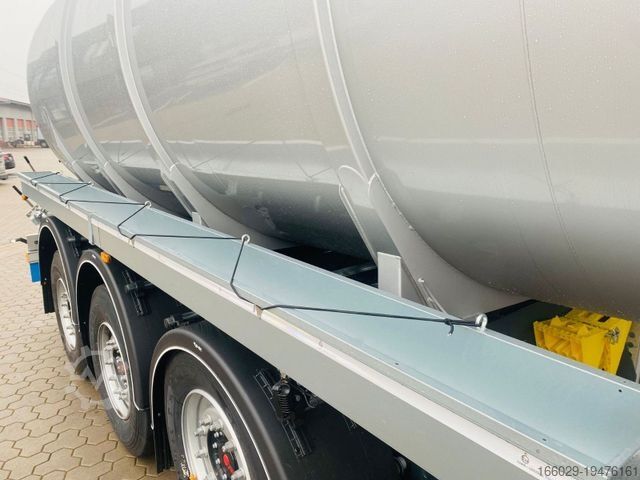

* Left and right (narrow and high) hose racks, each 5m, made of galvanized steel (250mm wide, 190mm high).
Pump

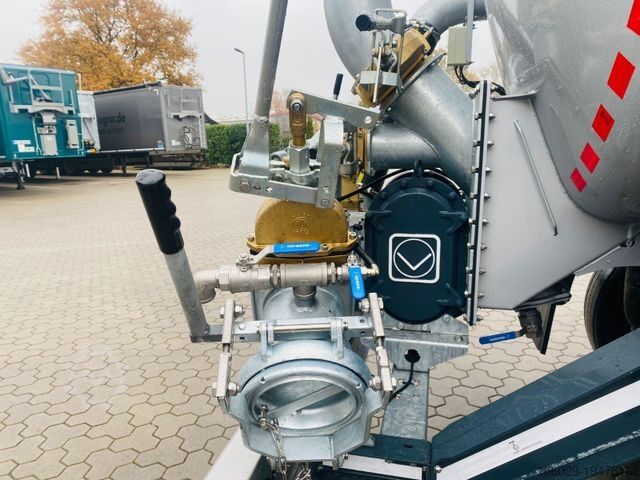

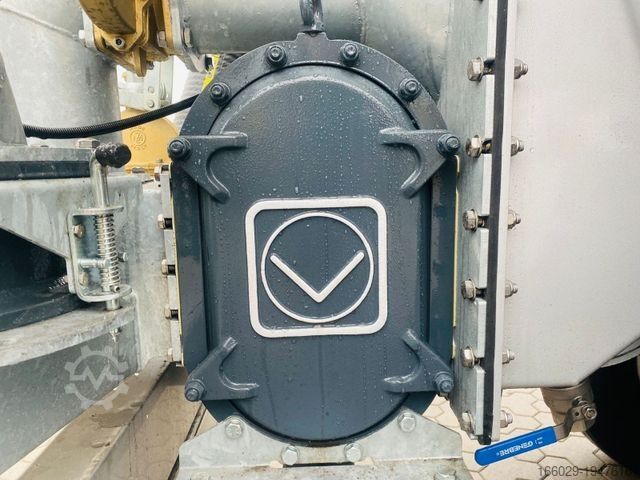

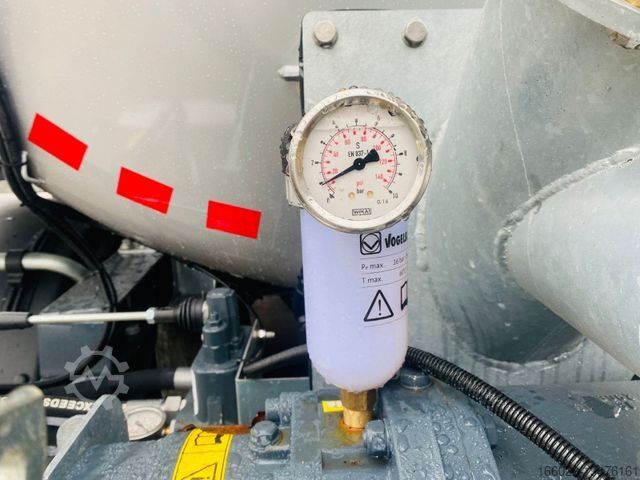

* Vogelsang pump, 6,000L / min.
Axles
* 9 ton axles Valx Ø430 disc brake, ET120
Brake

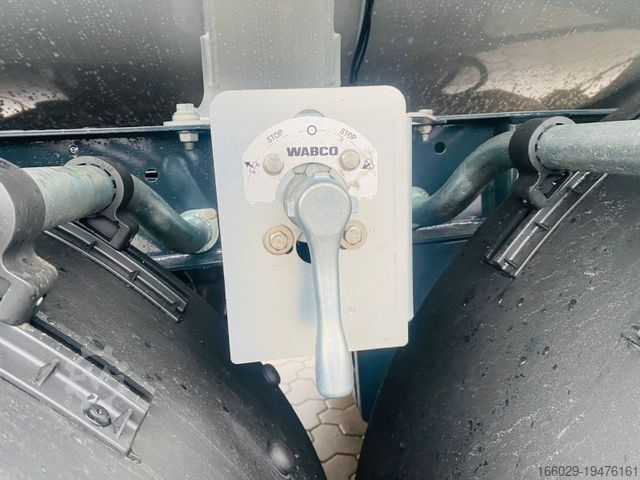

* EBS braking system Wabco
* TPMS ü Wabco Tire Pressure Monitoring System in accordance with R141
* No electronic air suspension
Extra options
* Third axle as a trailing axle.
Lift axle
* Automatic lift axle on the first axle automatically switched depending on the load, or by applying the brake 3 times.
* With traction aid, load on the 2nd and 3rd axle up to 130% under 30 km/h.
Tire size
Dwec Ed Ddowwn Abocob
* Tire size 385/65 R22.5
Tires
* Apollo
Lighting
* 24 volt lighting device
Lighting options
* Flashing side marker lights
* Work lights left and right, on the first axle.
* 2x LED work lights at the rear. 1x left, 1x right mounted on the hose racks
Painting
Painting of the tank in RAL 7030 STONE GRAY
* Painting of the chassis in RAL7016 ANTHRACITE GRAY
Other

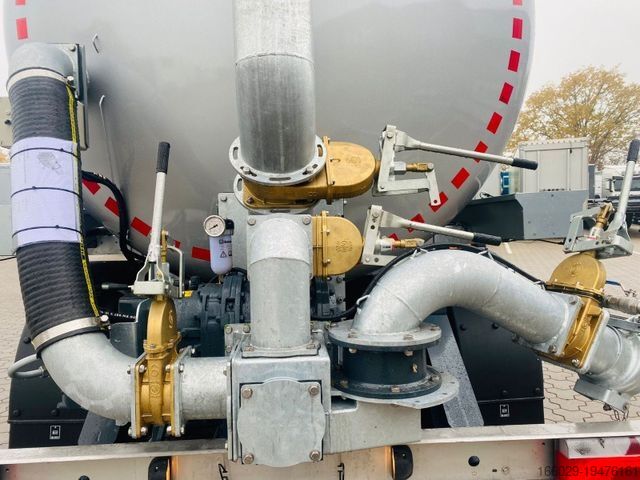

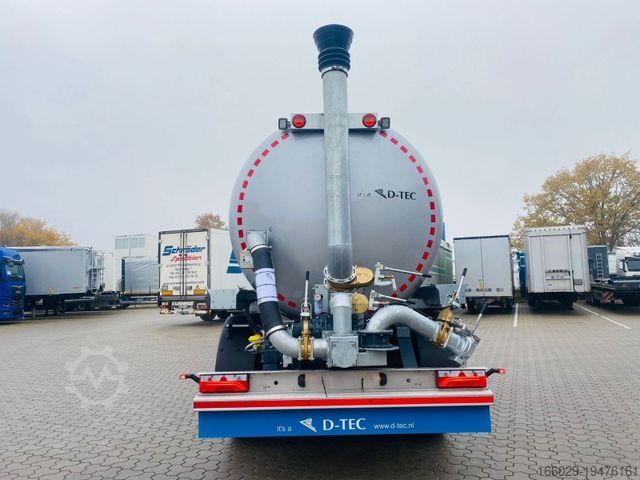

* Free fall connection at the rear of the pump. Connection with manual fitting 6? ball valve for emptying the tank, venting container made of V2A

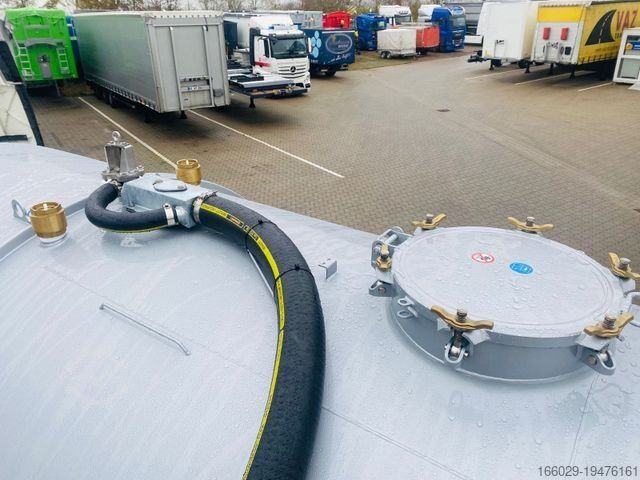

* Docking funnel 8? at the top of the rear. Pipe down to the bottom of the tank with a manual slide.
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Общая высота
3 770 мм
Оборудование
ABS
Максимальная грузоподъёмность
30 000 кг
Конфигурация осей
3 оси
Объем грузового пространства
30 м³
