Платформенный трейлер

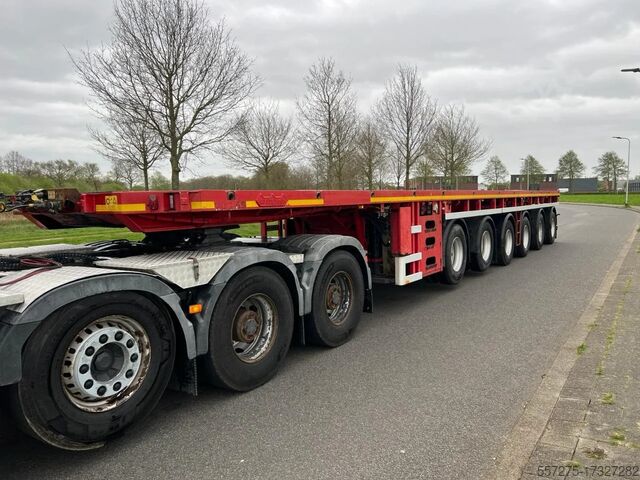

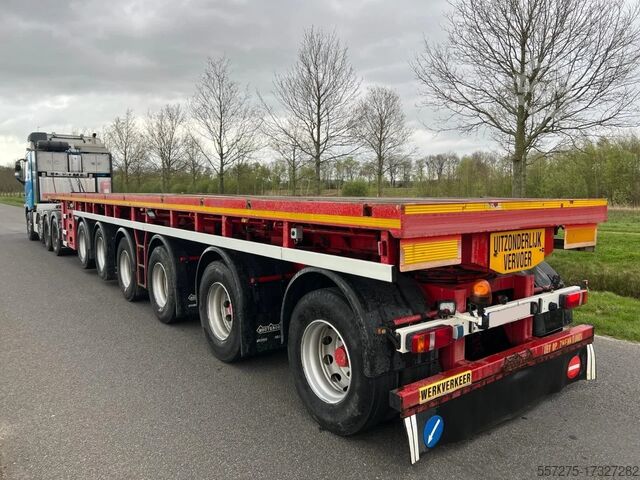

Платформенный трейлер Nooteboom OVB-102-06
Год выпуска
2009
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Color : Red
payload weight: 85240 kg.
Main features
Manufacturer: Nooteboom
Type: 0VB-102-06 Ballast Trailer

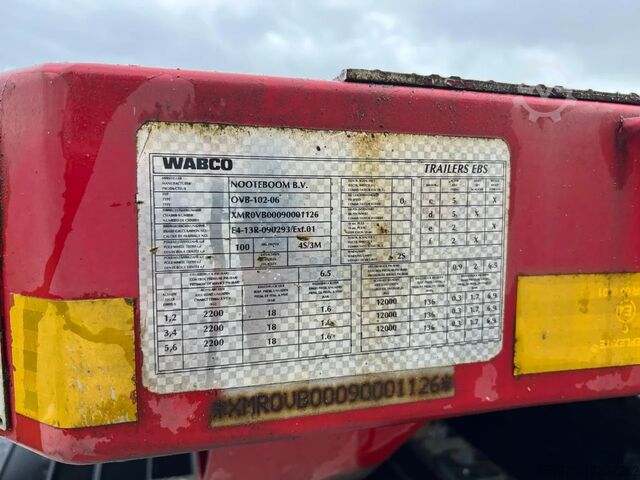

Chassis number: XMR0VB00090001126
Year: 2009
Psc R Nc Ifouu Hgwjnjgn
Weights/Loading Capacity
Axle load: 12,000 kg per axle
Total Axle Load: 12,000 kg x 6 = 72,000 kg
Gooseneck load: 30,000 kg
GVW: 102,000 kg
Empty weight: 16,760 kg
Loading capacity: 85,240 kg

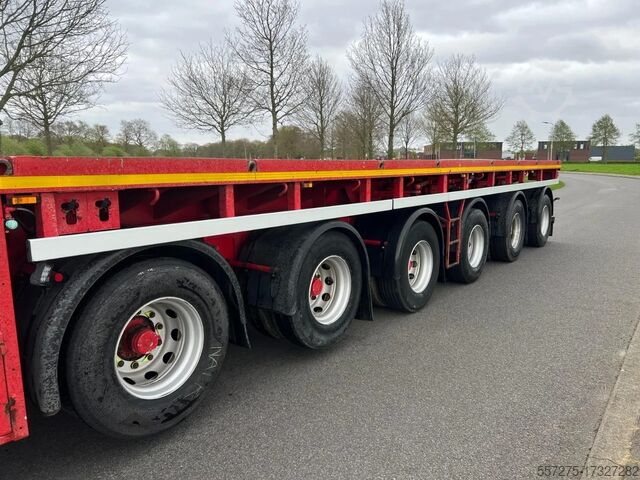

Axles
Brand Axles: SAF
Hydraulic suspension
1st axle friction steering + liftable
2nd axle rigid
Axles 3 to 6 hydraulic steering

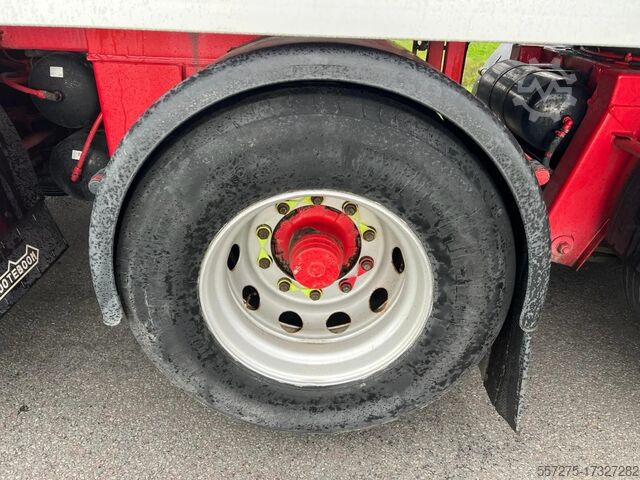

Tires: 295/80R22.5 double fitted
Dimensions
Total Length: 15,570 mm
Loading floor width: 2,520 mm
Height empty: 1,670 mm
Height loaded: 1,605 mm
King-Pin height: 1,345 mm
R. to rear: 2,750 mm
R. to front: 1,560 mm
Additional Information
NATO plug

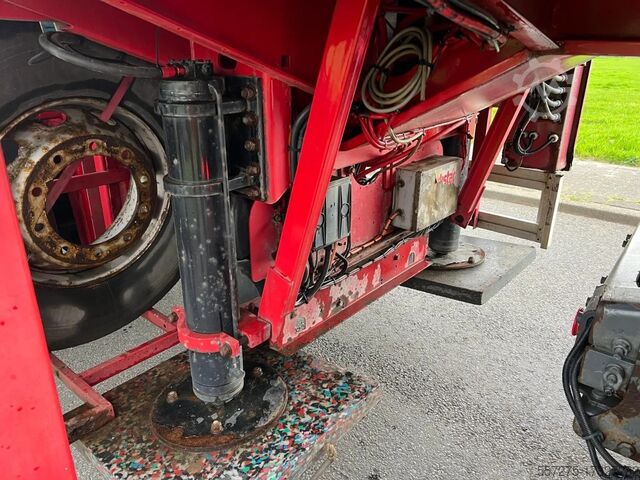

Hydraulic landing gear
Hand-controlled steering
Spare tyre
Lashing rings
Stake pockets

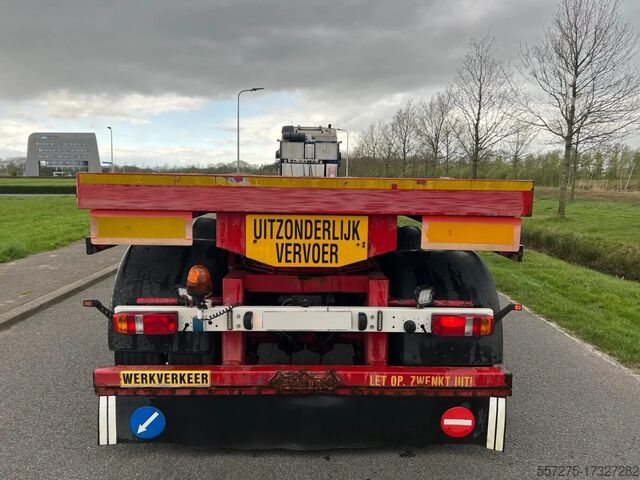

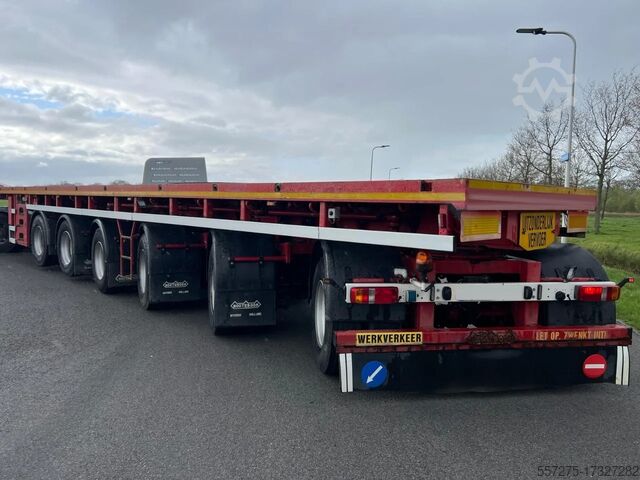

Rear bumper with lights
King-pin 3.5 Inch”
Stairs at frame

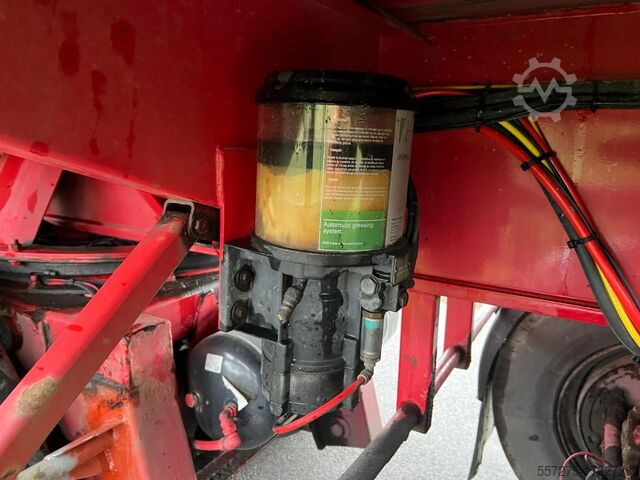

Central greasing
= Additional information =
General information
Year of manufacture: 2009
Axle configuration
Tire size: 295/80 R22.5
Axle brand: SAF
Suspension: hydraulic suspension
Rear axle 1: twin tyres; lift axle; Max. axle load: 12,000 kg; Steered
Rear axle 2: double tires; lifting axle; max. axle load: 12000 kg
Rear axle 3: double tires; max. axle load: 12000 kg; steered
Rear axle 4: double tires; max. axle load: 12000 kg; steered
Rear axle 5: double tires; max. axle load: 12000 kg; steered
Rear axle 6: double tires; max. axle load: 12000 kg; Steered
Dimensions
Dimensions (L x W x H): 1557 x 252 x 167 cm
Weights
Empty weight: 16,960 kg
Payload: 85,040 kg
GVW: 102,000 kg
Functional
Loading area height: 167 cm
Condition
Technical condition: very good
Visual condition: very good
Damage: none
Further information
Contact Stefan Schaapveld for more information.
Характеристики
Цвет
красный
Конфигурация осей
3 оси
Размер шины
295/80 R22.5
Колесная база
1 650 мм
Подвеска
гидравлика
Ширина пространства для загрузки
2 520 мм
Длина грузового отсека
15 570 мм
Высота грузового отсека
1 670 мм
