Платформенный трейлер

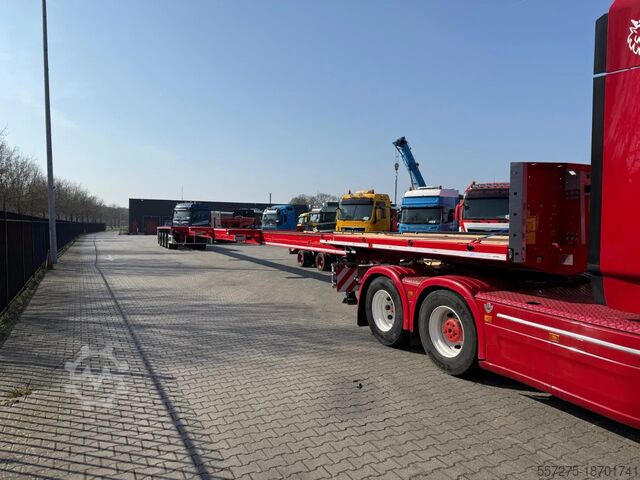

Платформенный трейлер Faymonville F-S44-1BBY
Год выпуска
2024
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Color: Red
Load capacity: 60,800 kg
Expandable
Main features
Manufacturer: Faymonville
Type: F-S44-1BBY Triple Extendable Flat Bed
Chassis number: YAFSR4009S0036724
Year: NEW / Unused
Weights/Loading Capacity
King pin load: 28,000 kg
Axle load: 12,000 kg
Total axle load: 48,000 kg
GVW: 76,000 kg
Empty weights: 15,200 kg
Loading capacity: 60,800 kg
Pec R Nc Iev I Dqqefnsgn
Axles
Brand Axles: BPW
Air suspension
All Axles Hydraulic Steering
WABCO braking system with EBS
Tires: 275 / 70 R22.5 – Good Year
Load index 148/145M
Dimensions
Length: 13,600mm
Extensions: 7,200mm + 7,400mm + 7,600mm
Max extended length: 35,800 mm
Loading floor width: 2,540 mm
Height: 1,550 mm (+/- 100 mm)
Additional Information
High Resistance Metallization of steel construction
NATO plug
Lashing all around
Stake pockets

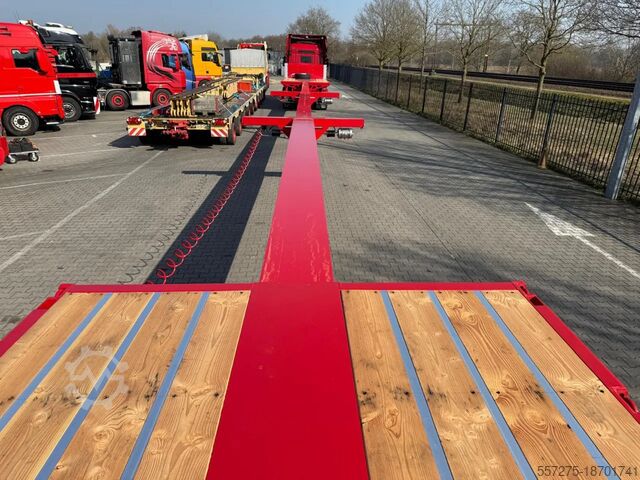

Wooden loading floor

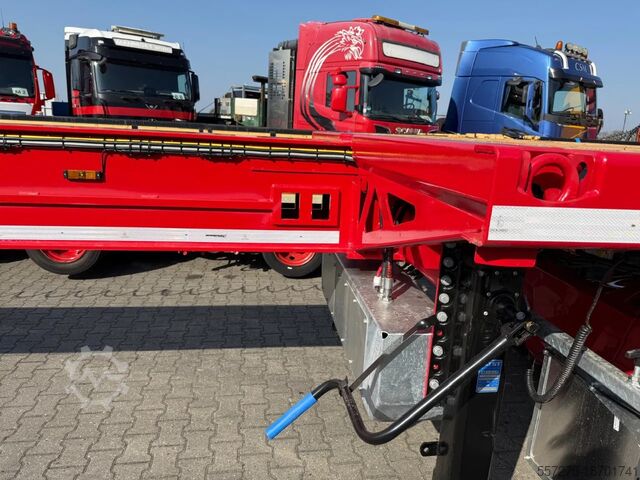

Mechanical landing gear
Electro hydraulic pump for functions of trailer
Spare wheel
Rear bumper with lights
King pin 2.0” + 3.5”
Central greasing with 2 BEKAMAX pumps
= Further information =
General information
Year of construction: 2024

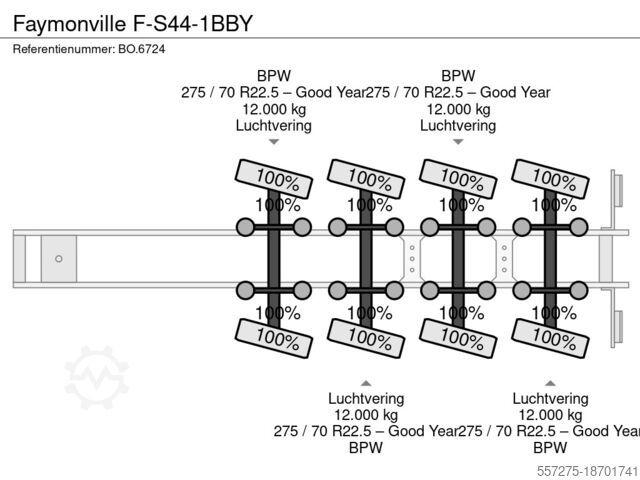

Axis configuration
Refen size: 275 / 70 R22.5 – Good Year
Axle brand: BPW
Suspension: Air suspension
Rear axle 1: Twin tires; Max. axle load: 12,000 kg; Steered; Tire profile, left inner: 100%; Tire profile, left outer: 100%; Tire profile, right inner: 100%; Tire profile, right outer: 100%
Rear axle 2: Twin tires; Max. axle load: 12,000 kg; Steered; Tire profile, left inner: 100%; Tire profile, left outer: 100%; Tire profile, right inner: 100%; Tire profile, right outer: 100%
Rear axle 3: Twin tires; Max. axle load: 12,000 kg; Steered; Tire profile, left inner: 100%; Tire profile, left outer: 100%; Tire profile, right inner: 100%; Tire profile, right outer: 100%
Rear axle 4: Twin tires; Max. axle load: 12,000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Dimensions
Dimensions (L x W x H): 1,360 x 254 x 155 cm
Weight
Unladen weight: 15,200 kg
Payload: 60,800 kg
GVW: 76,000 kg
Functional
Loading area height: 155 cm
Extendable body: Yes
Condition
Technical condition: very good
Visual condition: very good
Further information
Contact Stefan Schaapveld for further information.
Характеристики
Цвет
красный
Конфигурация осей
3 оси
Размер шины
275 / 70 R22.5 – Good Year
Подвеска
воздух
Ширина пространства для загрузки
2 540 мм
Длина грузового отсека
13 600 мм
Высота грузового отсека
1 550 мм
