Открытый полуприцеп
Открытый полуприцеп FLIEGL 3-Achs Gardinen Sattelauflieger
Состояние
новое
Отправить сообщение
Описание
Daily registration in 06/2024 due to the new TPMS regulation
Chassis
Fine-grain steel welded construction, fifth wheel plate with replaceable 2" kingpin
Outer frame slightly slanted with "Load-Lock profile" for tensioning belt attachment
24 ton. 2-speed support winch, one-side operation
Poc R Nc Isri Hihjfnegn
Side impact protection aluminum
Underrun protection galvanized steel
Quarter-shell fenders in front of and behind axle unit
with anti-spray splash flaps according to EC
Ram protection at the rear
Spare wheel holder for 1 electric bike, with wheel mounting kit
Axles + suspension
SAF disc brake axles with 430 mm disc diameter
"Laser-measured axle/chassis" Reduction in tire wear incl. and fuel consumption
1st axle automatic lift axle, can also be operated electrically from the truck
including forced lowering and starting aid, without truck installation
Brake system
2-line compressed air Brake system
Spring-loaded parking brake

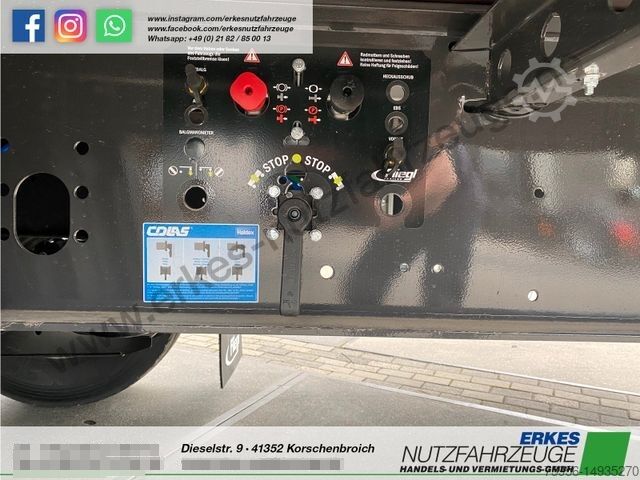

EBS made by Wabco, electronic braking system with EBS socket at the front, without connecting cable
with lifting & lowering valve + auto-reset function
Vehicle - driving stability system
Axle load detection via EBS-Canbus signal, for display on display
Wheels and tires
385/65 R22.5" / 6 steel rims, factory silver
Electrics
24 volts, multi-chamber lights, yellow LED lighting on the side
2 white position lights at the front in LED
2 white/red lane keeping lights at the rear
2 x 7-pin and 1 x 15-pin, non-interchangeable sockets at the front, without connecting cable
2 additional LED work lights, at the rear, switched via reversing light

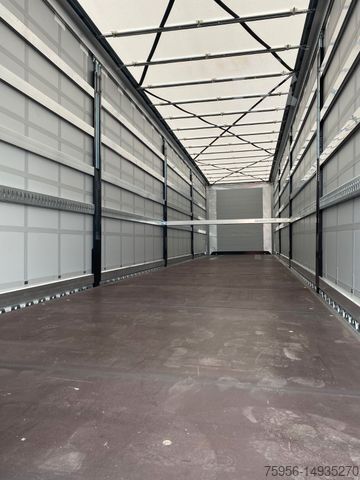

Floor
Screen-printed panels approx. 30 mm thick, on longitudinal beams for high point load capacity for forklift axle load up to max. 7100 kg Front wall
Plug-in slats
5 Rows of aluminum V-slats
2 pairs of Vario steel slats, in conjunction with Vario beams for securing loads at the front and rear, then no need for slats in the area of the steel slats
Rear portal doors, 2-winged, each with 2 internal espagnolette locks
Tarpaulin, with welded-in horizontal and vertical straps
Empty weight: 5,960kg
Offer and images subject to change
Характеристики
Конфигурация осей
3 оси
Ширина пространства для загрузки
2 480 мм
Длина грузового отсека
13 650 мм
Высота грузового отсека
2 680 мм
