Открытая платформа Fliegl SZS 280 Jumbo Plateau

Описание

Further information
Chassis saddle forwarding
Fine-grained steel welded construction, saddle plate with replaceable 2 king pins
Outer frame slightly slanted new design with Load-Lock profile for tensioning strap attachment
24 t. 2-speed support winch, single-sided operation, with straight lower section, without thrust compensation
Free support foot corner dimension or free swing radius to the rear approx. 1920 mm
2 wheel chocks with holder
Aluminum side impact guard
Steel underride guard
Quarter-shell mudguards in front of and behind each axle
1 spare wheel holder for 1 e-wheel, with wheel fastening set
1 plastic tool box, with shelf, w=620/h=360/t=440 mm, lockable with a padlock. (lock not included in scope of delivery)
Axles + suspension
Drum brake axles of the manufacturer's choice
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Air suspension
Brake system
2-line compressed air brake systemColor-coded line routing for easy servicing.
Spring-applied parking brake
Duomatic connection at the front, without connecting line
EBS, electronic braking system with EBS socket at the front, without connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve
Vehicle stability system
Wheels and tires
235/75 R17.5 tires of the manufacturer's choice
Steel rims, factory silver
Electrical system
24 volt, multi-chamber lights, amber LED lighting at the sides
2 white position lights at the front
2 white/red rear lane departure lights
1 x 15-pin socket at the front, without connecting cable
Floor
Screen printing plates approx. 30 mm thick, for high point load capacity for forklift axle load up to max. 5,600 kg
Front wall / front corner stanchions
25 mm aluminum hollow profile, approx. 1 350 mm high, steel corner stanchions in volume design
Approval country / plates
Germany
Poc R Nc Ijkv Uvzofnsgn
with Dekra approval and expert opinion (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paintwork
Hot-dip galvanized frame incl. passivation 15-year warranty against rusting through
Front wall aluminum

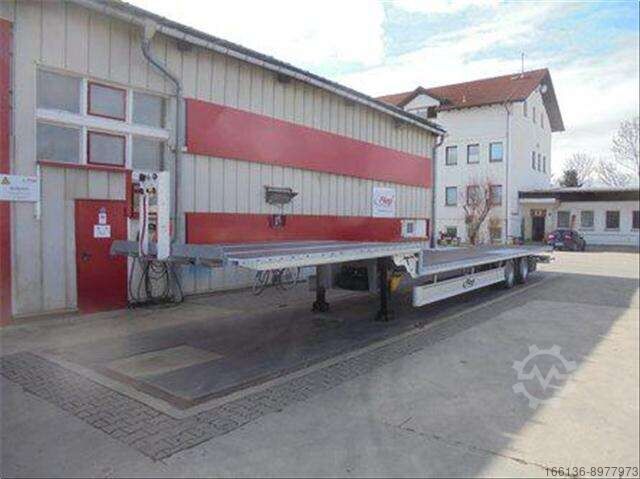

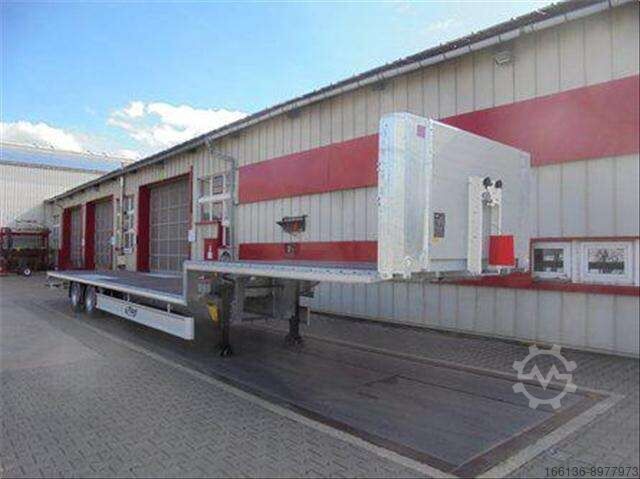

Attention! These are archive pictures!
