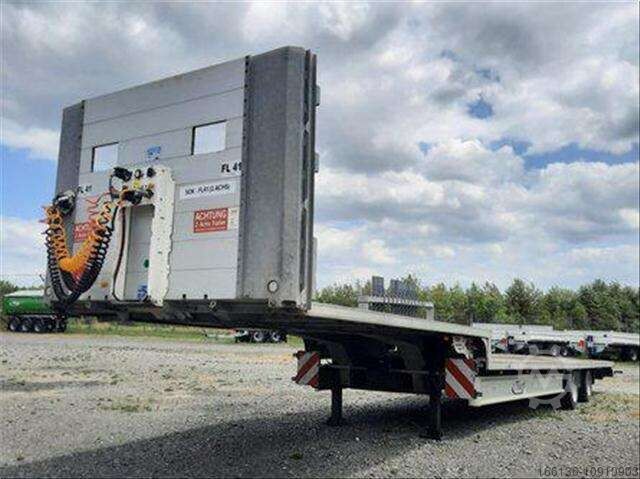

Открытая платформа Fliegl SZS 260 Mega Jumbo TWIN

Описание

Further information
Welded fine-grained steel construction, saddle plate with replaceable 2 king pins Reinforcer mounting point for gallows mounting and with sturdy grinding plates drum profile made of flat steel underneath the outer frame.
Outer frame slightly inclined with Load-Lock profile for attaching tension beltsNote! To attach the belts in conjunction with drop sides, the drop sides must be opened!
Pgoc R Nc Ifjmp Ug Donsn
24 to. 2-speed support winch, single-side operation, with straight lower section, without thrust compensation
Wheel chocks with holder, aluminum side bumpers, offset inwards as far as technically possible, steel underride guard, as much ground clearance as possible, quarter-shell mudguards in front of and behind each axle, suspension strip for aluminum ramps at the rear, plastic toolbox, with shelf, w=620/h=360/t=440 mm, lockable with a padlock. (lock not included in scope of delivery)
SAF drum brake axles, with axle stopsAxle distance 1600 mm, air suspension with lifting & lowering valve
205 / 65 R 17.5, twin steel rims, factory silver
2-line compressed air brake system, spring-loaded parking brake, 2 interchangeable front coupling heads, without connecting cable, EBS, electronic brake system with EBS socket at the front, without connecting cable, Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
24 volt, multi-chamber lights, amber LED lighting integrated in outer frame profile at the side, offset inwards by approx. 25 mm, 10 lights per side
2 white position lights at the front, protected, 2 white/red lane departure lights at the rear, additional LED work light(s) at the rear, switched via reversing light
2 x 7-pin and 1 x 15-pin swap-proof sockets at the front, without connecting cable
Screen printing plates approx. 30 mm thick, for high point load capacity for forklift axle load up to max. 5,600 kg Special floor installation: test of new profiles, without bolting
Steel/checker plate covering in the wheel arch area, front wall/front stanchions, 25 mm aluminum hollow profile, approx. 800 mm high, steel corner stanchions in volume design, with viewing windows on both sides.
Approval country: Germany, with Dekra approval and certificate (according to §13 EG - FGV), 24/7 service hotline, prepared for single-line license plate holder, contour marking with reflective strips according to ECE R 048, white at the sides and red at the rear
