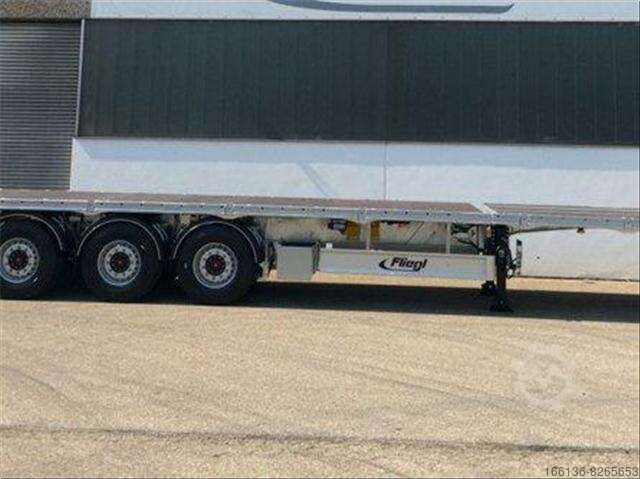

Открытая платформа Fliegl SDS 390 Plateau mit Teleskopierung für Baustahlmattentransport

Описание

Further information
Chassis semitrailer forwarding
Fine-grained steel welded construction in lightweight design, fifth wheel plate with replaceable 2 king pins, main frame reinforcement for 25 tons in the centre of gravity on 3 m loading length when pushed together.
13 pairs of hooks for lashing strap attachment welded onto the cross members
23 pairs of lashing eyes embedded in the outer frame, 3.5 tons each
Outer frame with Load-Lock profile for lashing strap attachment
Please note! Cannot be used with drop sides!
24 t. 2-speed support winch in reinforced design for loaded trailer, single-sided operation, with semicircular lower section and straight connecting plate, with thrust compensation
Wheel chocks with holder
Aluminum side bumper
Underride guard
Half-shell mudguards
with anti-spray flaps according to EG
1 spare wheel holder for 1 electric wheel, with wheel mounting kit
1 closed stanchion stowage box, open at the top, below loading area, doors on both sides, w=450 mm/H=400/420 mm/t=2460 mm
6 pairs of extendable stanchion pockets, for 80x80 mm tubular stanchions, extendable from loading width 2000 mm to 3100 mm
4 pairs of stanchion pockets embedded in the outer frame, for 80x80 mm shaped tubes
11 stake pockets centrally recessed in the floor, for 80x80 mm shaped tubes, with reinforcement beam, each installed between the outer stake pockets
5 x 3 pairs of stanchion pockets recessed on the outside of the longitudinal beams, for 80x80 mm shaped pipes, including reinforcement beams - for securing loads to the front and rear when transporting 2x5000 mm or 2x 6000 mm construction steel mats
6 lightweight stanchions W=80/ D=80/, usable height approx. 1850 mm, hot-dip galvanized, top with cable guide for belt tensioning
12 lightweight stanchions W=80/ D=80/, usable height approx. 1850 mm, hot-dip galvanized, with lashing eyes welded to the bottom on both sides
Note: stanchion pockets / stanchions are not designed for securing long materials, pipes etc. on their own without looping around them
2 plastic toolboxes, with drawer and shelf, w=650 / h=520 / d=670 mm, lockable with a padlock (lock not included)
6 construction steel winches with wire rope and counter hooks, with rope feed-through through the outer frame, 1 removable slip-on gear for construction steel winches - supplied loose (without bracket on the frame)
Telescoping
Pjc R Nc Ioi Ri Szjfnegn
Main frame can be telescoped
Extendable by max. 4,000 mm and can be arranged approx. every 500 mm
Locking with pneumatic bolt locking + display Frame locking on both sides, actuation via hand knob, operation for brake/locking and suspension in FR-left in front of the axles
Storage compartment between the side members when extended
Axles + suspension
SAF disc brake axles with 430 mm disc diameter
Last axle self-steering, with automatic reversing lock via reversing light, and additional locking function on the vehicle via hand button, as well as manually via switch in the towing vehicle (pin 10), without truck installation.
Offset axle spacing mm
Air suspension
1st axle automatic lift axle, can also be operated electrically from the truck, with starting aid, without truck installation (starting aid is functional up to an axle load exceeding 30% and up to a speed of max. 25 km/h)
Brake system
2-line compressed air brake system
Colored cable routing for easy servicing
Spring-loaded parking brake
2 swap-proof coupling heads at the front, without connecting line
EBS make of the manufacturer's choice, electronic brake syst
