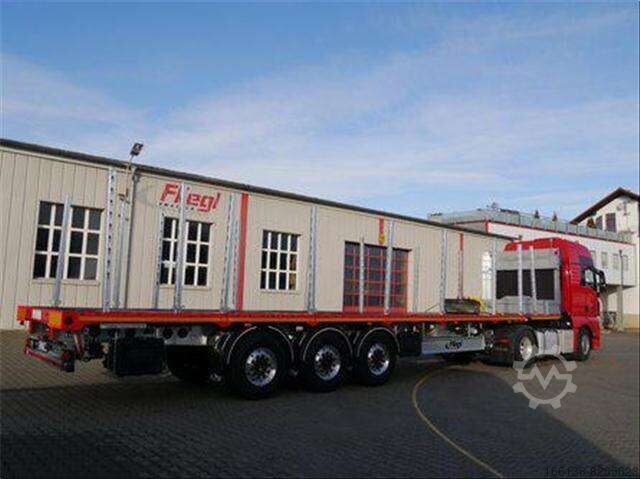

Открытая платформа Fliegl SDS 390 Baustahlmattensattel

Описание

Further information
Chassis saddle forwarding
Fine-grained steel welded construction, saddle plate with replaceable 2 kingpins
Vario stanchion system
4 pairs embedded in loading area, can be pushed together to 2 100 mm and extended to approx. 3 500 mm for loading. Stanchions can be locked every 100 mm on an internal width of 2 100 mm to 3 000 mm, 4 pairs of divisible stanchions 600 mm + 1 200 mm, total height 1 800 mm removable. With an internal stanchion width from approx. 2 350 mm, excess width.
Vario end walls
Floor prepared for inserting 3 end walls. 4 x 5 pairs of Vario stanchion pockets for insertable end walls (front and rear) and 1 x 3 pairs in the middle for transporting 2 x 5,000 mm or 2 x 6,000 mm construction steel mats.
2 Vario end walls, each consisting of 1 pair of plug-in stanchions and 1 top crossbeam approx. 2200 mm wide. Cross beams can be extended by 220 mm on both sides, with lashing hole for tensioning. 1900 mm high Vario bulkhead, can be converted to 1300 mm or 700 mm high.
4 stanchion pockets embedded in the center of the floor for 80 x 80 mm stanchions
1 pair of supports at the bottom for Vario bulkhead at the front
1 pair of lower supports for rear Vario bulkhead
Pgec R Nc Ifji Ri R Donon
Slightly slanted outer frame with Load-Lock profile for lashing strap attachment
14 pairs of lashing eyes additionally embedded in the outer frame, 5 tons each
24 to. 2-speed support winch, single-side operation, with straight lower section, without thrust compensation
Extension ladder at the rear
Wheel chocks with holder
Aluminium side collision protection
Galvanized steel underride guard
Quarter-shell mudguards in front of and behind axle unit
with anti-spray flaps on last axle only
Impact protection at the rear
8 construction steel winches with wire rope and counter hooks, 4 x left and 4 x right with rope feed-through through the outer frame, 1 removable slip-on gearbox for construction steel winches - supplied loose (without bracket on the frame)
1 spare wheel holder for 1 e-wheel, with wheel fastening set
1 plastic toolbox, with drawer and shelf, w=650 / h=520 / d=670 mm, lockable with a padlock (lock not included)
1 closed stanchion stowage box, open at the top, below loading area, doors on both sides, w=450 mm/h=400/420 mm/d=2460 mm
4 lashing/stanchion rails embedded transversely in the floor across the entire width up to the outer frame (max. usable internal width between the outer stanchions approx. 2170 mm), approx. 100 mm high. With 20 mm round steel slats, top and bottom, distance from top to bottom approx. 60 mm (of the round steel). For lashing and inserting stanchions 80 x 80 mm.
Note: Stanchion pockets / stanchions are not designed for securing long material, pipes etc. on their own without wrapping around them.
Axles + suspension
SAF disc brake axles with 430 mm disc diameter
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Air suspension
1st axle automatic lift axle, including forced lowering and starting aid, actuation of 3x brakes (starting aid is functional up to an axle load excess of 30% and up to a speed of max. 25 km/h)
Axle lift below the recomm. Driving height, therefore no warranty for tire damage
Brake system
2-line compressed air brake systemColor-coded cable routing for easy servicing.
Spring-loaded parking brake
2 swap-proof coupling heads at the front, without connecting line
EBS, electronic braking system with EBS socket at the front, without connecting cable
Attention: The trailer may only be to
