Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой Wiese Stufensattel Tieflader mit Kran Fassi F545
Год выпуска
2025
Состояние
новое
Цена без учета НДС
47288000.00
Отправить сообщение
Описание
Wiese 2-axle stepped saddle plateau with Fassi F545 crane
Mega Lowliner
Chassis
Welded construction with cross beams made entirely of high-quality steel
Neck height = approx. 220 mm including coupling plate
with all necessary chassis reinforcements and cross connections
Axles
2 BPW axles with a load capacity of 10,000 kg each with 17.5" drum brakes
ABS: 1 axle sensing
Wheelbase: 1,810 mm
Tires
8-wheel type 235/75 R17.5
Rims
Aluminum rims, 10-hole, centered, ET= 122 mm
Lighting system
24V lighting system in accordance with EU directives 76/756/EEC ff. with:
2x2 three-chamber LED lights
1x reversing light LED
1x LED fog light
LED side marker lights
Lane departure lights
License plate illumination
2x 7-pin sockets + 1x 15-pin socket connected according to EU standard
Floor
Galvanized grating covering on drop deck
Steel tear plate in the axle area
Load securing
Outer frame with lashing hole profile D030 mm in the slope
2x12 lashing points 8,000 daN in the outer frame
3x combi row of stanchion pockets for 80x80 mm stanchions in the drop deck
Accessories
2x wheel chocks with holder
Spare wheel holder Winch
2x storage box with drawer (chain storage)
Surface protection
Steel construction: blasted and primed
Coloring
Chassis/frame/floor frame: single color in RAL 3020 (traffic red)
Axle hubs: single-colored in RAL 3020 (traffic red)
Axles: KTL-coated black
Pgjcen Hrtgo R Nc Ifnjn
Rims: Aluminum Durabright

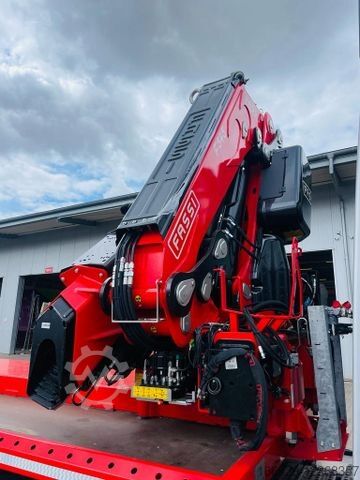

With Fassi F 545 RA.2.28 XE-Dynamic
Hydraulic outriggers
Additional support beam
360 ° working range
approx. 90 % to the front
For further information please do not hesitate to contact us
Характеристики
Общий вес
32 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Конфигурация осей
2 оси
Длина грузового отсека
12 300 мм
