Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой KÄSSBOHRER SPS Mega Schwerlast Plattform Lenkachse
Год выпуска
2025
Состояние
новое
Цена без учета НДС
10028000.00
Отправить сообщение
Описание
Brand new Kässbohrer SPS Mega heavy-duty platform trailer available immediately!
Technical specifications:
* Fifth wheel height: 950 mm
* Platform length: 13,550 mm
* Gooseneck: 120 mm
* Platform height: 1,040 mm
* Wheelbase: 7,700 mm
* Wheelbase: 1,360 mm
* Overall width: 2,550 mm
* Gross vehicle weight [80 km/h] 45,000 kg
* Gross vehicle weight [60 km/h] 46,000 kg
* Unladen weight: 7,827 kg
Chassis:
* BPW axles with air suspension and disc brakes
* Air suspension with load gauge
* 1st axle liftable
* 3rd axle as self-steering axle
* Wabco braking system

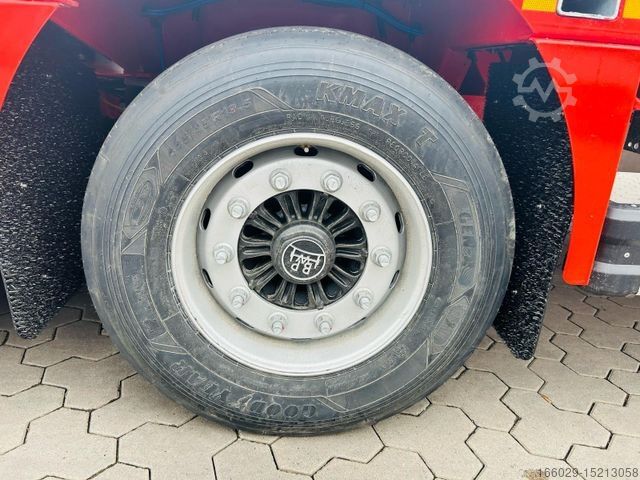

* Tires: 445/45/R 19.5
Chassis:
* Chassis made of high-quality, high-strength S700 MC steel, in accordance with ISO standards 1726
* 2 mm Omega profile reinforced 30 mm hardwood floor
Pocorukuce R Nc Ifnogn
* 8x2 units of side extensions extendable up to 300 mm

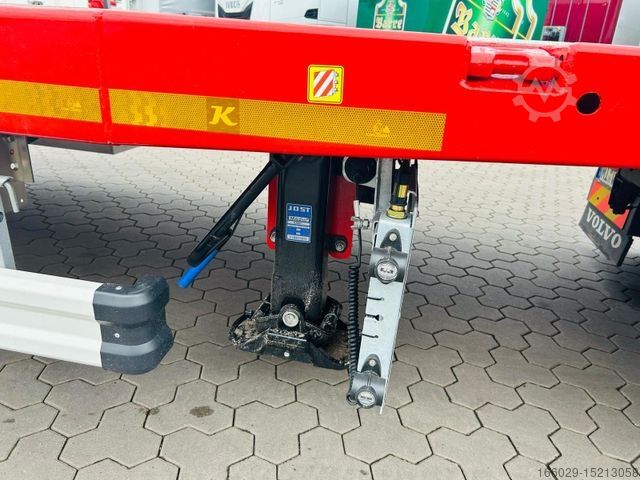

* Front landing gear, folding outriggers at the rear
Ramp:
* Mounts for ramps at the rear of the vehicle
* Rear ramp storage box
Load securing:
* Lashing rings
* Stake pockets
* 6 x 2 container locking pockets (suitable for 1x20 ft., 2x20 ft., 1x40 ft. containers) + 2 x 2 container locking devices
* 1,500 mm high steel bulkhead with Code XL certification
Accessories:

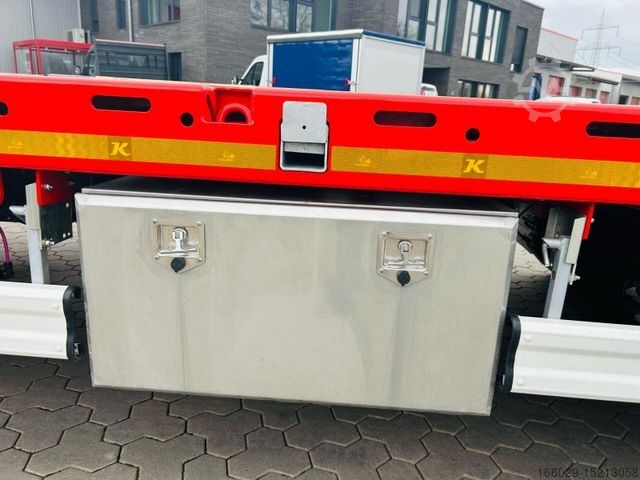

* 1x stainless steel toolbox
* Stake box
Chassis color: RAL 3020 Traffic Red
We are happy to provide you with further information.
Характеристики
Общий вес
45 000 кг
Общая ширина
2 550 мм
Общая высота
1 040 мм
Оборудование
ABS
Максимальная грузоподъёмность
36 565 кг
Конфигурация осей
3 оси
Длина грузового отсека
13 550 мм
