Полуприцеп с рабочей платформой

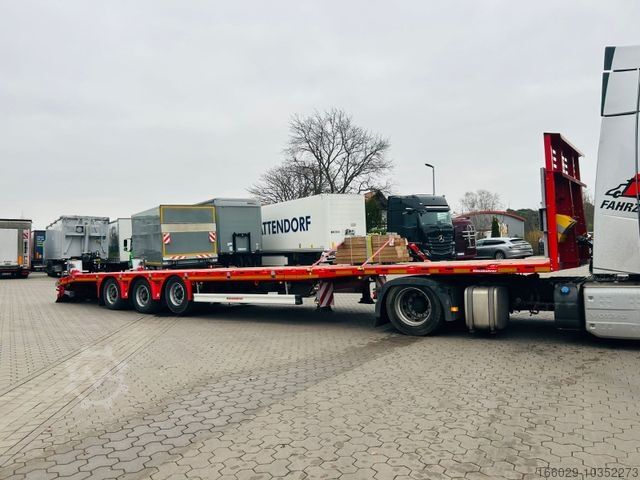

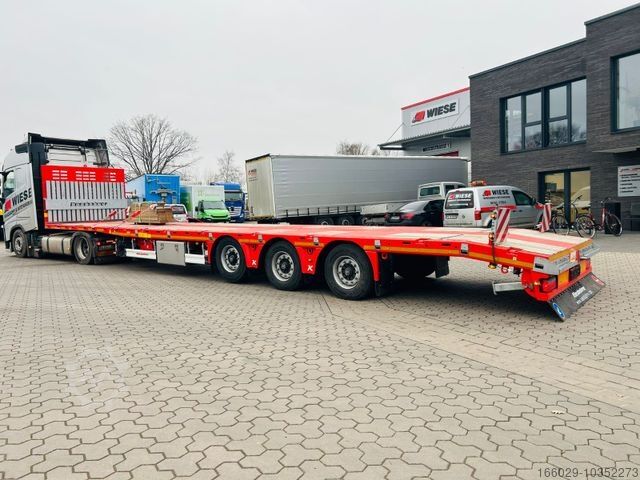

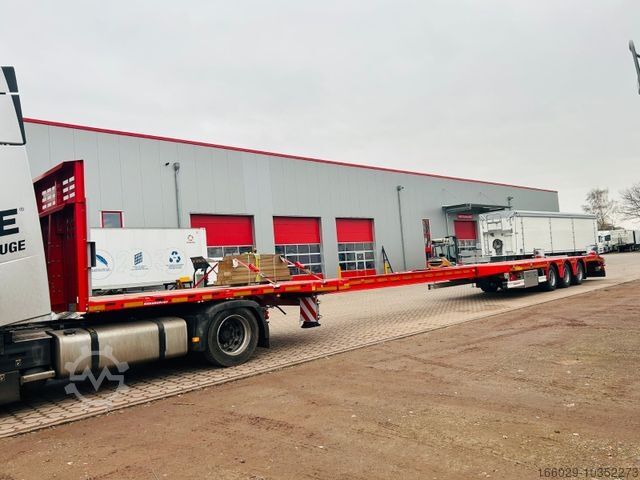

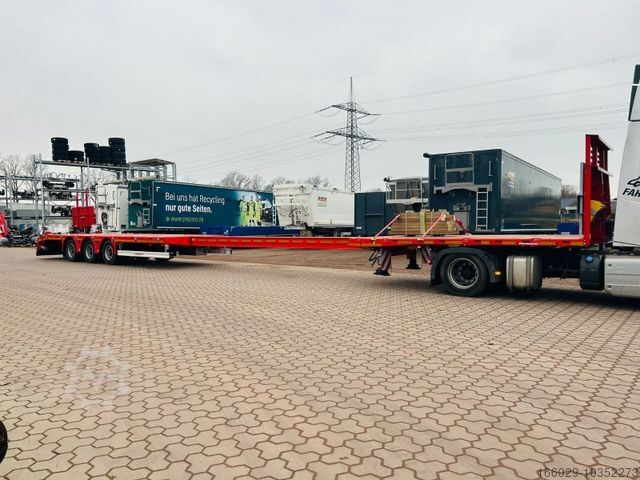

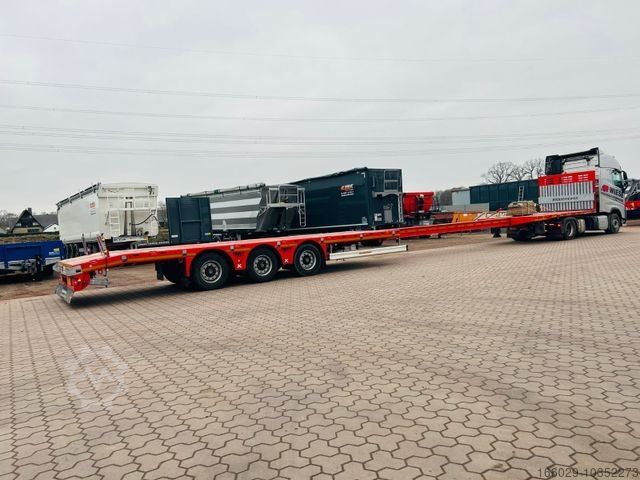

Полуприцеп с рабочей платформой KÄSSBOHRER SPA Mega Tele Plattform Auflieger
Год выпуска
2025
Состояние
новое
Отправить сообщение
Описание
Cheese drill SPA Mega extendable HD platform trailer
Immediately available
TECHNICAL INFORMATION:
Semi-mounted height 950 mm
* Outer length 13,535 mm
* Gooseneck length 4285 mm
* Platform length 8,950 mm
* Extension 6,900 mm Platform extension
* Extension locking positions 500 mm
* Gooseneck 120 mm
* Platform height (loaded) 1,040 mm
* Wheelbase 7,700 mm
* Overall width 2,550 mm
* Gross vehicle weight (80 km/h) 45,000 kg
* Gross vehicle weight (60 km/h) 46,000 kg
* Unladen weight 10,185 kg
CHASSIS:
BPW axles with air suspension and disc brakes
* 2x rigid axles at the front, 1x self-steering axle at the rear
* Air suspension incl. load pressure gauge
* 1st axle liftable

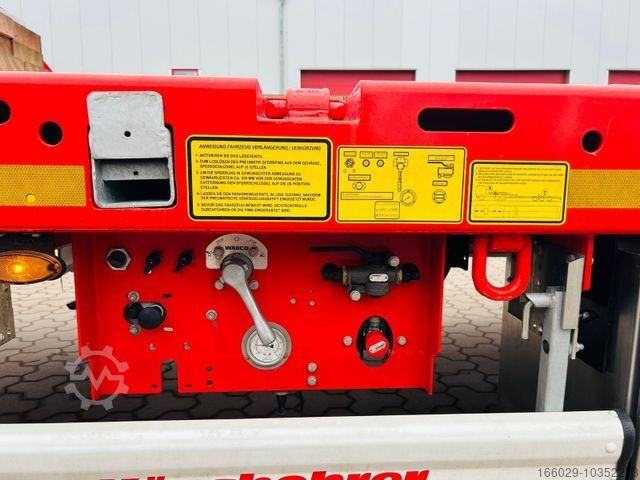

* Wabco brake system
* Tires 445/45 R19.5
* 1x spare wheel holder
CHASSIS:
Chassis made of high-quality and high-strength S700 MC steel

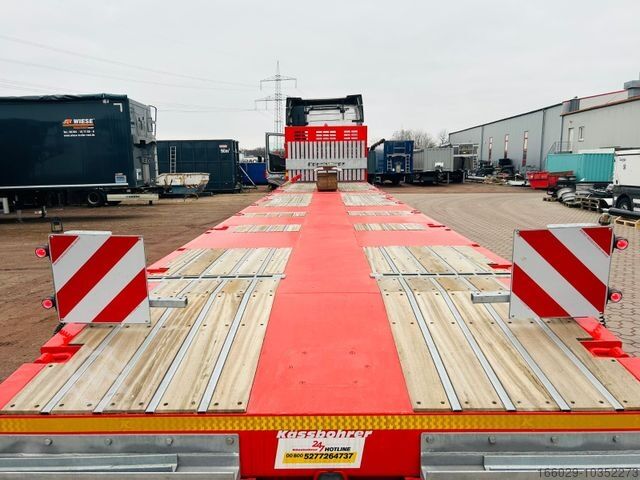

* 30 mm hardwood floor
* 8x2 side extensions extendable up to 300 mm
* Telescopic support winch front 50t capacity
* Mechanically folding rear outriggers 45t capacity
RAMPE:

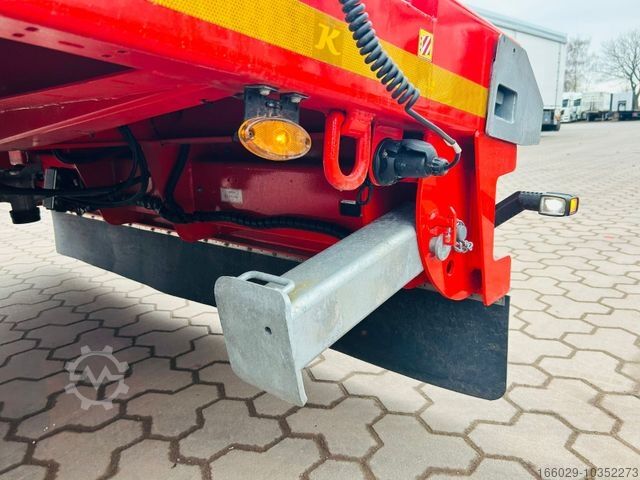

Mounts for ramps at the rear of the vehicle
LOAD SECURING:
Lashing rings
* Stake pockets
* Container locks suitable for 1x20 ft , 2x20 ft , 1x40 ft , 1x45 ft ,
* 1,700 mm steel end wall with Code XL certificate
ACCESSORIES:

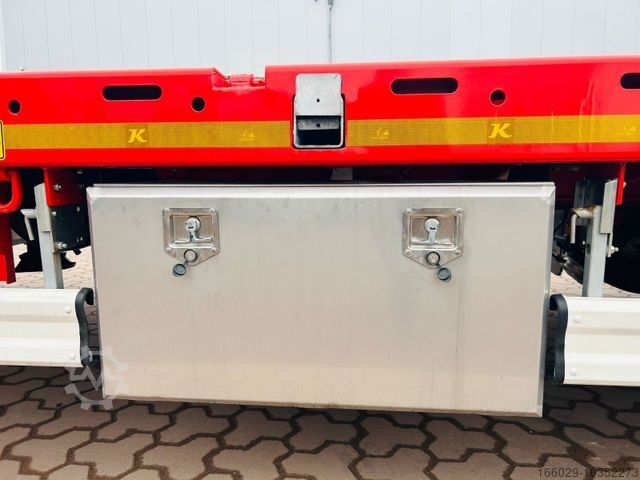

1x stainless steel toolbox
* Stanchion box on bulkhead

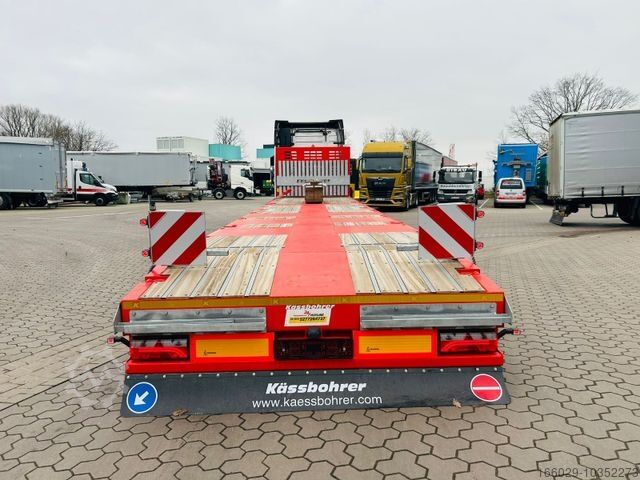

* 2 x 2 extra-wide boards with LED lighting
* Rotating beacon
Chassis color RAL 3020 traffic red
Pgscsl N Syvo R Nc Ifnjn
For further information please do not hesitate to contact us
Характеристики
Общий вес
45 000 кг
Общая ширина
2 550 мм
Общая высота
1 040 мм
Оборудование
ABS
Максимальная грузоподъёмность
34 815 кг
Конфигурация осей
3 оси
Длина грузового отсека
15 850 мм
