Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой KÄSSBOHRER Plattform MEGA SPA MR3 ausziehbar / Radmulde
Состояние
новое
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание

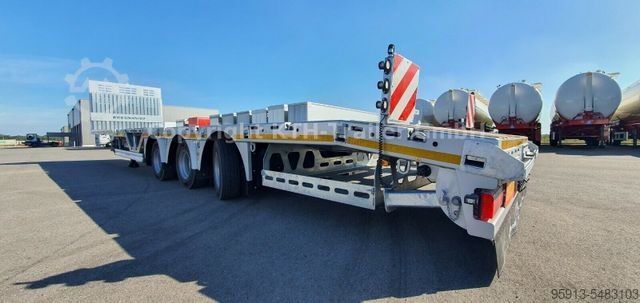

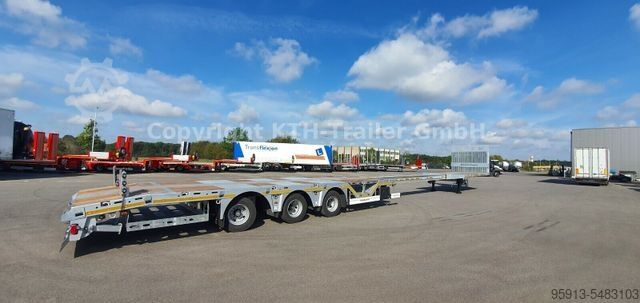

NEW VEHICLE Kässbohrer platform extendable MEGA SPA MR3 with wheel recesses
Psc R Ncsgimw Uj Ifnegn
Color nova gray
Availability: approx. 6 months after receipt of order
# Fifth wheel load 18,000 kg
# Fifth wheel height: 950mm
# 6,900mm extendable
Axles / brake system:

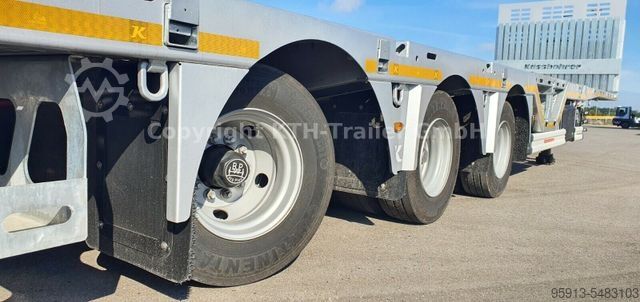

# BPW axles with drum brake 17.5"
# 3rd as self-steering axle
# 1st axle as lift axle

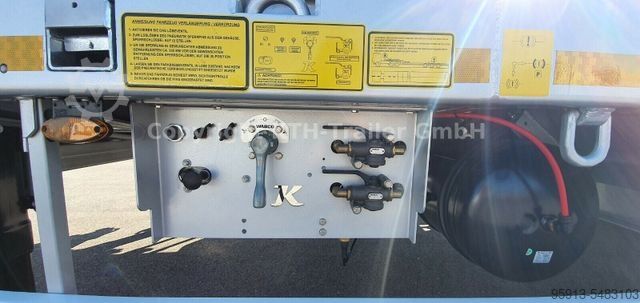

# WABCO brake system 4S/3M
# 13 x Continental HTR 2 245 / 70 / 17.5" on steel rims

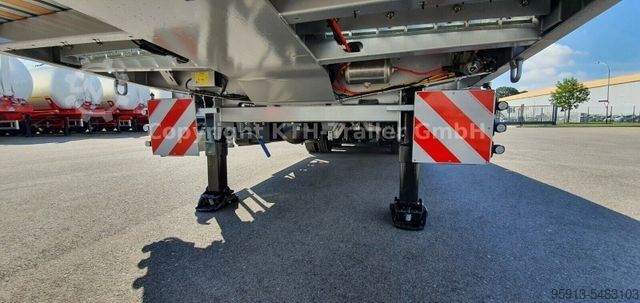

# Jost support feet 24t
# 2 x 7 and 1 x 15-pin electrical connections

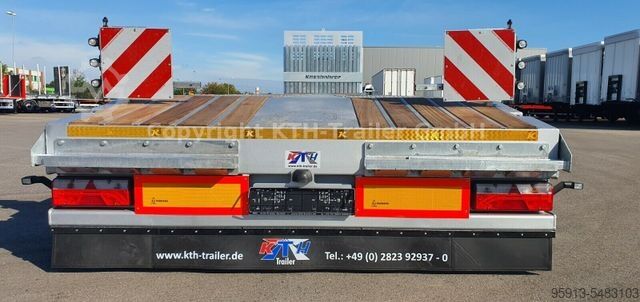

# 24V lighting system Aspöck
# 2 plastic wheel chocks
Equipment:
# Wheel recesses with hardwood cover
# Non-removable Sliding table 300mm long
# 1 x 2 aluminum landing ramps 2,400mm long, 600mm wide, capacity 32,000 kg included
# 30 mm hardwood floor

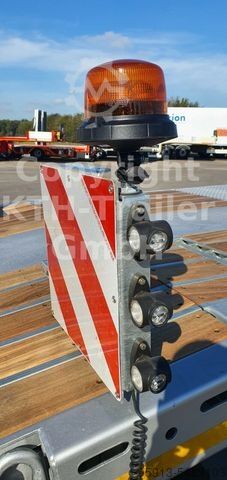

# Over-width device (4x over-width board galvanized with LEDs + 1x rotating beacon)

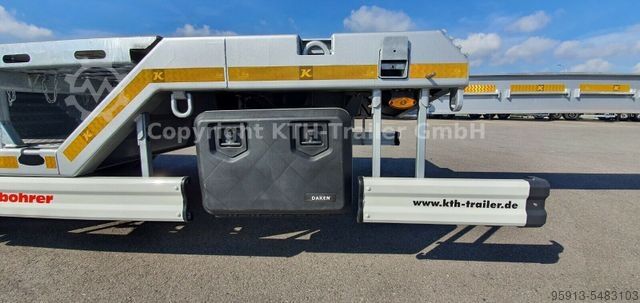

# Toolbox on the right in the direction of travel
# 6x2 holes for container locks for the transport of 1x20", 1x40" or 1x45" containers
# 4 container locks twistlocks, removable
# Stake holder mounted on the front wall without stanchions
# 4 rows of stanchion pockets
# 10 x 2 stanchion pockets in the frame

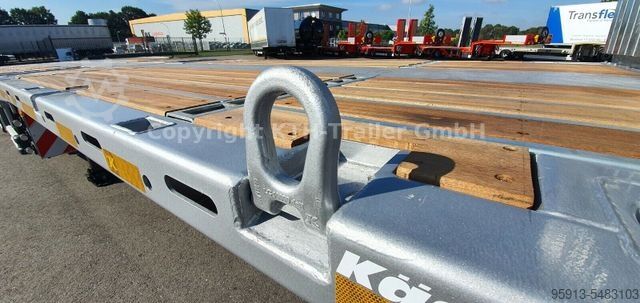

# 8 x 2 lashing rings 10t, 5 x 2 lashing rings 8t, 108 lashing points in the outer frame with 2t each,

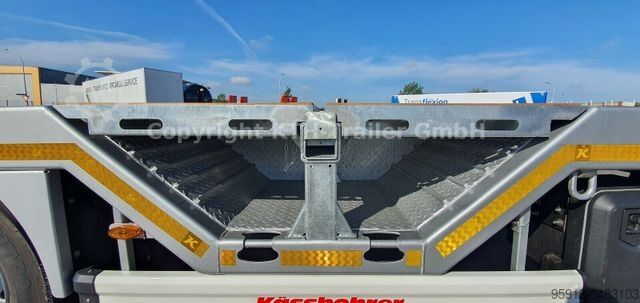

# Storage box for aluminum ramps under the chassis behind the third axle

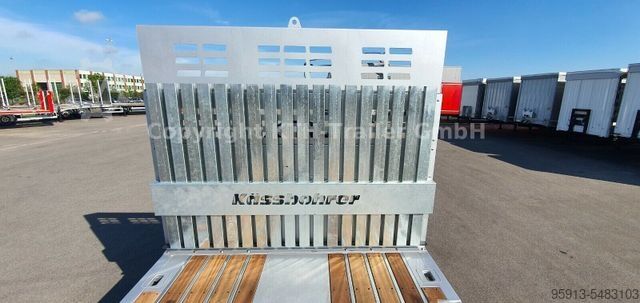

# Front wall 1,500mm+500mm high with Code XL certificate!
# Chassis KTL coated and painted MB7350 nova gray
# Front wall MB7350 nova gray
----Subject to errors, changes and prior sale!
Location: KTH-Trailer GmbH in Goch
Характеристики
Общий вес
48 000 кг
Общая ширина
2 550 мм
Общая высота
1 040 мм
Оборудование
ABS
Конфигурация осей
3 оси
