Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой KÄSSBOHRER Mega Tele HD Plattform Auflieger mit Radmulden
Год выпуска
2025
Состояние
новое
Цена без учета НДС
13045600.00
Отправить сообщение
Описание

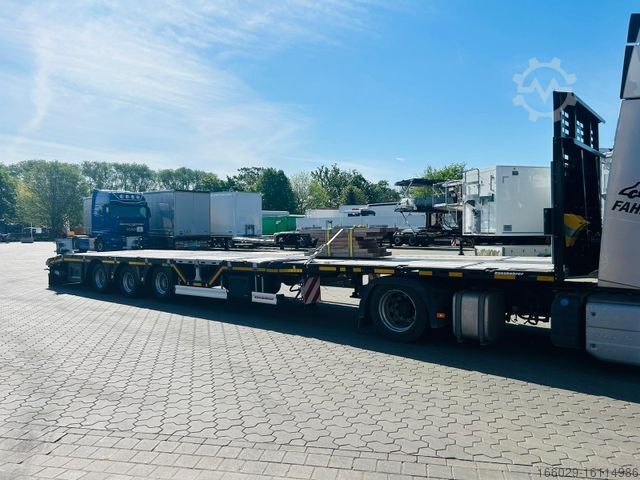

Brand new Kässbohrer Mega Tele HD platform semi-trailer with wheel recesses
TECHNICAL INFORMATION:
Semi-mounted height 950 mm
* Outer length 13,535 mm
* Gooseneck length 4,285 mm
* Platform length 8,950 mm
* Extension 6,900 mm
* Extension locking position 500 mm
* Gooseneck 120 mm
* Platform height (loaded) 1,040 mm
* Wheelbase 7,700 mm
* Axle load 10 tons
* Overall width 2,550 mm
* Total technical weight (80 km/h) 48,000 kg
* Gross vehicle weight (60 km/h) 50,000 kg
* Unladen weight 10,419 kg
CHASSIS:
BPW axles with air suspension and drum brakes
* 2x rigid axles at the front, 1x self-steering axle at the rear

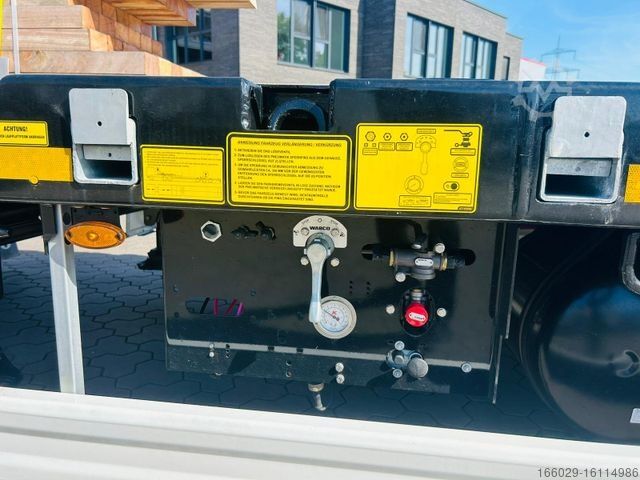

* Air suspension incl. load pressure gauge
* Wabco brake system
* 12 tires 245/70 R17.5
Pgec R Nc Istn Hlmofnsn
CHASSIS:
Chassis made of high-quality and high-strength S700 MC steel

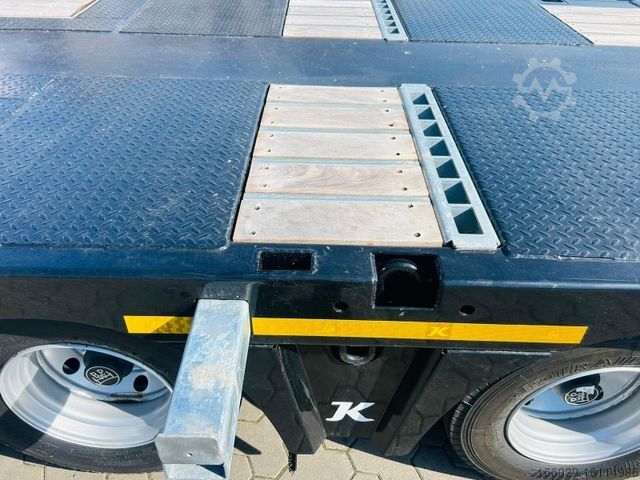

* 30 mm thick hardwood floor
* 9x2 side extensions extendable up to 300 mm
* Telescopic rear support winch with 50 tons capacity

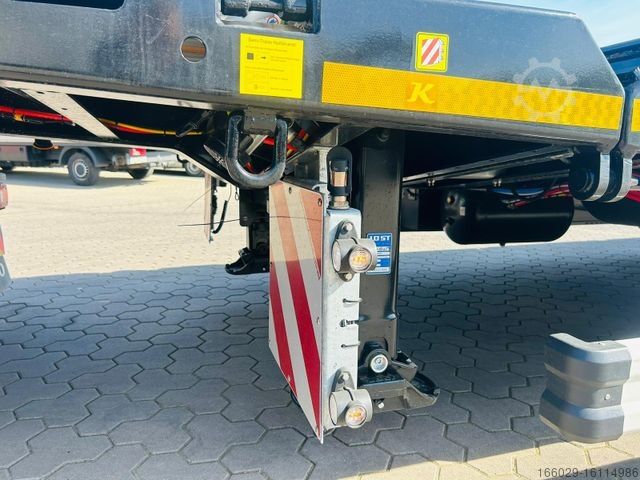

* Mechanically folding rear outriggers with 45 tons capacity
* Wheel recesses with dimensions of 420 mm depth, 800 mm width,
* Suitable for tire diameters of max. 1,800 mm
RAMPE:
Mounts for ramps at the rear of the vehicle
LOAD SECURING:
Lashing rings
* Stake pockets
* stanchions
* Container locks suitable for 1x20 ft. , 1x40 ft. or 1x45 ft. + 4 twist locks
* Front wall made of steel material, height 1,500 mm with Code XL certificate
ACCESSORIES:
1x plastic toolbox
* Stake box with space for 18 stakes
* 1x rotating beacon
* Tire well bridge for closing the wheel wells
* Ramp box
Chassis color nova grey
For further information please do not hesitate to contact us
Характеристики
Общий вес
48 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Максимальная грузоподъёмность
37 581 кг
Конфигурация осей
3 оси
Длина грузового отсека
15 850 мм
