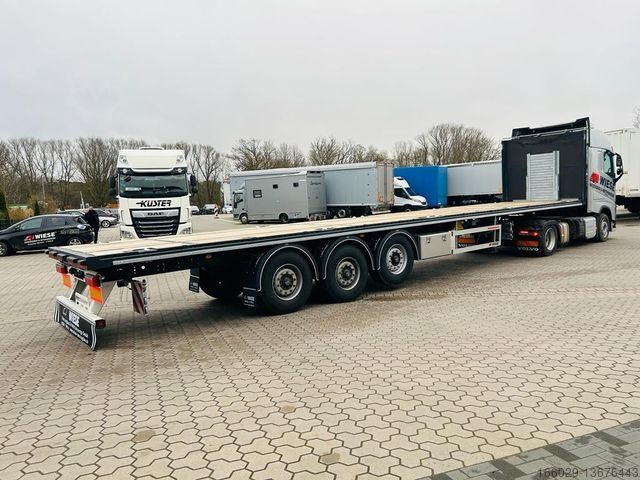

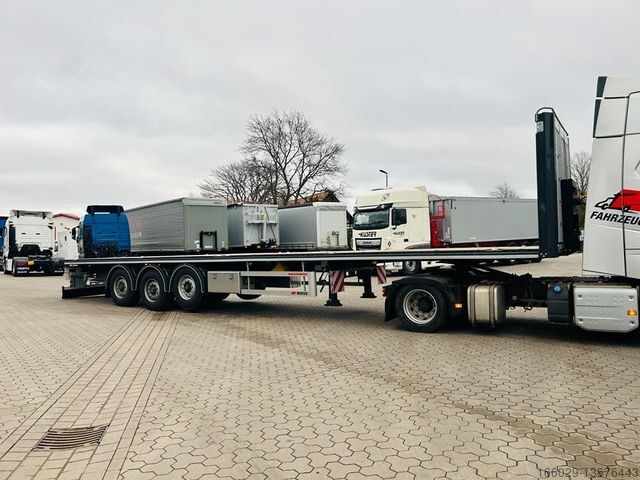

Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой KÄSSBOHRER K.SPS Plattform Auflieger Sofort Verfügbar
Год выпуска
2025
Состояние
новое
Цена без учета НДС
6513600.00
Отправить сообщение
Описание

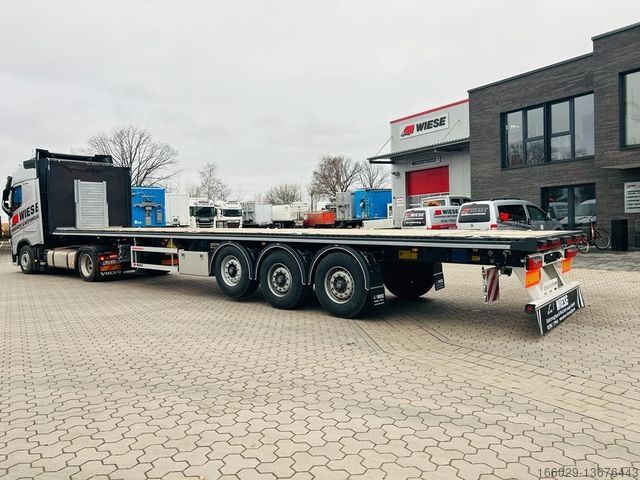

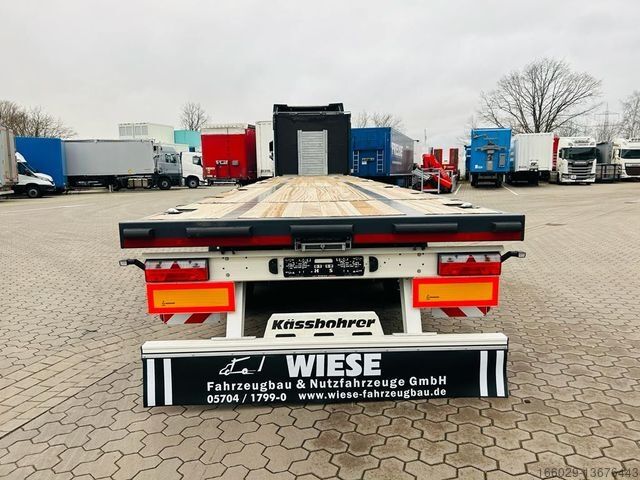

Brand new Kässbohrer K.SPS platform semi-trailer Immediately available
Technical data:
* Outer length 13,640 mm
* Internal length 13,580 mm
* Axle distance 1,310 mm
* Wheelbase 7,700 mm
* Overall width 2,550 mm
* Inner width 2,480 mm
* Gooseneck 200 mm
* Semi-mounted height 1,180 mm
* Axle load 27,000 kg
* Kingpin capacity 12,000 kg
* Total weight 39,000 kg
* Unladen weight 6,269 kg
* Pallet capacity 33 Euro pallet load capacity
Chassis:
* BPW axles with air suspension and disc brakes
* 1st axle can be lifted automatically
* Wabco brake system
* 6 tires 385765 R22.5

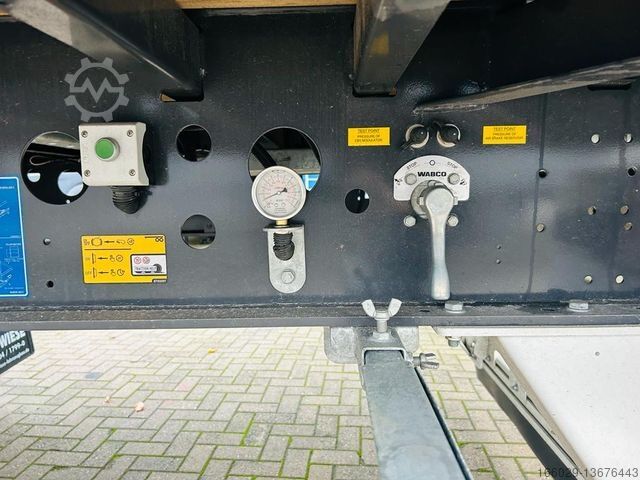

* Axle pressure gauge
Chassis:
* Made of high-quality and durable steel

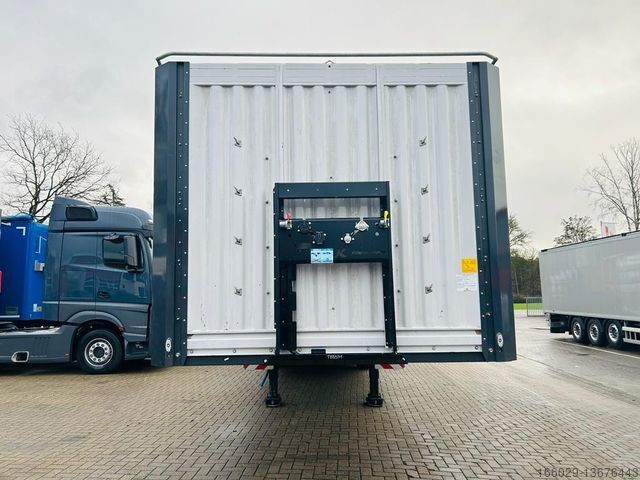

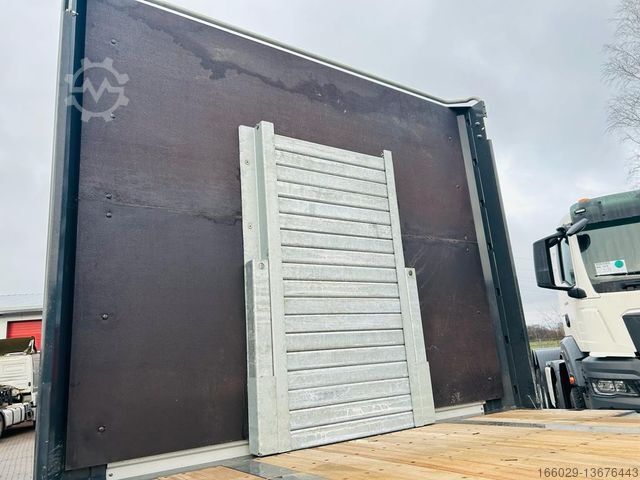

* KTL-coated steel front panel with plywood protection inside with a height of 2,000 mm

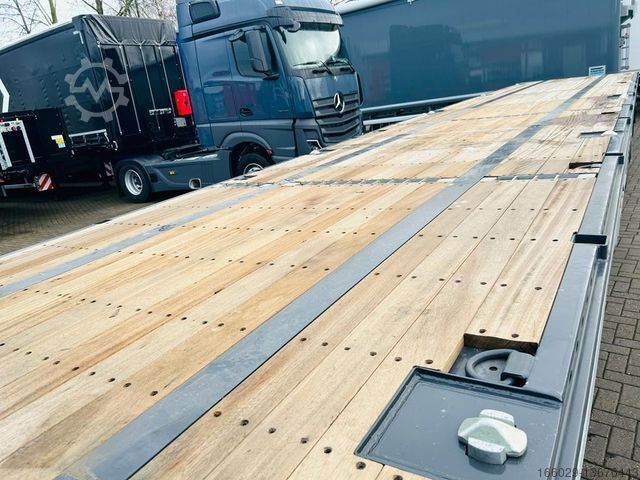

* Hardwood-coated, 30 mm thick and waterproof hardwood floor, which can take an axle load of 7,200 kg in accordance with DIN EN 283.
* Jost supports

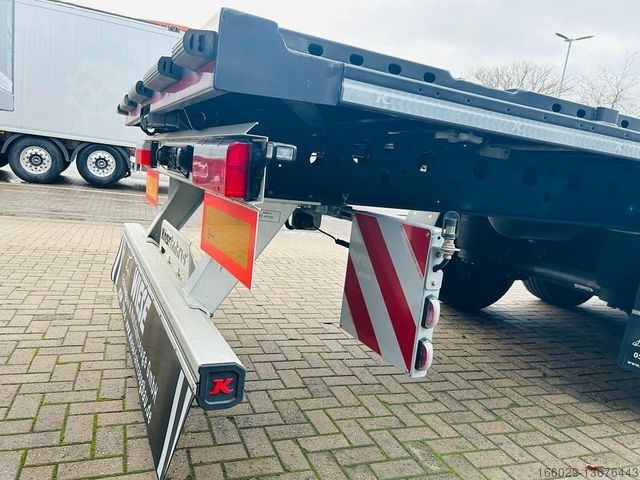

* LED lighting
* Load securing.

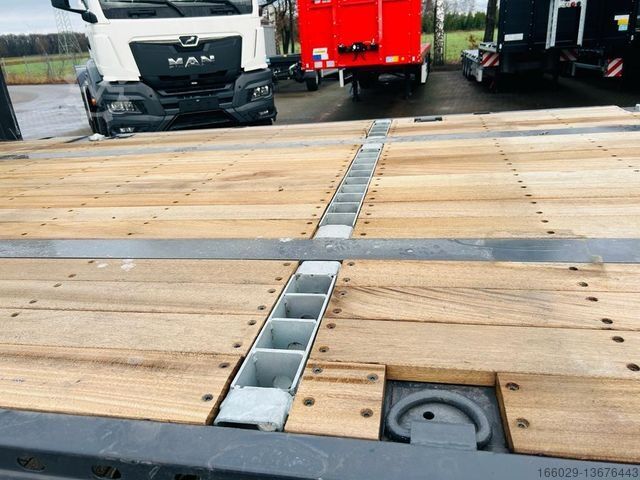

* K-fix has 96 holes per side, each lashing point has a load capacity of 2,500 kg
* Additional 7x2 lashing rings placed on the floor with a load capacity of 5,000 kg
* 6x2 container locks suitable for 1x20 ft in the middle, 2x20 ft, 1x40 ft containers
* Stake pockets outside + on the floor
* Stake box under chassis
Pgjc R Ncsqbn R Ns Ifnen
* Load securing certificate according to standard EN 12642 CodeXL
Miscellaneous:

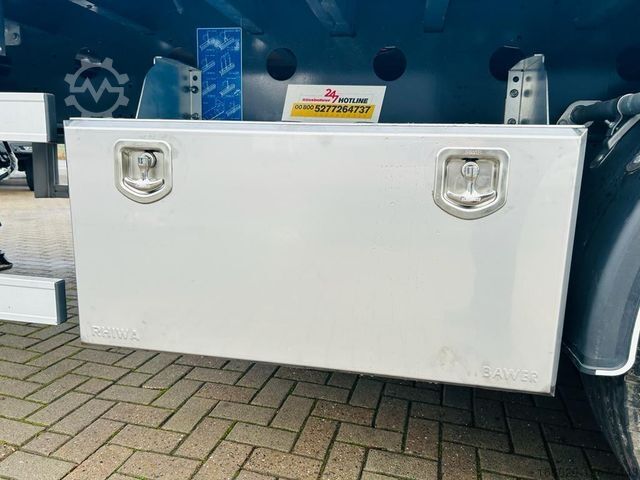

* 1x stainless steel toolbox
* 4x extra wide boards with LED lighting
Chassis color: MB 7350 nova grey
For further information please do not hesitate to contact us
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Максимальная грузоподъёмность
29 731 кг
Конфигурация осей
3 оси
Ширина пространства для загрузки
2 480 мм
Длина грузового отсека
13 580 мм
