Полуприцеп с рабочей платформой
Полуприцеп с рабочей платформой KÄSSBOHRER K.SFS M Mega Plattform Auflieger Sofort Verfügba
Год выпуска
2025
Состояние
новое
Цена без учета НДС
6421600.00
Отправить сообщение
Описание
Kässbohrer Mega Platform Trailer Available Immediately
TECHNICAL DATA:
* K.SFS M / 90 - 12 / 27 DE
Fifth wheel height 950 mm
Kingpin capacity 15,000 kg
Axle load 27,000 kg
Total weight 42,000 kg
Outer length 13,680 mm
Inner length 13,610 mm
Total width 2,550 mm
Inner width 2,480 mm
Wheelbase 7,700 mm
Gooseneck 90 mm
Unladen weight ±%3 6,169 kg
CHASSIS:
* Made of high-quality and high-strength S460 MC steel
KTL coated and painted
K-Fix (holes in the outer frame load capacity 2.5 tons)
3 x 9 tons BPW EAC (ECO Air Compact) axles with Disc brakes
* 1st axle can be lifted automatically
* Wabco brake system
* Air suspension with lifting and lowering valve

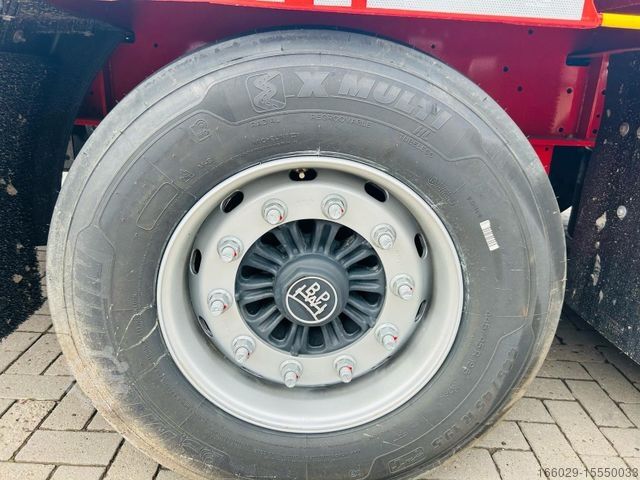

* 6 tires 445/45 R19.5
* Mechanical trailer support from JOST
* 30 mm phenolic resin-coated plywood floor with a forklift axle load of 8,000 kg in accordance with EN 283
* KTL-coated steel front panel with plywood protection inside with a height of 2,000 mm
* OTHER:
* Front wall height 2,000 mm
* 1 x tool box made of steel with PVC coating, 1,500 mm wide in front of the axles
* 2 x 4 RoRo rings in accordance with EN 29367-2

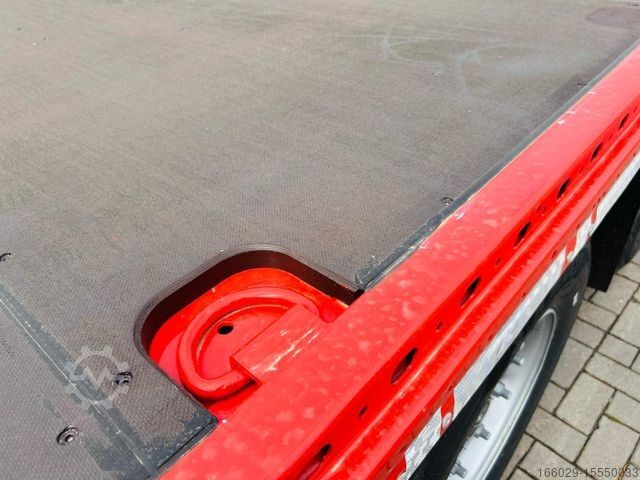

* 13 x 2 lashing rings for 2 ton capacity in the floor and 7x2 lashing rings for 5 ton capacity in the side frame
* 7x2 stake pockets on the outer frame and 5 stake pockets in the middle
* Additionally 2x2 additional stake pockets at the front
* 4x2 container twistlocks for transporting 1 x 40 ft. or 2 x 20 ft. containers
Psc R Nc Ijr Ivwvofnjgn
* Extra-wide boards (LED),

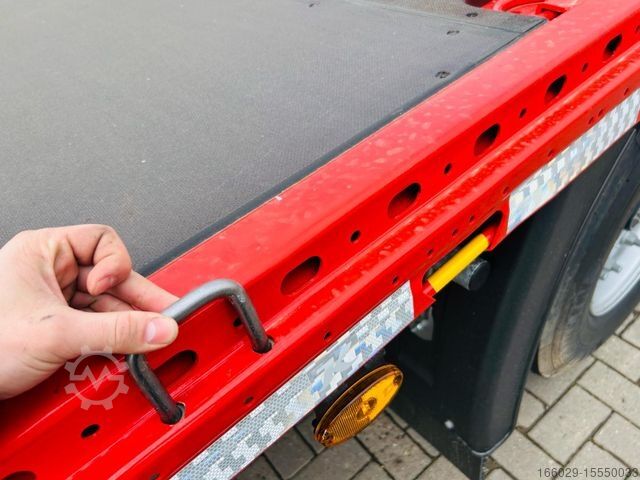

* 7x2 lashing points on the outer frame with 1t capacity
* Stake storage box on the front wall
COLORS:
* Color of the chassis RAL 3020 traffic red
* Color of the front wall RAL 3020 traffic red
We are happy to provide you with further information
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Максимальная грузоподъёмность
29 831 кг
Конфигурация осей
3 оси
