Полуприцеп с рабочей платформой

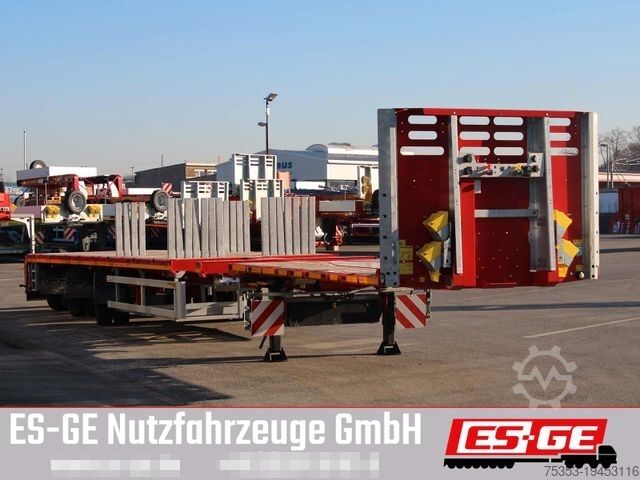

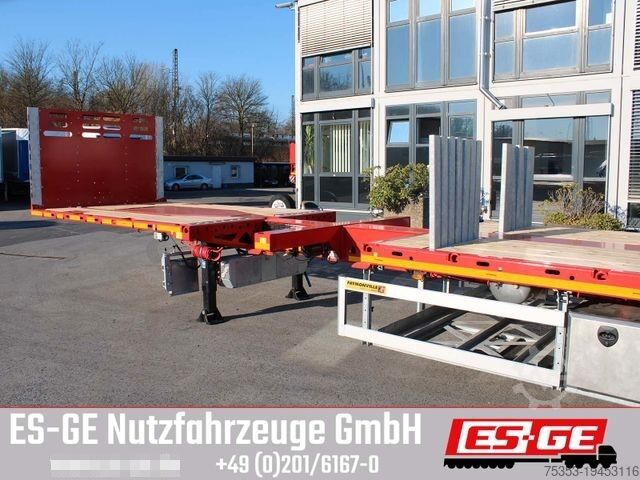

Полуприцеп с рабочей платформой FAYMONVILLE Telemax Megatrailer - hydr. gelenkt
Состояние
новое
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
More vehicles available at
Excerpt from equipment/features. Full specifications available upon request.
- Gooseneck, approx. 4,100 mm length with central beam
- Load platform in double-extendable version, approx. 9,400 mm length
- BPW axles and suspension
- All axles hydraulically and mechanically forced steered
- Technical axle load: 12,000 kg
- Air suspension with lift and lower valve
- Tyres: 235/75 R 17.5 3PMSF, twin tyres
- WABCO braking system, EBS-E
- 3 kW electro-hydraulic unit for hydraulic operations control. Without installation of supply connections on the tractor unit
Pocswvzg Re R Nc Ifnsgn
- 4 pairs of stake pockets integrated in the gooseneck’s outer frame, for drop-in stakes approx. 100 x 50 mm
- 2 inch kingpin
- 8 pairs of stake pockets integrated in the load platform outer frame, for drop-in stakes approx. 100 x 50 mm
- 1 lockable stainless steel (INOX) toolbox, approx. 1,250 x 500 x 550 mm (L x W x H), mounted under the load platform left side in driving direction
- Remote steering from front and rear via cable remote control, operated by push buttons, with single-track control of the axles, without installation in the tractor unit
- 2 axle load gauges mounted on the left side
- Front wall made of steel, approx. 1,600 mm high
- 3 crosswise stake pocket strips mounted in the load platform floor, for drop-in stakes approx. 100 x 50 mm
- 1 crosswise stake pocket strip mounted in the floor of the gooseneck, for drop-in stakes approx. 100 x 50 mm
- 1 additional lockable stainless steel (INOX) toolbox, mounted under the load platform
- WADER container locks recessed in the load platform for transportation of: 2x 20' containers or 1x 40' container
- Central lubrication system with 2 pumps, brand BEKAMAX
- Complete HRM metallization (High Resistance Metallisation)
Характеристики
Общий вес
48 000 кг
Общая ширина
2 540 мм
Оборудование
ABS
Максимальная грузоподъёмность
36 500 кг
Конфигурация осей
3 оси
