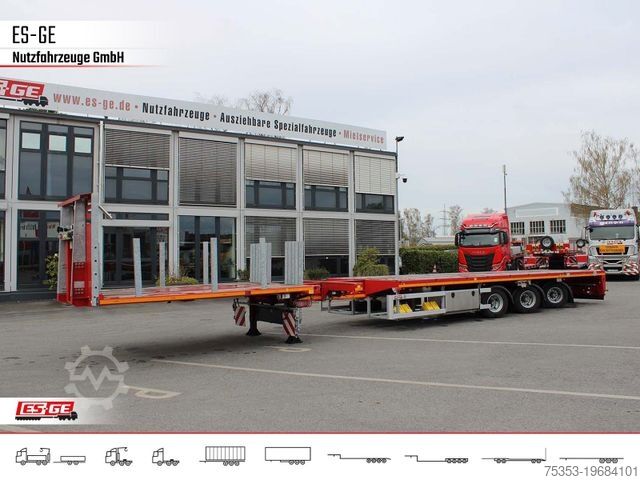

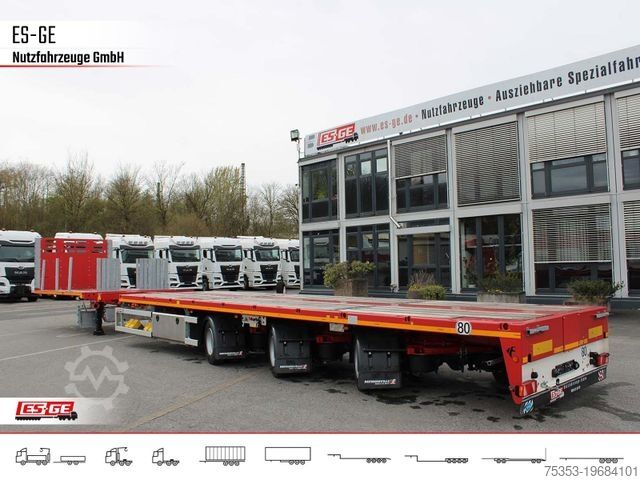

Полуприцеп с рабочей платформой FAYMONVILLE Telemax Megatrailer

Описание

You can find our complete vehicle inventory, including vehicles available for immediate or short-term delivery, on our website.

Excerpt from the equipment. Complete equipment list available upon request.

Loading Platform:

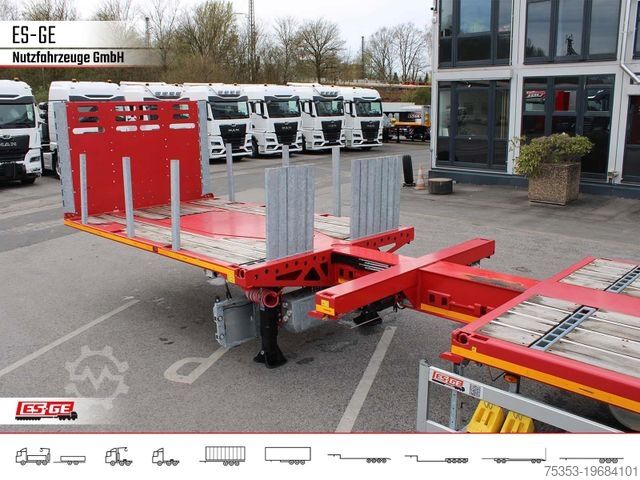

* Gooseneck, approx. 4,100 mm long, with central beam

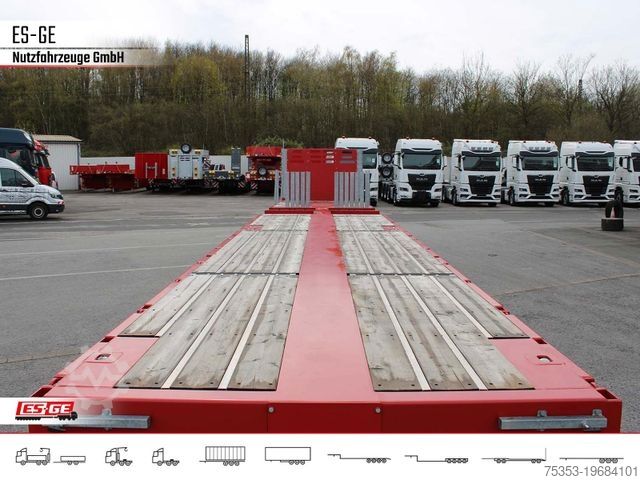

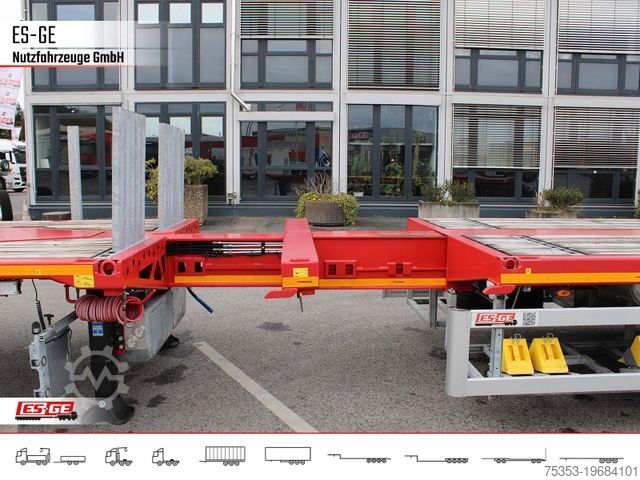

* Loading platform in double-extendable design, approx. 9,400 mm long, with pneumatically operated locking mechanism
* A fixed intermediate table, approx. 200 mm wide, is welded to the central beam
* Supply lines are routed protected inside the extendable beams and automatically adapt to the respective loading platform length (exception: supply to the first locking mechanism)
* For tractor units: 4 x 2 and 6 x 2

Axles and Suspension:

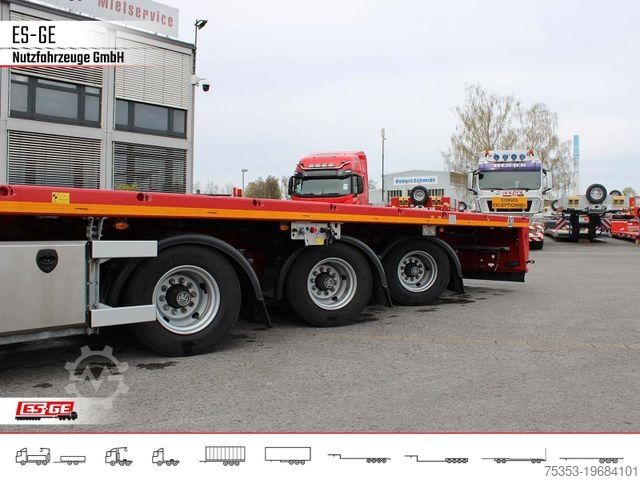

* BPW axles and suspension, all axles hydro-mechanically force-steered, mounted on turntables
* Technical air suspension with lift and lower valve

Tyres:
* 235/75 R 17.5 3PMSF twin tyres
* Brand of our choice. Load index 143/141J (144/144F)

Braking System:

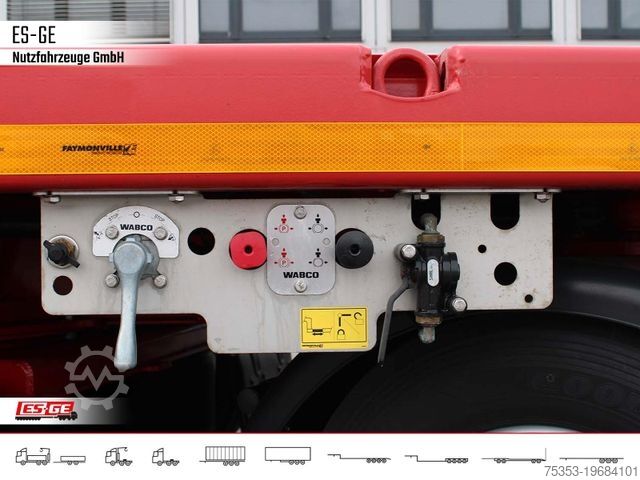

* WABCO EBS-E braking system according to EU regulations

Metallisation:
* Complete HRM metallisation (High Resistance Metallisation)
* Entire steel structure shot-blasted, then hot-finished with ZINACOR 850 (Zinc 85% - Aluminium 15%)

Painting:
* 6-coat final treatment: Entire steel structure shot-blasted after welding. One coat of zinc-based primer, one coat of adhesion primer. Final topcoat: 2 coats of 2-component acrylic paint, single colour, followed by cavity sealing with special wax
* Trailer colour: RAL 3002 Carmine Red
Djc Ed Ddjw E A Egjcjwb
* Wheel rim colour: Silver grey
* Lamp bracket colour: RAL 9010 Pure White

Included Accessories:

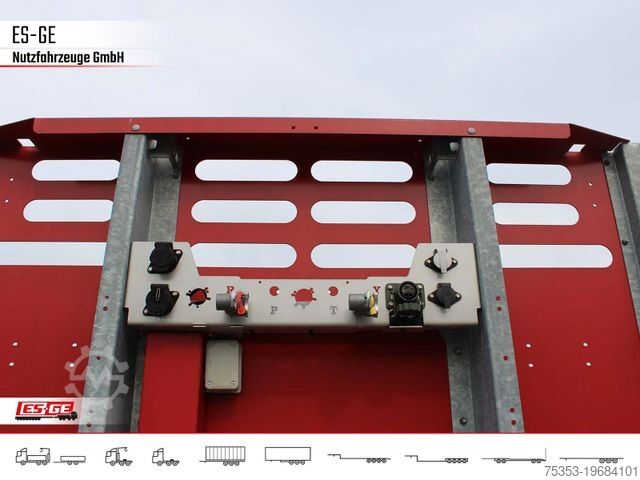

* Steel front wall, approx. 1,600 mm high, certified version according to EN12642:2016 XL. Max. load capacity: 20,000 daN
* 4 pairs of recessed lashing rings in the gooseneck outer frame: the front 3 pairs fitted horizontally (LC 10,000 daN), rear pair fold-out to the outside (LC 10,000 daN)
* 4 pairs of stake pockets set into the gooseneck outer frame for plug-in stakes approx. 100 x 50 mm
* 1 transverse stake pocket rail mounted at the rear in the gooseneck floor for plug-in stakes approx. 100 x 50 mm

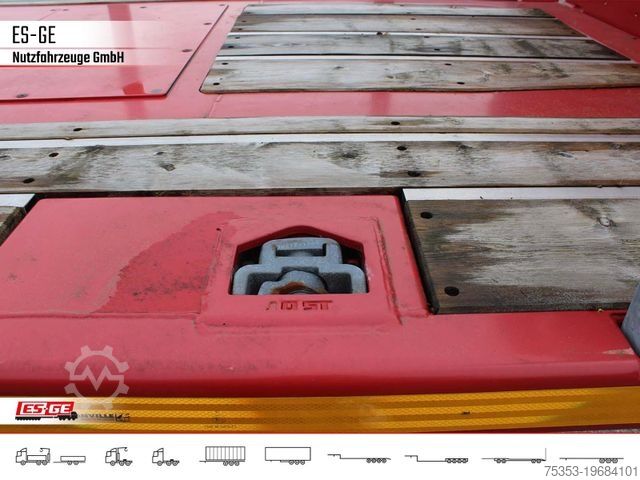

* 2-inch kingpin
* 4 wheel chocks with holders in front of the front wall

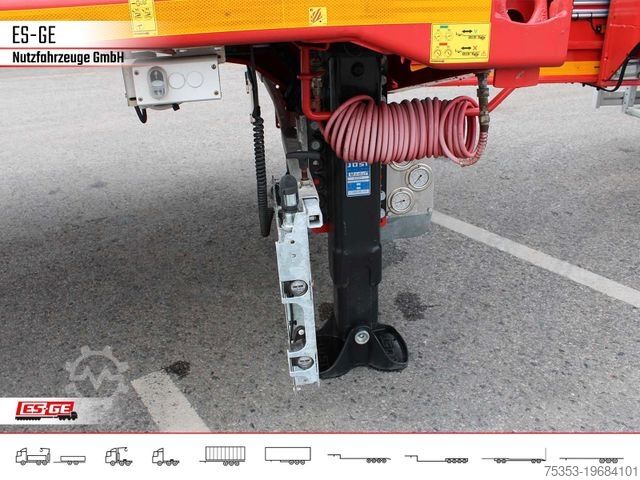

* Mechanical landing gears with 2-speed gearbox and crank. JOST Modul B, static test bearing capacity approx. 50,000 kg

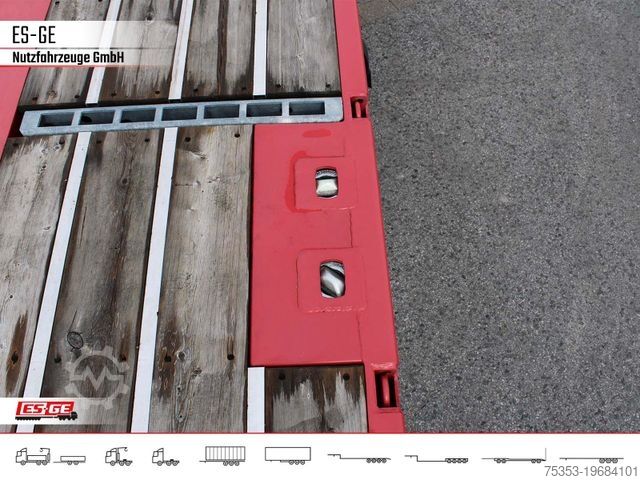

* On gooseneck and loading platform, wooden flooring approx. 32 mm thick, framed in aluminium omega profiles
* Large cross-section extension tube with a locking point every approx. 500 mm
* Small cross-section extension tube with a locking point every approx. 1,000 mm, providing a locking interval of approx. 500 mm
* 10 pairs of recessed horizontal lashing rings in the outer frame of the loading platform, fold-out to the outside: one pair before the last axle and one pair at the end crossmember of the trailer (LC 10,000 daN each), all other lashing rings (LC 5,000 daN)
* 8 pairs of stake pockets set into the outer frame of the loading platform for plug-in stakes approx. 100 x 50 mm
* 3 transverse stake pocket rails mounted in the loading platform floor for plug-in stakes approx. 100 x 50 mm
* 1 spare wheel carrier under the loading area on the right-hand side (direction of travel)

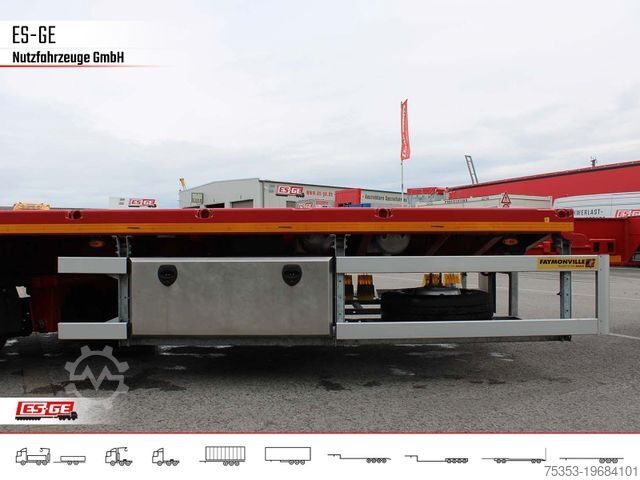

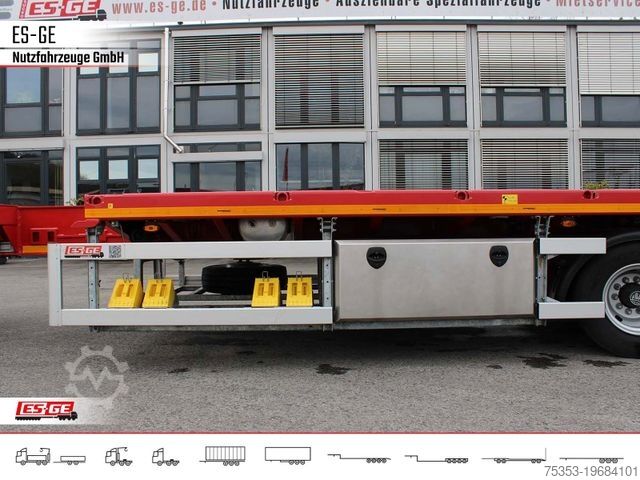

* 1 lockable stainless steel toolbox, approx. 1,250 x 500 x 550 mm (L x W x H), mounted under the loading area on the left (direction of travel)
* Access ladder mounted on the right (direction of travel)
* Last axle with air bellows venting activated by operating the parking brake
* 3 kW electr
