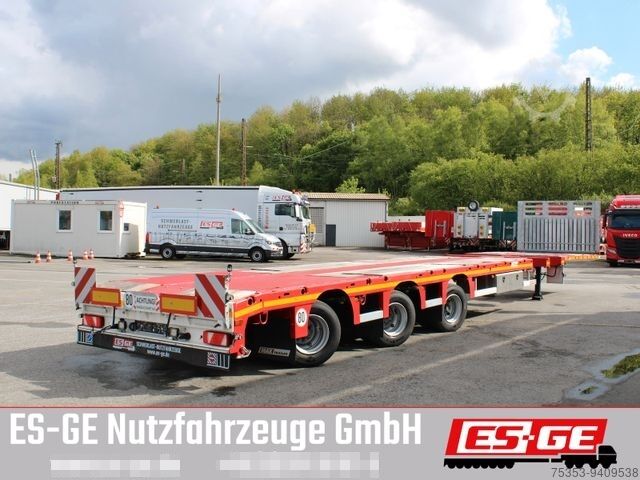

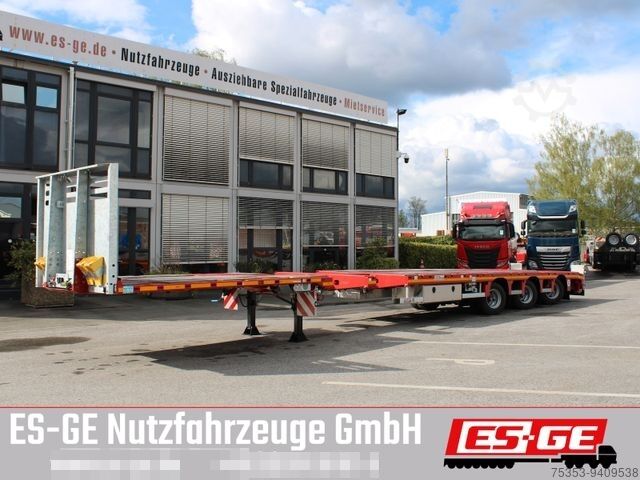

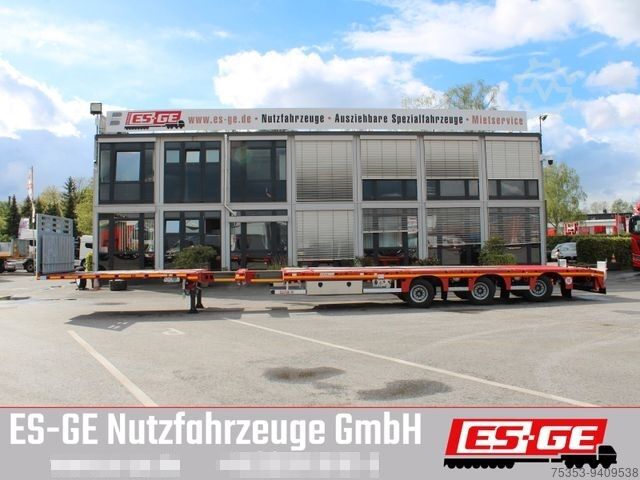

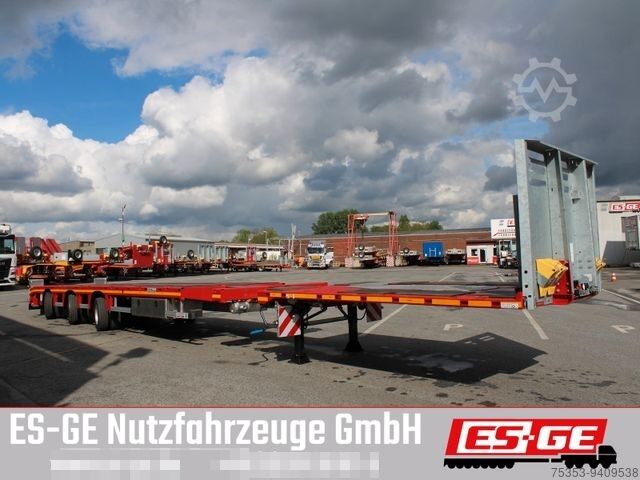

Полуприцеп с рабочей платформой FAYMONVILLE MAX Trailer MAX210 Telesattel Megatrailer

Описание

Extract from the equipment. Complete equipment on request.
Loading area

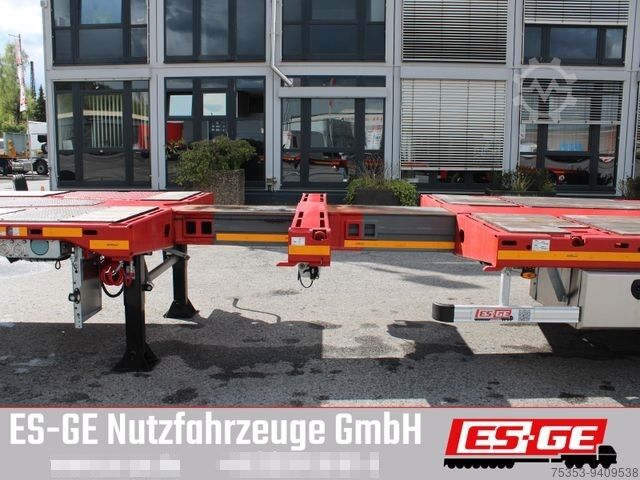

* in double extendable version with pneumatically operated locking

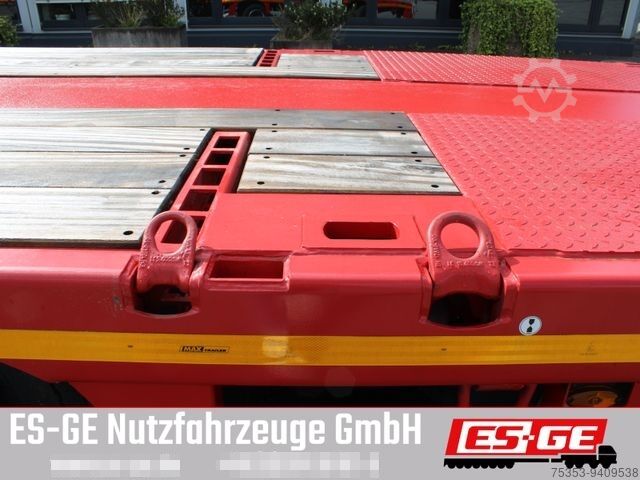

* 2 pairs of lashing rings lying down (LC 5 000 daN)
* 1 pair of lashing rings lying down (LC 10 000 daN)
* 7 pairs of lashing rings that can be folded outwards (LC 5 000 daN)
* 3 pairs of lashing rings that can be folded outwards (LC 10 000 daN)
Pgocok Ugaco R Nc Ifnon
* Cut-outs in the outer frame of the loading area for attaching tensioning straps (LC 2 000 daN)
Seat supports
* JOST seat supports (mechanical) with 2-speed gearbox for approx. 24 t lifting load (approx. 50 t test load)
Tires
* 235/75 R 17.5 3PMSF
Axles
* BPW axles with hydro-mechanical forced steering
* Air suspension with Raising and lowering valve
Braking system
* in accordance with EU regulations with EBS-E (2S2M) without connecting lines to the tractor unit
Steel construction
* made of high-strength fine-grain steels. Steel qualities: S355J2+N/S355MC (yield strength 355MPa) S690QL/S700MC (yield strength 690MPa)
Paint
* First-class and long-lasting corrosion protection of the standard shot-blasted welded frame guaranteed by a 2-component (2K) zinc dust primer
* A high-quality 2-component (2K) top coat in a single color in RAL 3002 carmine red
* Rear section metallized and painted in RAL 9010 (pure white)
* Rims in silver
Incl. accessories
* Steering from the front and rear can be operated using a cable remote control via push buttons, with alignment control of the axles (without installation in the tractor unit)
* Electro-hydraulic unit
* 4 brake shoes with holder on the front wall
* 2 inch kingpin
* Yellow-red on the galvanized connection strip at the front Air couplings
* Yellow reflector tape in accordance with EU regulations on the side, on the extension and at the rear of the trailer
* European reflector signs (red-yellow) on the rear of the trailer
* A mud flap on the rear of the trailer
* Manual and description on USB stick
* Loading area with strong hardwood floor
* 10 pairs of stake pockets for 100 x 50 mm stakes in the outer frame of the loading area
* A bracket for a rotating beacon at the rear of the trailer
* Galvanized supports under the bevel of the loading area
* A bracket for a rotating beacon at the rear of the trailer
* Hanging rail for aluminum loading ramps at the rear of the vehicle
* Speed sticker 80 km/h at the rear and on both sides
* Load pressure gauge for determining the axle loads including load diagram

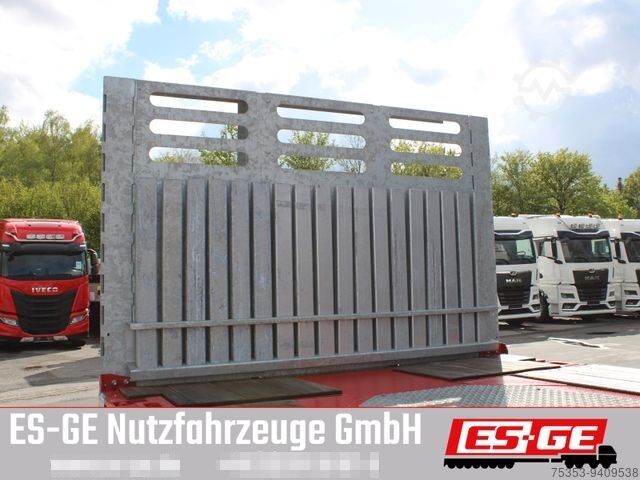

* A galvanized steel front wall (EN12642-XL), approx. 1,600 mm high
* Central lubrication system with 2 BEKAMAX pumps (Pico) with normal grease NLGI-2 and removable protection around the pumps
* Spiral cable to supply the electro-hydraulic unit and/or the electric cable winch (approx. 35 mm², approx. 3.5 m long, max. 250 A) between the trailer and tractor unit with plug connection (NATO-NATO)
* A layer of sand painted on the central support as anti-slip protection
* 6 pairs of WADER container pockets in the loading area, for 1 x 20' container, 2 x 20' container or 1 x 40' container, an additional locking point is provided in the extension for a 45' container
* 5 pairs of stake pocket strips mounted across the loading area, for plug-in stakes 100 x 50 mm
* Storage for max. 9 pairs of plug-in stakes approx. 100x50 mm, inside on the front wall
* A tool box INOX, approx. 1,500 x 390 x 810 mm under the loading area in the direction of travel, left and right
* Four warning signs that can be extended by approx. 400 mm, appro
