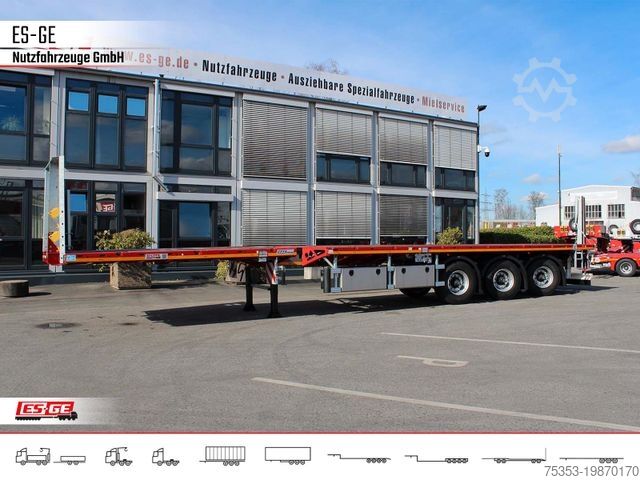

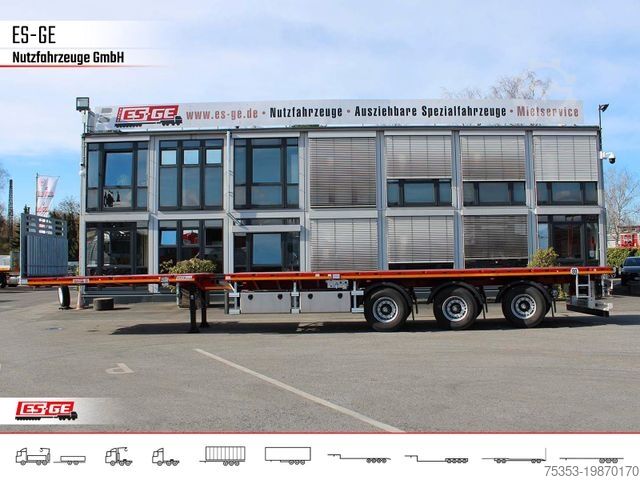

Полуприцеп с рабочей платформой FAYMONVILLE MAX Trailer MAX210 Telesattel

Описание

You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.

Excerpt from the specifications. Full specification available on request.

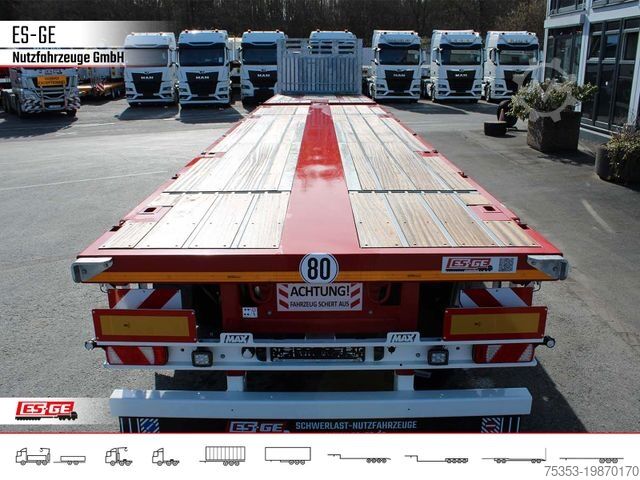

Loading area:
* Extendable loading platform with pneumatically operated locking mechanism
* Loading area with approx. 30 mm thick wooden planks
* 7 pairs of outward-folding lashing rings (LC 5,000 daN)
* 3 pairs of outward-folding lashing rings (LC 10,000 daN)
* Cut-outs in the outer frame of the platform for hooking in tension straps (LC 2,000 daN)

Landing legs:
* JOST mechanical landing legs with 2-speed gearbox, approx. 24 t lifting capacity (approx. 50 t test load)

Tyres:
* Tyres: 385/65 R 22.5, manufacturer at our discretion
* TPMS tyre pressure monitoring system in accordance with ECE R 141. Data transmission to the truck is via the standardized EBS interface as per ISO 11992. For proper display, the truck must be capable of receiving and showing this data.

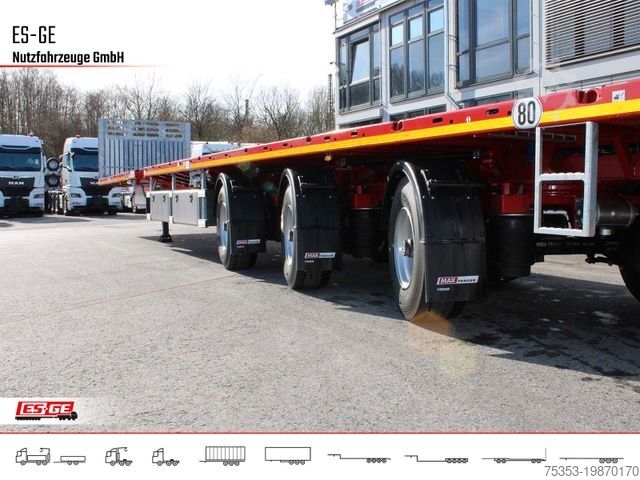

Axle:
* BPW axles and suspension
* All axles hydromechanically forced-steered
* Disc brakes
* Technical axle load: 10,000 kg each (offset 0)
* Air suspension with raise/lower valve
* Axle tools

Brake system:
* WABCO brake system in accordance with EU regulations, EBS-E (2S2M) without connection lines to the tractor unit

Steel construction:
* High-strength fine-grain steel construction
* Steel grades: S355J2+N/S355MC (yield strength 355 MPa), S690QL/S700MC (yield strength 690 MPa)

Electrical system:
* Electrical system in accordance with EU regulations
* LED lighting 24 Volt ASPÖCK-NORDIK (ASS3)
* All LED side marker lights flash together with indicators
* ASPÖCK-UNIBOX at the front connection bar with 24N, 24S, and 15-pin sockets according to ISO: 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098

Paintwork:
* Complete steel structure automatically shot-blasted after welding
* Second blasting with corundum for optimal coating adhesion
* Final painting with two coats of 2-component topcoat, single color, RAL 3002 Carmine Red according to RAL system 841GL
* Rims in silver grey
* Rear section metallized and painted RAL 9010 (Pure White)
* Metallic paint not available
* Paint finish tested in salt spray test according to ISO 9227-NSS
* Cavity sealing with special wax

Accessories:
* Remote steering from front and rear via cable remote control with push buttons, with axle tracking monitoring (without installation in the tractor unit)
* Electro-hydraulic unit

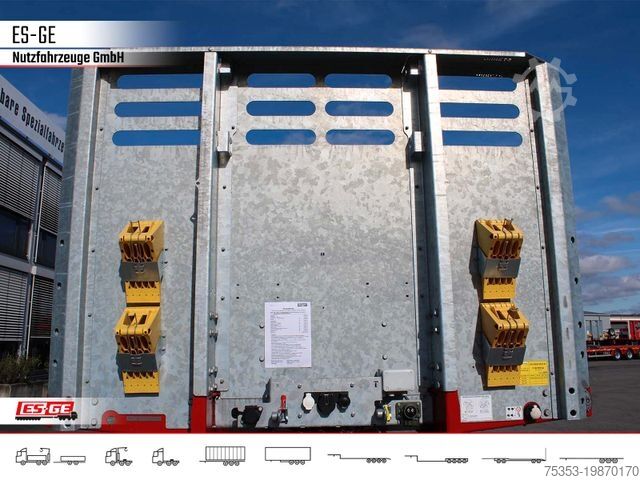

* 4 wheel chocks with holders on the front wall
* 2" kingpin
* Yellow-red air couplings at the galvanized front connection bar
* At gooseneck and rear, left and right, brackets for warning panels, including sockets
* 10 pairs of stake pockets for approx. 100 x 50 mm plug-in stakes in the external frame of the loading platform

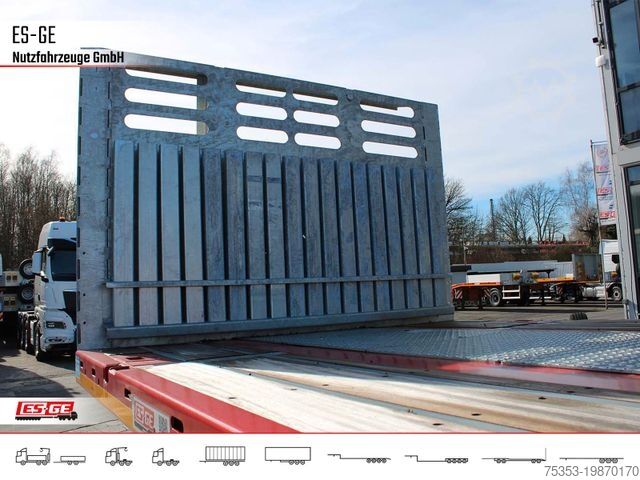

* One galvanized steel front wall (EN12642-XL), approx. 1,600 mm high
* 6 pairs of WADER container pockets in the loading area, for 1 x 20' container, 2 x 20' containers, or 1 x 40' container; an additional locking position is provided in the extension for a 45' container
* 4 pairs of transverse stake pocket strips in the loading area for approx. 100 x 50 mm plug-in stakes
* Storage for max. 9 pairs of plug-in stakes bolted inside to the front wall
Dwoc Edew Tpr Io Ddcjb
* Boarding ladder mounted left and right in the direction of travel

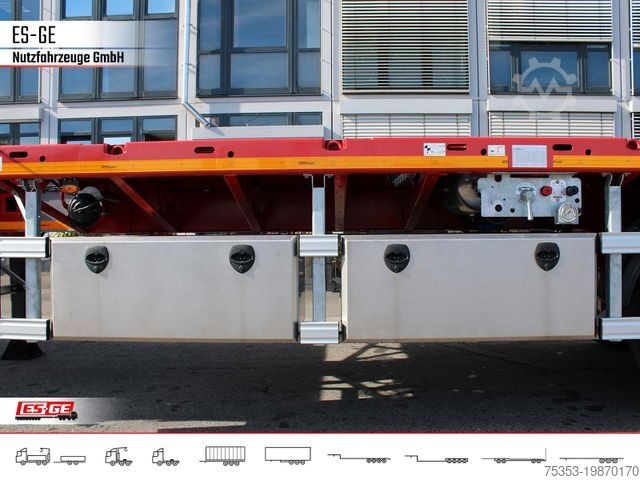

* One INOX toolbox, approx. 1,200 x 460 x 550 mm, mounted front left under the loading platform
* An additional INOX toolbox, approx. 1,200 x 46...
