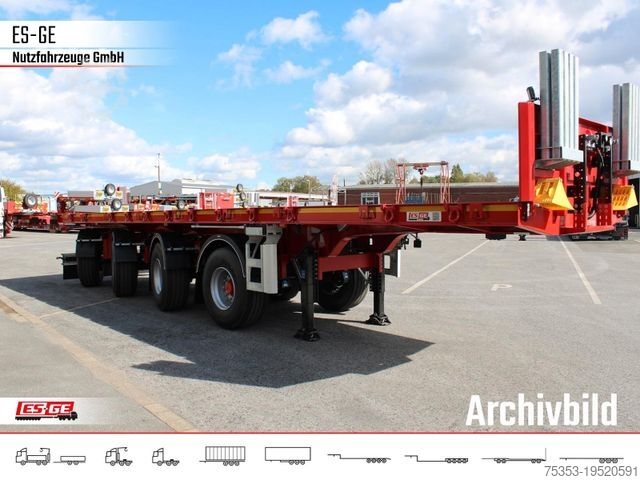

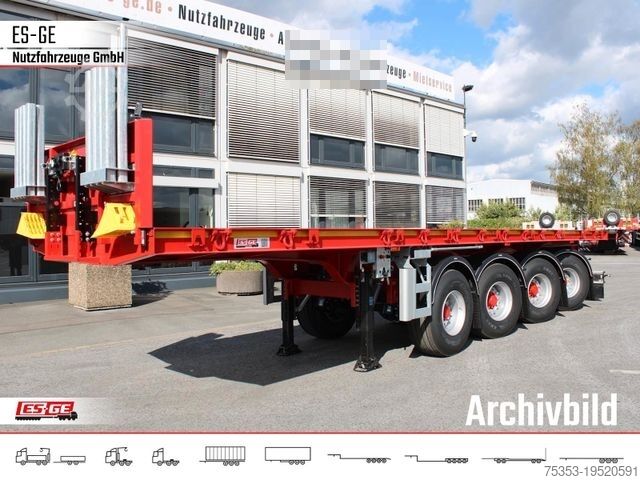

Полуприцеп с рабочей платформой ES-GE 4-Achs-Ballastauflieger

Описание

You can find our complete inventory of immediately and short-term available vehicles on our website.

Excerpt from the equipment. Full equipment details available on request.

Chassis:
* Chassis frame construction with welded longitudinal beams and through-inserted cross-members
* Underrun bar approximately 700 mm wide
* Fifth wheel plate at least 8 mm thick, positioned between the longitudinal beams
* Maximum cross-member spacing 400 mm (for longitudinal floor installation)
* 3.5 inch kingpin according to SAE standard, replaceable
* Outer frame made of UNP 200, open to the outside
* Technical fifth wheel load 26,500 kg

Landing gears:
* 24 t telescopic landing gear JOST - MODUL CH (Heavy Duty), S-foot

Axles:

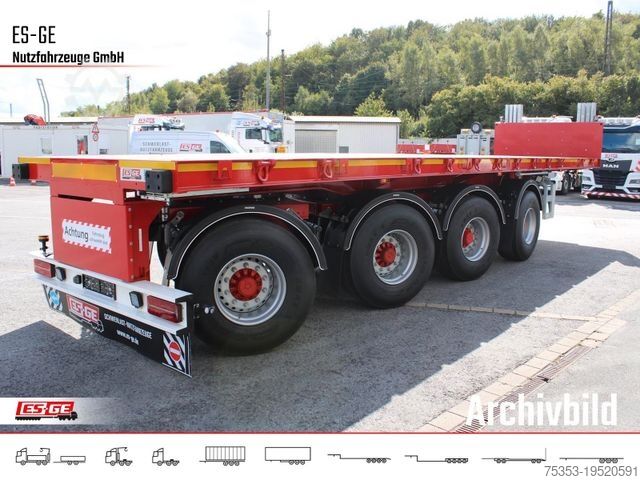

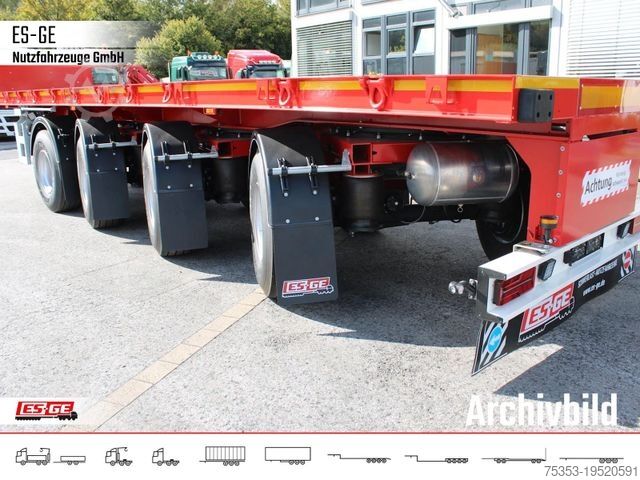

* 4 x 10 t SAF axles with large drum brakes
* 22.5" single tires
* Axle spacing approx. 1,700/1,810/1,810 mm
* Air suspension unit with 10 t load capacity per axle
* Lifting and lowering device with 1 rotary slide valve Knorr/Wabco
* Bracket for lifting and lowering device, bolted version

Brakes:
* Smartboard/TIM/Infocenter on holder for lift and lower, in addition to the lift and lower valve
* Without battery (operable only with towing vehicle)
* Bracket for tail and brake lights at the front underrun bar, total height approx. 700 mm
* Basic version tire pressure monitoring, connected to EBS CAN-bus system
* With double release valve for brake and spring reservoir
* Test nipple for brake cylinder pressure at the front right brake cylinder
* One red and one yellow coupling head each
* Lift and lower device mounted at the rear left in direction of travel
* EBS brake system, manufacturer: Wabco
* EBS diagnostics via CAN-bus (EBS connector), no external diagnostic cable!

Tires:
* 8 x 445/65 R 22.5 – brand of our choice
* Hub centering

Lubrication:
* Grease nipple strips on the bogies and at the front steering gear.
* No central lubrication

Bodywork:
* Without load securing certificate according to DIN EN 12642 XL
* 2x LED working lights on top of the front wall (rear facing), switch on lift/lower holder
* Front wall for platform in heavy-duty design
* Side contour marking yellow, rear yellow
* Front wall approx. 800 mm high, with metal paneling, bolted version

Lighting system:
* 2x LED working lights, mounted in lamp panel, operated through reverse gear
* 2x LED working lights, operated through reverse gear, 1 per side near landing gear
* 2x LED reverse lights, 1 per side in front of the 1st axle
* Lighting system/wiring from manufacturer of our choice
* License plate illumination
* The towing vehicle must provide sufficient power for the selected lighting (especially reverse light)
* Position lights front, lower, white, 1 per side (LED)

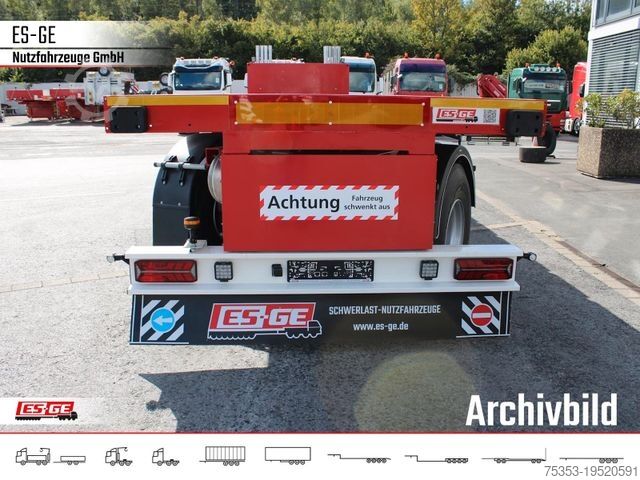

* 24 Volt lighting system with large multifunction tail light
* Side marker lights (LED), flashing
* 1x 15-pin and 2x 7-pin front connectors through multifunction box
* EBS socket
* 1 pair lane indicator lights (LED)

Floor:

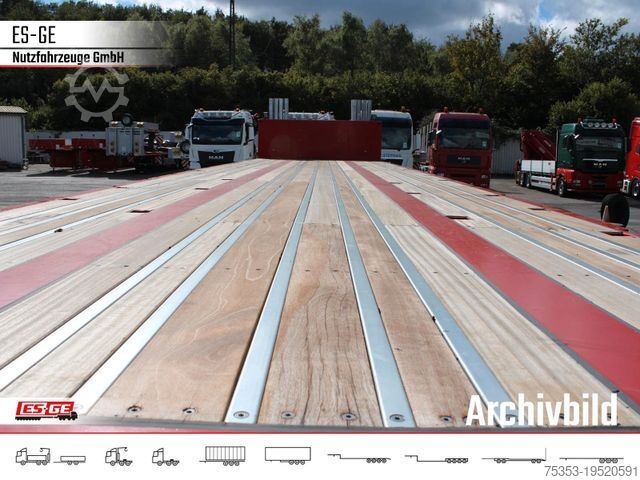

* Hardwood floor approx. 28 mm, alternating with galvanized omega steel profiles

Paint/Coating (no metallic finishes):
* Chassis painted in RAL color of your choice
* Front wall (steel construction) in RAL color of your choice
* Axle hubs in chassis color
* Axles and landing gears black
* Wheels in aluminum/silver similar to RAL 9006
* Wheel nuts untreated
* Underrun protection painted in RAL 9010 pure white (aluminium)

Accessories:
* Lifting device for 1st axle

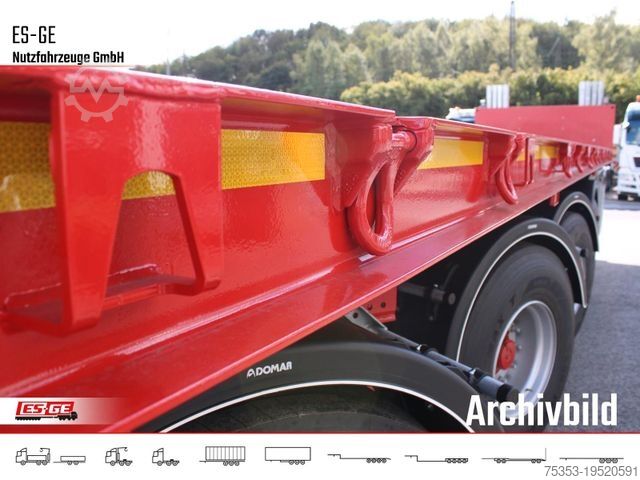

* 9 hook plates per side welded in the outer frame. Lashing capacity max. 3,000 daN each
* Each
