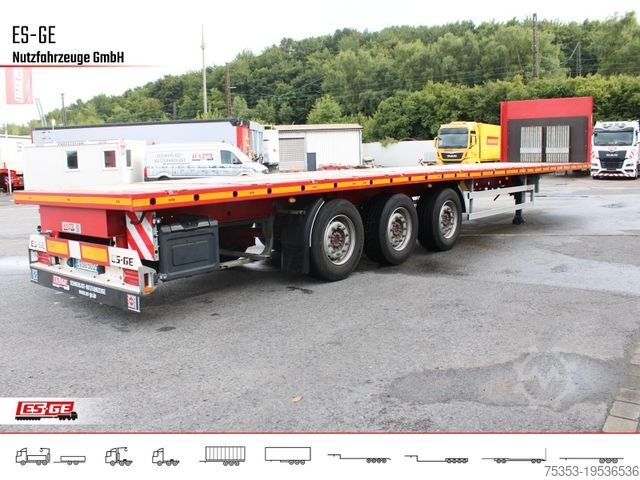

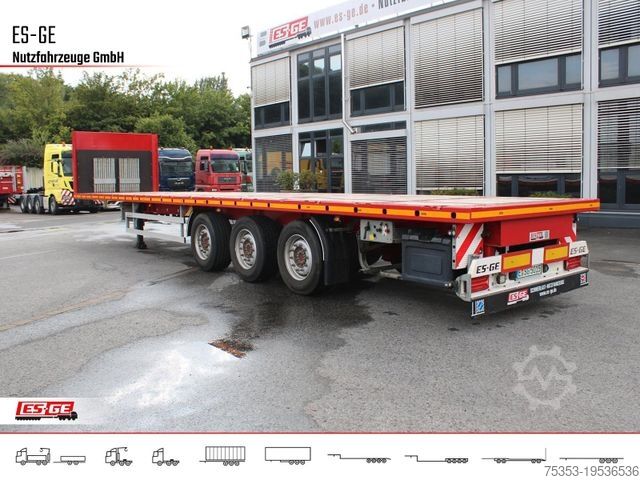

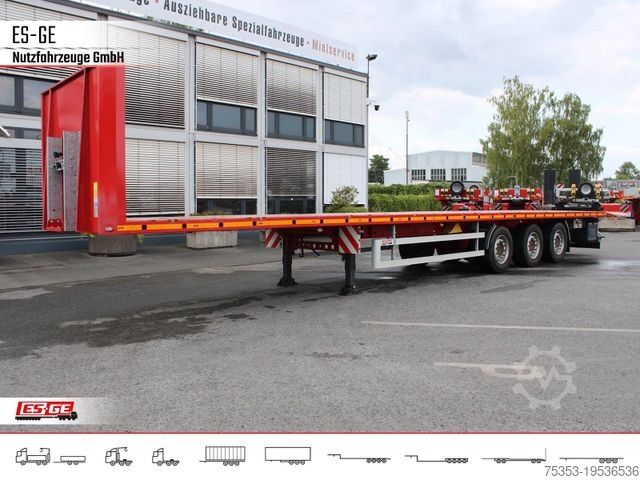

Полуприцеп с рабочей платформой ES-GE 3-Achs Sattelanhänger

Описание

You can find our complete selection of vehicles with immediately and short-term available units on our website.

Sample from the equipment list. Full equipment details available upon request.

Chassis:
* Welded construction made from high-quality steel profiles with through-profile cross members, designed for high point loads.

Coupling Device:
* 2-inch king pin

Underrun Protection:
* Bolted version, compliant with EC regulations

Side Impact Protection:
Dwsc Edewyhy Ee Ddcjb
* EC compliant

Landing Legs:
* 2 x 12 t landing legs with compensating foot and one-sided operation on the right hand side (FR)

Axles:
* 3 x 9 t air suspension axle assemblies
* Disc brakes
* Brand: Gigant

Brake System:
* Dual-line compressed air brake system compliant with EC regulations, equipped with EBS and RSS, automatic load-dependent control
* Spring brake cylinders as parking brake
* Foolproof coupling heads permanently mounted on front crossmember, without connection line to tractor unit
* Brand: Wabco

Tyres:
* 6 off, 385/55 R22.5 160J on steel rim 11.75 x 22.5 ET 120

Mudguards:
* EC compliant, PVC mudguards in front of and behind the axle assembly

Spare Wheel Carrier:
* 1 piece double basket with mounting hardware for one spare wheel with ET 120

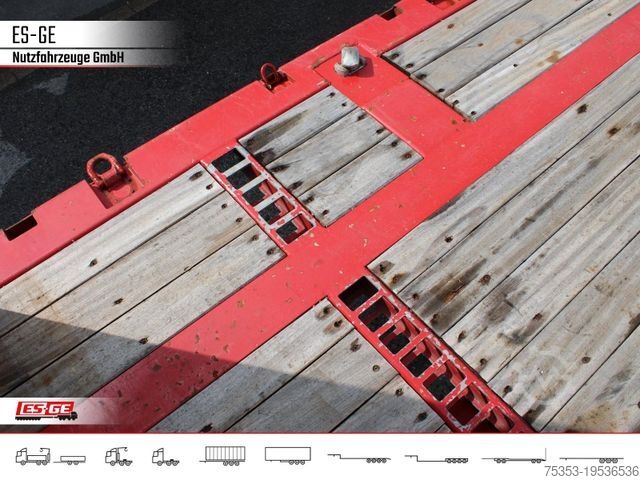

Load Securing:
* 9 pairs of foldable lashing rings, evenly distributed, tensile force approx. 8.0 t
* 8 pairs of foldable lashing rings, evenly distributed, tensile force approx. 2.5 t
* Drill holes for tie-down straps approximately every 500 mm on the outer frame

Front Wall:
* Reinforced steel construction, fixed
* Interior lined with approx. 9 mm phenolic plywood floor (approx. 1,250 mm high)

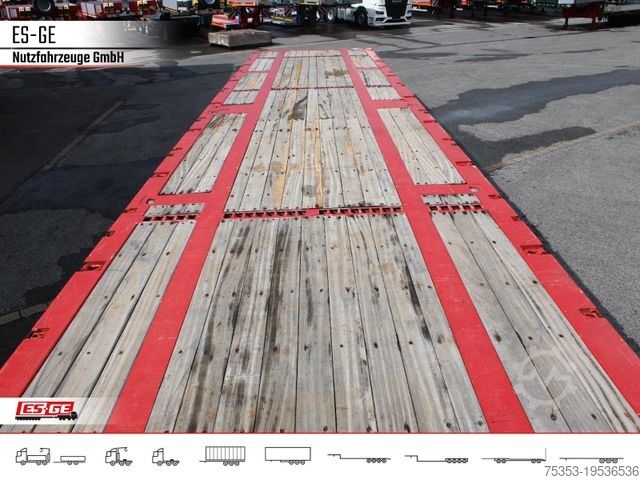

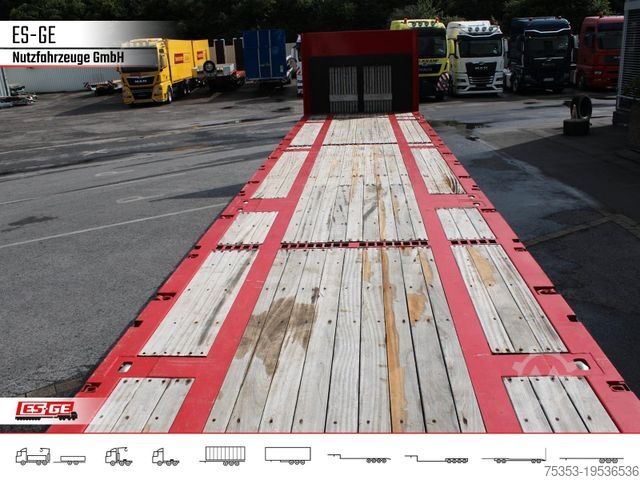

Floor:
* Approx. 28 mm Z-hardwood floor set in outer frame

Lighting System:
* EC compliant, 24 Volt, with multi-chamber lamps
* LED side marker lights
* LED front position lights (white)
* LED rear outline marker lights
* Number plate lights
* 1x 15-pin and 2x 7-pin plug connectors on front crossmember

Paintwork:
* Chassis and front wall sand-blasted, primed and painted in single color
* Chassis: RAL 3002 carmine red
* SSV: aluminium anodized
* Underrun protection: white RAL 9010
* Attachments: galvanized/KTL black
* Wheels: silver

Including Special Accessories:
* First axle liftable with fully automatic, load-dependent lift control
* 10 pairs of stake pockets in outer frame, evenly distributed
* 4 rows of stake pockets crosswise to loading area
* 20 stakes made of galvanized pipe 80/50, total length approx. 1,000 mm
* Storage magazine for 20 plug-in stakes on inner front wall
* Twistlocks for 1 x 40’ and 2 x 20’ containers, flush-mounted at the rear
* Twistlocks for 1 x 20’ container in middle position
* Work light on lamp bracket (switched via reverse gear)
* 2 PVC toolboxes, approx. 660 x 400 x 500 mm
