Описание

You can find our complete range of vehicles, including those available immediately and at short notice, on our website.

Excerpt from the equipment list. Full specification available upon request.

Chassis:
* Welded construction made from high-quality steel profiles with through crossmembers, designed for high point loads

Fifth Wheel Coupling:
* 2" king pin

Landing Legs:
* 2 x 12 t landing legs with compensating foot and one-sided operation on passenger side

Axles:
* 3 x 9 t air suspension axle units
* Disc brakes
* SAF make, with disc brakes approx. 430 x 45 mm
* ABS
* Centrally-bolted wheel mounts, 10 studs with offset ET 120
* Total air suspension travel approx. 200 mm (raising approx. 140 mm, lowering approx. 60 mm), controlled via rotary slide valve with detent positions

Brake System:
* Dual-line compressed air brake system according to EU standards with EBS and RSS, automatic load-dependent braking force control
* Spring-loaded cylinders as parking brake
* Interchanged-proof coupling heads securely mounted on the front crossmember, without connecting line to the tractor unit

Tyres:
* 6 units, 385/55 R22.5 160J on 11.75 x 22.5 ET 120 steel rims, make of our choice

Mudguards:
* According to EU standards, ? PVC mudguards in front of and behind axle assembly

Spare Wheel Carrier:
* 1 double basket with mounting material for one spare wheel with ET 120

Load Securing:
* 9 pairs of folding lashing rings, evenly distributed, lashing capacity approx. 8.0 t
* 8 pairs of folding lashing rings, evenly distributed, lashing capacity approx. 2.5 t
* On the outer frame, bore holes for tie-down straps approx. every 500 mm

Front Wall:
* Reinforced steel structure, fixed
* Interior lined with approx. 9 mm phenolic-coated plywood (approx. 1,250 mm high)

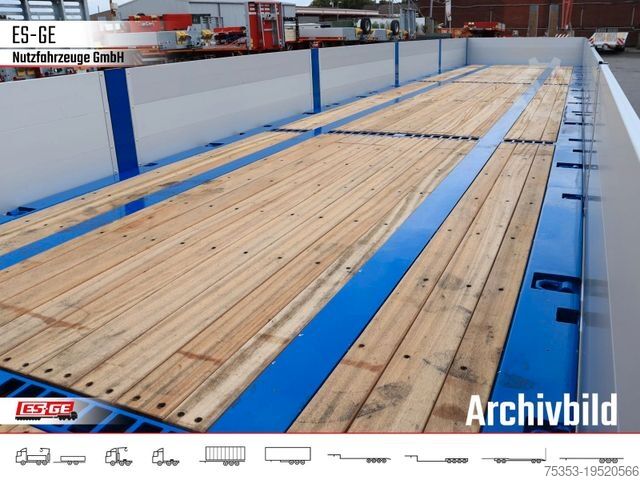

Floor:
* Approx. 28 mm Z-hardwood floor recessed into the outer frame

Lighting System:
* To EU standard, 24 Volt, with multi-chamber lamps
* LED side marker lights
* LED front position lights (white)
* LED rear outline marker lights
* License plate lights
* 1x 15- and 2x 7-pin sockets at the front crossmember

Equipment:
Dwjc Ed Dswx Db Aodcsb
* ECE 70 warning sign
* Holder for beacon (without beacon)

Painting:
* Chassis and front wall sandblasted, primed, and painted in one color
* Chassis: RAL color of your choice
* Side underrun protection: anodized aluminum
* Rear underrun protection: white (RAL 9010)
* Attachments: galvanized/black KTL coating
* Rims: silver

Accessories:
* First axle liftable, with fully automatic, load-dependent lift control
* 10 pairs of stake pockets in the outer frame, evenly distributed
* 4 rows of stake pockets across the loading platform
* 20 stakes made of galvanized tube 80/50, total length approx. 1,000 mm
* Interior front wall magazine for 20 stakes
* Side boards: 5 x 250 mm and rear board made of anodized aluminum hollow profiles, foldable and removable, removable Kinnegrip stakes
* Side board and stake magazine: insertion rails for boards and stakes under the chassis left and right
* Container locks for 1 x 40' and 2 x 20' containers at the rear edge, container lock for 1 x 20' container in the middle
* Work light on lamp bracket
* 2 stainless steel toolboxes, approx. 600 x 500 x 500 mm
