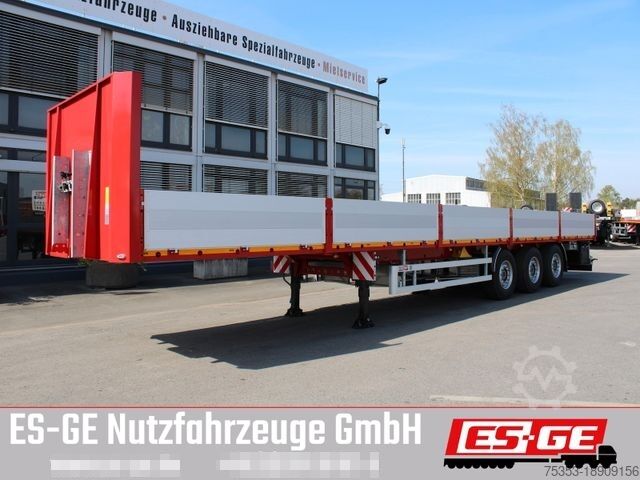

Полуприцеп с рабочей платформой ES-GE 3-Achs Sattelanhänger -Bordwände

Описание

Excerpt from the furnishings. Full furnishings available upon request.
Chassis
* Welded construction made of high-quality steel profiles with punched-through profile cross members, designed for high point loads
Towing Device
* 2-inch kingpins
Pgjc R Nswbb Ufsc Ifnen
Underrun Protection
* Bolted design, in accordance with EC
Side Impact Protection
* In accordance with EC
Seatposts
* 2 x 12 t seatposts with leveling feet and single-sided operation, right-hand side (in the direction of travel)
Axles
* 3 x 9 t air-sprung axle units
* Disc brakes
* Gigant
Braking System
* Dual-line compressed air braking system in accordance with EC with EBS and RSS
* Automatic load-dependent control
* Spring-loaded cylinder as parking brake
* Interchange-protected coupling heads permanently mounted on the front beam, without a connecting line to the towing vehicle
* Wabco
Tires
* 6-piece, 385/65 R22.5 160J on steel rim 11.75 x 22.5 offset 120
Mudguards
* according to EC
* ? PVC mudguards in front of and behind the axle assembly
Spare wheel carrier
* 1 pc. Double basket with fastening material for a spare wheel with 120 mm offset
Load securing
* 9 pairs of folding lashing rings, evenly spaced, tensile force approx. 8.0 t
* 8 pairs of folding lashing rings, evenly spaced, tensile force approx. 2.5 t
* Holes for tensioning straps in the outer frame approximately every 500 mm
Front wall
* Reinforced steel construction, fixed
* Interior lined with approx. 9 mm screen-printed flooring (approx. 1,250 mm high)
Floor
* Approx. 28 mm Z-shaped hardwood flooring embedded in the outer frame
Lighting system
* EC-compliant, 24 volts, with multi-chamber lights
* LED side marker lights
* White LED position lights at the front
* LED clearance lights at the rear
* License plate lights
* 1 x 15-pin and 2 x 7-pin Plug-in connectors on the front beam
Paintwork
* Chassis and bulkhead sandblasted, primed, and painted in a single color
* Chassis: RAL 3002 carmine red
* SSV: anodized aluminum
* Underride protection: white (RAL 9010)
* Attachments: galvanized/cataphoretic dip-coated black
* Rims: silver
Additional equipment
* First axle liftable, with fully automatic, load-dependent lift control
* 10 pairs of stake pockets in the outer frame, evenly spaced
* 4 rows of stake pockets across the loading area
* 20 stakes made of galvanized 80/50 tube, total length approx. 1,000 mm
* A magazine for 20 stakes is located inside the bulkhead. Plug-in stanchions
* 5 x 25 mm side walls and rear wall made of anodized hollow aluminum profiles, approx. 600 mm high, foldable and removable
* Removable Kinnegrip stanchions
* Slide-in rails for side walls and stanchions on the left and right under the chassis
* Work lights on the lamp holder (switched on via reverse gear)
* 2 PVC tool boxes, approx. 660 x 400 x 500 mm
