Полуприцеп с рабочей платформой ES-GE 3-Achs Megatrailer, hydr. Heckabsenkung

Описание

Excerpt from equipment. Complete equipment details available upon request.
Chassis:
* Welded construction made from high-quality steel profiles with through-going crossmembers, designed for high floor and point loads, with heavy-duty outer frame
* Rear loading platform as a steel welded construction featuring two welded-in driving tracks on the outside, consisting of 5-hole steel plate (hole pattern Lohr/Rolfo system), approx. 2,250 mm in length, hydraulically lowerable by approx. 350 mm

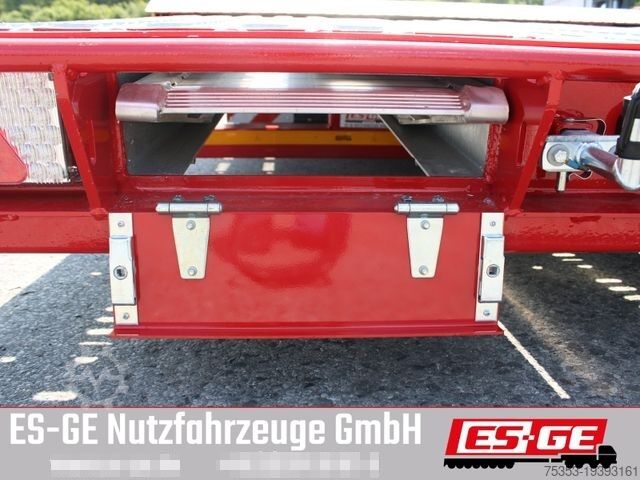

* Integrated at the rear is a hydraulically extendable loading table (approx. 1,500 mm) as a steel welded construction with 5-hole steel plate (Lohr/Rolfo hole pattern) cover, including lighting mounts, 2 ramp compartments, and ramp support
* Powered and controlled by an electric-hydraulic power unit, mounted in a stainless steel box on the left side of the chassis, operated via radio remote control
* Power supply via the towing vehicle's battery (NATO socket on the front wall, without connection cable to the tractor unit)
Fifth-Wheel Coupling:
* 2-inch kingpin, replaceable from below
Underrun Protection:
* In accordance with EC regulations, fixed mounted
Landing Legs:
* 2 x 12 t support winches with 2-speed gearbox
Axles:
* 3 x 9 t air suspension axle assemblies
* Manufacturer: SAF with disc brakes approx. 370 x 45 mm
* ABS
Pgjc R Ncswt Iylo Ifnon
* 10-hole hub-centered wheel connection ET120
* Total air suspension stroke approx. 310 mm (lifting approx. 220 mm, lowering approx. 90 mm)
* Suspension controlled via hand lever with stop function
Lift Axle:
* 1st and 3rd axle automatically liftable; also controllable at the chassis frame or via Pin 12 on the lighting socket
Tyres:
* 6 units, 445/45R19.5, on 14.00x19.5 rims, 10-hole ET120 mounted
Mudguards:
* According to EC regulations, 1/4 PVC mudguards
* 1st axle front and rear, 2nd and 3rd axle rear
Brake System:
* Manufacturer: Wabco
* Two-line brake system in accordance with EC regulations with EBS and automatic load-dependent control
* Spring-actuated parking brake acting on 2 axles
* Anti-swap coupling heads fixed on front member, without connecting lines to the tractor unit
Lighting System:
* As per EC regulations, 24-volt
* Multi-chamber tail lights
* License plate lights
* LED side marker lights
* LED front position lamp and LED lane marking lights at the rear
* 15-pin socket and 2x 7-pin sockets fixed on the front member, no connecting cables to the tractor unit
Cargo Securing:
* 9 pairs of foldable lashing rings evenly distributed, tensile force approx. 8 t
* 8 pairs of foldable lashing rings evenly distributed, tensile force approx. 2.5 t
* 2 pairs of foldable lashing rings at rear, tensile force approx. 2.5 t
* External frame has approx. every 500 mm holes for tension belts
Stake Pockets:
* 16 removable stakes, approx. 100x40 mm, usable length approx. 800 mm
Stake Pocket Sockets:
* 8 per side recessed in the outer frame
* 4 rows of stake sockets across the loading floor
Flooring:
* Approx. 28 mm Z-hardwood floor recessed in the outer frame
Front Wall:
* Closed front wall
* Storage rack for 16 removable stakes (ca. 100/40 mm)
* Front wall bolted to head frame
Equipment:
* 2 wheel chocks with holder
* 2x PVC toolboxes, approx. 600/400/500 mm
* Holder for rear beacon including lamp
* 2 LED reversing lights (at the rear)

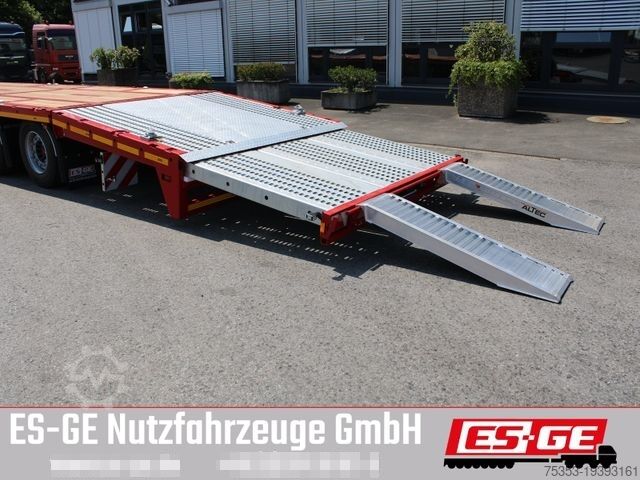

* 2 aluminium loading ramps, approx. 1,550 x 400 mm, load capacity approx. 4,000 kg/pair
* Wheel load at hydraulic rear approx. 5,000 kg
Paintwork:
* Chassis shot-blasted, cleaned, and fi
