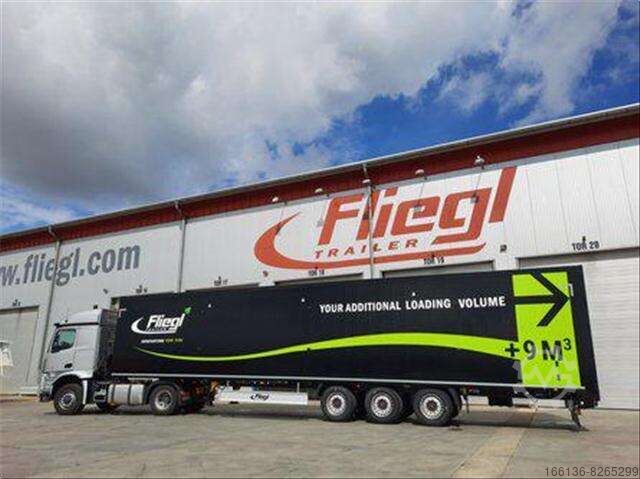

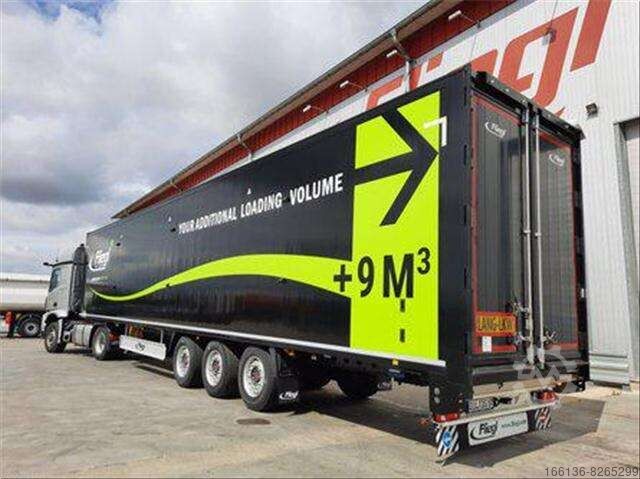

Прицеп с подвижным полом Fliegl SDS 390 Schubboden

Описание

Further information
Chassis saddle forwarding
Fine-grained steel welded construction in lightweight design, up to the support legs, saddle plate with replaceable 2 king pins
Laterally in the floor with lashing eye preparation (max. 13 pairs)
24 t. 2-speed support winch, single-side operation, with straight lower section, without thrust compensation
Extension ladder at the rear
Door retainer on the side
2 wheel chocks with holder
Aluminum side bumper
Steel underride guard with wide Fliegl mud flaps Folding guard plate for light unit
Quarter-shell mudguards
Impact protection at the rear
Aluminum ladder approx. 3,550 mm, with holder on the side
Tarpaulin pole with bracket
1 plastic tool box, with drawer and shelf, w=650 / h=520 / d=670 mm, lockable with a padlock (lock not included)
1 spare wheel holder for 1 e-wheel, with wheel fastening set
Axles+suspension
SAF disc brake axles with 430 mm disk diameter
Axle/suspension laser-measured Reduction in tire wear and fuel consumption
Air suspension
1st axle automatic lift axle, including forced lowering and starting aid, actuation of 3x brakes (starting aid is functional up to an axle load excess of 30% and up to a speed of max. 25 km/h)
Brake system
2-line compressed air brake systemColor-coded cable routing for easy servicing.
Pgec R Nc Ifsi Riwxenen
Spring-loaded parking brake
2 interchangeable clutch heads at the front, without connecting line
EBS, electronic braking system with EBS socket at the front, without connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve
Vehicle stability system
Wheels and tires
385/55 R22.5 tires of the manufacturer's choice
Steel rims, factory silver
Electrical system
24 volt, multi-chamber lights, amber LED lighting at the sides
2 white position lights at the front
2 white/red rear lane departure lights
2 x 7-pin and 1 x 15-pin interchangeable sockets at the front, without connecting cable
SB Hydraulics
Hydraulic cylinder with sliding device installed in the floor. 2-circuit hydraulics.
Forward/reverse travel is switched electrically via remote control with cable.
-Moving floor Power supply via parking light
Hydraulic actuation via truck power take-off
Hydraulic connection with hose to front wall and HDK screw connector NW = 48 mm,
Note: A 2-circuit hydraulic system is required!
Recommended pump capacity:
Liter capacity: 110 ltr/min
Pressure: 250 bar
Oil tank filling min: 100 ltr
SB floor
Sliding floor with wear plate at the rear
Aluminum floor boards, 8 mm floor profile, ribbed design
SB Trough
Aluminum box body made of high-quality, abrasion-resistant material. Front and side walls made of hollow aluminum profiles, welded together all round at the top with a wide special aluminum reinforcement profile, welded in at the bottom with a special frame.
Sliding wall for better emptying of the load, with reinforced tarpaulin flaps at the bottom.
With rail cleaner
Rear wall made of hollow aluminum profiles, as a 2-leaf door, with 1/2 to 1/2 division, framed all round with a special U-profile with stop and rubber seal, with 2 external espagnolette locks, locked at the top and bottom. Rear wall with mechanical safety lock, operation at the rear on the left in the direction of travel. With swivel crossbar at the top. The door locks can be locked with a padlock.
Standing platform with ladder access on both sides in the left/right direction of travel and railing for opening the door.
