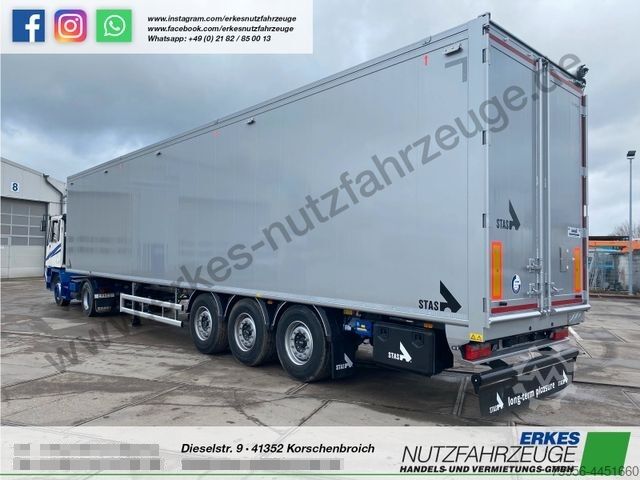

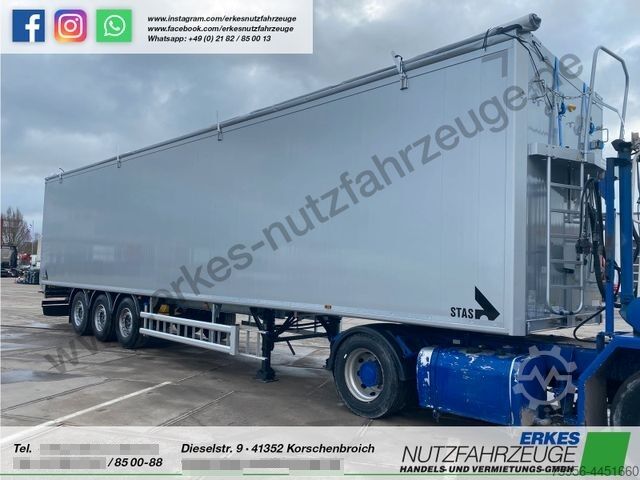

Полуприцеп с подвижным полом STAS Schubboden 13.50 "BioStar"

Описание

-Panama tarpaulin 900g
-10 mm floor
-V-plates 2000x1500x4
-Service door on the front wall
-12 pairs of lashing eyes in the front wall
Chassis: Reinforced version with continuous chassis, new structure manufactured in a self-supporting design with corresponding reinforcements in the lower flange for particularly high stability and strength, cross member 140 mm high reinforced version
Axle and suspension "disc brake 22.5" Jost axle units version, 3*9 tons with DCA - air suspension, lifting and lowering, Wabco Smartboard, electronic brake wear system BVA, 1st axle with traction aid (without tractor unit equipment)
Tires and wheels
6 wheels with tires of size 385/65 R 22.5 premium tires Ww. on steel rims, 11, 75*22.5 ET 120
Seat post
mech. Support winches, 2x20 ton support load
Braking system
EBS E-system Wabco with RSS system
(Roll Stability Support) and Premium Modulator, spring brake system acting on two axles with operation at the rear
Electrical system
According to the guidelines of the EC standard 91/633 and 97/28 with 2 five-chamber lights type Aspöck Europoint integrated in the aluminum rear end, 24 volt system with 1*15-pin and 2*7-pin socket, with side outline lights in LED design
2 separate LED reversing lights integrated in the U-protection,

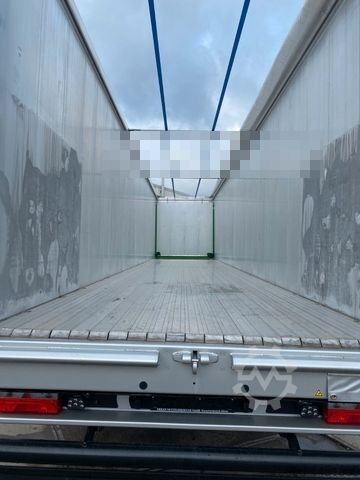

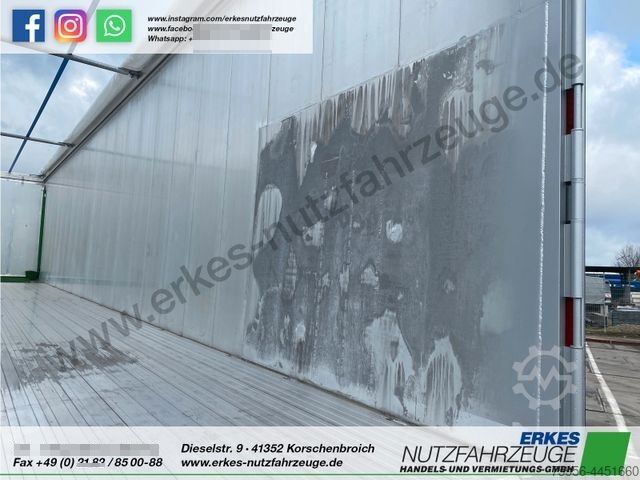

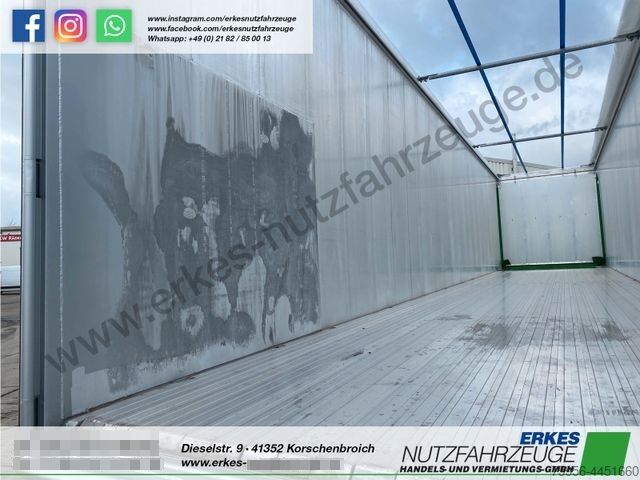

Structure/trough: "structure fully welded inside" reinforced side walls
Aluminum trough, side walls 30 mm thick ALU plank profiles
(2-3 mm) 600 mm wide completely welded with lower and upper belt, plank profiles fully welded inside, ALU front wall with 600 mm plank profile 2-3 mm thick in straight design, with 2 ALU wing doors 50/30 mm thick, running residual emptying wall with Kevlar tarpaulin approx. 1,500 mm long plus side with Kevlar ? plan seal
Hydraulic system: ?Cargo ? Floor? sliding floor system
Sliding floor system in the floor with hydraulically moved ALU ? profiles
Pgsc R Nefi Nmpjc Ifnon
on ALU ? Square profiles with approx. 880 PE-HD sliders, type CF 8 mm floor version, fixed halves on the front wall, separate option for connecting the hydraulic line under the vehicle with fixed halves, operating pressure 190 - max. 240 bar, ALU end pieces welded into the moving floor, without hydraulic hoses
Accessories:
6 PVC fenders with 2 anti-spray mud flaps,
1 ALU E wheel holder, side aluminum collision protection in foldable version, 1 tool box approx. 860*460*400 mm in plastic, 3.7 m aluminum ladder, roll-up tarpaulin approx. 660gr./m2 with roll-up tarpaulin system including roll-up slats if required with side. Tension belts or with quick release, walkway on the front wall with access, 3 steel bows with locking mechanism that can be swung out and locked, aluminum protective cover with hinges that can be folded down for lighting, etc...
+590¤ transfer costs
Empty weight: approx. 7,700 kg
Offer and images subject to change
