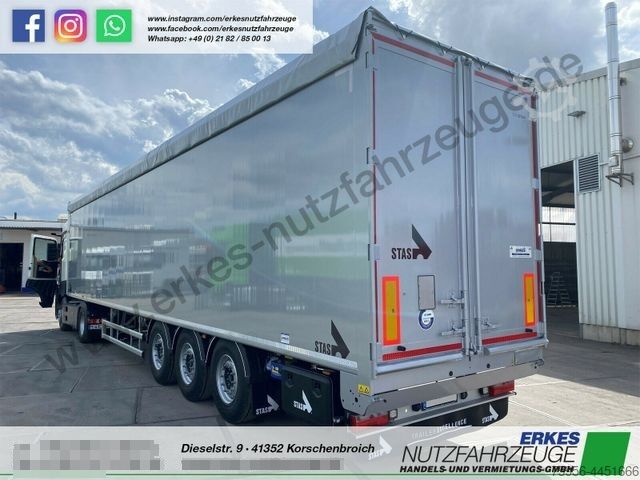

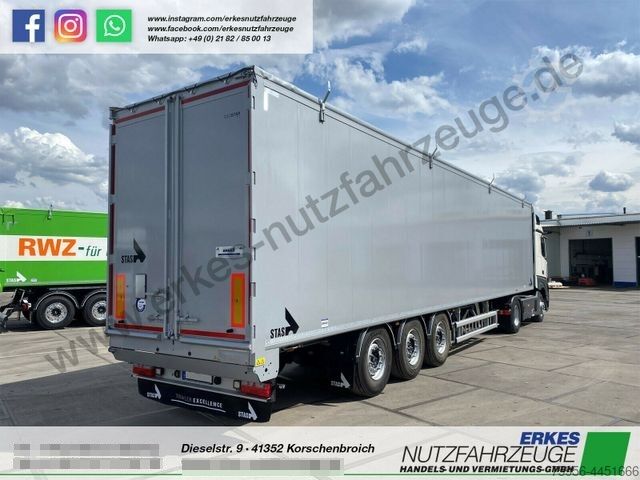

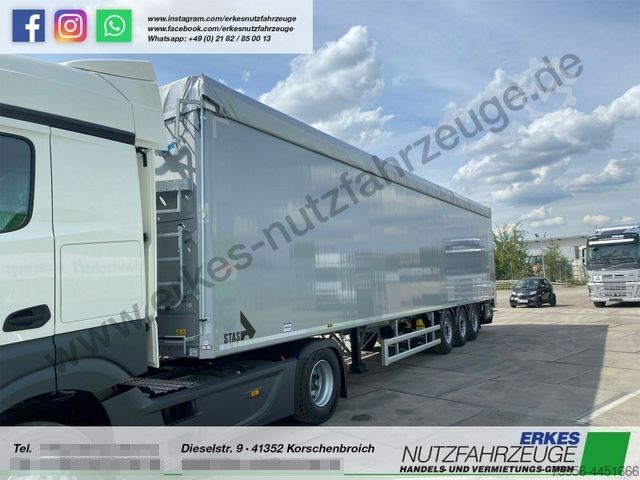

Полуприцеп с подвижным полом STAS MF Schubboden 13.50 "Ecohddisc" *Neufahrzeug*

Описание

Chassis: Version with continuous chassis, newly manufactured in self-supporting ALU construction with corresponding reinforcements in the lower chord for particularly high stability and strength, cross member 140mm high reinforced version (for high floor load) additional reinforcement as gusset plate in the front lower chord/vehicle frame area, chassis made of galvanized steel up to support structure
Axles and suspension: Disc brake 22.5, Jost (DCA) axle units, 3x9 tons with DCA air suspension, lifting and lowering, Wabco Smartboard Infocenter, electronic brake wear indicator BVA readable in the SZM (display), 1st axle with starting aid (new EC regulation, without SZM equipment), (on request against MP 1st + 3rd axle liftable)
Tires and wheels: 6 wheels with tires size 385/65 R 22.5 according to manufacturer's choice (Br-Go-Co) on steel rims silver, 11, 75x22.5 ET 120
Kingpin: 2" - screwed into a 10 mm thick plate
Fifth wheels: mechanical landing gear with two speeds, 2x 20 tons drawbar load with swivel foot
Brake system: according to E.G. standard, EBS E system Wabco with RSS system (Roll-Stability-Support) and Premium Modulator, spring brake system acting on two axles with operation at the rear, ALU air reservoir system
Electrical system: according to the guidelines of EC standard 91/633 and 97/28 with 2 five-chamber lights type Aspöck Europoint integrated in the ALU rear end, 24 volt system with 1x15 pole and 2x7 pole socket, with side outline lights in LED design, 2 reflective panels on the rear, front pole lights 2x white, rear 2x red, 2 sep. halogen reversing lights integrated in the U-protection

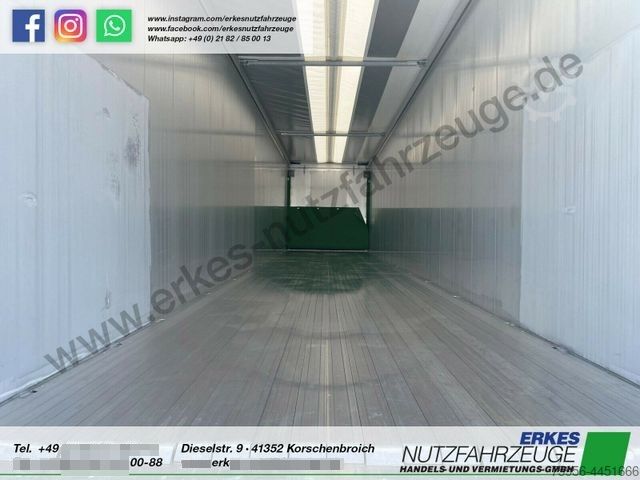

Body/body: Body fully welded on the inside, reinforced side walls Side walls, front wall load 17,250 dkn, side and rear wall 13,400 dkn/10,400 aluminum trough, side walls 30mm thick ALU plank profiles (2-3 mm) 600mm wide completely welded in with bottom and top chord, plank profiles fully welded inside, floor laid as a moving floor system on 140mm ALU cross beams, floor stacker load approx. 9 to/m2 Cross beams mounted correspondingly narrow (approx. 350mm), design, special aluminum corner profiles in bevelled design smooth rear wall in straight design with 2 ALU hinged doors 50/30mm thick with 2 espagnolettes Locks in welded-in ALU rear frame fixed in Teflon bearing and Inox bearing, Doors secured in open position with one chain on each side, hard wear plates on the side walls approx. 2000x1500x4mm fully welded, moving residual emptying wall with Kevlar tarpaulin approx. 1800mm long plus side brushes with Kevlar tarpaulin seal, service door in front wall with ladder turning inwards
Hydraulic system: Moving floor system in the floor with hydraulically moved ALU profiles on ALU square profiles with approx. 880 PE-HD sliders plus anti-lifting plain bearings, type CF 10mm floor version, hydraulics with approx. 200mm working stroke, fixed halves on the front wall, separate possibility for connection of the hydraulic line under the vehicle with fixed halves, line size NW 21, fixed halves with size and design still to be specified, operating pressure 190-max.240 bar, ALU end pieces welded into the sliding floor, electrical operation behind left with remote control integrated in a lockable watertight box, without hydraulic hoses
Pec Rofi Nmwo Nc Ifnjgn
Accessories: 6 PVC mudguards with 2 anti-spray mud flaps, 6 PVC splash plates above the wheels, 1 ALU e-wheel holder, lateral ALU collision protection in folding design, 1 tool box approx. 860x460x400mm in plasti
