Полуприцеп с подвижным полом STAS Biostar 91,3 cbm

Описание

National kingpin load (t) 12
National axle load (t) 8
Axle base (mm) 1310-1310
Fifth wheel height (mm) 1150
Chassis width (mm) 1200
Front internal height (mm) 2641
Rear internal height (mm) 2821
Overall width (mm) 2550
Overall length (mm) 14000
Steel chassis
385/65R22.5
SAF axles
Brake type: SAF - SBS 2220 (Haldex)
Offset (ET) 120
Option: 1st axle with traction help
Activation of traction help via button in the truck (installation of button is not included in the scope of delivery) and by pressing the brake pedal three times
Brake pad wear indicator not connected
Tire pressure monitoring: Wabco Trailerpulse
Lowering of the air suspension via Smartboard and lifting/lowering valve
Pneumatic coupling head: European Palm coupling
Steel rims
Landing gears: Steel geared landing gears mounted at the front of the chassis, type JOST MODUL, with one-sided operation and 2 speed settings
EBS control panel: Left side, behind the axles
Moving floor control panel: Left side, behind the axles

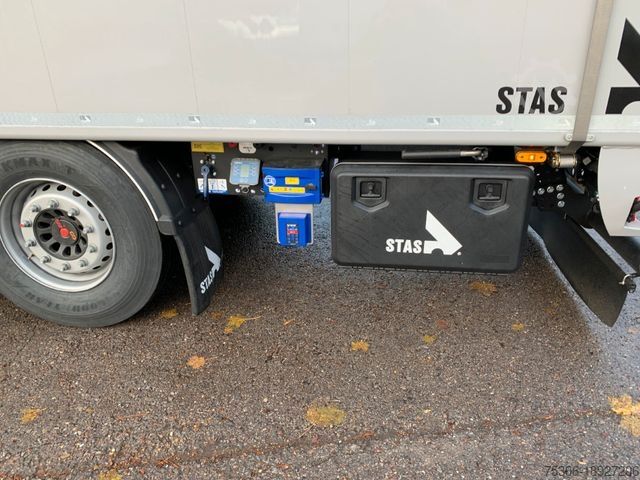

Toolbox: Left side, behind the axles
Lighting: Aspöck
Lighting type: ECOLED II
Reversing lights: 2 LED reversing lights, rear, left and right, on lamp holders
2 LED reversing lights, front, left and right, on lamp holders
Hydraulic coupling: Swivel coupling
Hydraulic coupling - Size 1
Hydraulic coupling - Gender: Female
Hydraulic coupling - Hose 3,000 mm

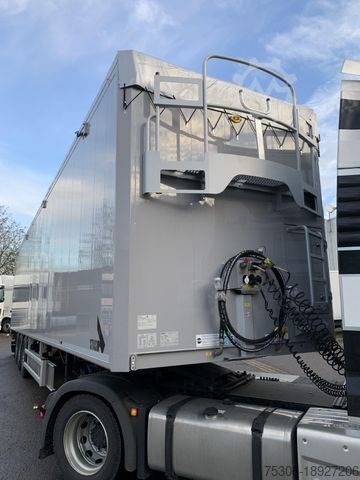

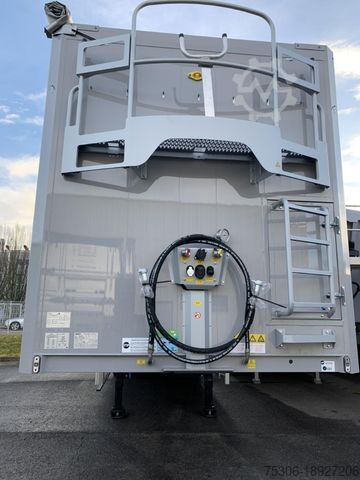

Hydraulic coupling - Position: Connection option on the front wall (additionally on the support legs)

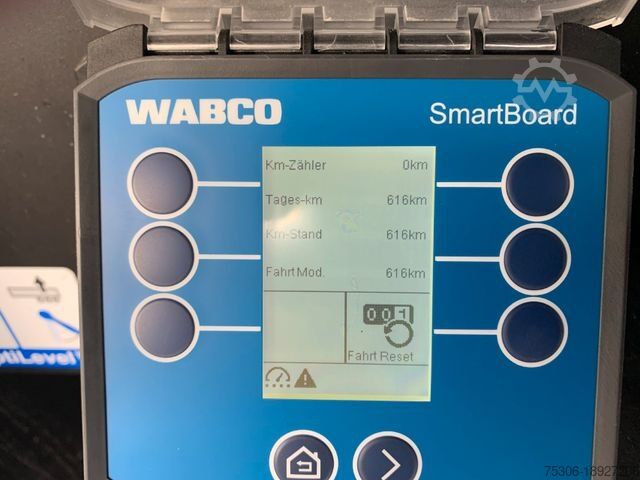

Standard Smartboard
Aluminum lean-to ladder 3.80 m - right in the direction of travel
Position of broom and shovel holder on the side impact protection on the left
Loading pressure gauge Ø 100 mm - at the front of the chassis
With two plastic wheel chocks including bracket

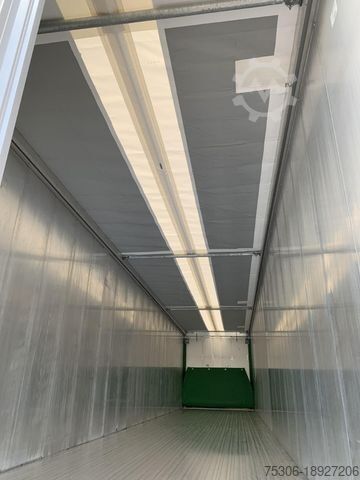

Walking floor system: Cargo Floor
Air and electrical console, centered in the direction of travel
Construction
Rear wall: wing doors
Cover plate between floor and front wall: solid aluminum plate and PVC strips
Front wall profile: 3 mm - 2 mm
Side wall profile: 3 mm - 2 mm, smooth inside and out, double-walled profiles: 600 mm wide - 30 mm thick
Distance from lower corner profile to upper side wall on the rear: 2649
Floor system operation: radio remote control
Cargofloor Control: Type CF 500 SL-C - E-CONTROL
Number of floor profiles: 21
Type of floor profile: 10 mm ribbed
Aluminum moving floor end plate
With additional plastic guides below the floor profiles
Type of Aluminum Complete Emptying Wall
Brushes for Complete Emptying Wall
Stainless steel handles for easy wall movement
Storage for Complete Emptying Wall: 6 wheels with bidirectional cleaning (loading floor)
Aluminum Rear Wall
Hinged door design: 1/2 to 1/2 split, with door crossbar
Door leaf opening: Right door leaf opens first
Pivoting door crossbar
Door crossbar material: Aluminum
Rear door locking: 1x pivoting rod per door half
Number of door handles - left door leaf: 2, right door leaf: 1 per pivoting rod
Opened door leaf fastening: Spring retainer with plastic protection
Rear wall seal with standard rubber seal
Rear wall additional locking: Pneumatic, single-acting
Pgsc R Nc Ijwbxxhjfnon
Additional locking: Manual operation of the additional locking via the side of the dashboard
Rear door crash protection: Aluminum ramp buffer across the entire width of the rear wall
Tensioning gear for roll-up tarpaulin tensioning With handle, mounted on the underside/side wall of the body
Sprieg type
