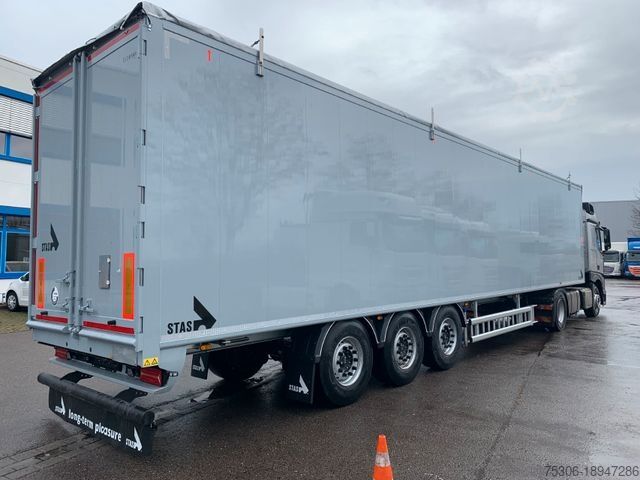

Полуприцеп с подвижным полом STAS bioSTAR 90,6 cbm

Описание

National kingpin load (t) 12
National axle load (t) 8
Axle base (mm) 1310-1310
Fifth wheel height (mm) 1150
Chassis width (mm) 1200
Loading width (mm) 2475
Standard chassis 135
Technical permissible total weight 39=12 9 9 9
Walking floor trailer wheelbase (mm) 7850
Front interior height (mm) (IHF) 2641
Pgjc Rowcih Ae Nc Ifnen
Rear interior height (mm) (IHB) 2778
Overall width (mm) 2550
Overall length (mm) 14000
Chassis material: Steel

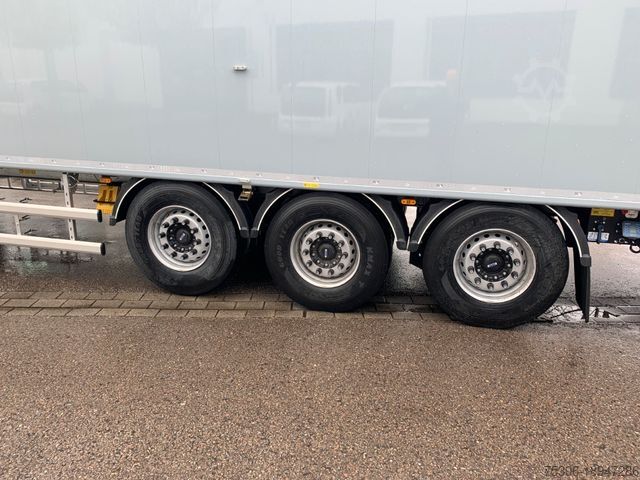

Tire size 385/65R22.5
Chassis neck height (mm) 217
Axles: JOST
Type JOST Brake - DCA-T7
Optional 1st axle with lifting axle and traction control
Activation of traction control
Optional 3rd axle with lifting axle
Brake pad wear indicator
Tire pressure monitoring: Wabco Trailerpulse
ECAS air suspension with raising and lowering valve
Lowering of the air suspension via smartboard and raising and lowering valve
Pneumatic coupling head
Weweler landing gear: steel geared landing gear, type Weweler, with leveling feet, single-sided operation, and 2 speed settings
EBS control panel: left in the direction of travel
Moving floor control panel: left in the direction of travel
Plastic toolbox
Aspöck lighting
ECOLED II lighting type
2 LED reversing lights, rear, left and right in the direction of travel, on the lamp holder
Position of work lights (operated via switch) 2 LED reversing lights, front, left and right
Hydraulic coupling, swivel coupling, 3000 mm hose
Hydraulic coupling - size 3/4
Hydraulic coupling - gender, female
Hydraulic coupling, return swivel coupling
Hydraulic coupling return - size 1
Hydraulic coupling return - gender, female
Hydraulic coupling - position: connection option on the bulkhead
Hydraulic coupling - design: standard version
Positioning the hydraulics: pressure return, pressure left, return right
Smartboard
Air connection on the side of the dashboard

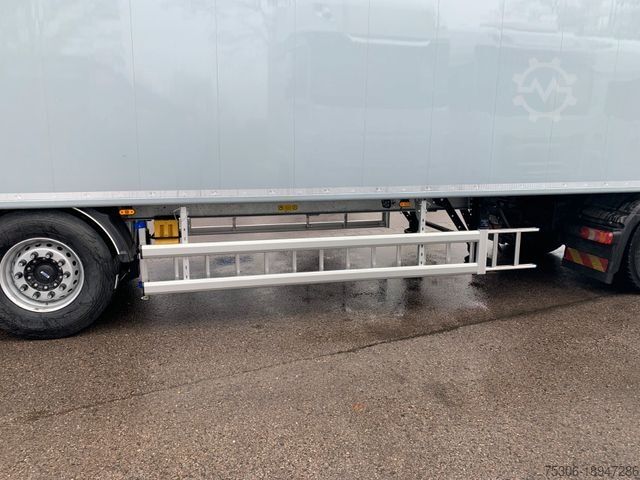

Aluminum lean-to ladder, 3.80 m - right in the direction of travel
Positioning of the broom and shovel holder on the side impact protection: left in the direction of travel
Walking floor system: Cargo Floor
Air and electrical console, centered in the direction of travel, with boom

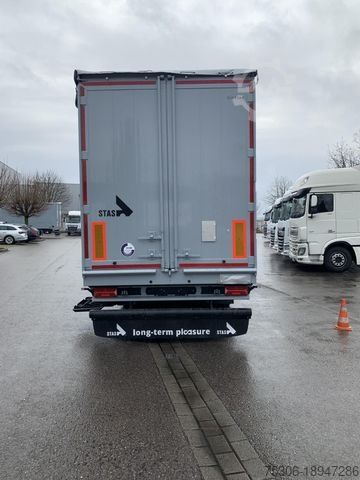

Rear wall: hinged doors
Folding A-shield
Cover plate between floor and bulkhead: solid aluminum plate and PVC strips
Standard fifth wheel plate
Built-in bulkhead profile: 3 mm - 2 mm
Sidewall profile 3 mm - 2 mm, smooth inside and out, double-walled profiles 600 mm wide - 30 mm thick
Wear plates: Rectangular 1500 x 1000 x 4 mm
Distance from lower corner profile to upper sidewall on the rear: 2649
Floor system operation: Radio remote control
Cargofloor Control Type CF 500 SL-C - E-CONTROL
Number of floor profiles: 21.8 mm
Stainless steel moving floor end plate
With additional plastic guides below the floor profiles
End cap reinforcement: Stainless steel shoes above the floor profile end caps, with aluminum wear plates above the end caps
Oil temperature sensor for moving floor system
Aluminum complete emptying wall
Storage for complete emptying wall: 6 wheels with bidirectional cleaning
Aluminum rear wall
Hinged door design: 1/2 to 1/2 pitch, with door end cross member
Rear door locking mechanism: 1x rotary bar per door half
Rear wall seal with standard rubber seal
Rear wall additional locking mechanism: pneumatic, single-acting
Additional locking mechanism: manual operation via the control panel on the side of the dashboard
Rear door crash protection: aluminum crash buffer across the entire width of the rear wall
Tensioning gear for roll-up tarpaulin tensioning: tensioning gear with handl
