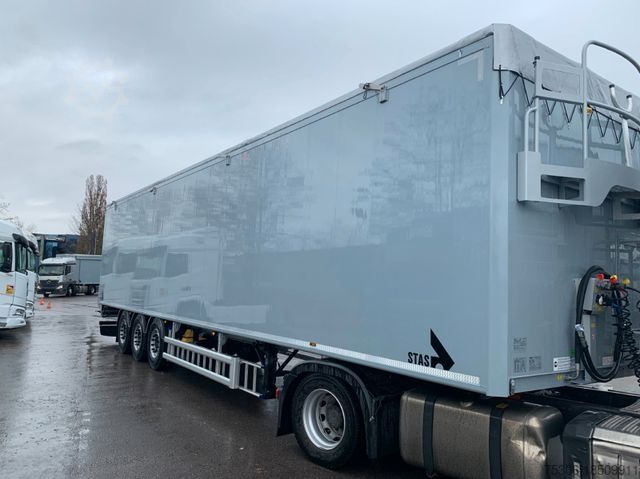

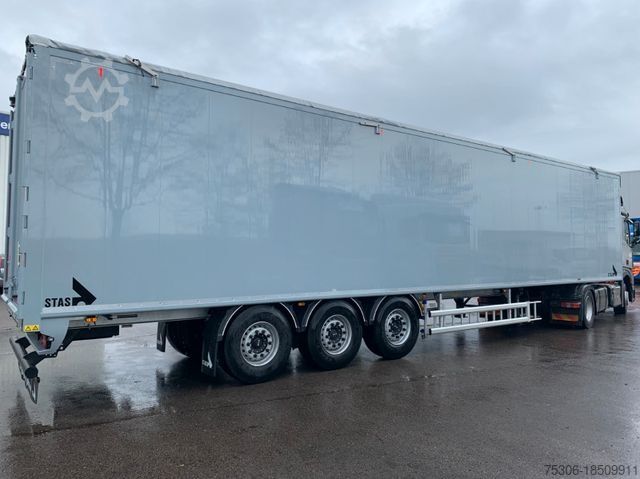

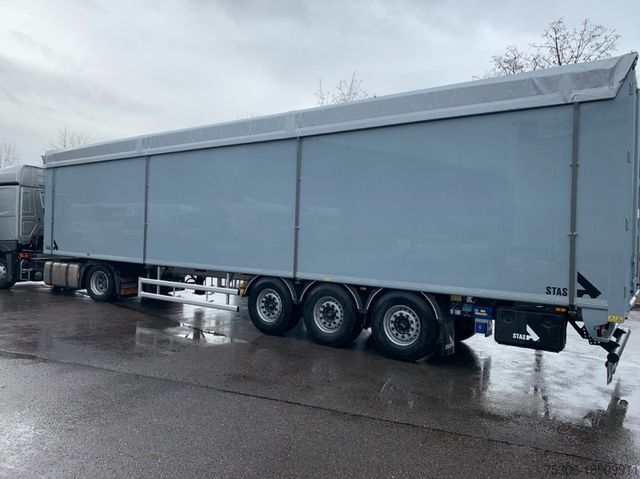

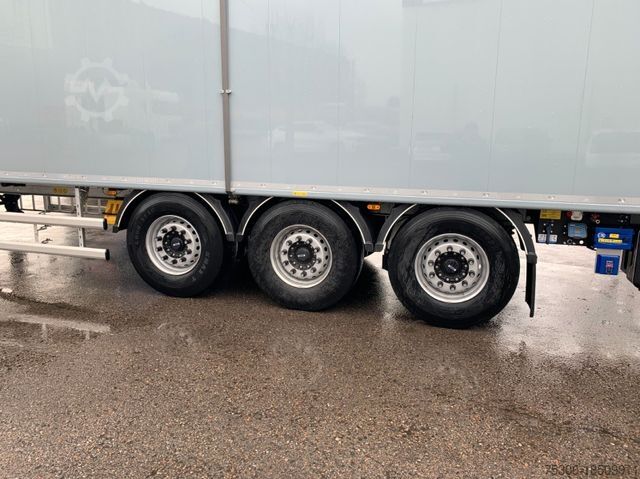

Полуприцеп с подвижным полом STAS Biostar 90,6 cbm

Описание

Kingpin load national (t) 12
Axle load national (t) 8
Axle distance (mm) 1310-1310
Fifth wheel height (mm) 1150
Chassis width (mm) 1200
Internal height front (mm) 2641
Internal height rear (mm) 2778
Total width (mm) 2550
Total length (mm) 14000
Chassis steel
Axles JOST
Brake type JOST - DCA-T7
Offset (ET) 120
Option 1st axle with lift axle and traction aid
Pgjc R Njvy Rc Dsc Ifnen
Activation of traction aid via button in the truck
Option 3rd axle with lift axle
Brake pad wear indicator connected
Tire pressure monitoring Wabco Trailerpulse
Air suspension ECAS with raising and lowering valve
Lowering of the air suspension via smartboard, as well as raising Lowering valve
Coupling head pneumatic European Palm coupling
Rims steel
Weweler landing gear as steel gear landing gear, Weweler type, with leveling feet, one-sided operation and 2 speed levels

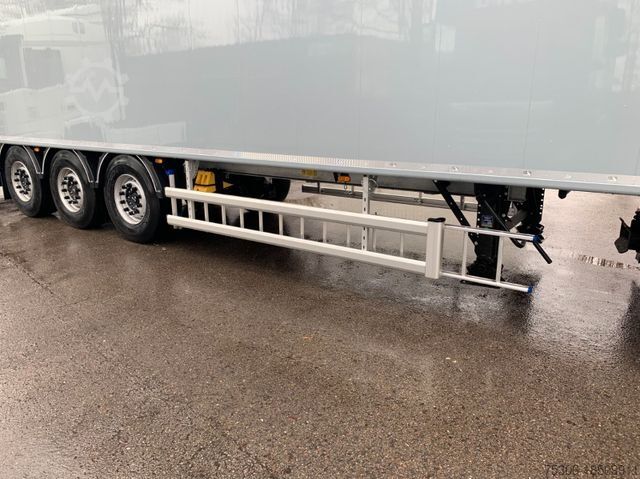

Fixed underrun protection operation
Mud flaps underrun protection across the entire width of the underrun protection
EBS operation in the direction of travel on the left, behind the axles
Operating console moving floor in the direction of travel on the left, behind the axles
Tool box in the direction of travel on the left, behind the axles
Manufacturer lighting Aspöck
Lighting ECOLED II
2 LED reversing lights, rear in the direction of travel on the left and right on the lamp holder
Position of work lights (operated via switch) 2 LED reversing lights at the front left and right
Hydraulic coupling rotary coupling
Hydraulic coupling - size 3/4"
Hydraulic coupling - gender female
Hydraulic coupling - hose 3,000 mm
Hydraulic coupling - position Connection option on the front wall (additional connection option on the support legs)
Standard Smartboard
Air connection on the side of the dashboard
Aluminum lean-to ladder 3.80 m - right in the direction of travel
Position of broom and shovel holder on the side impact protection on the left
Two plastic chocks including bracket
Moving floor system made by Cargo Floor
Air and electrical console in the middle in the direction of travel
Construction

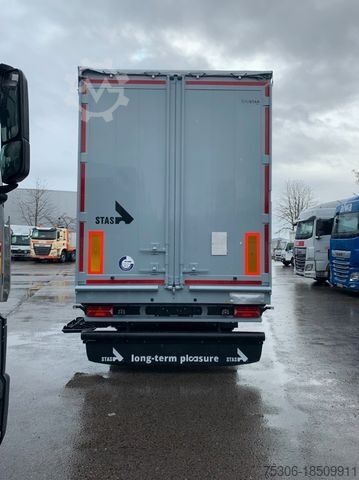

Rear wall type with hinged doors
A-plate foldable on the door, right
Cover plate between floor and front wall Solid aluminum plate and PVC strips
Front wall profile 3 mm - 2 mm
Side wall profile 3 mm - 2 mm in smooth design inside and outside, double-walled profiles 600 mm wide - 30 mm thick
Wear plates Rectangular 1500 x 1000 x 4mm
Distance between lower corner profile and upper side wall on the back 2649
Operation of floor system radio remote control
Cargofloor Control type CF 500 SL-C - "E"-CONTROL

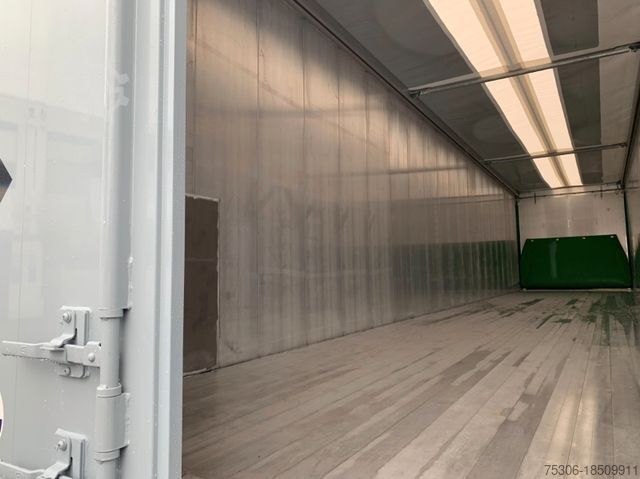

Floor profiles 21
Floor profile type 8 mm flat
Stainless steel sliding floor end plate
With additional plastic guides below the floor profiles
End cap reinforcement Stainless steel shoes above the end caps of the floor profiles, with aluminum wear plate above the end caps
Oil temperature sensor sliding floor system

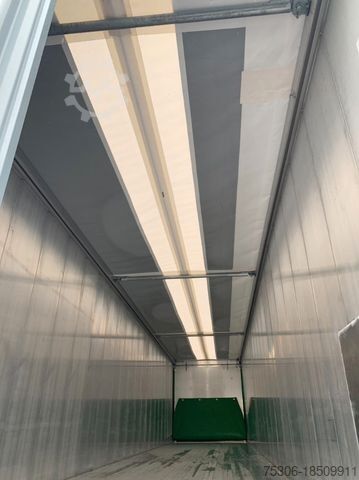

Complete emptying wall
Type of complete emptying wall aluminum
Storage of complete emptying wall 6 wheels with bidirectional cleaning (loading floor)
Rear wall aluminum
Design of wing door, 1/2 to 1/2 division, with door crossbar
Opening of the door wings, right door wing opens first
Door crossbar in pivoting design
Material of door crossbar aluminum
Locking of rear doors 1x turning rod / door half
Left door wing 2 door handles per turning rod
Right door wing 1 door handle per turning rod
Fastening of the opened door wings spring holder with plastic protection
Seal Rear wall with standard rubber seal
Additional locking rear wall
