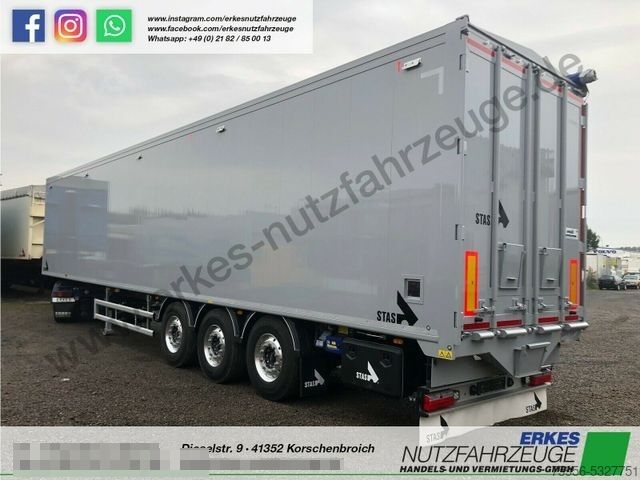

Полуприцеп с подвижным полом STAS 13.50 "WF 87 Farmstar"

Описание

Chassis
manufactured in self-supporting aluminum construction with corresponding reinforcements in the lower flange for particularly high stability and strength? Aggregate chassis made of ALUMINUM, 140 mm frame height (max. 39 tons), axles and suspension "disc brake 22.5", Jost axle units 3 x 9 tons with DC air suspension, lifting and lowering? Wabco Smartboard? electronic brake wear indicator (BVA) for display in the tractor unit (without tractor unit equipment)? 1st + 3rd axle separately liftable with traction aid (without tractor unit equipment), 3rd axle additionally with Optiturn, ECAS air suspension
Tires and wheels
6 wheels with tires of size 385/65 R 22.5 according to manufacturer's choice on Alcoa aluminum rims satin, 11.75x22.5 ET 120 (with steel + approx. 120 kg)
Seatposts
Aluminum drop supports, Made of aluminum alloy, 2 - 10 tonne support load, we use swivel feet for air suspension
Brake system
according to E.E.G. standard, dual-line braking system, EBS E - system Wabco with RSS system (roll stability support), spring brake system acting on two axles with operation at the rear, aluminum air tank system, premium modulator
Electrical system
according to the STVZO guidelines with 2 five-chamber lights type Aspöck Europoint III integrated in the aluminum rear end, 24 volt system with lx 15-pin and 2x 7-pin socket, with side
contour lights in LED design, 2 work lights at the rear, 2 LED work lights on the side at the height of the seat supports, 1 LED work light inside at the front left can be operated from the outside
Structure/trough "structure fully welded inside"
Front wall load 17,250 dkn? Rear and side walls 10,250/13,400 dkn aluminum trough, side walls 30 mm thick aluminum plank profiles (2-3 mm) 600 mm wide completely welded with lower and upper belt, plank profiles fully welded inside ! ! , floor as

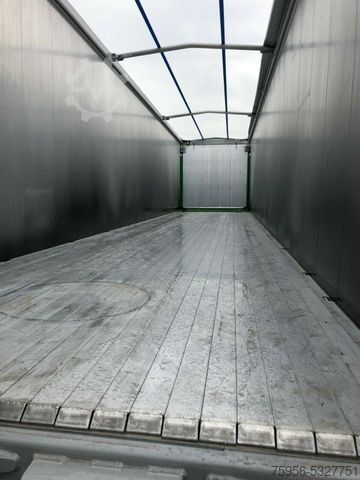

moving floor system laid on 140 mm aluminum cross beams, floor stacker load approx. 7 ton/m2 cross beams mounted accordingly closely (approx. 350mm), aluminum front wall with 600 mm plank profile 2-3 mm thick in straight design, special aluminum corner profiles in beveled design

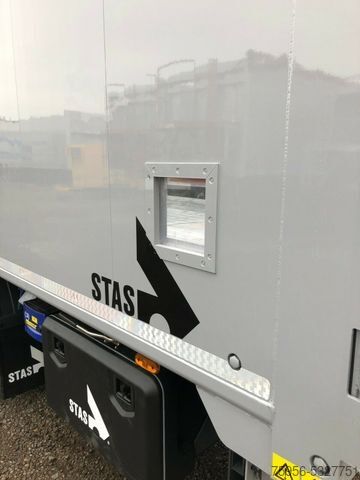

smooth rear wall in straight design with 2 aluminum wing doors 50/30mm thick with 4 rotating rod locks in the welded aluminum rear frame fixed in Teflon bearing and stainless steel bearing. ,running aluminum wall suspended in the reinforced aluminum top belt with "Kevlar tarpaulin" for complete emptying, side brush seal and additional Kevlar tarpaulin on the side, integrated discharge funnel with folding cover plate in the floor closure, operable from the outside on the left at the back, viewing window on the left at the back, 1 test slider in each of the rear doors, so 2 pieces, service door on the left in the front wall
Psc R Ncegcw Rij Ifnegn
Hydraulic system "Cargo Floor" 24 board system - smooth design!
Push floor system in the floor with hydraulically moved aluminum profiles mounted on aluminum square profiles with approx. 880 PE-HD sliders, approx. 8mm floor thickness, hydraulics with approx. 200mm working stroke, fixed halves on the front wall, separate option for connecting the hydraulic line under the vehicle with fixed halves, line size NW 21, fixed halves with size and design to be specified, operating pressure 190-max. 240 bar, aluminum end pieces welded into the floor, power supply at the rear left with cable operation in a lockable waterproof box, without hydraulic hoses
Accessories
PVC mudguard with rubber mud flaps, aluminum spare wheel holder, side
