Полуприцеп с подвижным полом STAS 10.50 "WF 60 FarmStar" 60m³

Описание

Chassis manufactured in self-supporting ALUMINIUM construction
with corresponding reinforcements in the lower flange for particularly high stability and strength, aggregate chassis made of ALUMINIUM, 140 mm frame height! (max. 39t)

Axles and Suspension “Disc Brakes 22.5”
Jost axle assemblies 3 x 9 tonnes with DC air suspension, lifting and lowering, Wabco Smartboard, electronic brake pad wear indicator (BVA) for display in the tractor unit (without tractor equipment), 1st and 3rd axles separately liftable with start-up aid (without tractor equipment), 3rd axle also with Optiturn, ECAS air suspension, tire pressure monitoring Wabco Trailerpulse with ZF rim-mounted sensors

Tyres and Wheels
6 wheels with tyres 385/65 R 22.5 as per manufacturer selection, Alcoa aluminium rims DuraBright - 11.75x22.5 ET 120, kingpin bolted into a 10 mm thick plate

Landing Gear
Aluminium drop-leg landing gears, 2 x 10 t support load, for air suspension we use swivel feet

Brake System
According to E.G. standard, two-line braking system, EBS E-system Wabco with RSS system (Roll Stability Support), spring-loaded brake system acting on two axles with control at rear, aluminium air tank system, premium modulator

Electrical System

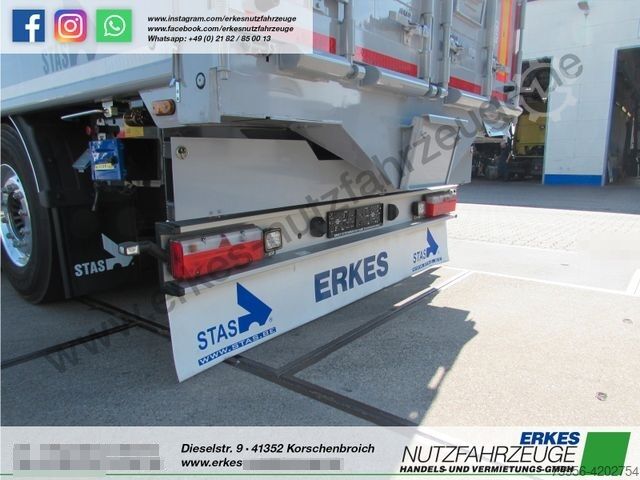

According to STVZO regulations with 2 LED five-chamber tail lights type Aspöck Europoint LED integrated in aluminium rear closure, 24 volt system with 1x 5-pin and 2x 7-pin sockets, side marker lamps in LED, 2 separate LED work lights at rear, 2 LED work lights at first landing gear height, 1 LED work light inside front left, operable from outside

Body/Tipper Body "Body fully welded on the inside"

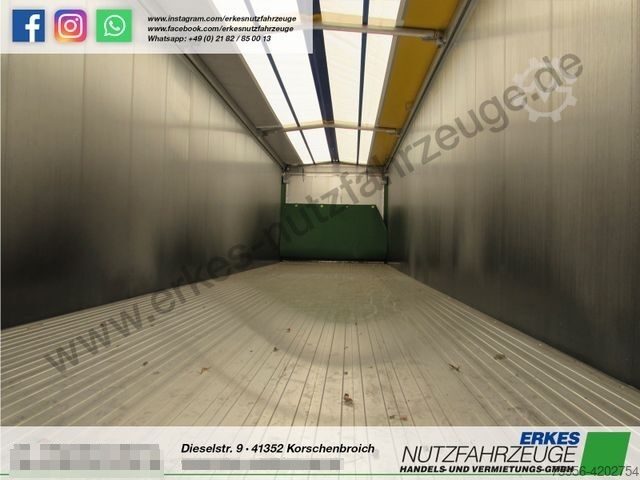

Front wall load 17,250 dN, rear and side walls 10,250/13,400 dN. Aluminium body, side walls made of 30 mm thick ALU plank profiles (2-3 mm), 600 mm wide, fully welded with lower and upper flange, plank profiles fully welded on inside, floor as moving floor system laid on 140 mm ALU cross beams, floor load approx. 7 t/m², crossbeams closely spaced (approx. 350 mm), ALU front wall with 600 mm plank profile, 2-3 mm thick, in straight design, special ALU corner profiles in beveled version, flat rear wall in straight design with 2 ALU swing doors 50/30 mm, with 4 locking bars in welded ALU rear frame mounted in Teflon and stainless steel bearings, continuous reinforced ALU upper flange supporting ALU wall with "Kevlar tarpaulin for complete emptying, side brush seal, additional side Kevlar tarpaulin, integrated discharge chute with folding cover plate at rear left bottom, operable from outside, inspection window rear left, one sampling flap in each rear door (2 pcs.), service door front left

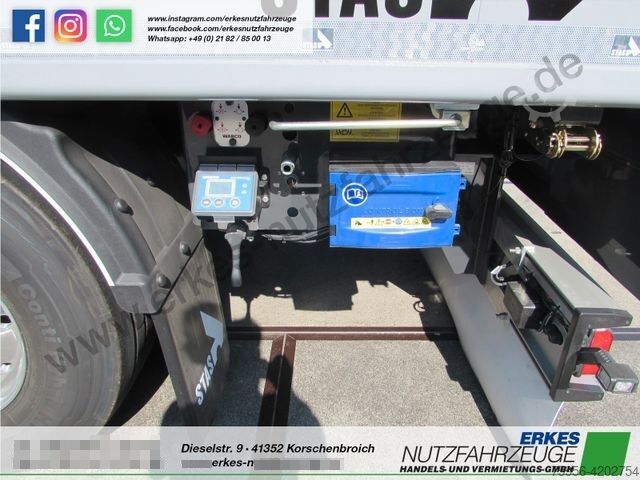

Hydraulic System "Cargo Floor moving floor system in the floor with hydraulically operated ALU profiles mounted on ALU square profiles with approx. 670 PE-HD sliding plates, approx. 6 mm floor thickness, hydraulics with approx. 200 mm working stroke, fixed parts at front wall, separate option for connecting hydraulic line under the vehicle with fixed halves, line size NW 21, fixed halves with sizes and type to be specified, operating pressure 190 to max. 240 bar, ALU end pieces welded into floor, electric control rear left with cable control in a lockable waterproof box,

Dwec Edofakkcs Ddceb
Accessories
PVC mudguards with rubber mud flaps, ALU spare wheel carrier, side ALU underrun protection in folding version, 1 tool box approx. 800x460x430 mm in plastic, approx. 3.7 m ALU ladder, rolling tarpaulin 680 g/m² quality with rolling tarpaulin system incl. sides.
