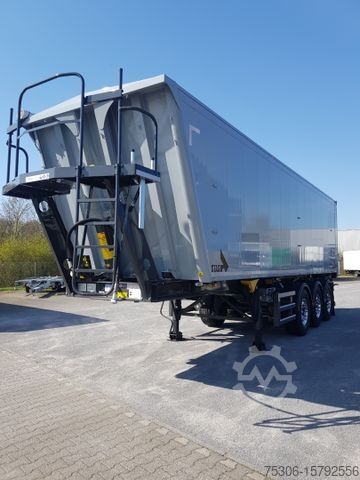

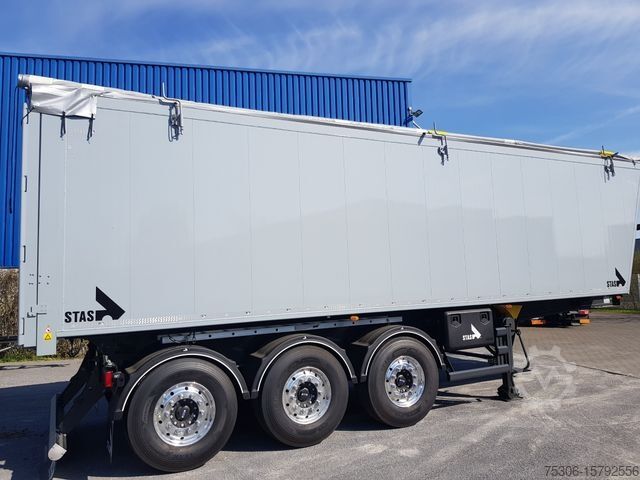

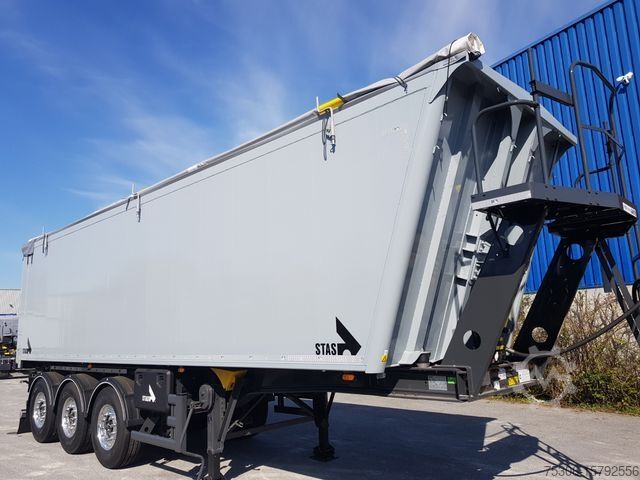

Полуприцеп-самосвал STAS agroSTAR 47,6 cbm Kippsattelauflieger

Описание

agroSTAR 47.6 m³

Chassis type: V-Chassis
National kingpin load (t) 12
National axle load (t) 8
Axle base (mm) 1310-1310
Fifth wheel height (mm) 1175
Chassis width (mm) 1400
Loading width (mm) 2475
Standard chassis: 080
Technical permissible total weight 39=12 9 9 9
Front interior height (mm) (IHF) 2165
Rear interior height (mm) (IHB) 2165
Volume (m³) 47.6
Overall width (mm) 2550
Wheelbase (mm) (WB) 5800
Overall length (mm) 10259.9978

Chassis
Chassis material: Aluminum
Tire dimensions 385/65R22.5
Loading length (mm) 8880
Axle manufacturer JOST (STAS manufacturer selection)
Brake type JOST - DCA-T7
Offset (ET) 120
Optional 1st axle with lifting axle and traction aid
Activation of traction aid via button in the truck
Optional 3rd axle with lifting axle and Optiturn
Activation of the additional lifting axle, controlled via Wabco Smartboard
Brake pad wear indicator connected
Tire pressure monitoring Wabco Trailerpulse
Air suspension ECAS with raising and lowering valve
Automatic lowering of the air suspension during tipping, manually lockable via Smartboard and switch on the chassis

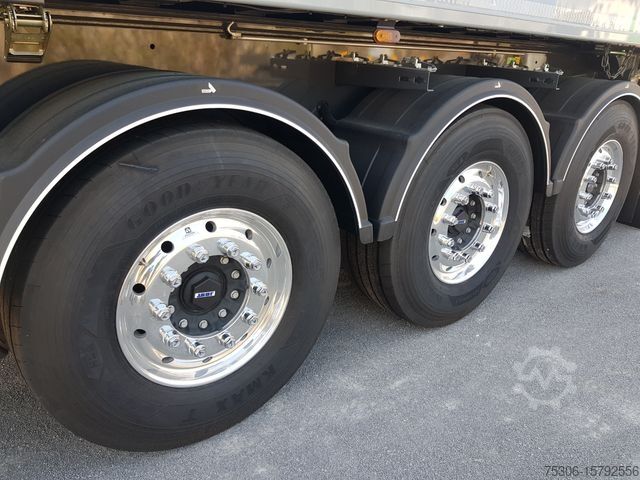

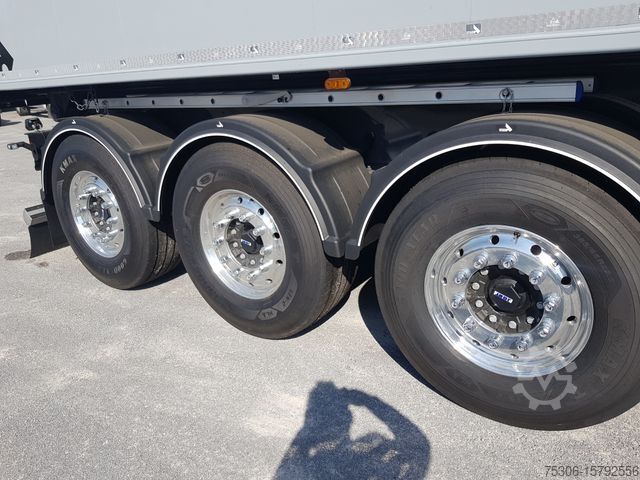

Wheels Alcoa Dura Bright
Tires type Regional spacing
Wheel nut caps Chrome with STAS logo
Landing gears Weweler: Steel geared landing gears, type Weweler, with
leveling feet, single-sided operation, and 2 Speed levels

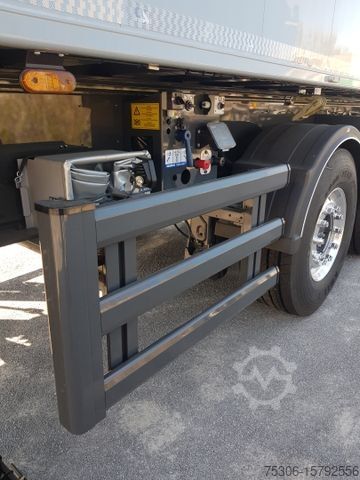

Manual underride guard operation
Towing eye: 1 piece, left in the direction of travel
Black underride guard mud flaps with STAS logo, mounted across the entire width of the underride guard
Fixed underride guard mud flap attachment
Underride guard cover with covers
Handle on the underride guard
EBS control panel: Left in the direction of travel, in front of the axles
Toolbox
Position of toolbox: Right in the direction of travel, in front of the axles
Material of toolbox - right in front of the axles: Plastic
Dimensions of toolbox - right in front of the axles: 860x520x500

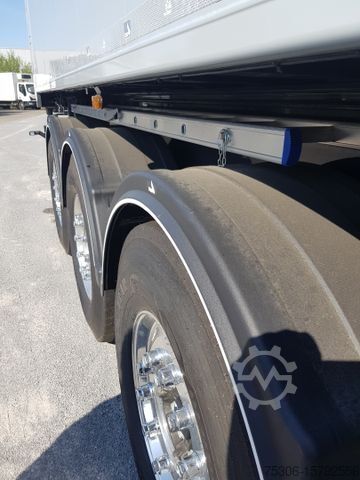

Type of fender: Domar STAS with white line
Number of mud flaps on the fender: 2 pieces
Type of mud flaps: Asphalt
Manufacturer: Aspöck
Type of lighting: EUROPOINT III - LED
Work lights (operated via switch): 2 pieces
LED reversing lights at the rear, left and right in the direction of travel, mounted on the lamp holder
Work lights (operated via switch): 2 pieces LED reversing lights at the front, left and right in the direction of travel

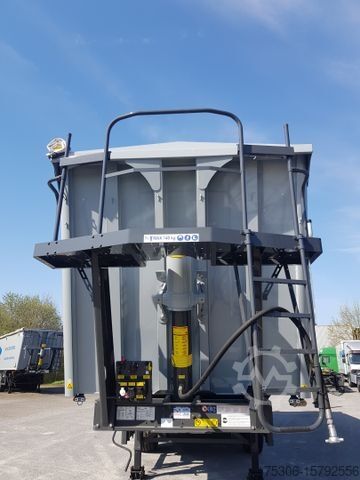

Tipping cylinder manufacturer: Hyva
Tipping cylinder type: Hydraulic cylinder with small casing
Cylinder tilt angle: Normal ±47°
Dwsc Ejtb Tqpsd Ddcsb
Tipping cylinder model: Hyva - FC 169
Tipping cylinder stroke: 6480
Tipping cylinder max. pressure: 250
Surface treatment of cylinder stages: Standard
Hydraulic coupling: Swivel coupling
Hydraulic coupling - size 1
Hydraulic coupling - gender: Female
Hydraulic coupling - hose 2,500 mm
Type: Smartboard: Standard
Air connection: Left in the direction of travel, on the lamp holder

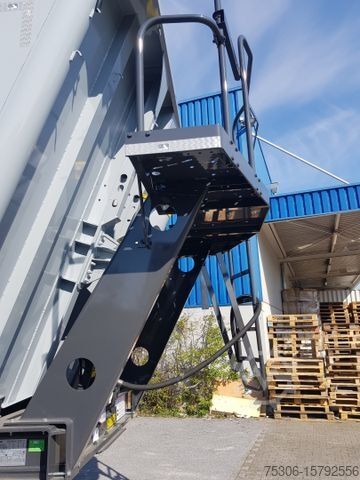

Aluminum leaning ladder, 3 m - right in the direction of travel
Leaning ladder attachment for rear entry with hooks
Broom and shovel holders with 3 holders each, mounted on the chassis on the left in the direction of travel
Two plastic wheel chocks including brackets
Chassis safety device - body: Rubber plugs (not for FSS 74 and 86)

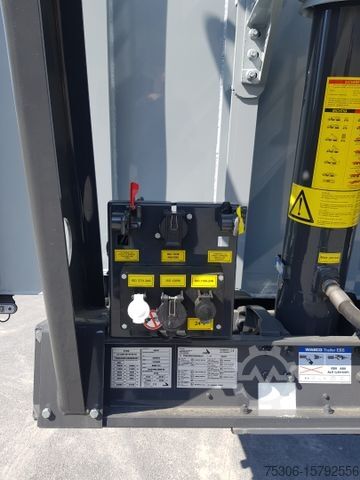

Air and electrical console, right in the direction of travel assembled

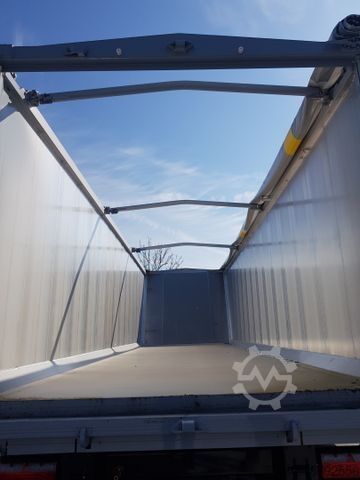

Construction
End wall inclination (°) 20
Rear wall inclination (°) 90
Rear wall type combi-door
A-plate on trough (not foldable) - right side
Incline of the bottom chord profile inside (°) 45

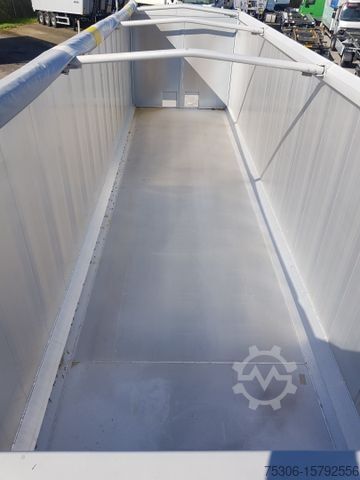

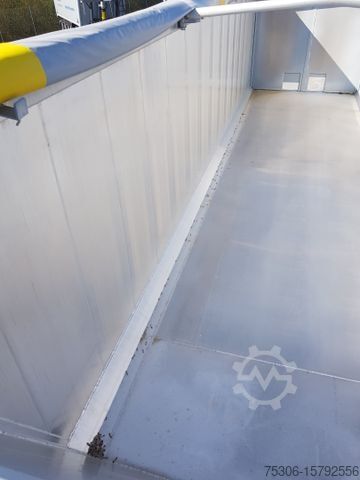

Floor 8 mm ALU - 110 Brinell
Rubber pads attached below
