Лесовозный полуприцеп
Лесовозный полуприцеп PAVIC PAVIC PRSH27 Plateau Rungen Schnellwechselsystem
Год выпуска
2025
Состояние
новое
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание

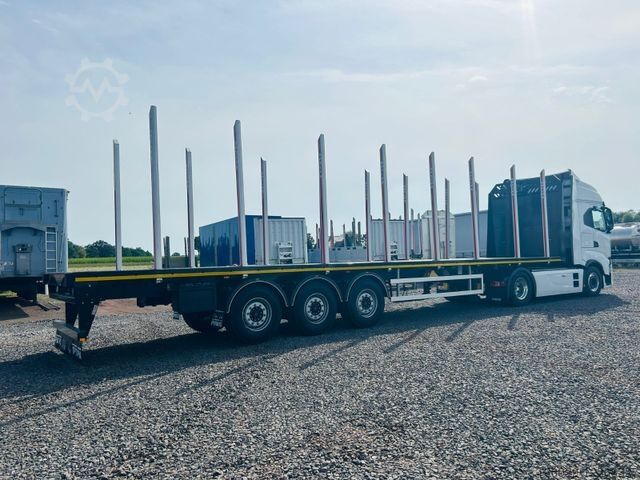

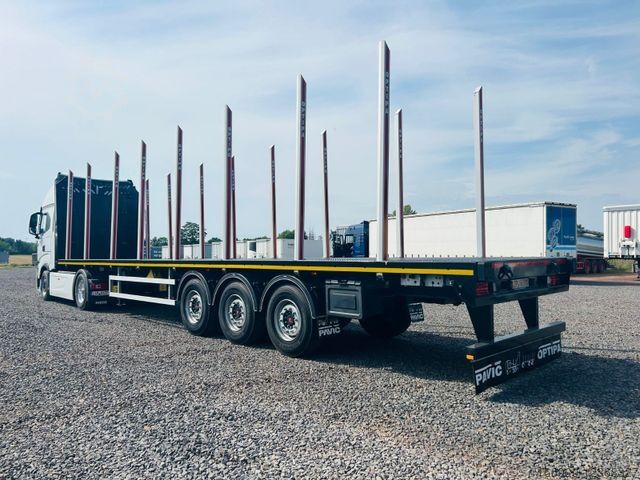

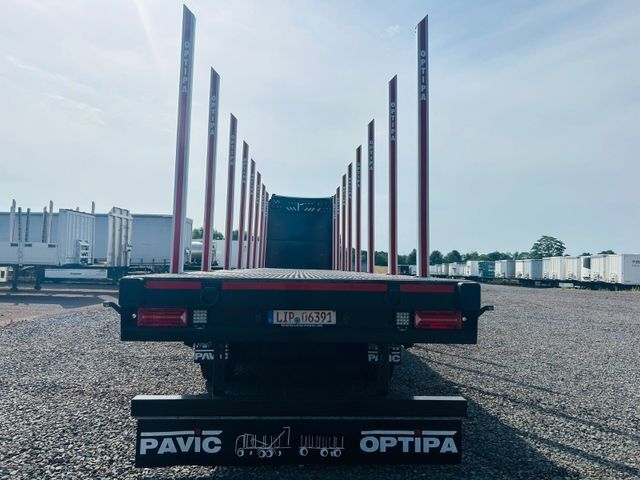

PAVIC OptiPa PRSH 27 platform semi-trailer for transporting timber and long materials.
* Chassis length approx. 13510 mm (head frame-head frame)
* Chassis width approx. 2540 mm (outer frame-outer frame)
* Sturdy steel bulkhead approx. 2,500 mm high
* 16x OptiPa A7 one-piece aluminum stanchions

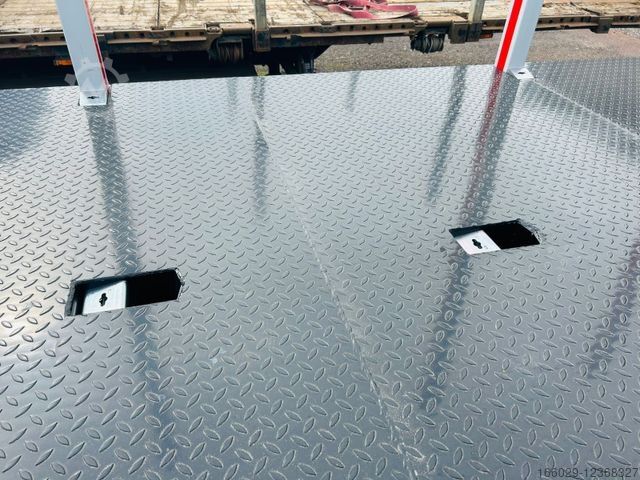

* Steel floor 4/6 mm tear plate cover
* Technically permissible total weight 43,000 kg
* Unloaded ride height approx. 1400 mm with saddle height 1200 mm
* Max. fifth wheel load approx. 16000 kg
* 2" kingpin in accordance with SAE standard, interchangeable from below

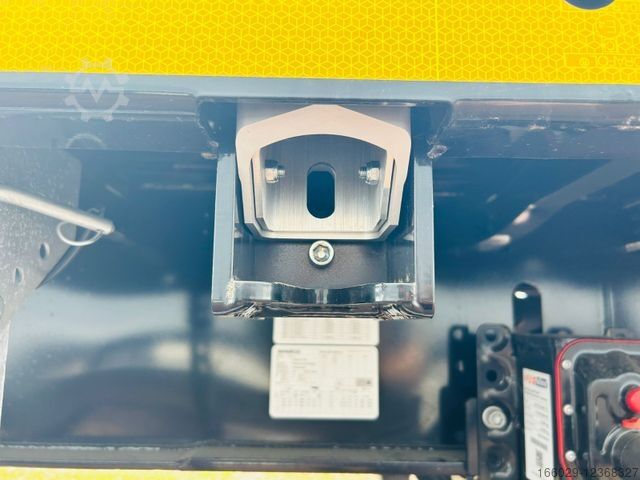

* 16x Optipa quick-release fastener system embedded in the outer frame and 8x as storage for stanchions distributed centrally over the entire length
* 3x 9t axle with large disc brake and air suspension unit for 9t load capacity each Total lift approx. 180 mm

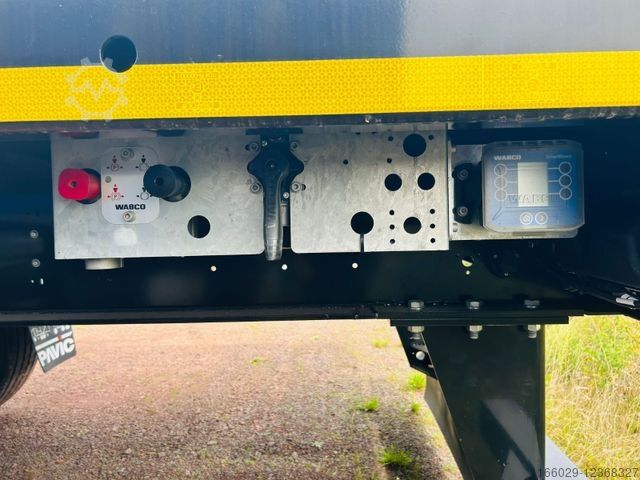

* Lifting and lowering device with rotary slide valve
* Axle lift first axle, automatic function, with starting aid
* Smartboard/TIM/Infocenter
* EBS brake system make Knorr or Wabco of our choice with Roll Stability program

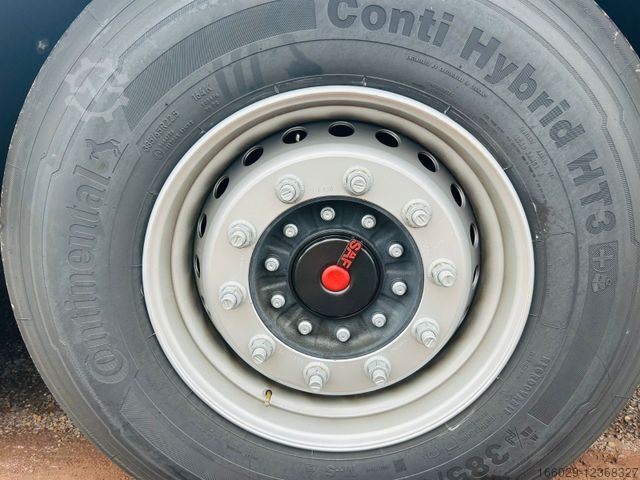

* Brand tires 385/65 R 22.5
* LED work lights
Poc Rsn Hrris Nc Ifnsgn
* LED lighting system

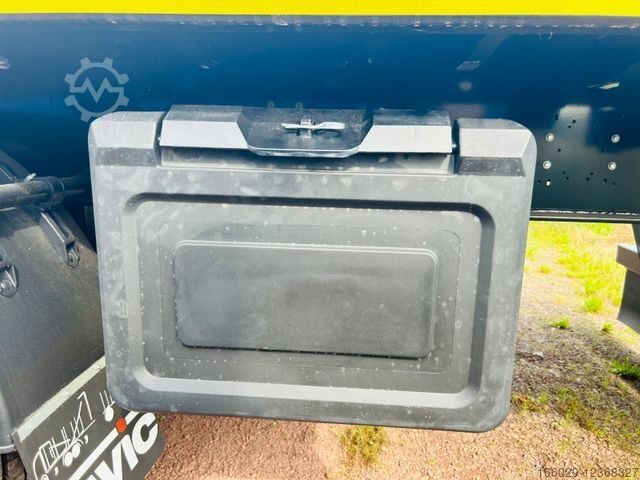

* 2x toolbox
* CDP with zinc phosphating plus powder, maximum corrosion protection (only if powder paint is available)
For further information please do not hesitate to contact us
Характеристики
Общий вес
40 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Максимальная грузоподъёмность
32 600 кг
Конфигурация осей
3 оси
Ширина пространства для загрузки
2 540 мм
Длина грузового отсека
13 500 мм
