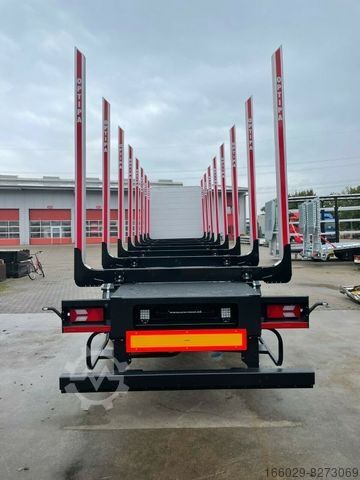

3-axle timber transport trailer
* 8x OptiPa stool bodies
* 16x OptiPa one-piece aluminum stanchions
* Sturdy aluminum front wall approx. 2500 mm high
* Max. fifth-wheel load approx. 12000 kg
* Front overhang (kingpin to front edge of KoRa) 1550m
* Air suspension with 3x 9t axles from SAF
* Axle reinforcement for off-road
* Axle lift first axle, automatic function, with starting aid
* Scales
* Total weight technically possible 39,000 kg
* WABCO Smart-Board
* EBS brake system
* All cables are protected inside the side members
* 3 mm smooth sheet metal cover welded through between the side members
* Tires: 6x brand-name tires size 385/65 R 22.5
* LED reversing lights and work lights
* LED tail lights and position lights
* Plastic mudguards, 180 degrees, above each axle
* Round tube underride guard mounted as high as permitted
Pgjcoi Rtgqo R Nc Ifnsn
* Maneuvering coupling at the rear
* Ten welded ring elements for lashing on each side
* 2x toolbox approx. 600x400x400, plastic
* Anodized aluminium side bumpers
* KTL coating with zinc phosphating, highest corrosion protection
Also available for hire at short notice.
Further information on request.
