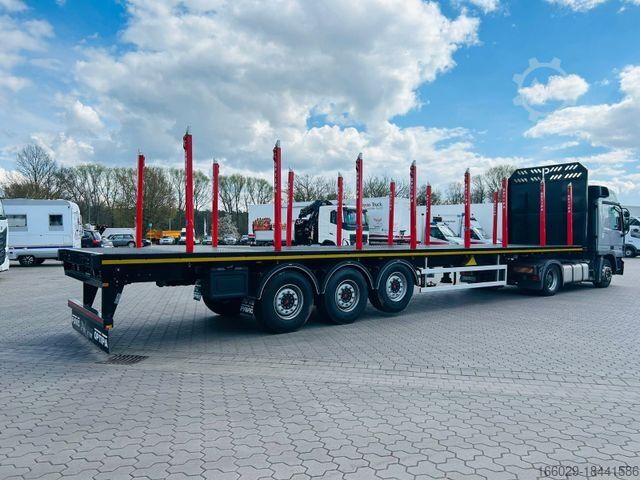

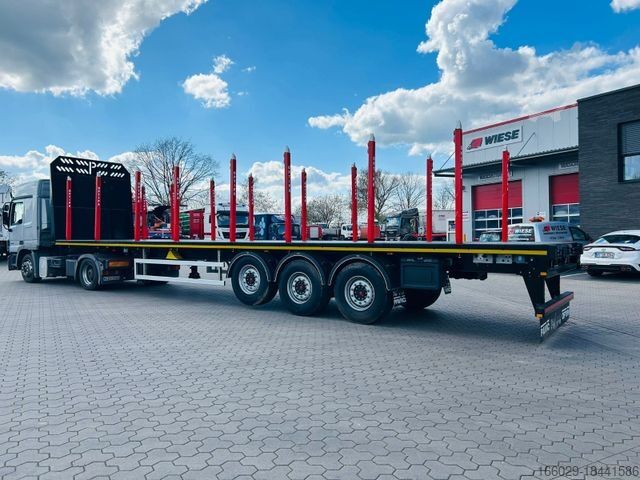

PAVIC OptiPa PRSH 27 platform semi-trailer for transporting wood and long material.
* Chassis length approx. 13510 mm (head frame - head frame)
* Chassis width approx. 2540 mm (outer frame - outer frame)
* Driving height unloaded approx. 1400 mm with fifth wheel height 1200 mm
* Maximum fifth wheel load approx. 16000 kg
* Front overhang (kingpin to front edge of KoRa) 1550 mm
* King pin 2" according to SAE standard, replaceable from below
* E-bike holder for 1 E-bike

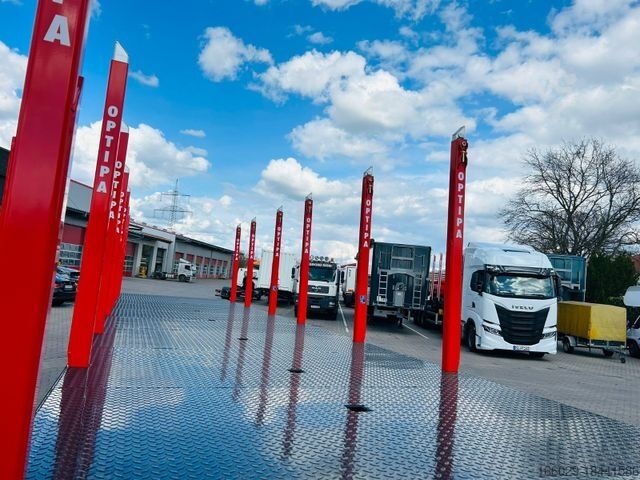

* 16 stanchion pockets embedded in the outer frame
* 8 pockets as storage for stanchions distributed centrally over the entire length

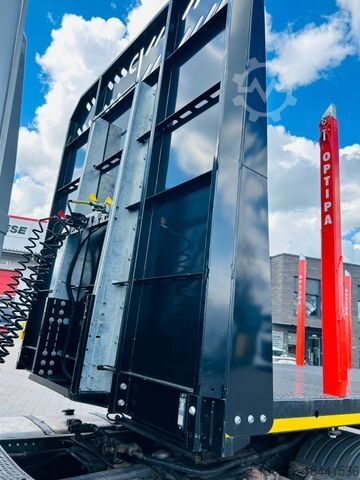

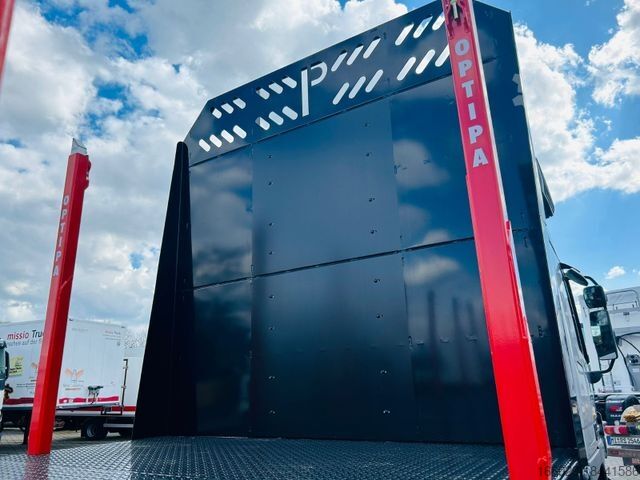

* Front wall approx. 2500 mm high, angled corners with sheet metal cladding

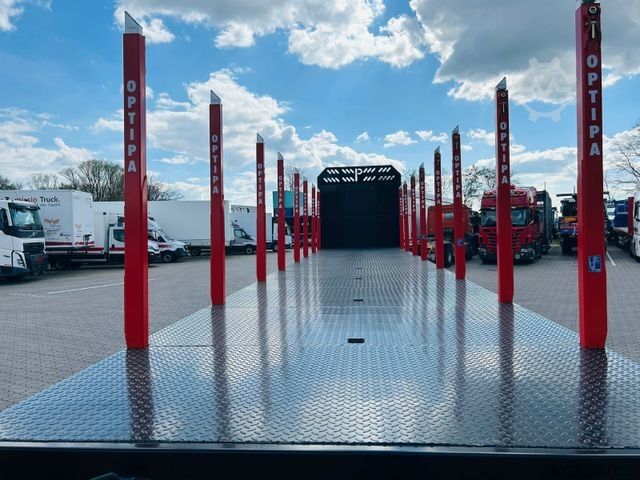

* Steel floor 4/6 mm tear plate cover

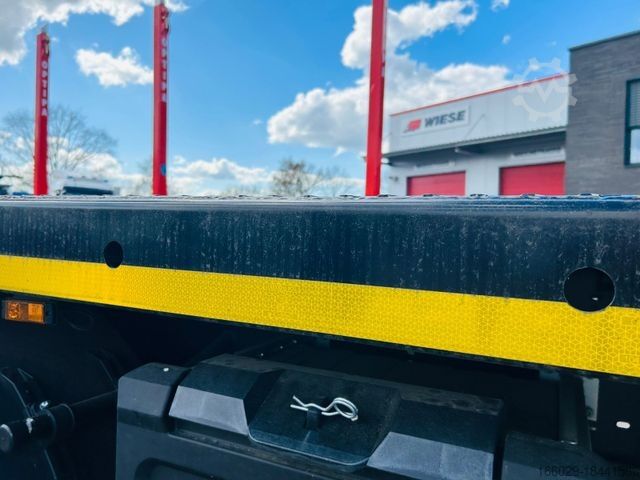

* Outer frame with rounded edges and holes for load securing approx. every 500 mm
* Axle lift first axle, automatic function, with traction aid
* Axle distance approx. 1310/1310 mm

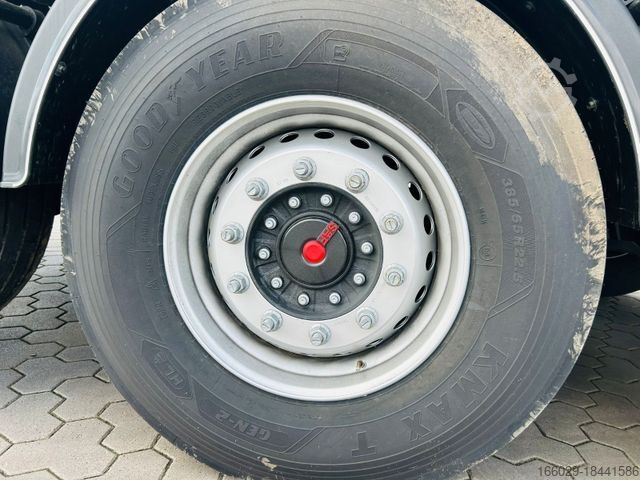

* Branded tires 385/65 R 22.5
* EBS braking system with roll stability program
Pgjcevw Hnwj R Nc Ifnjn

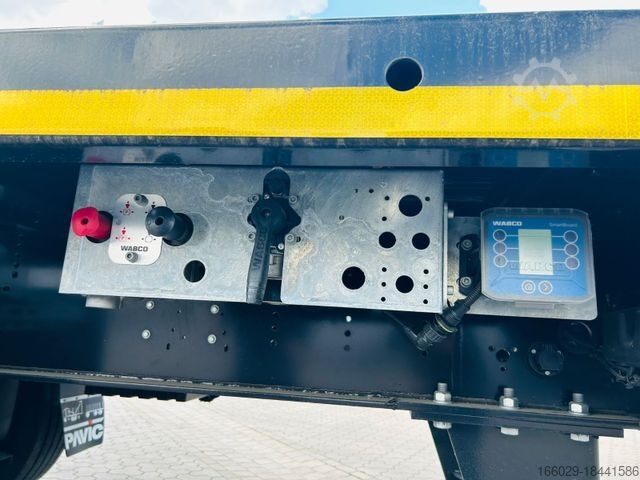

* Smartboard/TIM/Infocenter, in addition to the H+S valve
* LED lighting system
* LED work lights

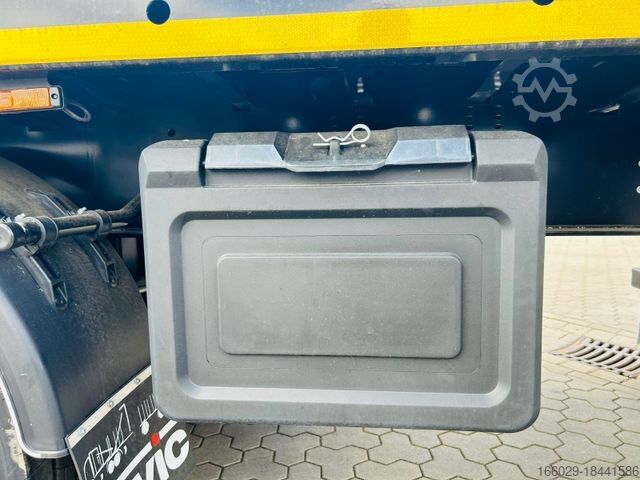

* 2x plastic toolbox
We are happy to provide you with further information
