Полуприцеп-автовоз
Полуприцеп-автовоз KÄSSBOHRER K.SOK Truck/Car Transporter, Novagrau
Состояние
б/у
Цена без учета НДС
17296000.00
Отправить сообщение
Описание

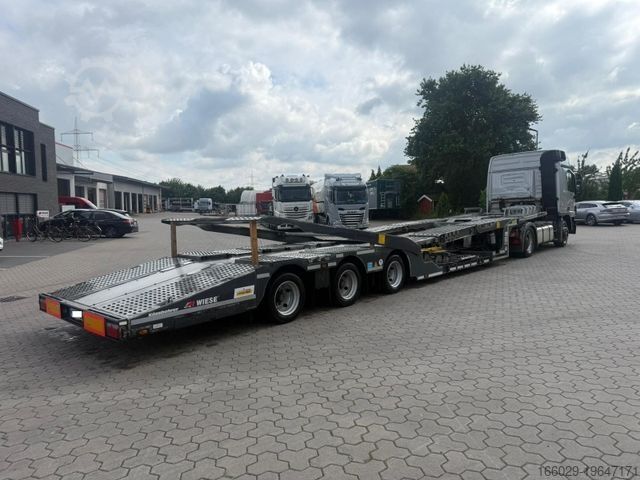

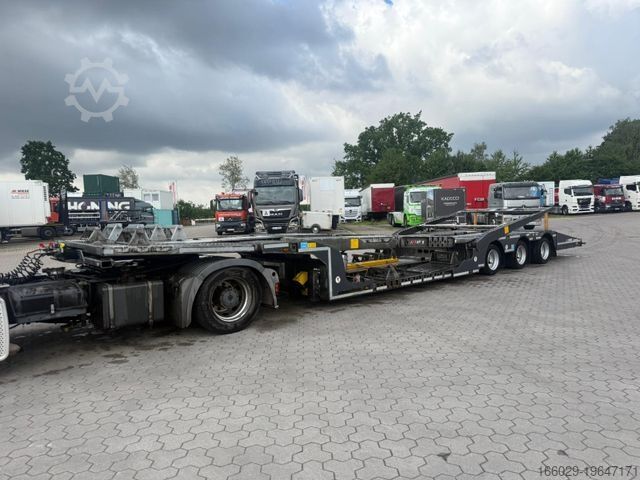

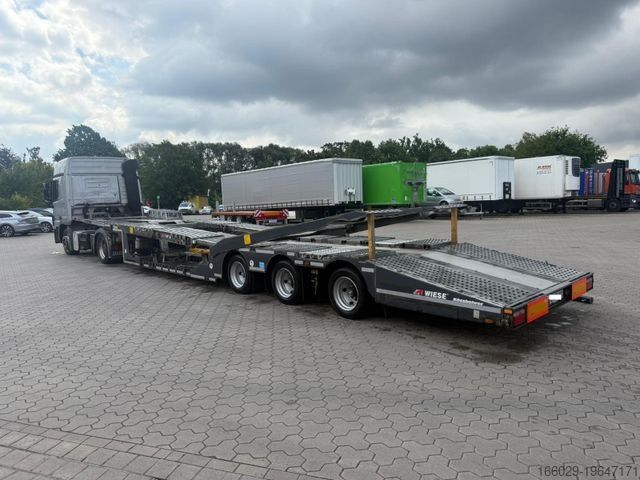

Kässbohrer K.SOK Extendable Truck/Car TransporterTECHNICAL DATA:
* Overall length: 13,200 mm
* Wheelbase: 8,350 mm
* Overall width: 2,550 mm
* Fifth wheel height: 1,000 mm
* Axle load: 24,000 kg
* Kingpin capacity: 12,000 kg
* Unladen weight ±3%: 11,145 kg
* Gross vehicle weight: 36,000 kg
* Vehicle extension: 1,800 mm
* Bumper extension: 1,200 mm
CHASSIS:
* BPW branded axles, 9,000 kg technical capacity with air suspension and drum brakes
* Last axle self-steering
* First axle liftable

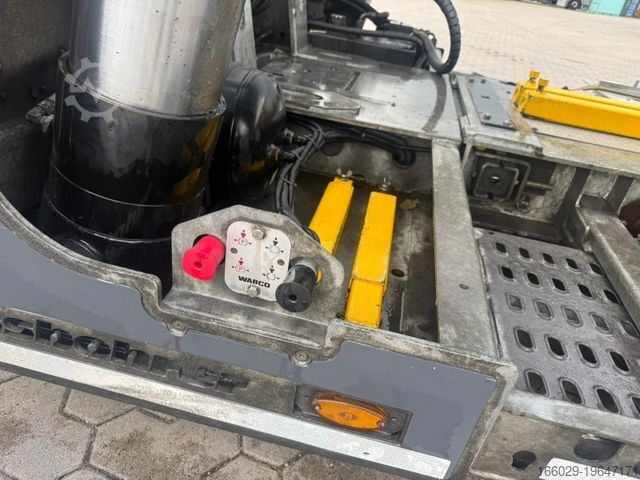

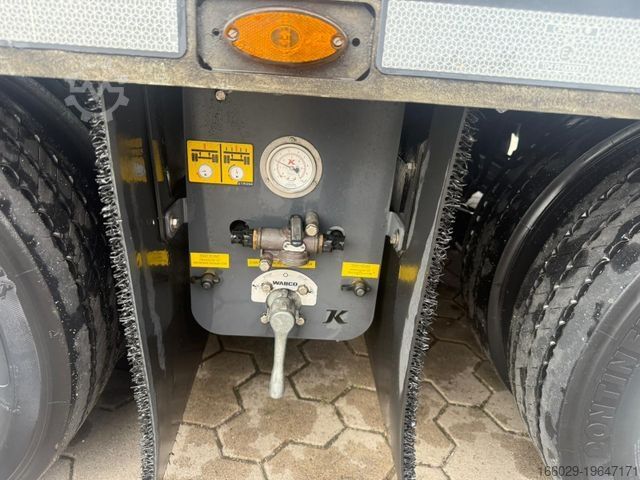

* Wabco braking system

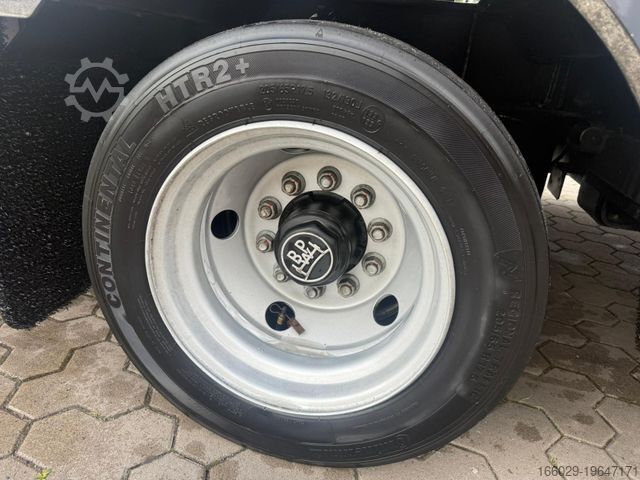

* Tyres: 12 x 205/65 R17.5
FRAME:
* Made of high-strength steel

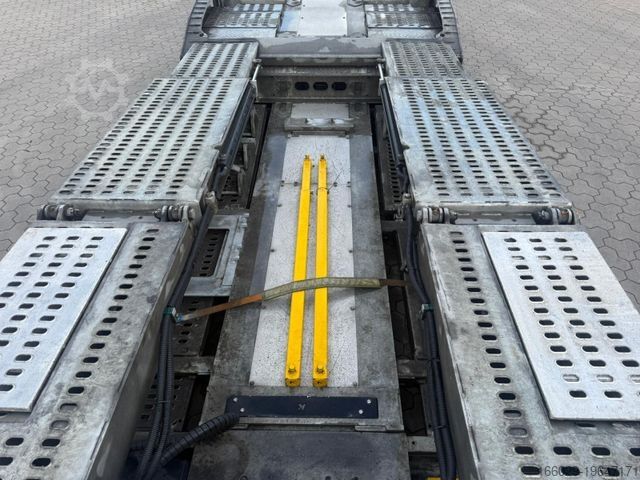

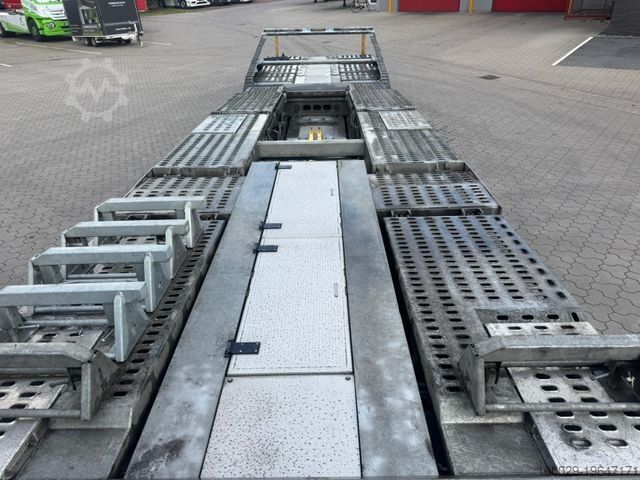

* Front ramps: 2 pieces, 3,800 mm long, hydraulically foldable and sliding, galvanized ramps (max. 1,000 mm extension, angle between 2° and 15°), load capacity 7 t
* Center ramps: 2 pieces, 1,200 mm long, hydraulically foldable, galvanized ramps (angle between 0° and 44°), load capacity 7 t
* Front axle ramp: 1 piece, 4,000 mm long, hydraulically foldable, galvanized ramp (angle between 0° and 29°), load capacity 7 t
* Loading ramps: For loading vehicles onto the truck transporter, 2 aluminum loading ramps sized 2000 x 400 x 75 mm (L x W x H) with a capacity of 3.5 tonnes are provided. The ramp incline is 10° with the rear bumper closed and 8° when extended.
Dwoc Ed Ddjw Dw Adscob
* Wheel recess: 800 x 460 x 70 mm
* Vehicle extension type: 1,800 mm, each 300 mm
LOAD SECURING:

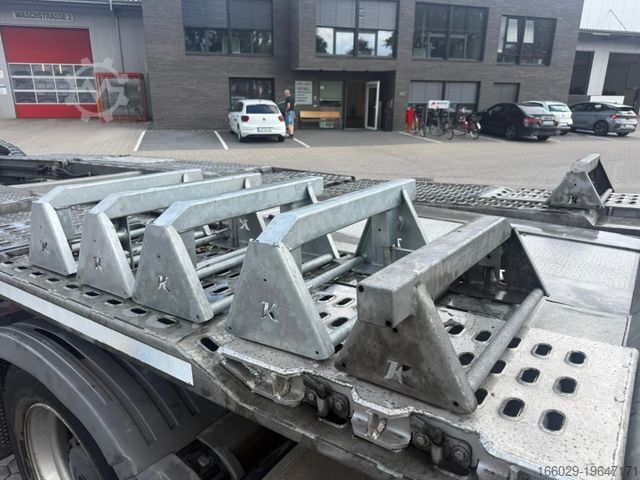

* Lashing eyes: 1 x 2 pcs with 8 tonnes load capacity at the gooseneck, 2 x 2 pcs with 8 tonnes capacity at the front ramp, and 2 x 2 pcs with 8 tonnes capacity at the rear section
OTHER FEATURES: Chassis colour: Nova grey, galvanized
For further information, please do not hesitate to contact us.
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Общая высота
1 260 мм
Оборудование
ABS
Максимальная грузоподъёмность
24 855 кг
Первая регистрация
10/2024
Конфигурация осей
3 оси
Следующая проверка (TÜV)
10/2025
