Полуприцеп-автовоз

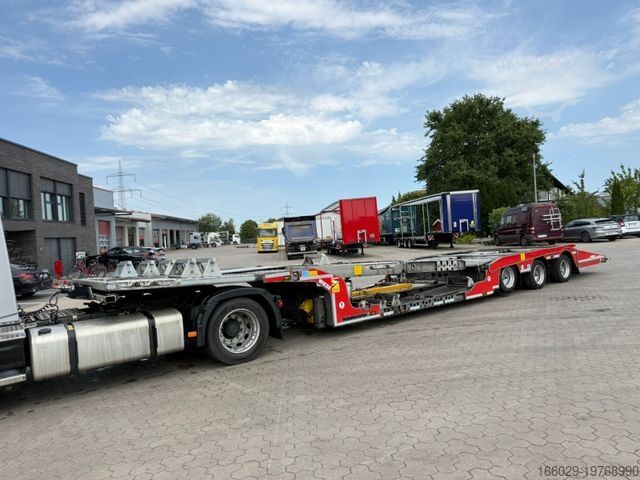

Полуприцеп-автовоз KÄSSBOHRER K.SOK Truck/Car Transporter
Состояние
б/у
Цена без учета НДС
17296000.00
Отправить сообщение
Описание
Kässbohrer K.SOK Extendable Truck/Car TransporterTECHNICAL DATA:
* External length: 13,200 mm
* Wheelbase: 8,350 mm
* Overall width: 2,550 mm
* Fifth-wheel height: 1,000 mm
* Axle load: 24,000 kg
* Kingpin load capacity: 12,000 kg
* Unladen weight ±3%: 11,145 kg
* Gross vehicle weight: 36,000 kg
* Vehicle extension: 1,800 mm
* Bumper extension: 1,200 mm
CHASSIS:
* Fitted with BPW brand axles, 9,000 kg technical capacity, equipped with air suspension and drum brakes
* Last axle self-steering
* First axle liftable

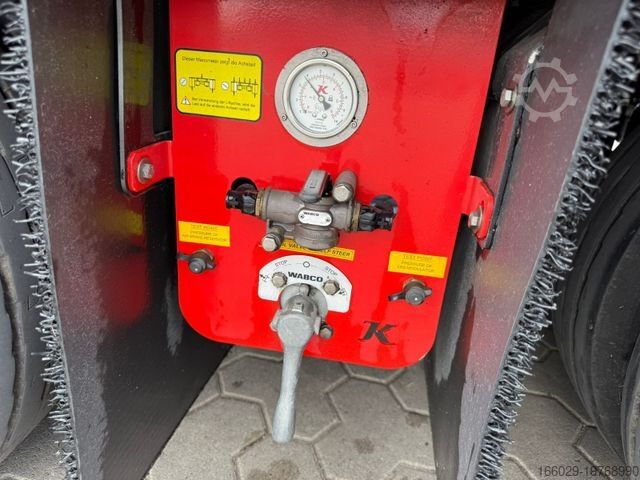

* Wabco braking system

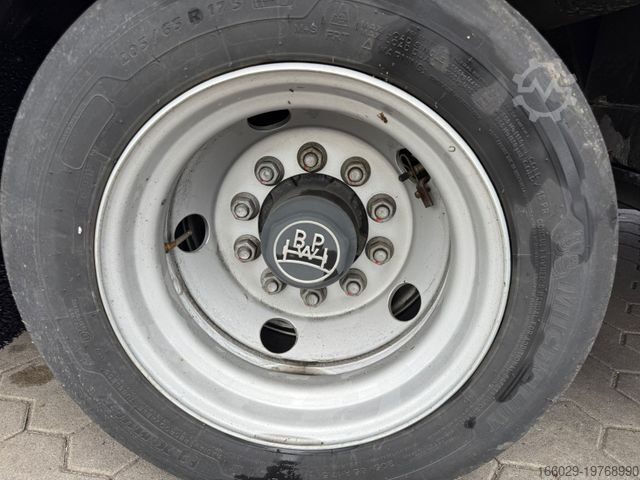

* 12 x 205/65 R17.5 tyres
FRAME:
* Made of high-strength steel
Dwoc Edow Nly Ts Ddceb

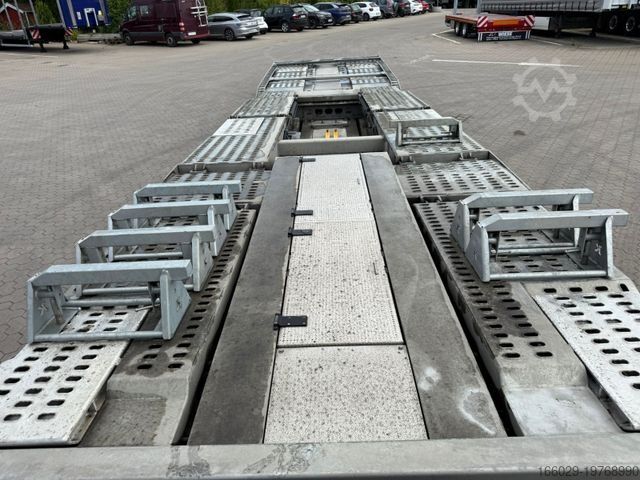

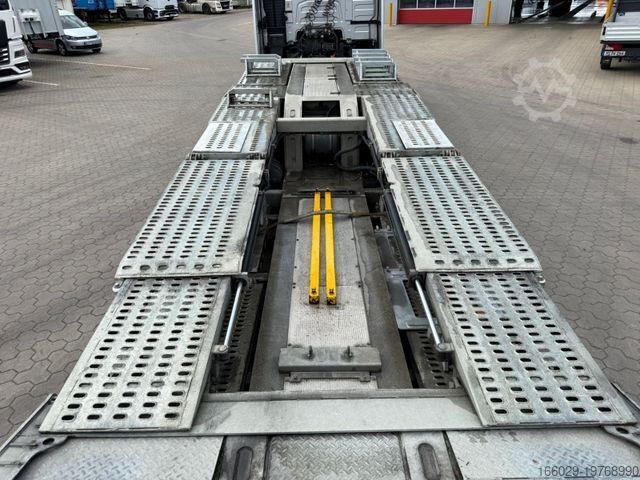

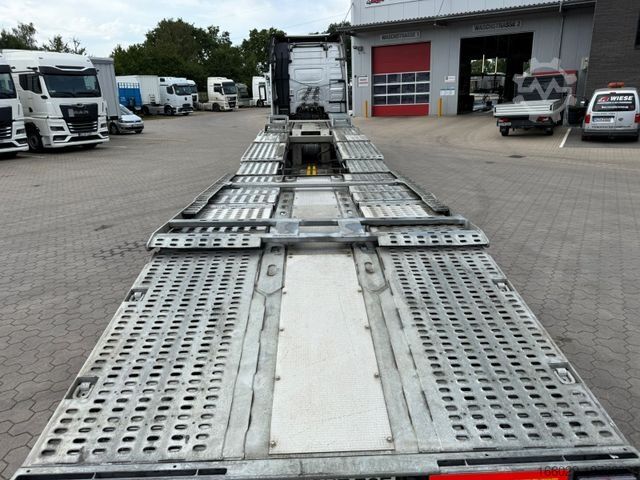

* Front ramps: 2 hydraulic, zinc-plated, folding and sliding ramps, 3,800 mm long (Max. extension angle 2° to 15°), load capacity 7 t each
* Middle ramps: 2 hydraulic, zinc-plated, folding ramps, 1,200 mm long (angle 0° to 44°), load capacity 7 t each
* Front axle ramp: 1 hydraulic, zinc-plated, folding ramp, 4,000 mm long (angle 0° to 29°), load capacity 7 t
* Loading ramps: 2 aluminium loading ramps for loading vehicles onto the truck transporter, measuring 2000 x 400 x 75 mm (L x W x H), with a capacity of 3.5 tonnes each. The ramp angle is 10° with the rear bumper closed and 8° with the bumper extended
* Wheel recess: 800 x 460 x 70 mm
* Vehicle extension type: 1,800 mm every 300 mm
LOAD SECURING:
* Lashing rings: 1 pair (8-ton capacity) on gooseneck, 2 pairs (8-ton capacity each) on the front ramps, and 2 pairs (8-ton capacity each) at the rear section
OTHER: Chassis color: red
For further information, please do not hesitate to contact us.
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Общая высота
1 260 мм
Оборудование
ABS
Максимальная грузоподъёмность
24 855 кг
Первая регистрация
10/2024
Конфигурация осей
3 оси
Следующая проверка (TÜV)
10/2025
