Низкорамный полуприцеп
Низкорамный полуприцеп Zwangslenkung TRIDEC, Teleskopierbar
Год выпуска
2025
Состояние
б/у
Цена без учета НДС
21158160.00
Отправить сообщение
Описание

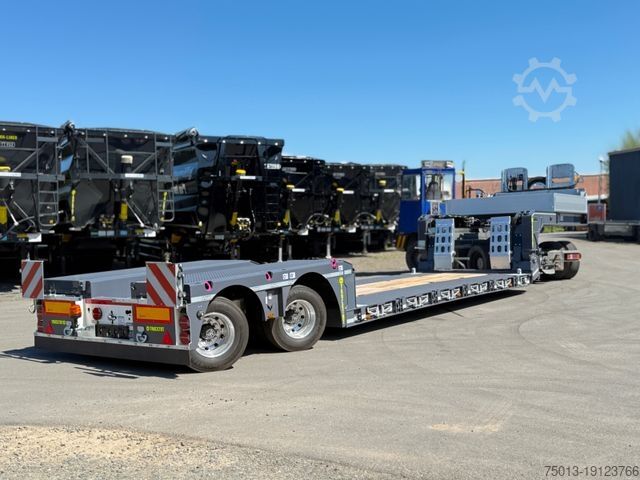

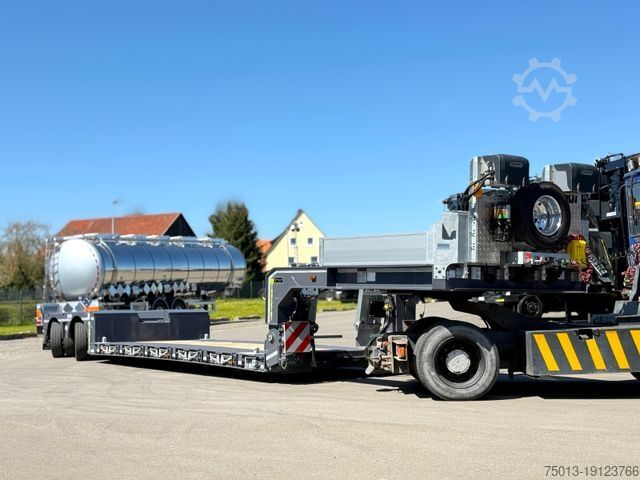

2-axle low-bed trailer with full equipment
First registered May 2025, new vehicle
Total length 13,162 to 19,012 mm (single telescope 5,850 mm, extendable in 500 mm increments)
Fifth wheel height 1,200 to 1,280 mm

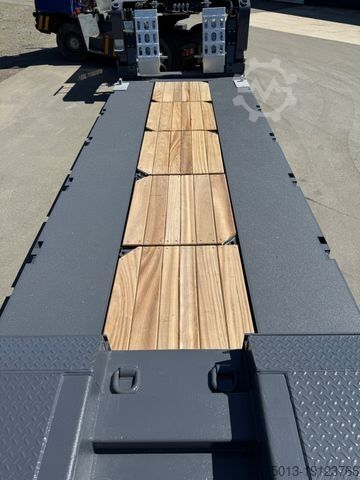

Standard low-bed length 6,350 mm
Extended low-bed length 12,200 mm
Gooseneck length 3,720 mm
Rear axle chassis length 3,020 mm
Loading height on rear axle chassis only 900 mm
LOADING HEIGHT OF LOW BED only approx. 300 mm (loaded)
Technical total weight 48,000 kg
Technical fifth wheel load up to 24,000 kg
Axle load Technical weight 24,000 kg
Curb weight 13,220 kg
Chassis 3-coat paint finish RAL 7024 including complete galvanization

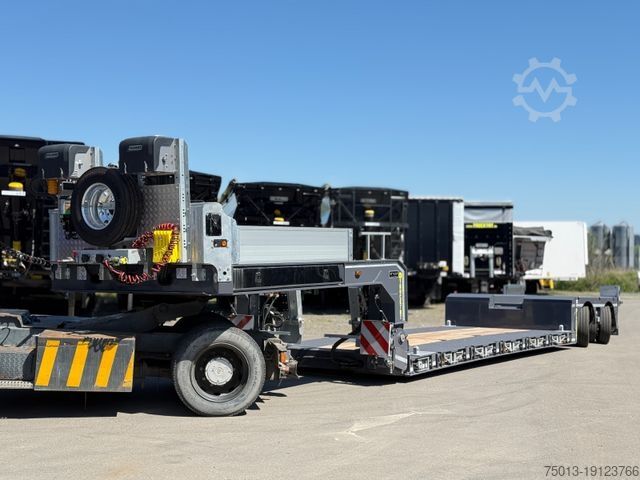

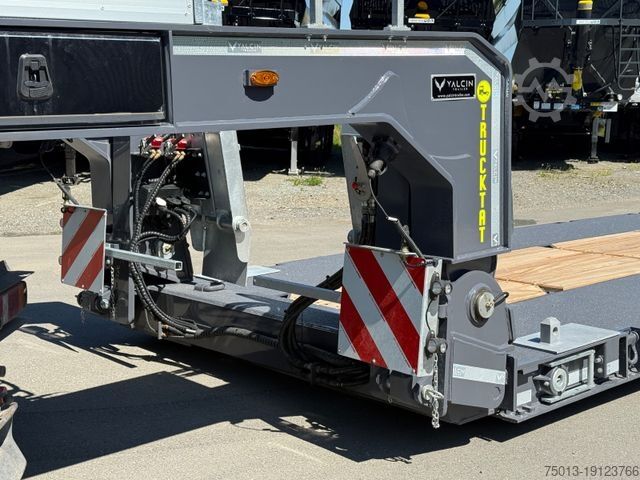

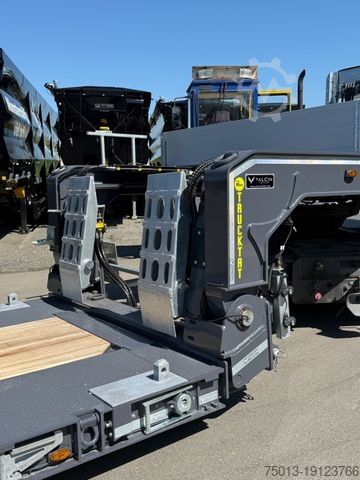

Retractable gooseneck with external main frame

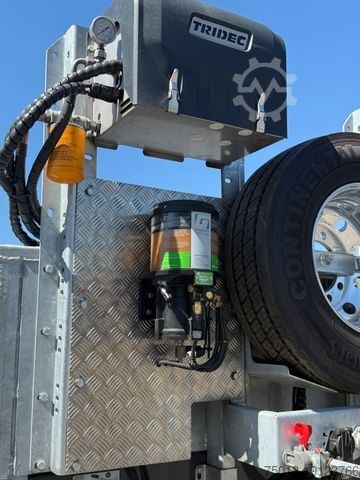

GROENEVELD central lubrication system for the front end and one additional one for the rear end

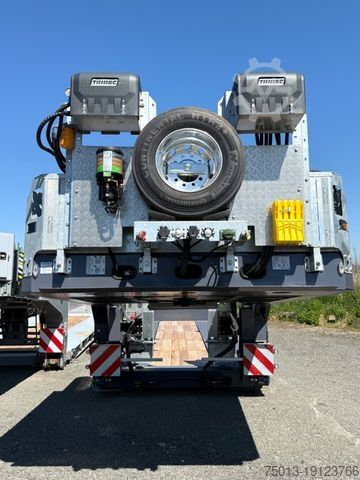

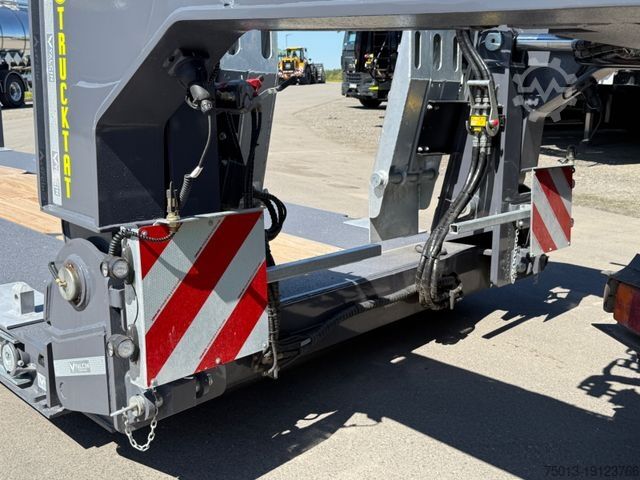

All axles hydraulically steered using the TRIDEC system
SAF axles with drum brakes

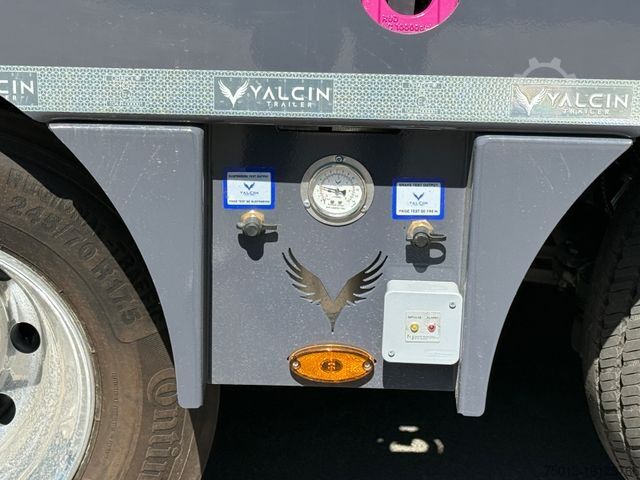

WABCO Trailer EBS with RSS anti-skid system
Air suspension with lifting and lowering device with a total lift of 190 mm

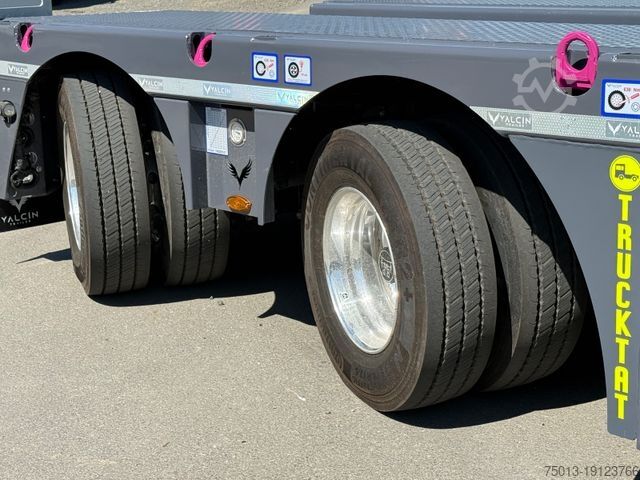

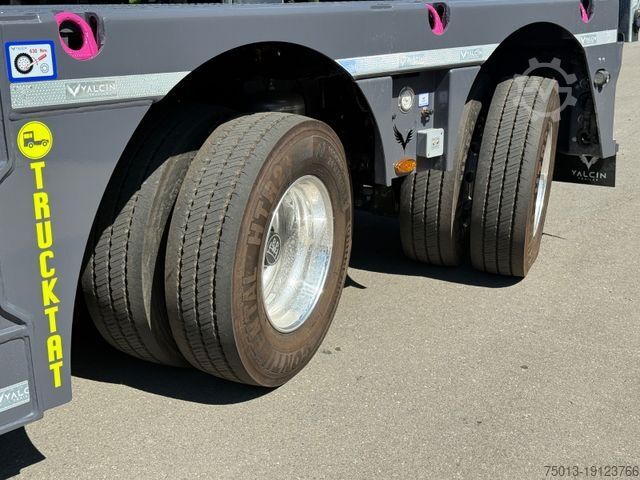

Tires 9 x 245/70 R 17.5 Continental
ALCOA Dura-Bright high-gloss aluminum rims
Aluminum air tank

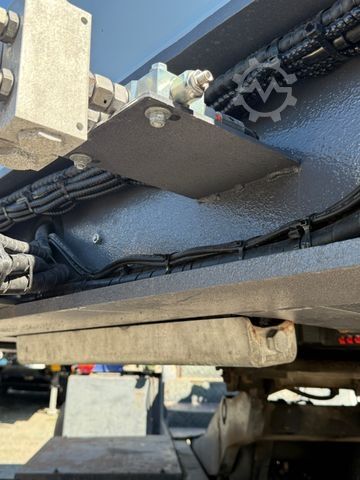

Electric hydraulics 24-volt
Extra-wide package
8 pairs of folding bed extensions, 225 mm each
3 pairs of CONTAINER locking adapters, for mounting a 40 ft or 20 ft container
Side wall construction on a semi-trailer platform

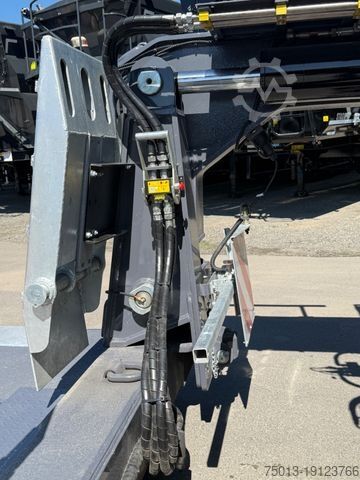

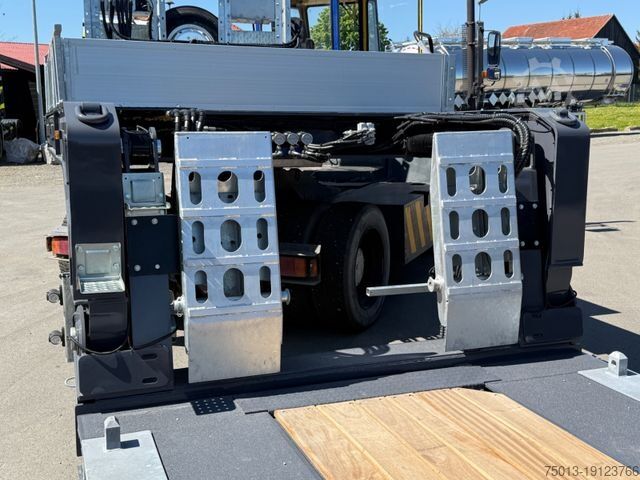

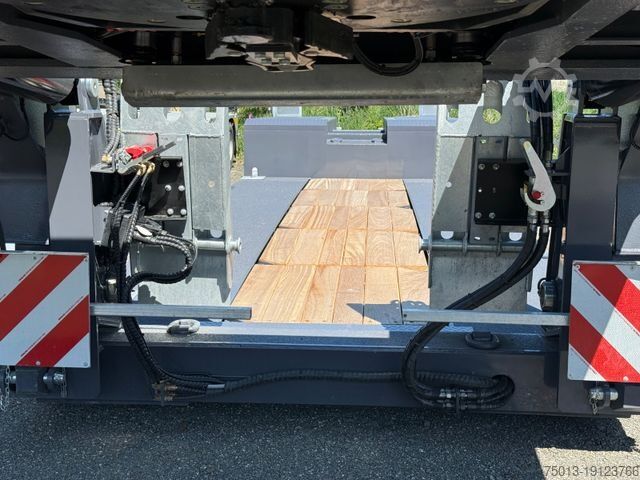

Loading ramps for the low-bed platform

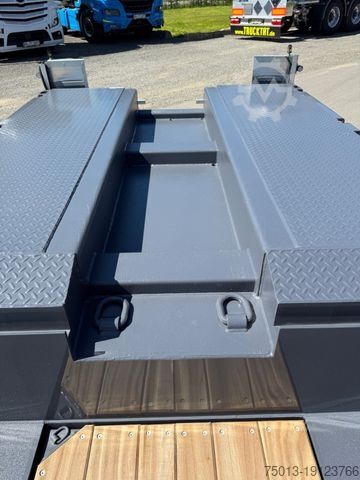

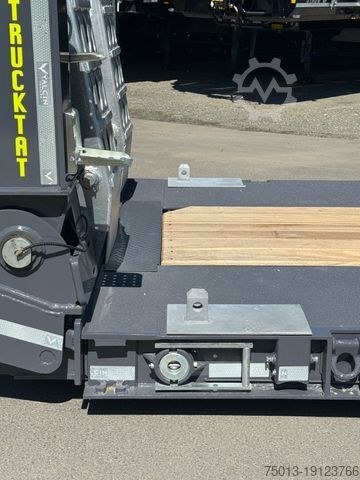

5 pairs of pivoting lashing eyes with a 10,000 daN lashing capacity in the low-bed
4 pairs of stake pockets in the outer frame
3 pairs of pivoting lashing eyes on the rear end

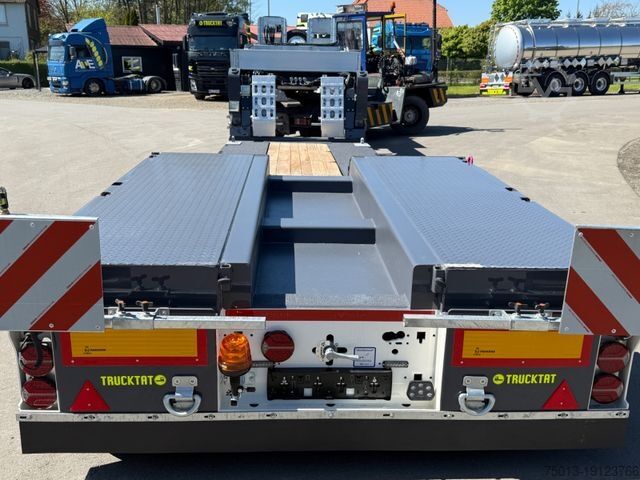

1 pair of lashing eyes in the rear bumper, LC 6,000 daN
With a full 2-year manufacturer's warranty
Pjcewixv Ae R Nc Ifnsgn
RENT is the new BUYING, also available from us for rental or full-service leasing immediately -----
Характеристики
Общий вес
48 000 кг
Общая ширина
2 550 мм
Общая высота
320 мм
Оборудование
ABS
Максимальная грузоподъёмность
34 780 кг
Первая регистрация
05/2025
Конфигурация осей
2 оси
Следующая проверка (TÜV)
05/2026
Ширина пространства для загрузки
2 550 мм
Длина грузового отсека
12 200 мм
Высота грузового отсека
300 мм
