Низкорамный полуприцеп
Низкорамный полуприцеп Wiese Gabelstaplertransporter Mega mit Rampen
Год выпуска
2025
Состояние
новое
Цена без учета НДС
23552000.00
Отправить сообщение
Описание

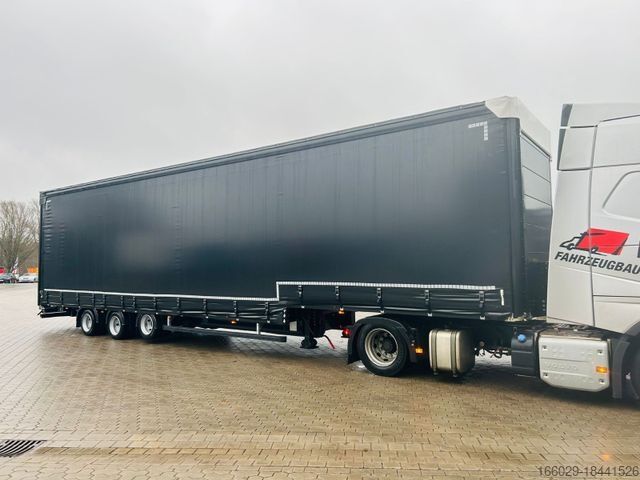

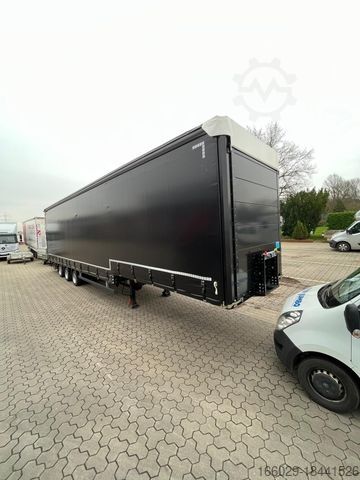

Wiese 3-axle forklift transporter in mega design
Fifth wheel height 960 mm
* Construction in curtainsider design with side sliding tarpaulins and sliding roof
* Curtainsider construction height at the side 2810/3120 mm from loading area to 1 lower edge of outer beam
* Chassis length approx. 13620 mm
* Wheelbase: approx. 8000 mm
* Support winch position approx. 2300 from kingpin
* Driving height unloaded approx. 1110/800 (top edge of floor) with fifth wheel height 960 mm unloaded
* E-bike holder in winch design for 1 E-bike
* Pair of lashing eyes (cast rings) with crossbar at the top (5t per lashing ring with 4mm AuRa)
* Pallet stop bar

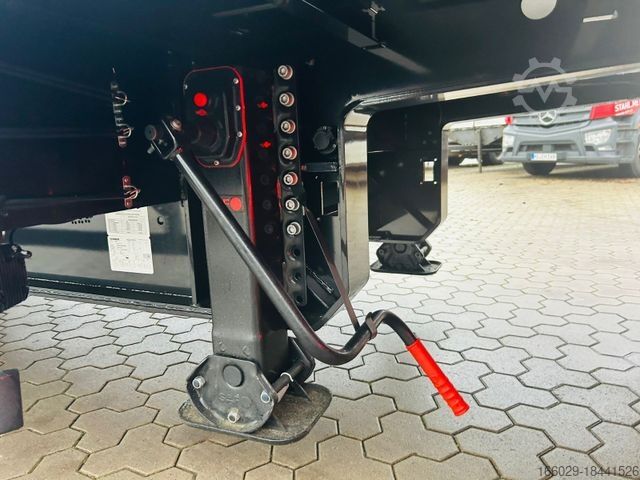

* 24 ton telescopic support winch SAF
* Last axle as trailing steering axle
* First axle as lift axle
* Axle spacing approx. 1310/1310 mm
Pgjc R Nc Ifevw Hl Ajnjn
* Air suspension with lifting and lowering device

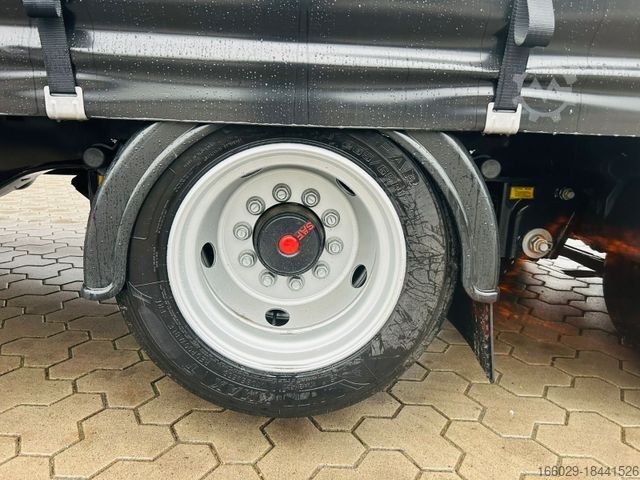

* Twin tires 205/65 R 17.5
* Interior LED light on the rear pillar top left + right
* Roof system can be locked at 2 driving heights using a locking system
* Lifting roof can be raised approx. 400 mm
* LED work lights
* Floor: Certificate for tested forklift axle load 9.0t according to DIN EN 283 1 (screen-printed floor across)
* Chassis painted in RAL 9005 jet black

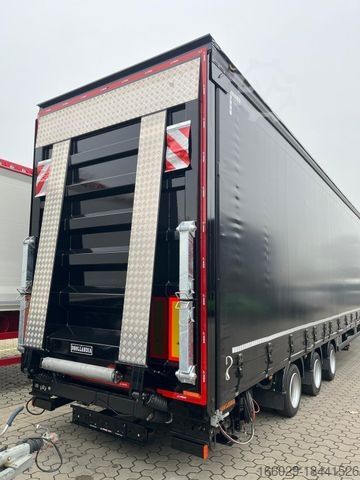

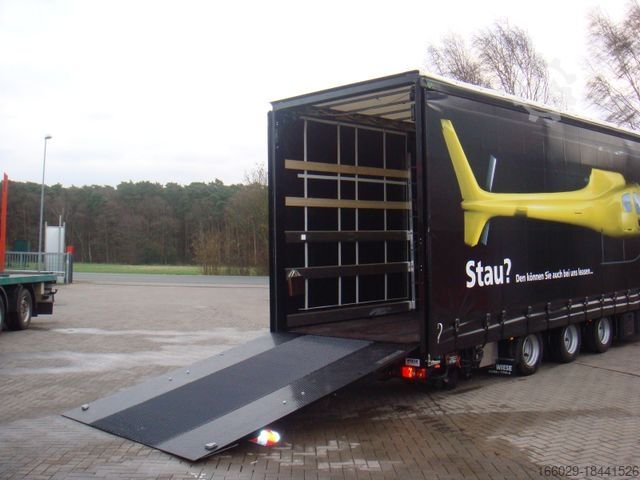

* The trailer is prefabricated. The rear ramp design can still be freely selected. Either as a stretch ramp or as a heavy-duty tail lift
The complete construction description is available on request
We are happy to provide you with further information
Характеристики
Общий вес
36 000 кг
Оборудование
ABS
Конфигурация осей
3 оси
