Низкорамный полуприцеп
Низкорамный полуприцеп Pendelachsen, Teleskopierbar, MIETEN?
Год выпуска
2025
Состояние
б/у
Цена без учета НДС
21158160.00
Отправить сообщение
Описание

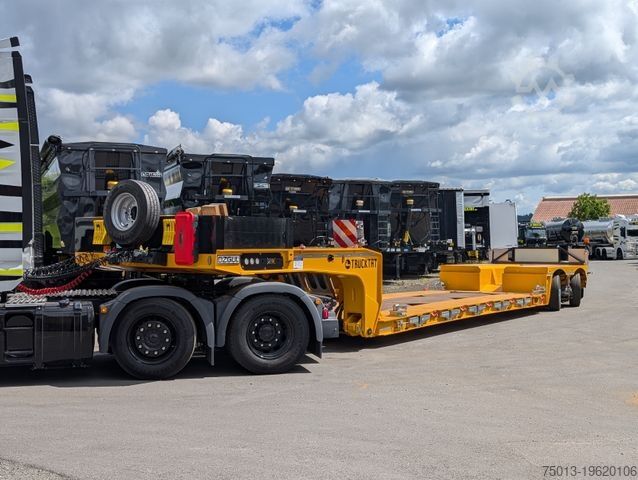

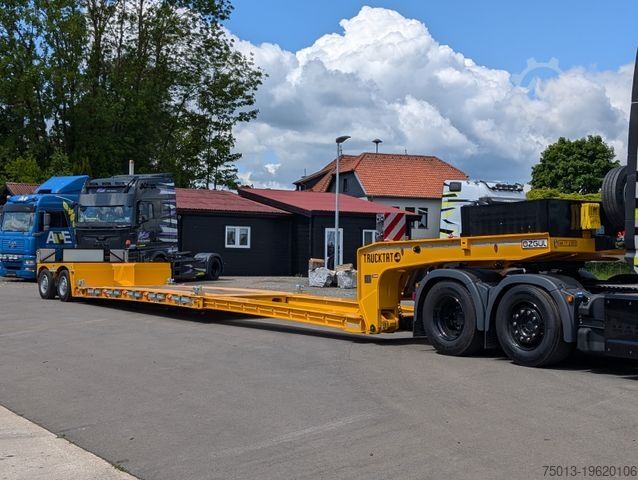

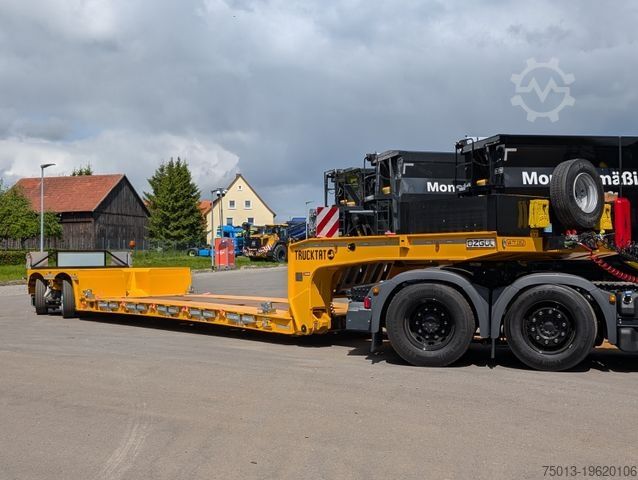

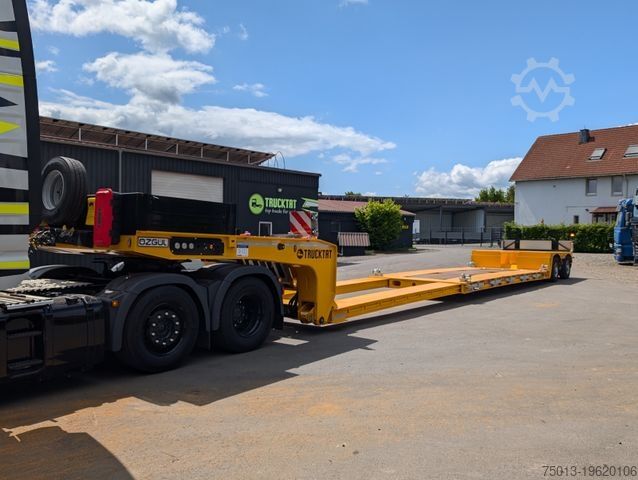

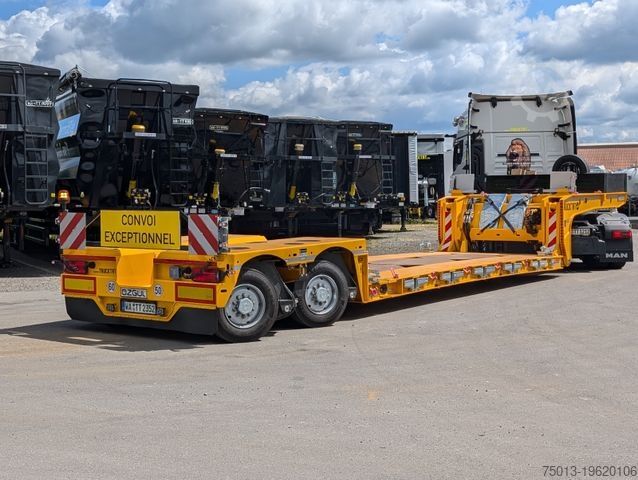

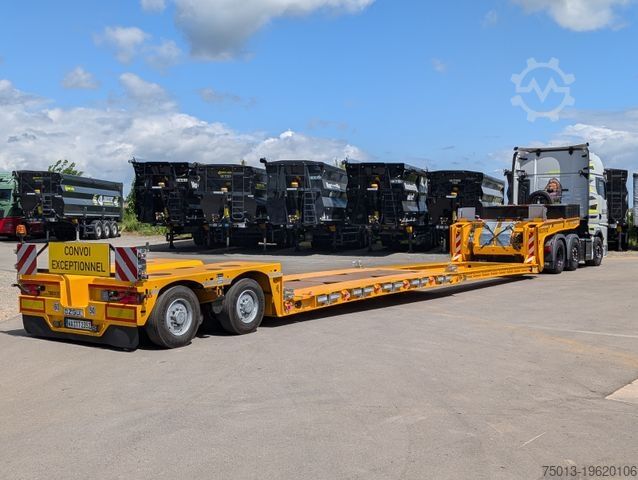

2-axle low loader / low-bed trailer in full specificationFirst registration 05/2025, brand new vehicle
Overall length: 13,065 to 17,565 mm (simple telescopic extension 4,500 mm, extendable in 500 mm increments)
Fifth wheel height: 1,200 mm
Standard low-bed length: 6,650 mm
Extended low-bed length: 11,150 mm
Doc Ed Ddow A Ekmocswb
Gooseneck length: 3,650 mm
Rear axle assembly length: 2,765 mm
Loading height on rear axle assembly: only 845 mm

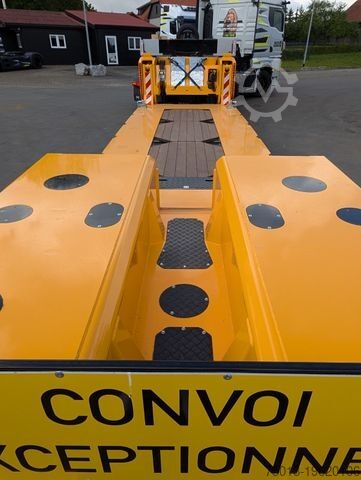

LOADING HEIGHT LOW-BED: only approx. 300 mm (loaded)
Technical gross weight: 50,000 kg
Technical fifth wheel load: up to 26,000 kg
Technical axle load: 24,000 kg
Unladen weight: 15,500 kg
Chassis with 3-coat paintwork

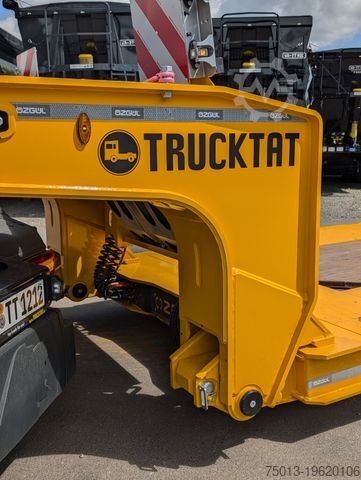

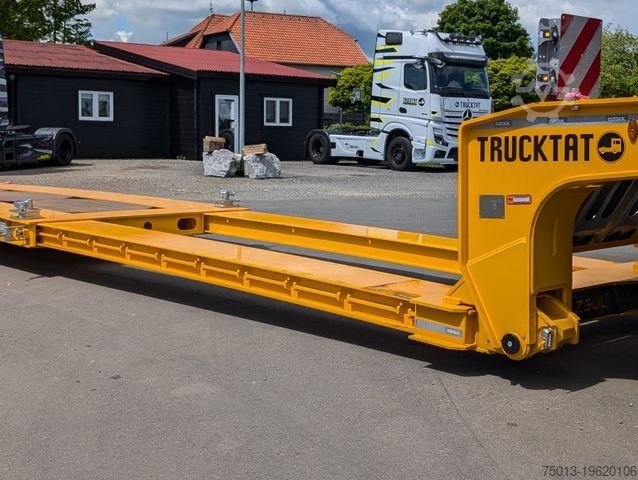

Detachable gooseneck with external main frame
Central lubrication system for front carriage and an additional unit for rear carriage
All axles with hydraulic forced steering
GIGANT axles with drum brakes
WABCO Trailer EBS with RSS (Roll Stability Support)
WABCO Smartboard

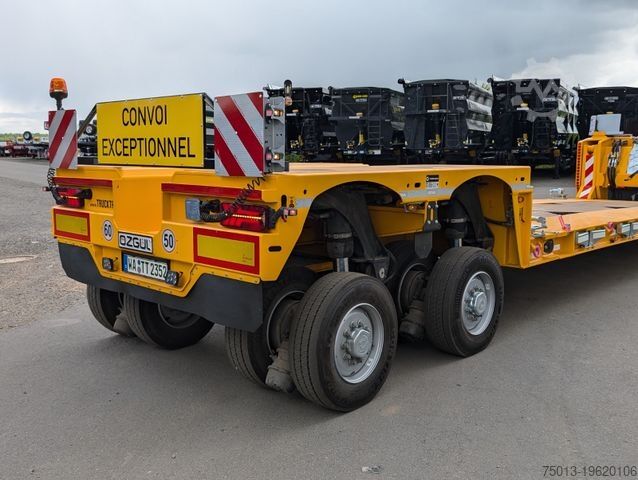

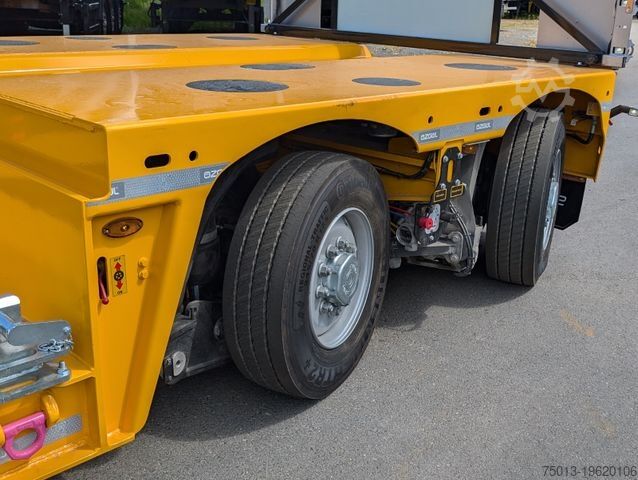

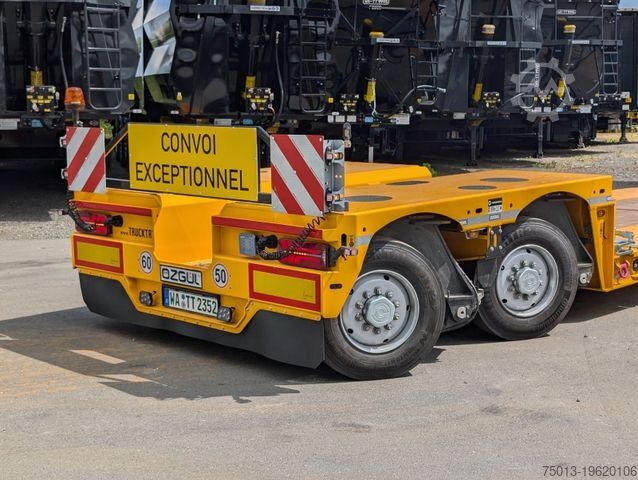

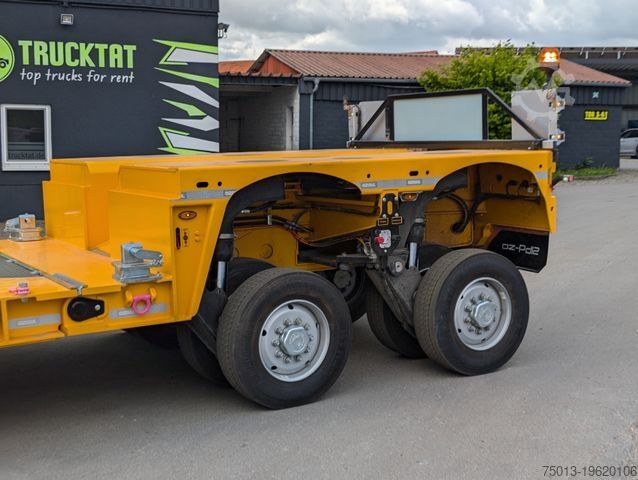

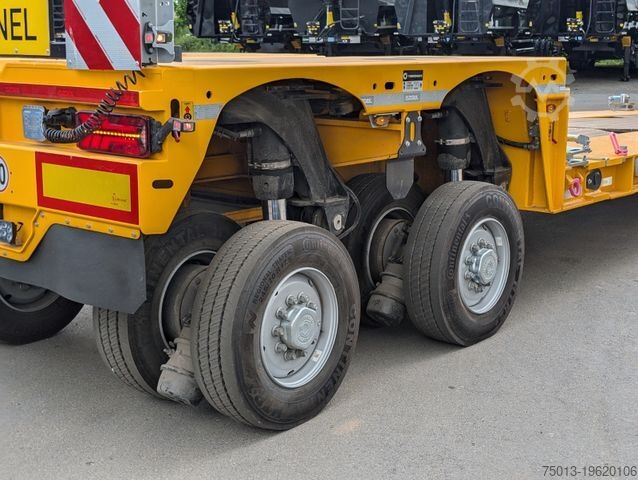

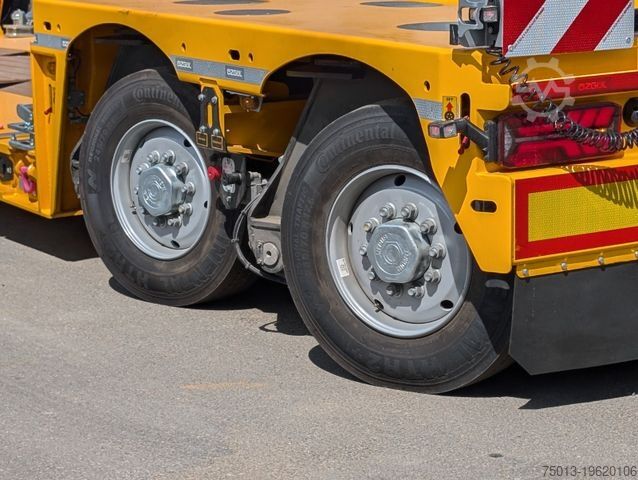

PENDLE AXLES with hydraulic suspension, 600 mm stroke
RADIO REMOTE CONTROL
Tyres: 9x 245/70 R 17.5 Continental
Electric-hydraulic system, 24 volt
Oversize package
10 pairs of foldable loading platform extensions, each 225 mm

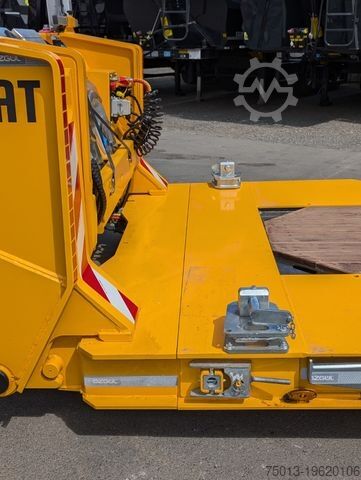

3 pairs of CONTAINER locking adapters, for 40 FT or 20 FT containers
Drop-side body on saddle platform

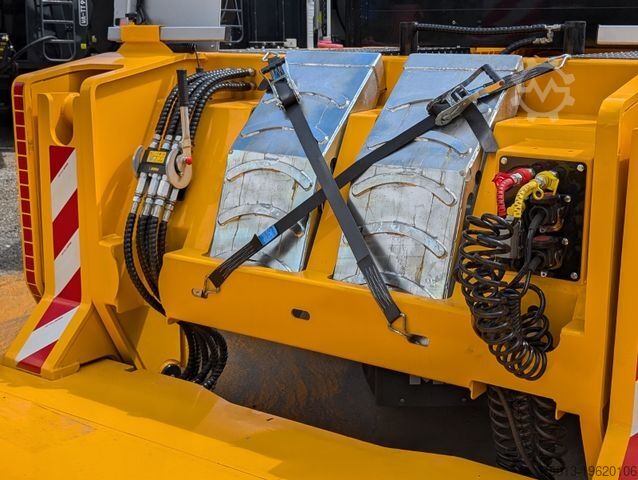

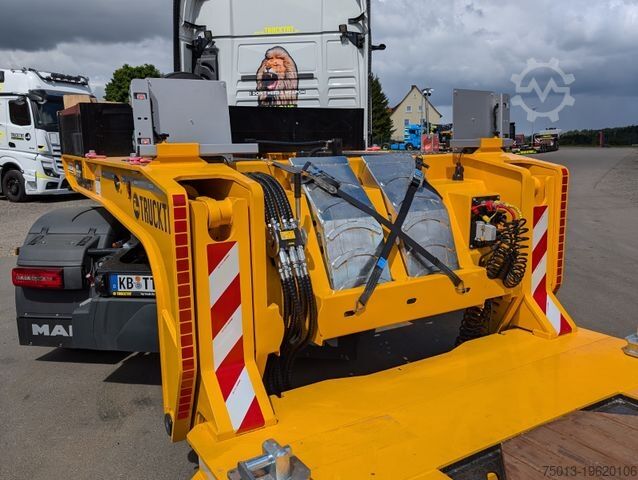

Ramps for accessing the low-bed platform
5 pairs of swivelling lashing rings, each rated at 10,000 daN lashing capacity in the low-bed section
4 pairs of stake pockets in the outer frame
3 pairs of swivelling lashing rings on the rear carriage
1 pair of lashing rings in the rear underrun guard, LC 6,000 daN
RENTING is the new BUYING – available immediately for rent or full-service leasing.
Характеристики
Общий вес
50 000 кг
Общая ширина
2 550 мм
Общая высота
320 мм
Оборудование
ABS
Максимальная грузоподъёмность
34 500 кг
Первая регистрация
05/2025
Конфигурация осей
2 оси
Следующая проверка (TÜV)
05/2026
Ширина пространства для загрузки
2 550 мм
Длина грузового отсека
12 200 мм
Высота грузового отсека
300 мм
