Низкорамный полуприцеп
Низкорамный полуприцеп KÄSSBOHRER Tieflader mit hydr. Schwanenhals
Год выпуска
2025
Состояние
новое
Цена без учета НДС
13413600.00
Отправить сообщение
Описание
Kässbohrer low loader with hydr. gooseneckAvailable immediately!
TECHNICAL DATA:
* Semi-mounted height 1,250 mm
* Outer length 13,190 mm
* Gooseneck length 3,950 mm
* Platform length 9,240 mm
* Platform height 875 mm
* Wheelbase 8,480 mm
* Wheelbase 1,360 mm
* Axle load 30,000 kg
* BPW axles with air suspension and drum brakes, 10 tons load capacity
* Unladen weight 11,063 kg
* Overall width 2,550 mm
* Permissible gross weight (60 km/h) 52,800 kg
* Permissible gross vehicle weight (80 km/h) 48,000 kg
CHASSIS:
* 2x rigid axles at the front, 1x self-steering axle at the rear

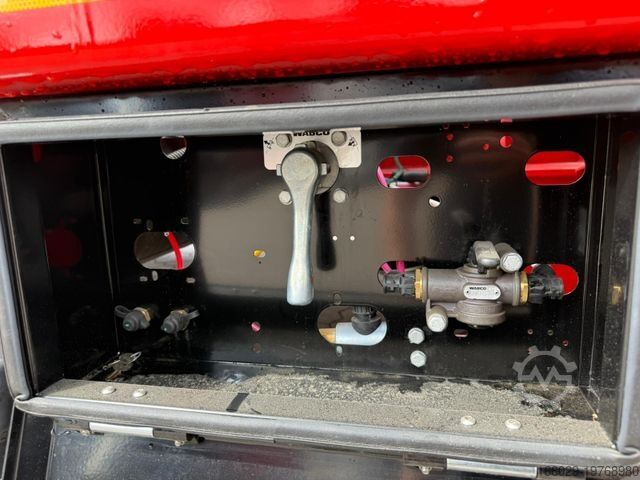

* Overload-dependent manual axle lift system on the 1st axle

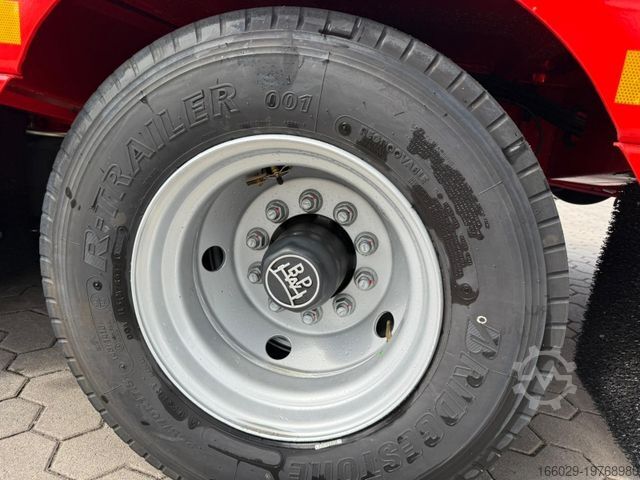

* 12-wheel tires 245/70R17.5
Dwoc Edew Nlyyo Ddcjb

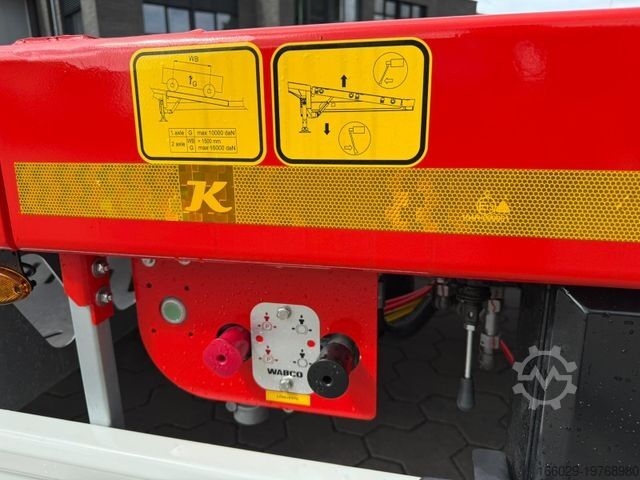

* Air suspension, 1x load pressure gauge
CHASSIS: Made of high-quality and high-strength S700 MC steel
* Gooseneck with 90° vertical corners
* Jost supports at the front
* Folding rear supports

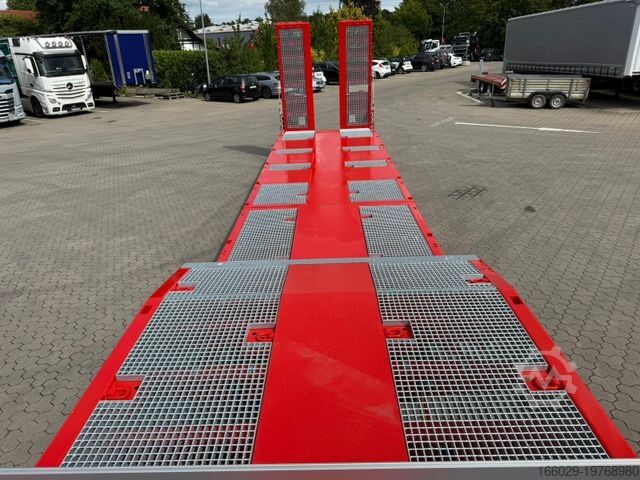

* Grid floor
RAMP:
* Drive-on ramp capacity 40 tons

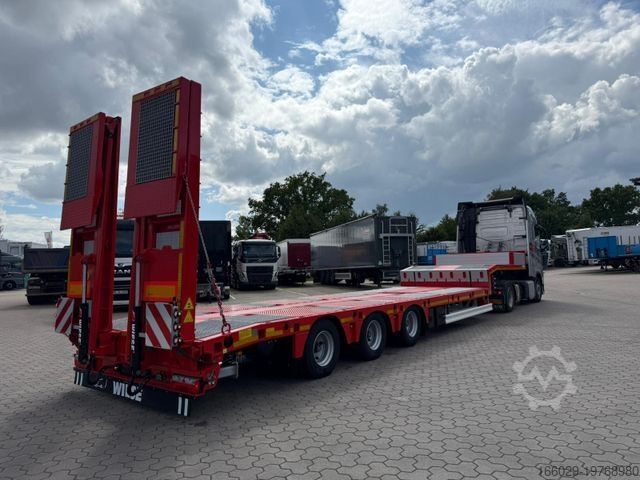

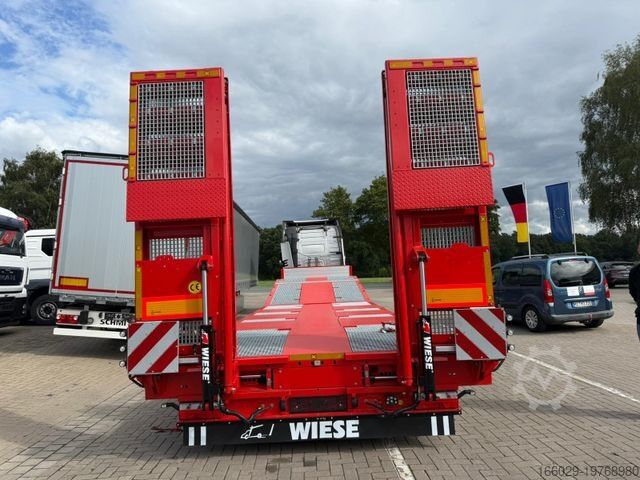

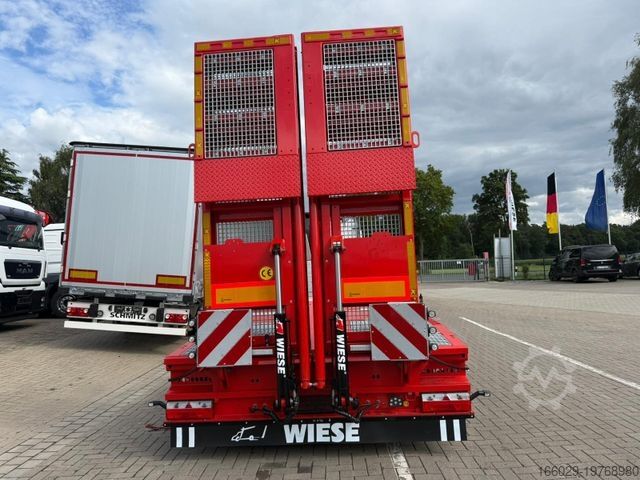

* 2x hydraulic ramps, suitable for hydraulic sliding/folding operations with galvanized steel surface, 4,200 mm length and 850 mm width, 9 degree ramp angle, load capacity 40,000 kg and 3,510 mm height in closed position

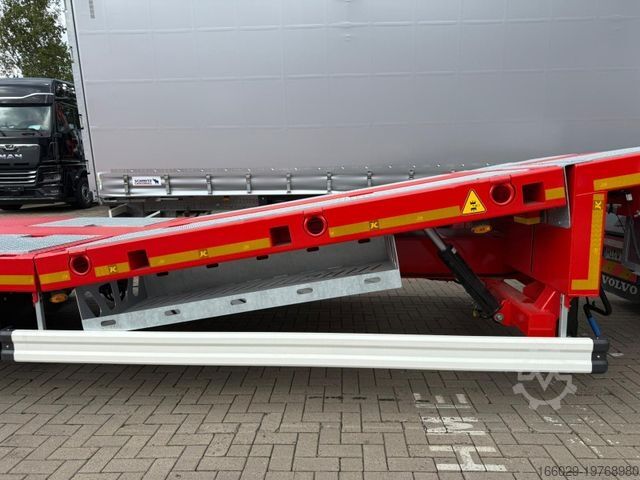

* Hydraulic gooseneck ramp 2,800 mm long 10° angle
LOAD SECURING:
* Lashing rings 6x2 on the gooseneck with 6 tons capacity, 6x2 on the platform with 6 tons capacity, 8x2 on the outer frame with 6 tons capacity
* 8x2 stanchion pockets
MISCELLANEOUS:
* 1x rotating beacon
* 1x work light
* 2x2 extra-wide boards with lighting
* SmartBoard
For further information please do not hesitate to contact us
Характеристики
Общий вес
48 000 кг
Общая ширина
2 550 мм
Оборудование
ABS
Максимальная грузоподъёмность
36 937 кг
Конфигурация осей
3 оси
