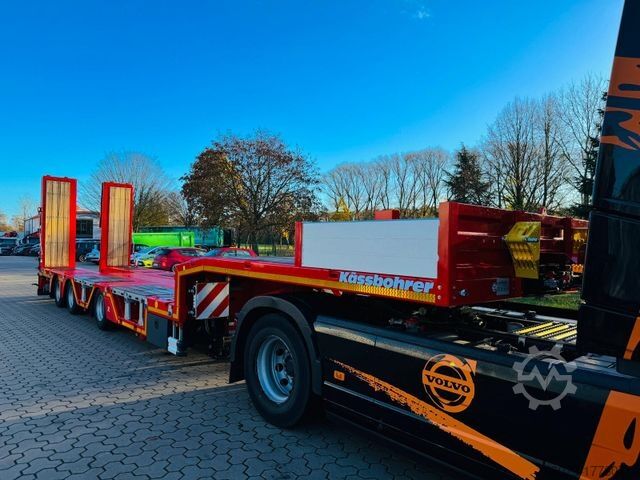

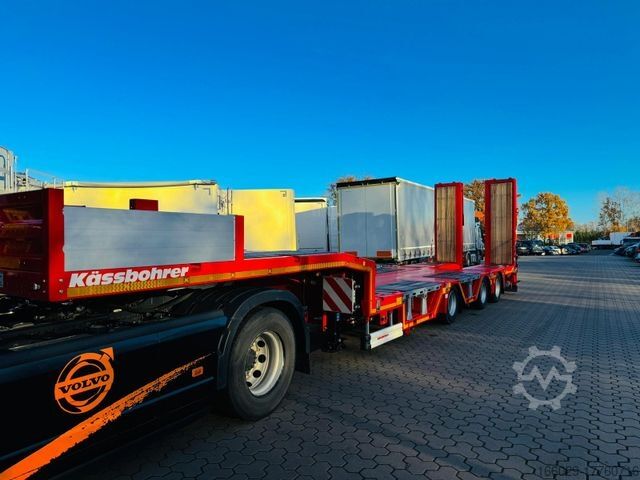

Низкорамный полуприцеп KÄSSBOHRER SLAR3 Tele Tiefbett Radmulden metallisiert

Описание

Technical Specifications:

Model and Manufacturer
* Model: Kässbohrer K.SLA R 3 / 1N - 18 / 30
* Manufacturer: Kässbohrer
Hoc Edou Tarpj Ddcjfl
* Type: Extendable low-bed trailer with recessed wheel wells, suitable for transporting vehicles and heavy machinery.

Dimensions
* Overall length: 13,190 mm
* Gooseneck length: 3,950 mm
* Platform length: 9,240 mm
* Extension: 3,500 mm (Pe)
* Total width: 2,550 mm (extendable by 600 mm via side extensions)
* Fifth wheel height: 1,250 mm
* Platform height: 875 mm
* Ramp length: 2,750 mm
* Ramp width: 850 mm
* Wheelbase: 7,800 mm
* Axle spacing: 2,260 mm

Weights and Load Capacities
* Permissible total weight:
- 52,800 kg at 60 km/h
- 48,000 kg at 80 km/h
* Unladen weight: 12,744 kg ±3%
* Axle load capacity: 30,000 kg (10 tonnes per axle)
* Kingpin capacity: 18,000 kg

Axle Equipment
* Number of axles: 3 (2 fixed front axles, 1 self-steering trailing axle at rear)
* Lift axle: Manually controlled, load-dependent (1st axle)
* Axle make: BPW axles with drum brakes

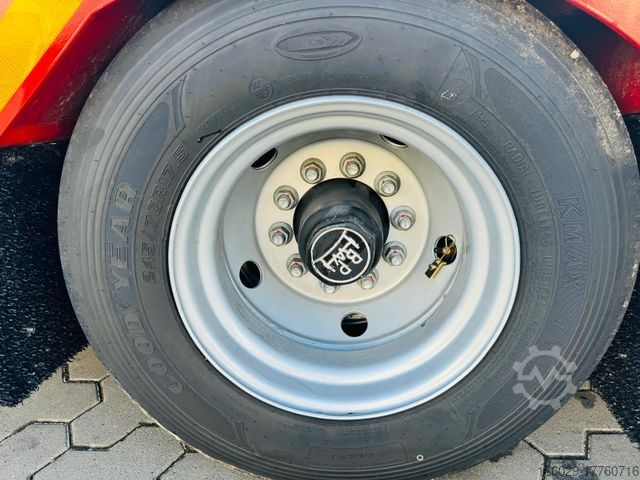

Tyres and Rims
* Tyre size: 245/70 R17.5
* Tyre brand: GOODYEAR
* Tyre markings: M+S and 3PMSF certification
* Tyre pressure monitoring system: Increases fuel efficiency and extends tyre life
* Number of rims: 12 steel rims with ET120 offset

Chassis and Suspension
* Suspension: Air suspension with load gauge
* Brake system: WABCO dual-circuit compressed-air brake system with EBS 4S/3M, ABS, and RSS (roll stability support)

Lighting and Electrics
* Lighting: 24V, multi-chamber lamps by ASPÖCK, side markers and LED tail lights
* Coupling type: Standard yellow/red for air supply connection
* Connections: NATO socket with 2 x 50mm² interconnecting cables (3 m length)

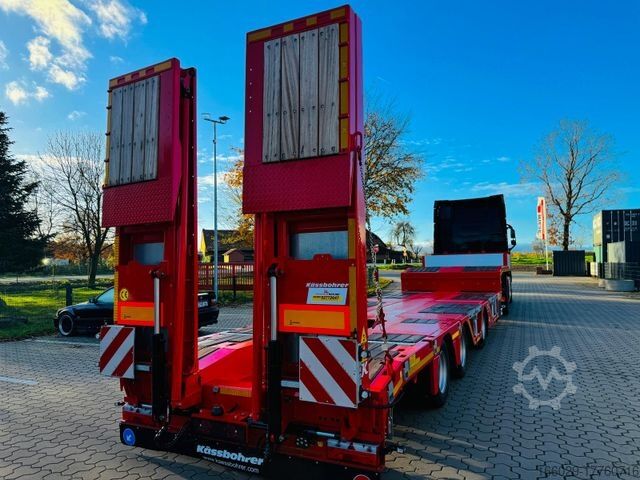

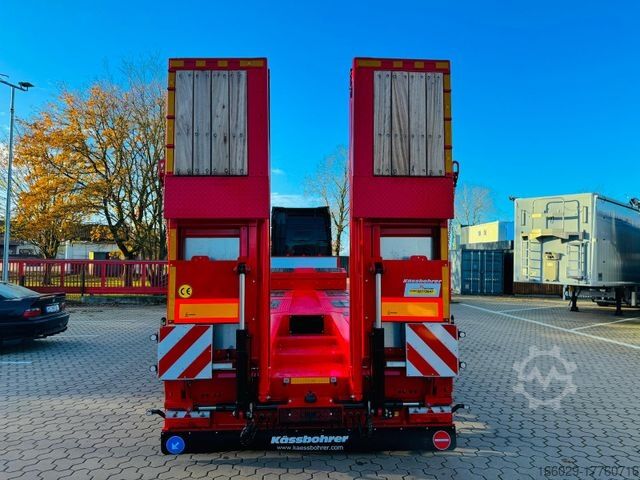

Ramps

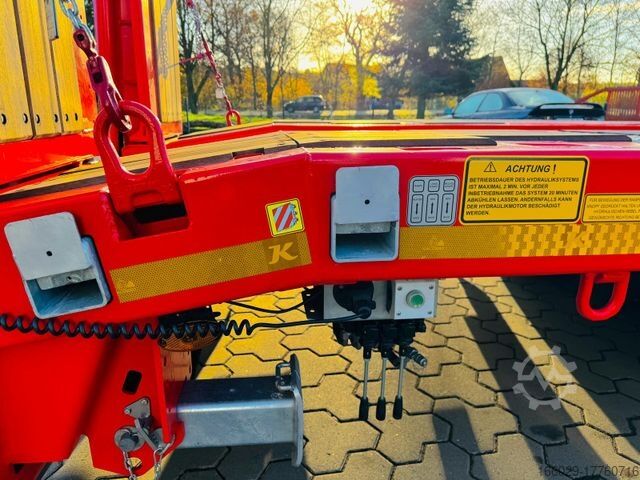

* Ramp type: Foldable hydraulic access ramps with sliding mechanism
* Capacity: 40 tonnes
* Ramp surface: Hardwood
* Safety: Ramp securing chain included

Load Securing

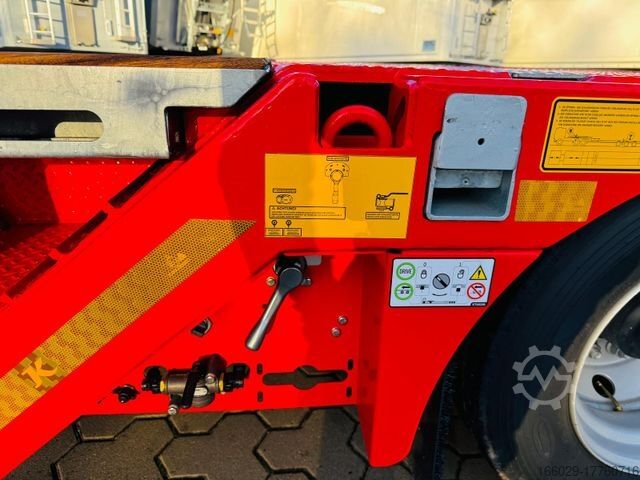

* Lashing rings:
- 2 x 2 with 5,000 daN load capacity each
- 1 x 2 with 10,000 daN load capacity at the gooseneck
- 4 x 2 lashing rings with 6,000 daN capacity in the well area
* Container lock fittings: Suitable for the transport of 1 x 20 FT or 1 x 30 FT container

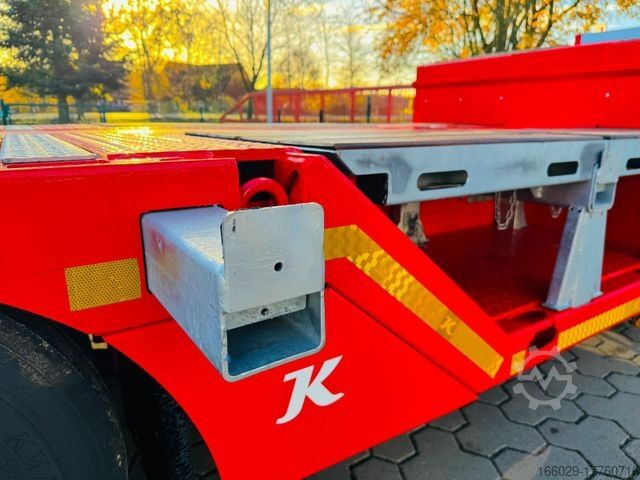

* Stake pockets: 5 x 2 stakes (50 mm x 100 mm)

Special Features
* Gooseneck: With 90° vertical corners, robust and durable
* Floor covering: 45 mm hardwood decking and steel floor with embossed pattern
* Wheel well bridge: Bridges made from solid hardwood with steel supports to cover the wheel recesses

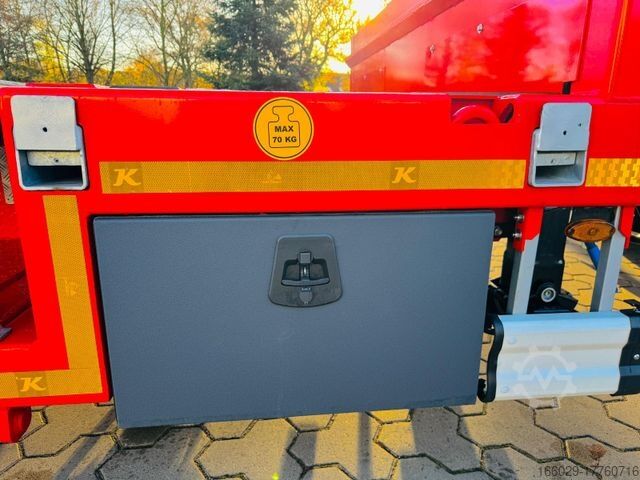

* Toolbox: PVC-coated steel, dimensions 750 x 400 x 360 mm

Colours
* Chassis: Traffic red (RAL 3020)
* Partial metallization of the support surfaces

Condition
* New and ready for immediate use.
* Perfectly suited for heavy transport, as well as for use in construction or machinery relocation.
