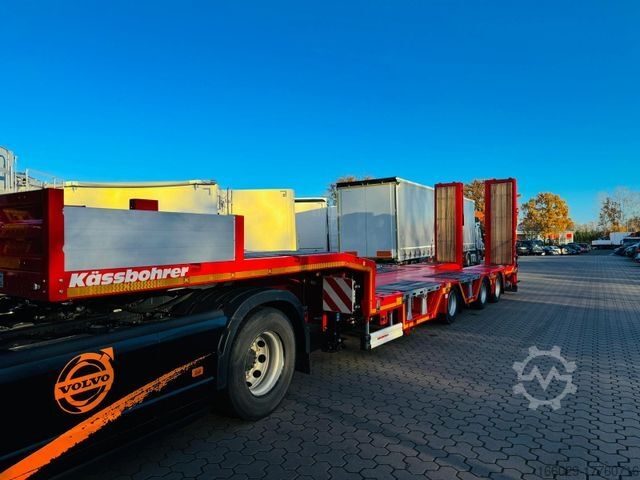

Низкорамный полуприцеп KÄSSBOHRER SLAR3 Ausziehbares Tiefbett mit Radmulden

Описание

Technical data:
Model and manufacturer*Model: Kässbohrer K.SLA R 3 / 1N - 18 / 30
* Manufacturer: Kässbohrer
* Type: Extendable tire trough low bed semi-trailer, suitable for transporting vehicles and heavy machinery.
Dimensions*Total length: 13,190 mm
* Gooseneck length: 3,950 mm
* Platform length: 9,240 mm
* Extension: 3,500 mm (Pe)
* Total width: 2,550 mm (can be extended by 600 mm using side extensions)
* Height of fifth wheel: 1,250 mm
* Platform height: 875 mm
* Ramp length: 2,750 mm
* Ramp width: 850 mm
* Wheelbase: 7,800 mm
* Axle distance: 2,260 mm
Weights and load capacities* Permissible gross weight:
* 52,800 kg at 60 km/h
* 48,000 kg at 80 km/h
* Unladen weight: 12,744 kg ±3%
* Load capacity of the axles: 30,000 kg (10 tons per axle)
* Kingpin capacity: 18,000 kg
Axle equipment* Number of axles: 3 (2 rigid at the front, 1 trailing axle at the rear)
* Lift axle: Manual overload-dependent (1st axle)
Pgoc R Nc Ifju Tarpensn
* Axle material: BPW axles with drum brakes

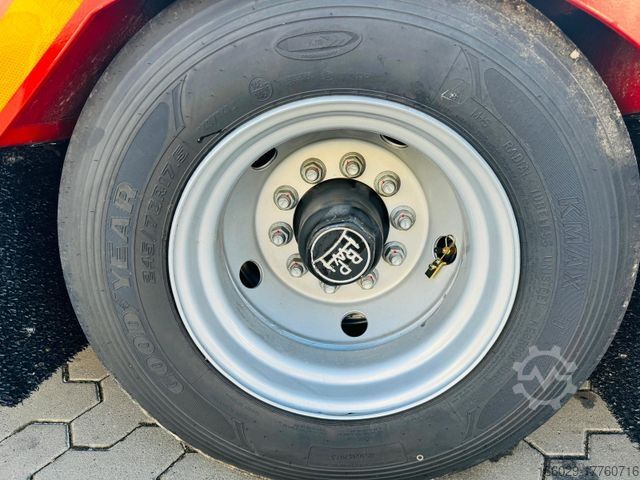

Tires and rims*Tire size: 245/70 R17.5
* Tire brand: GOODYEAR
* Tire markings: M+S label and 3PMSF marking
* Tire pressure monitoring system: Increases fuel efficiency and extends tire life
* Number of rims: 12 pieces (steel rims with offset ET120)
Chassis and suspension*Suspension: Air suspension with load pressure gauge
* Brake system: WABCO dual-circuit air brakes, EBS 4S/3M with ABS and RSS (tilt angle control)
Lighting and electrics*Lighting system: 24V, multi-chamber lights from ASPÖCK, LED side markers and rear lights
* Coupling type: Standard yellow/red for air supply connection
* Connections: NATO socket with 2 x 50mm² intermediate cable (3 m long)

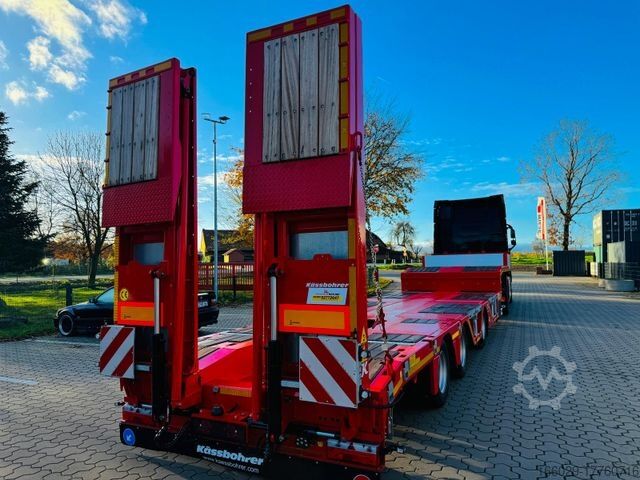

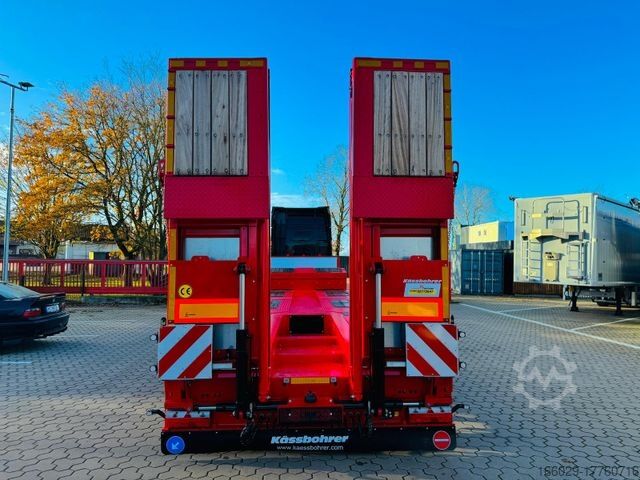

Ramps*Ramp type: Folding hydraulic ramps with sliding mechanism
* Capacity: 40 tons
* Ramp floor: Made of hardwood
* Fuses: Ramp protection tensioning chain included
Load securing * Lashing rings:
* 2 x 2 with a load capacity of 5,000 daN each
* 1 x 2 with 10,000 daN load capacity on the gooseneck
* 4 x 2 lashing rings with 6,000 daN capacity in the basin area
* Container lock housing: suitable for transporting 1 x 20 FT or 1 x 30 FT container
* Stanchions: 5 x 2 stanchions (50 mm x 100 mm)
Special features* Gooseneck: With 90° vertical corners, stable and durable
* Floor covering: 45 mm thick hardwood floor and steel floor with drop structure

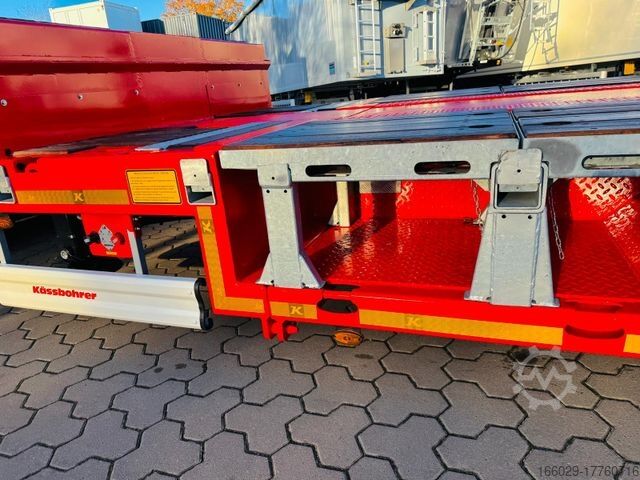

* Tire trough bridge: Bridges made from sectional hardwoods with sheet metal supports to cover the wheel wells

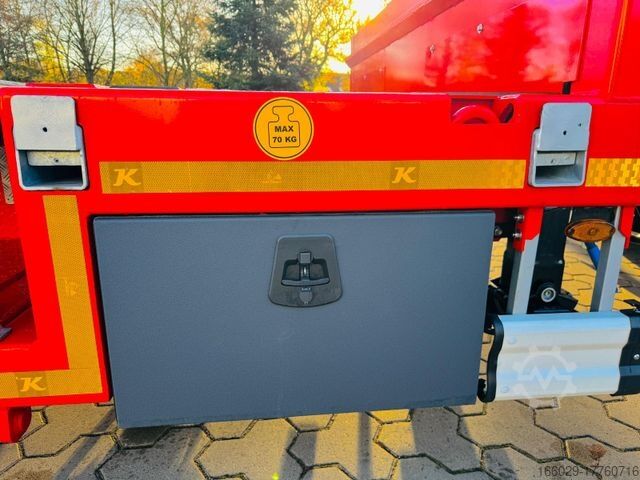

* Tool box: PVC-coated steel, dimensions 750 x 400 x 360 mm
Colors*Chassis: Traffic red (RAL 3020)
Condition: New and ready for immediate use.
* Perfectly suited for heavy-duty transportation and use in the construction industry or machine relocation.
