Низкорамный полуприцеп
Низкорамный полуприцеп Hangler Tele 7,5 M., Lenkachse
Год выпуска
2023
Состояние
б/у
Цена без учета НДС
10848640.00
Отправить сообщение
Описание

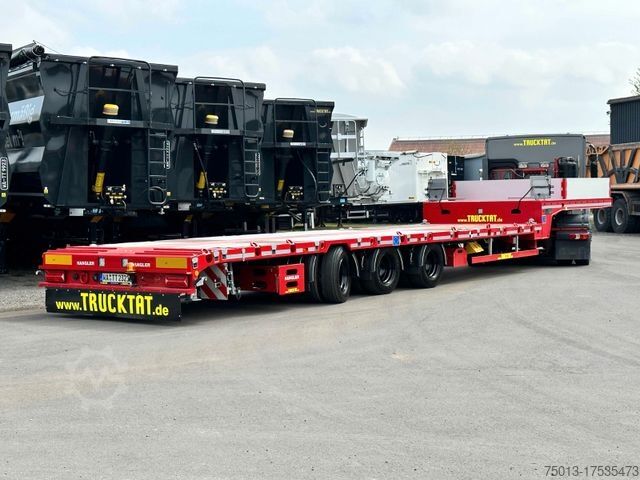

HANGLER 3-axle semi-low loader, telescopic, type SDS-H 470
First registered 03/2023, in mint condition
Pgscsu Dftvs R Nc Ifnsn
Empty weight only 10,520 kg
Loading height unloaded approx. 850 mm
Fifth wheel height 1,050 to 1,100 mm
Gooseneck length 3,650 mm

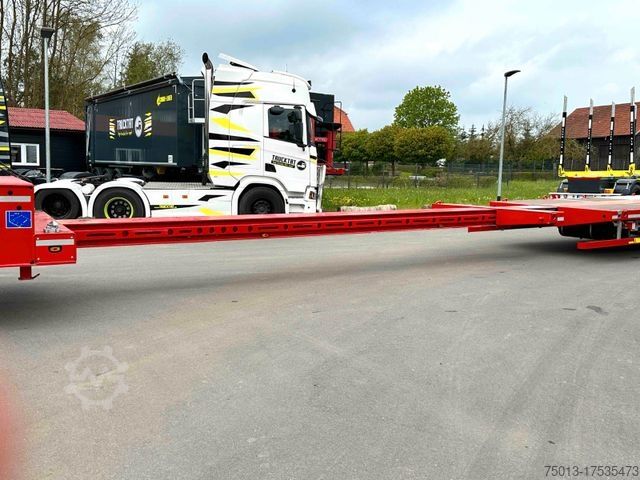

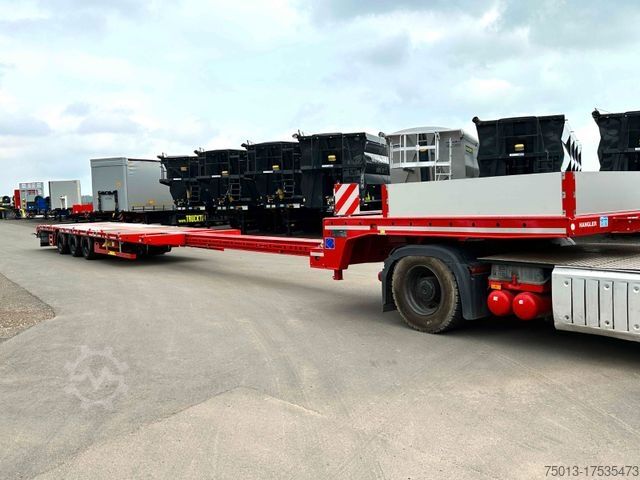

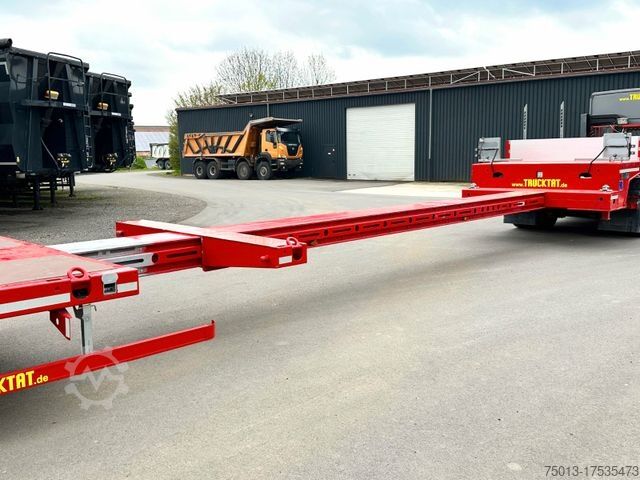

Low bed length 9,770 mm, extendable by 7,500 mm = total low bed length 17,270 mm, movable intermediate support on the telescope
Extra-wide package up to a width of 3,000 mm, extendable frame extensions including wooden supports, frame bevel at the rear 8°
Continuous U-profile hanging rail for docking ramps
Front support feet telescopic

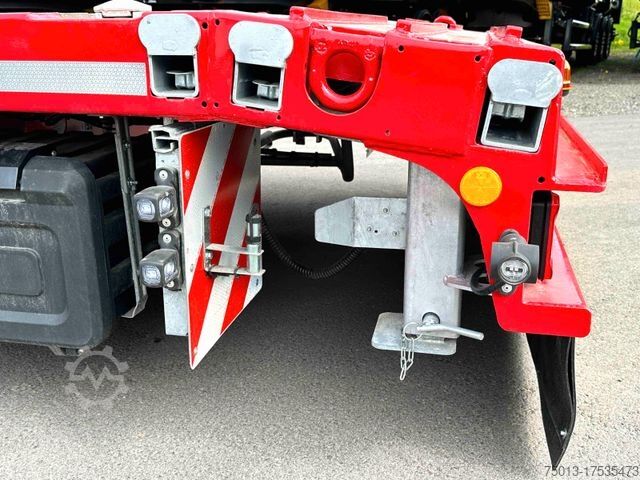

Rear support telescopic
4 pairs of container locks recessed in the floor for 1x 40 ft. or 2x 20 ft. containers
9 pairs of stake pockets embedded in the outer frame
2 stake bushing strips, continuous across the width
Plastic tool box

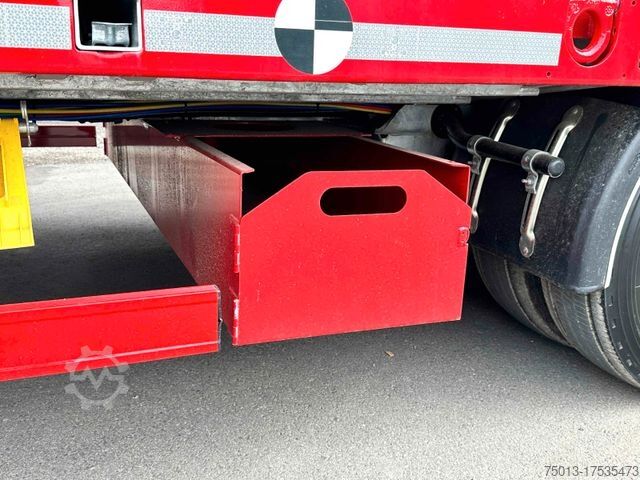

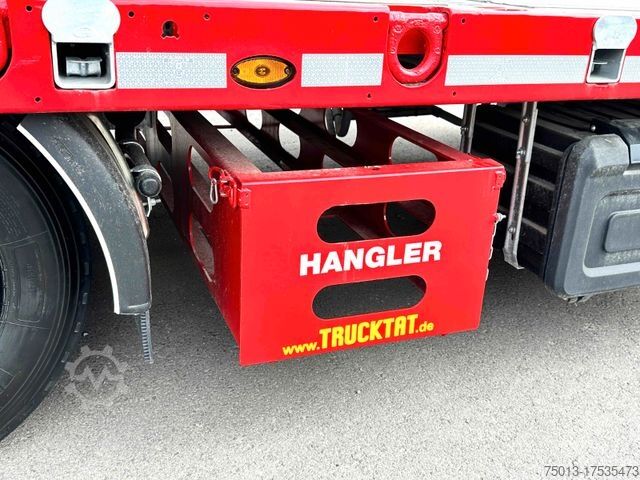

Ramp storage box
11 pairs of folding lashing rings, each 10,000 daN, freely pivoting in the side frame profile (also suitable for over-width lashing)
11 pairs of lashing holes in the outer frame on the gooseneck (tension belt attachment)

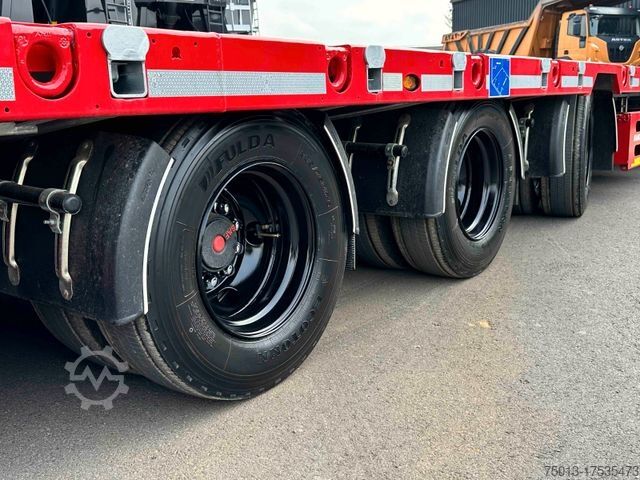

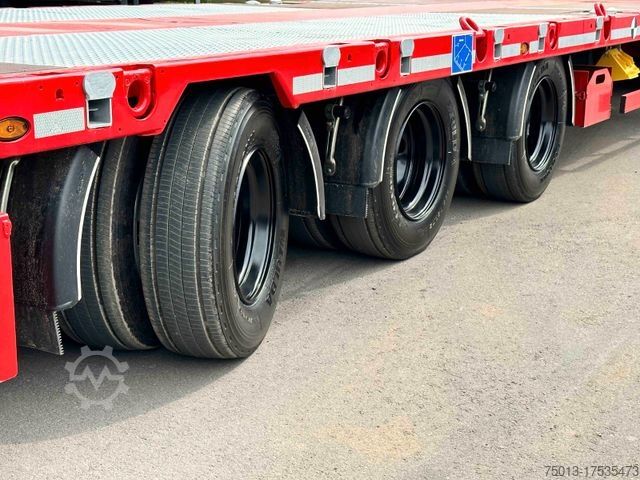

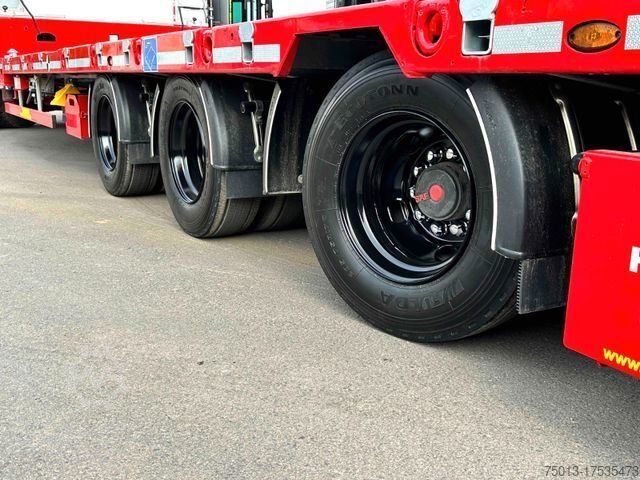

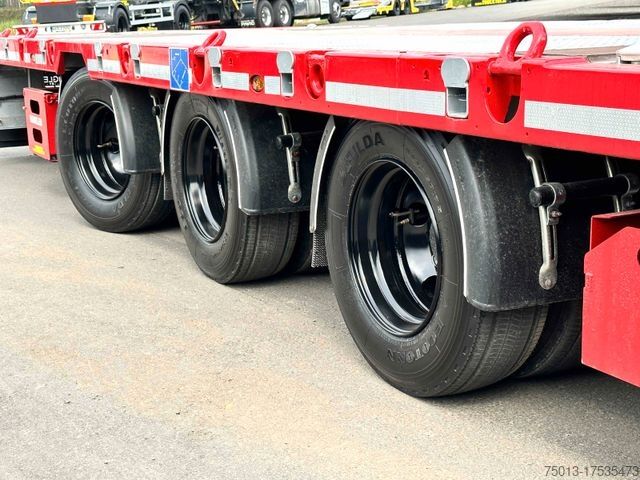

13-fold tires 235/75 R 17.5
SAF axles with drum brakes
Air suspension with raising/lowering
Offset axle spacing 1,360/1,410 mm
3rd axle TRAILING STEERING
WABCO Trailer-EBS with RSS driving stability system
Chassis frame front spray galvanized + final coat in RAL 3002
Chassis rear hot-dip galvanized + outer frame visible area finished with RAL 3002
RENTING is the new BUYING, also available immediately for full-service rental-----
Характеристики
Общий вес
41 000 кг
Общая ширина
2 550 мм
Общая высота
850 мм
Оборудование
ABS
Максимальная грузоподъёмность
30 480 кг
Первая регистрация
03/2023
Конфигурация осей
3 оси
Следующая проверка (TÜV)
03/2026
Ширина пространства для загрузки
2 550 мм
Длина грузового отсека
17 270 мм
Высота грузового отсека
850 мм
