Низкорамный полуприцеп GVN 3GVN*O4*ÜBERBREITE TAFEL*KOC*LIFT*PE

Описание

GVN 3GVN*O4*OVERSIZE PANEL*KOC*LIFT*PE
----VEHICLE HISTORY

* NEW VEHICLE 04/2025
* VIDEO AVAILABLE UPON REQUEST

VEHICLE SPECIFICATIONS

EQUIPMENT & SPECIAL FEATURES

* SPARE WHEEL

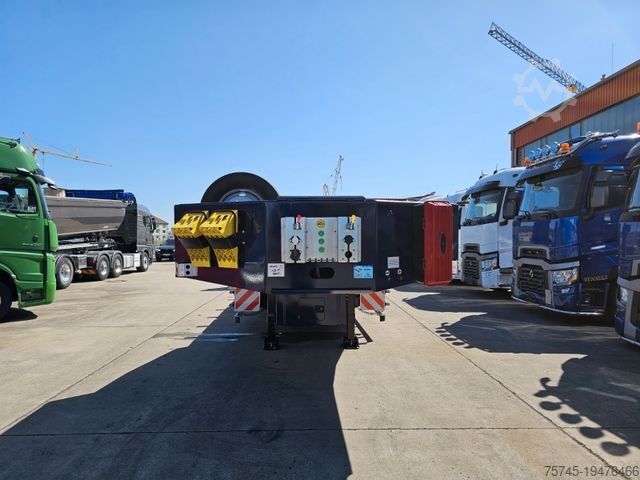

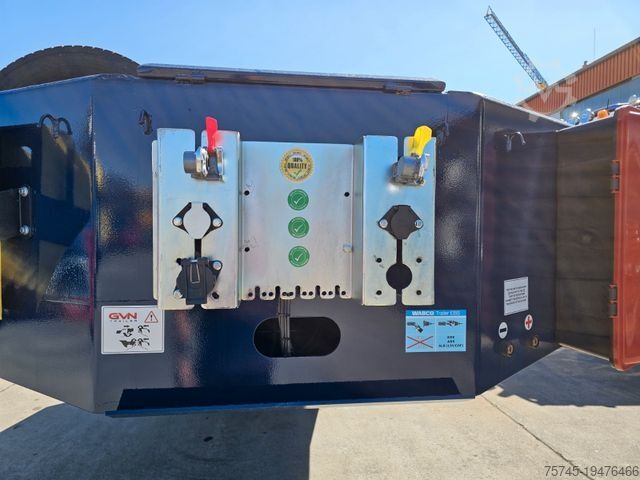

* FRONT STORAGE COMPARTMENT
* FIRE EXTINGUISHER HOLDER

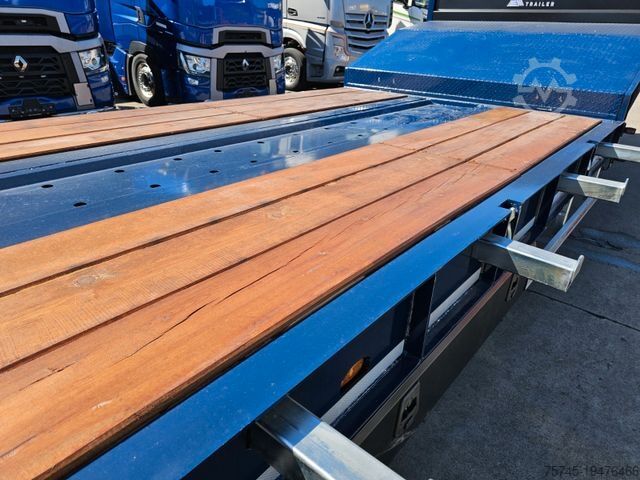

* EXTENDABLE PANEL FOR OVERSIZE LOADS
* OVERSIZE WIDTH SIDE SKIRTS

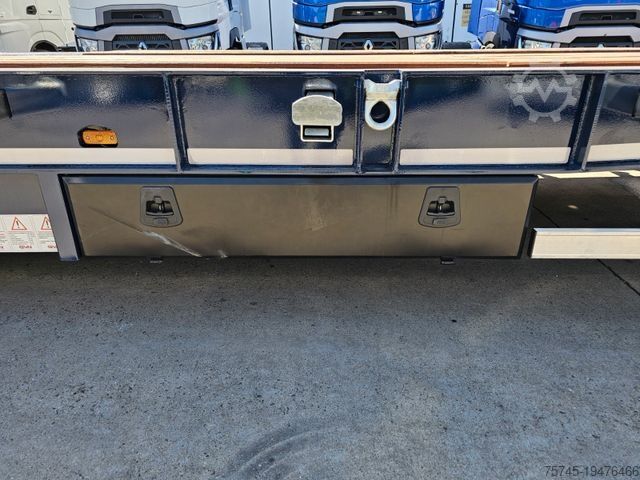

* STORAGE BOXES ON BOTH SIDES
* FRONT STORAGE COMPARTMENT BELOW NECK

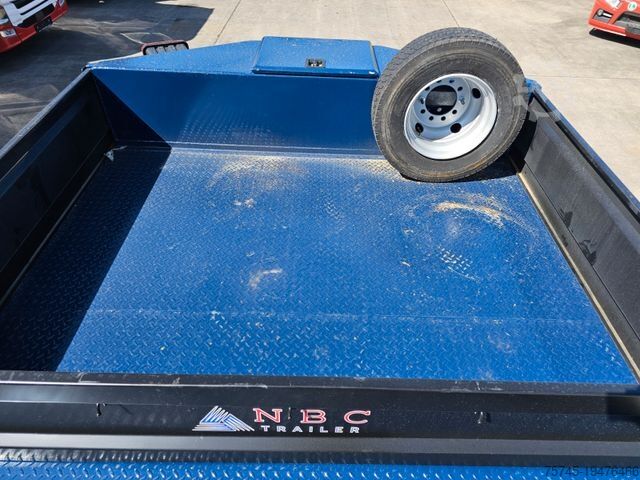

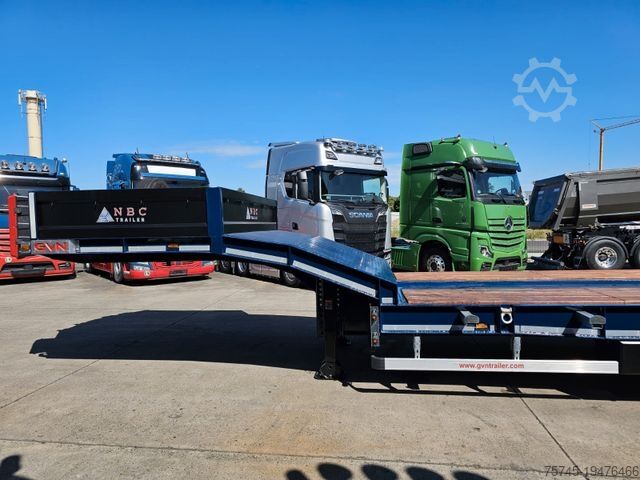

* LOADING AREA ON THE NECK
* WARNING PANEL FOR OVERSIZE LOADS

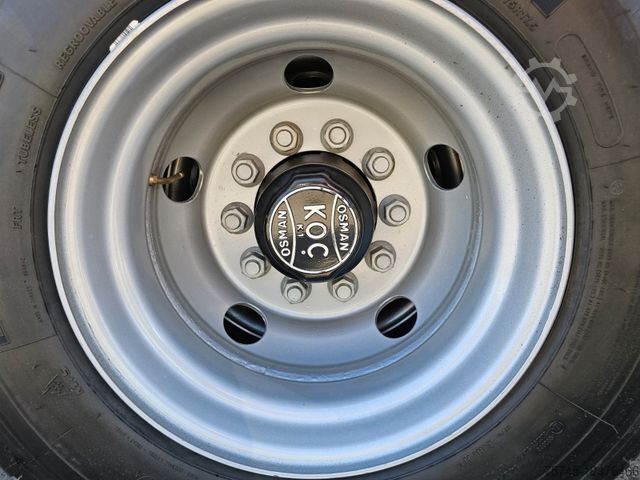

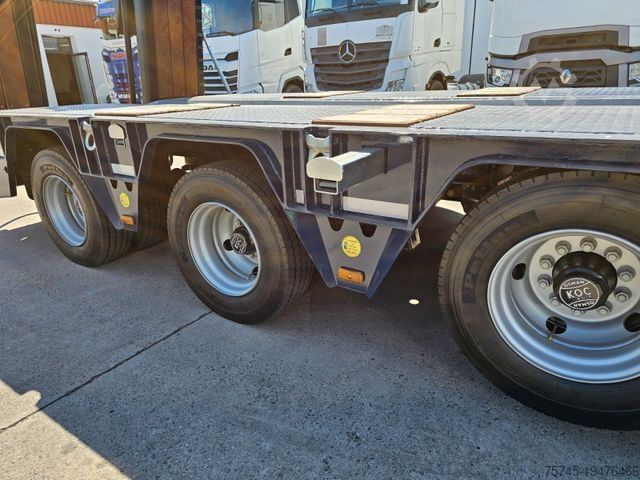

* OSMAN KOC AXLES – DESIGN IDENTICAL TO BPW AXLES

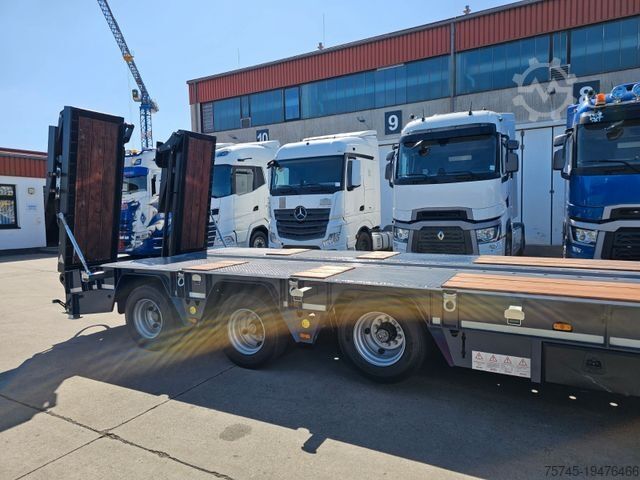

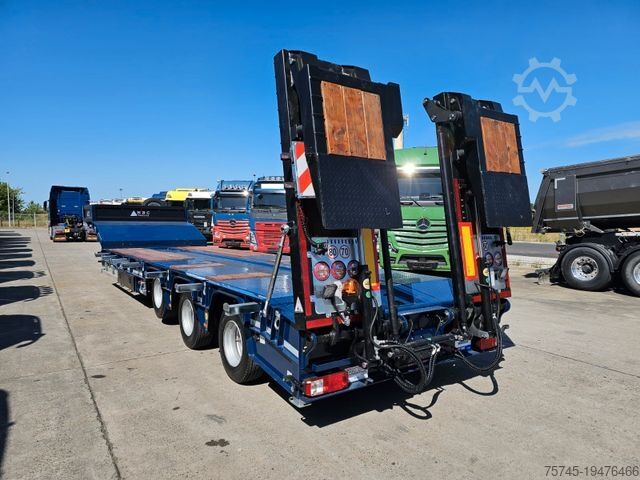

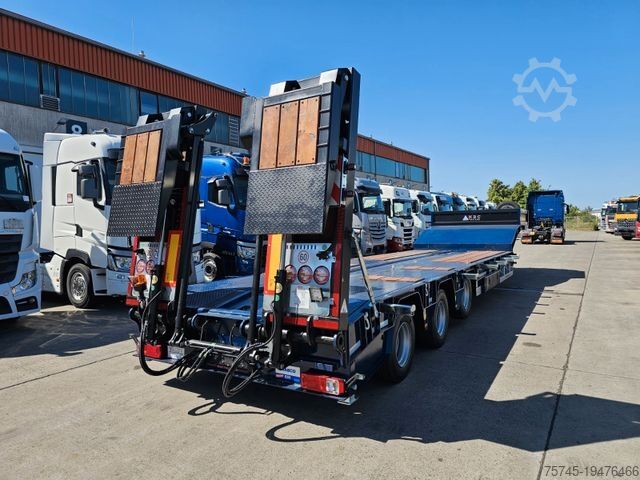

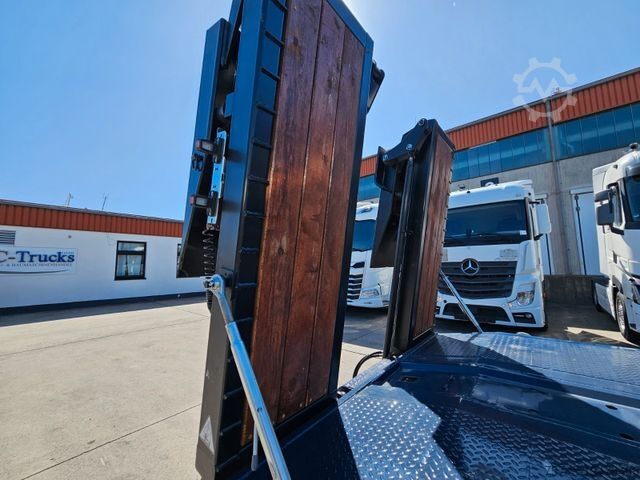

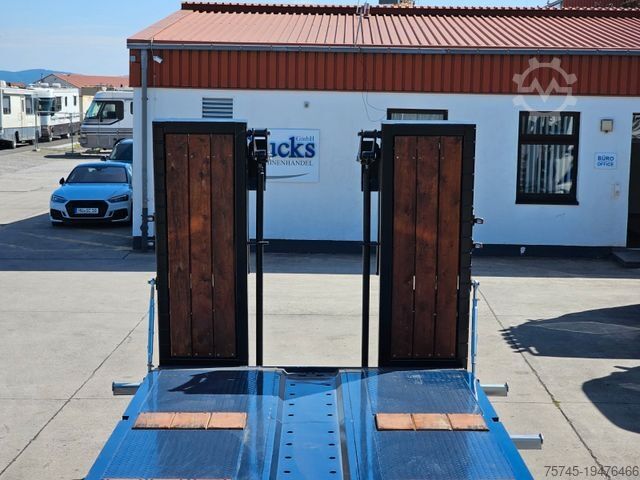

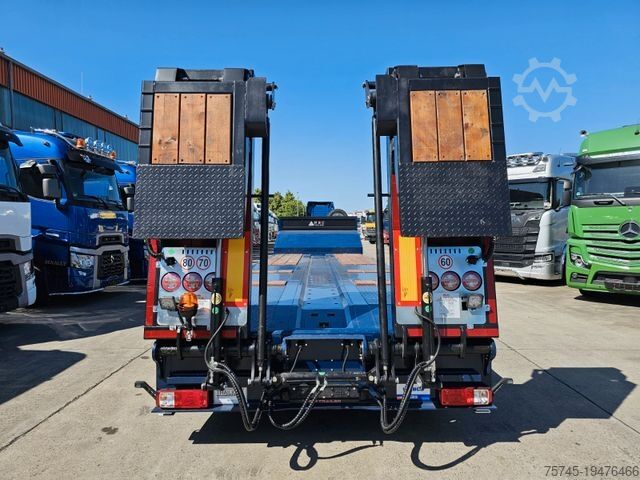

* FIXED HYDRAULIC RAMPS
* ADDITIONAL SUPPORT LEGS
* LASHING POINTS
* POWER CONNECTION FOR HYDRAULIC RAMPS
* TRAILER LIGHTING SYSTEMS
* PRESSURE GAUGE
* SWIVELING REVERSE LIGHTS

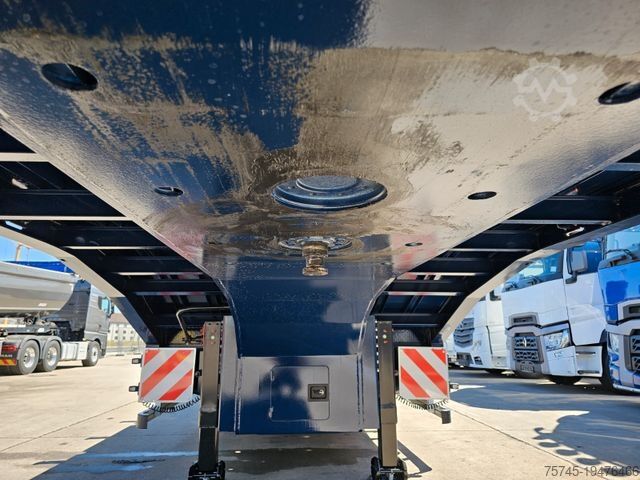

* DOUBLE FIFTH-WHEEL KINGPIN MOUNT

AXLES & WHEELS

* NUMBER OF AXLES: 3
* WHEELS: 12
* TWIN TIRES: ALL AXLES
* STEERING AXLE: 3RD AXLE
* LIFT AXLE: 1ST AXLE

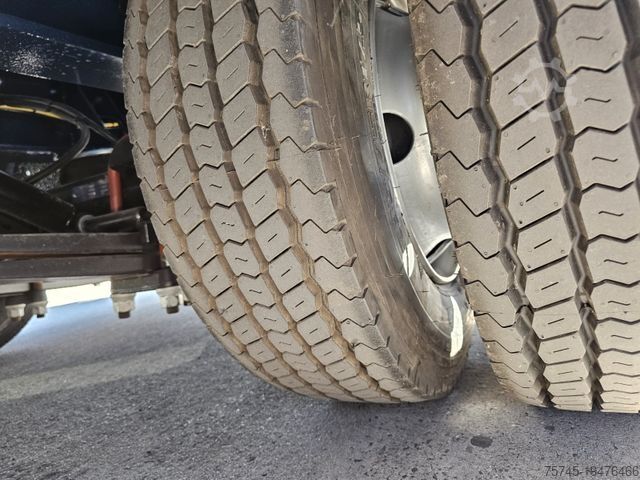

* TIRES: 235/75 R17.5
* SPARE TIRE: YES

DIMENSIONS

* WHEELBASE: 10,200 MM
* AXLE DISTANCES: 7,360 / 1,420 / 1,420 MM
* OVERALL LENGTH: 12,900 MM
* WIDTH: 2,550 MM
* HEIGHT: 3,000 MM
* COUPLING TO END OF VEHICLE: 11,600 MM

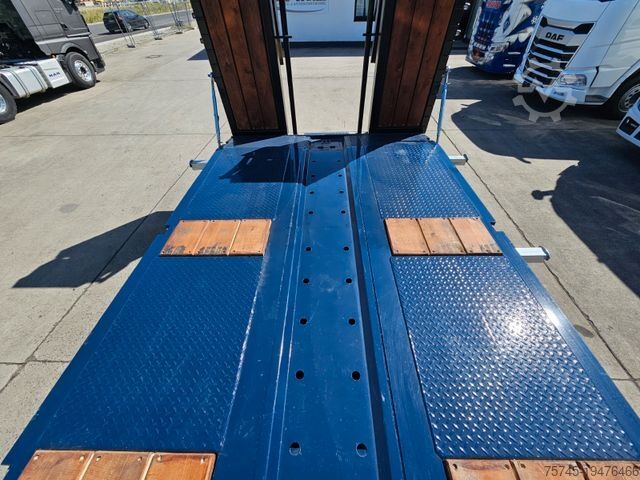

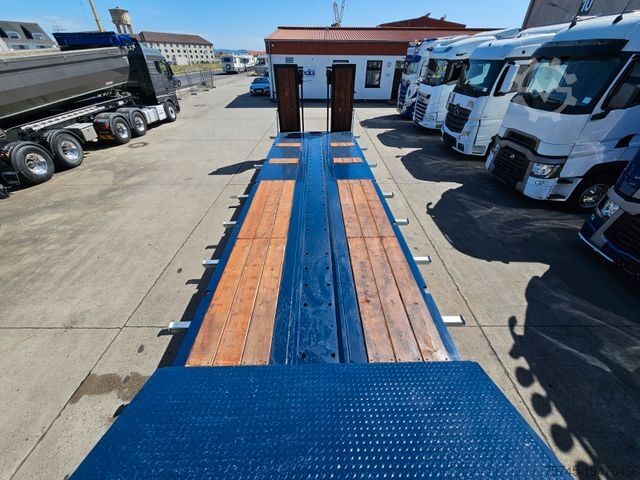

* LOADING AREA LENGTH: 8,900 MM
* REAR OVERHANG: 1,400 MM
* OVERALL LENGTH WITHOUT RAMPS: 12.9 M
* NECK HEIGHT FROM GROUND: 1.4 M
* LOADING AREA HEIGHT FROM GROUND: 0.9 M

CARGO AREA DIMENSIONS

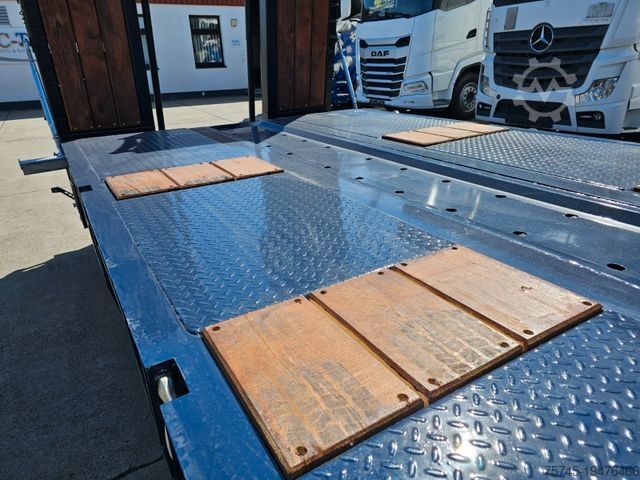

* LOADING AREA: 8.8 M LENGTH / 2.55 M WIDTH / 3 M WIDTH FOR OVERSIZE
* CARGO AREA OVER NECK: 1.8 M LENGTH / 2.4 M WIDTH
* RAMPS: 3.23 M LENGTH / 0.75 M WIDTH

WEIGHTS & LOADS

* EMPTY WEIGHT: 10,500 KG
* AXLE LOAD DISTRIBUTION: 2,820 KG EACH
* GROSS PERMISSIBLE WEIGHT: 58,000 KG (TECHNICAL)
* PERMISSIBLE AXLE LOAD PER AXLE: 12,000 KG
* PERMISSIBLE AXLE GROUP: 36,000 KG
* INTERNATIONAL APPROVED GROSS MASS: 35,500 KG
* INTERNATIONAL AXLE LOADS EACH: 8,000 KG
* INTERNATIONAL AXLE GROUP: 24,000 KG
* SADDLE PLATE SUPPORT LOAD: 22,000 KG

DRIVING BEHAVIOR & SUSPENSION

* MAXIMUM SPEED: 80 KM/H
* LIFT AXLE: 1ST AXLE
* STEERING AXLE: 3RD AXLE
* SUSPENSION: FULL AIR SUSPENSION ON ALL AXLES

BRAKE & TECHNICAL DETAILS

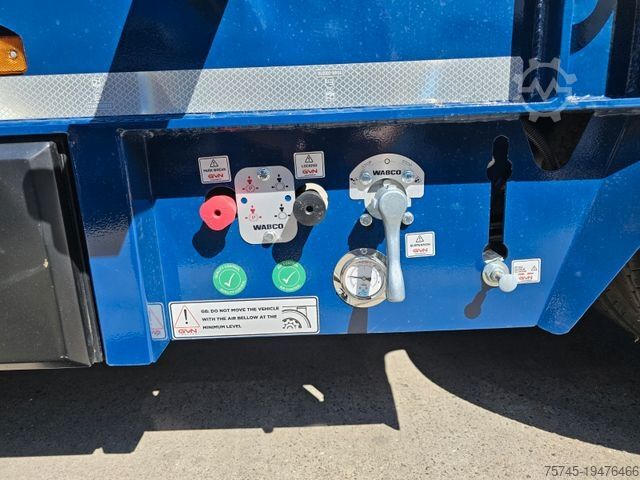

* BRAKE SYSTEM: WABCO T EBS-E
* DRUM BRAKES
* COUPLING: E20*55R-01 3753
* D-VALUE: 190 KN

BODY & APPLICATION

* BODY TYPE: LOWBED SEMI-TRAILER DA 29
* SPECIAL USE: SK EXTRAORDINARY ROAD TRANSPORT
* EXPLOSIVE TRANSPORT (UNECE R105): NO

* READY FOR IMMEDIATE USE!

----
* EXPORT SALES ONLY WITH DEPOSIT MIN. €500 - €2,000

Dsc Ed Djwwn Uwodcowb
---- EXPORT DECLARATION CUSTOMS EXW IN 10 MINUTES (APPROVED EXPORTER) 5 DAYS, 30-DAY PLATES AND 17 - 21 DAYS AUSTRIAN PLATES EURO 1
VEHICLE RESERVATIONS ONLY VIA EMAIL FUNCTION
VERBAL RESERVATIONS ARE NOT VALID!

For sales to the EU & third countries, a deposit of at least €500.00 / €1,000.00 will be required.
(For sales to the EU and third countries will be levied deposit/guarantee of at least €500.00 / €1,000.00)

Subject to change, errors, and prior sale!

More vehicles can be found on our homepage:

Sales are made exclusively according to our terms and conditions – see homepage

Important notice: Despite careful verification of all details in our offer, errors may occur. In some cases, these arise from transmission errors in the systems of various platform providers.
