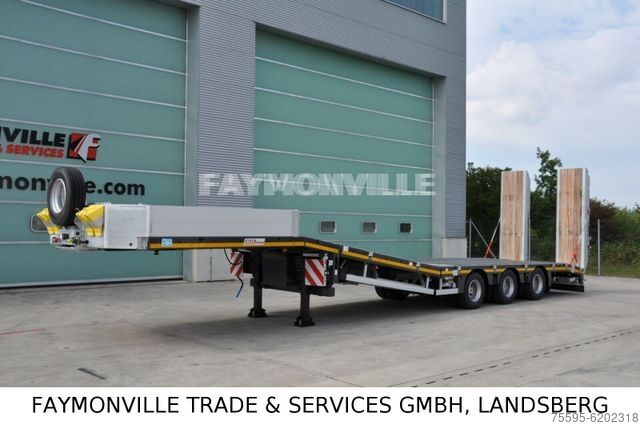

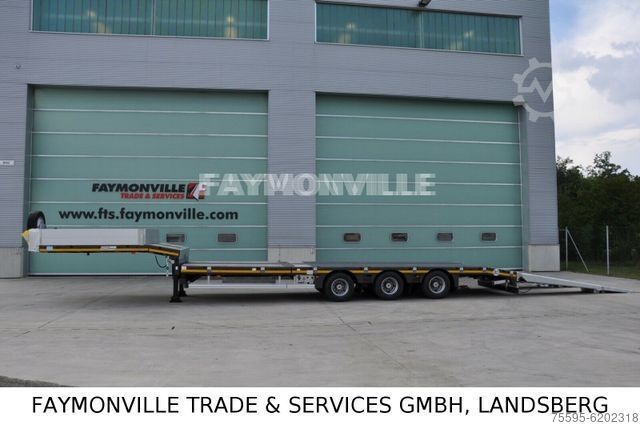

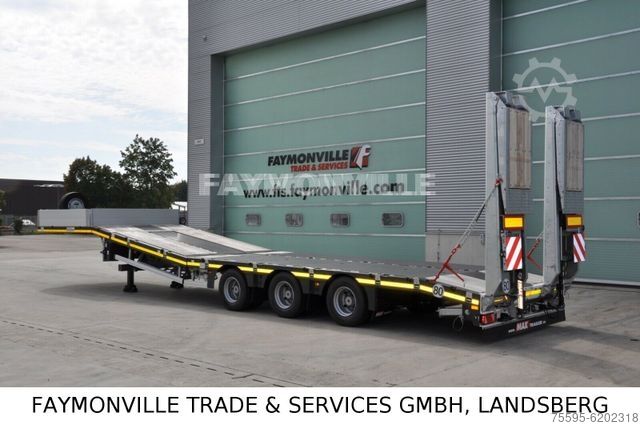

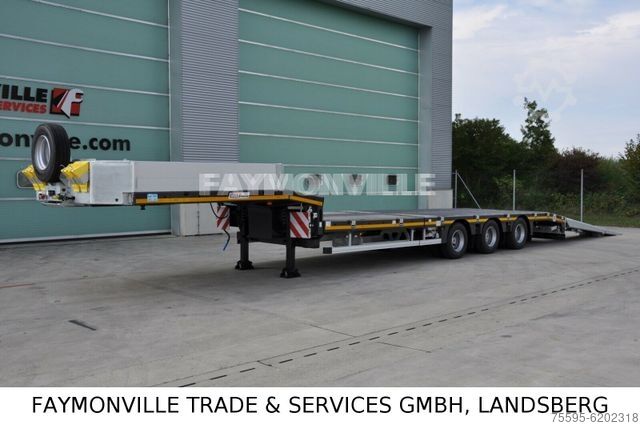

Низкорамный полуприцеп FAYMONVILLE Satteltieflader MAX100-N-3B-9.30-U

Описание

MAX100-N-3B-9.30-U
Technical data
Speed: 80 km/h
Total weight: 49,500 kg
Fifth wheel load: 18,000 kg
Axle load: 31,500 kg
Empty weight (+/- 3%): 10,547 kg
Payload approx.: 38,953 kg
Gooseneck length: 3,850 mm
Fifth wheel height loaded: 1,200 mm
Loading area length: 9,300 mm
Extendable by: 0 mm
Axle spacing: 1,360 mm
Pecog Sk Trs R Nc Ifnegn
Rear steering radius: 2,300 mm
Loading height with max. load: 860 mm
Total width: 2,540 mm
Suspension travel: -55/ +145 mm
Technical description

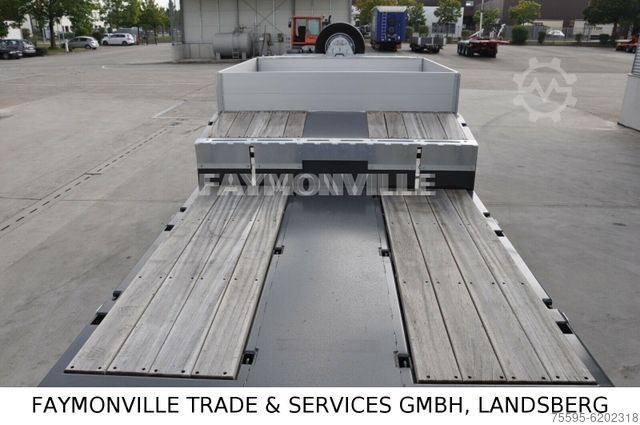

Gooseneck:
Gooseneck with bevelled corners 45° at the front and with a rear bevel of approx. 750 mm x 10°.
3 pairs of lashing rings (LC 5,000 daN).
Hardwood flooring 30 mm thick.

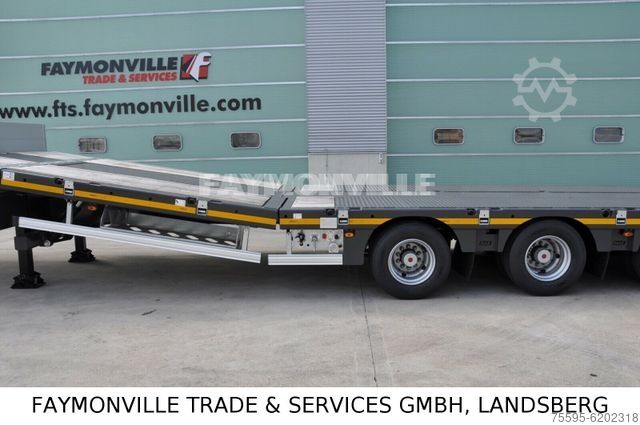

Loading area:
Loading area can be raised and lowered hydraulically after the gooseneck, length approx. 2,800 mm, with a rear bevel of approx. 1,000 mm x 8°.
6 pairs of lashing rings that can be folded outwards (LC 5,000 daN).
2 pairs of lashing rings that can be folded outwards (LC 10,000 daN).
1 pair of tension rings that can be folded inwards on the central support at the front (LC 10,000 daN).
Cutouts in the outer frame of the loading area for hanging tensioning straps. (LC 2000 da N).

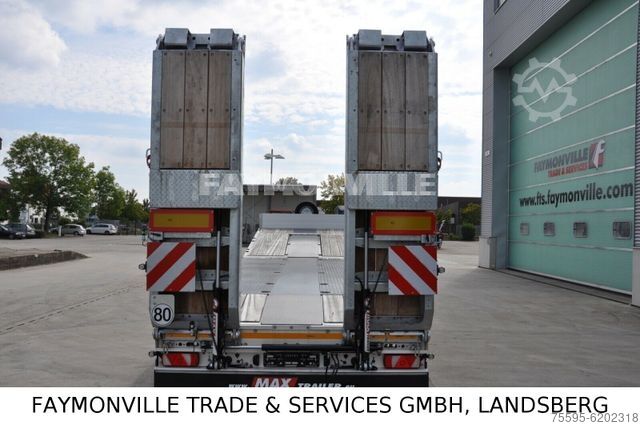

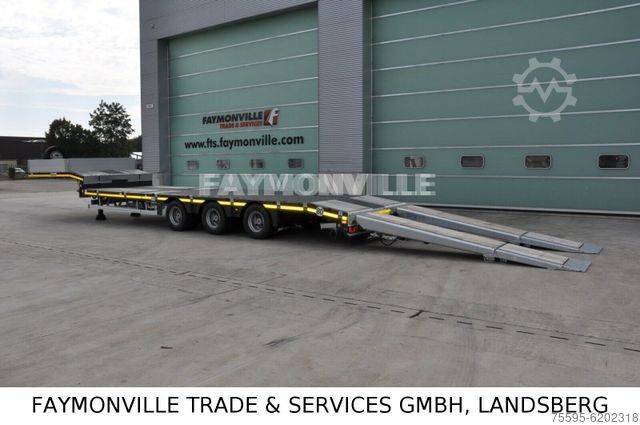

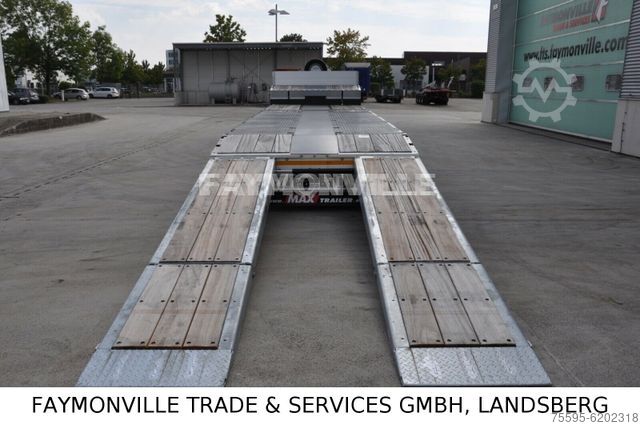

Hardwood flooring approx. 48 mm thick, checkered sheet flooring over the axles. Ramps: Two-part steel ramps A pair of galvanized two-part steel ramps approx. 2,750 + 1,400 x 800 mm with approx. 48 mm thick hardwood flooring. Ramp with hydraulically foldable and unfoldable ramp sections, hydraulic lifting mechanism and hydraulically movable. Maximum load per pair: 40,000 kg Seat supports: JOST seat supports (mechanical) with 2-speed gearbox for 24t lifting load (50t test load). Tires: 235/75 R 17.5 tires as selected by the manufacturer. Axle: SAF axles, air-sprung, with drum brake, with lifting/lowering function. The last axle is self-steered with an electro-magnetic reversing lock
can be activated via reverse gear or manually.
Axle tool.
Braking system:
Braking system in accordance with EU regulations with EBS-E (2S2M) without connecting lines to the tractor unit.
Steel construction:
Steel construction made of high-strength fine-grain steel.
Steel qualities:
S355J2+N/S355MC (yield strength 355MPa)
S690QL/S700MC (yield strength 690MPa)
Paintwork:
First-class and long-lasting corrosion protection of the standard shot-blasted welded frame guaranteed by a 2-component (2K) zinc dust primer. A high-quality 2-component (2K) top coat in a single color in RAL colors of your choice.
Rear section metallized and painted in RAL 9010 (pure white).
No metallic paint possible.
Electrical system:
Electrical system in accordance with EU regulations, lighting LED 24
Volt ASPÖCK-NORDIK (ASS3)
ASPÖCK-UNIBOX on the connection panel at the front with
sockets 24N, 24S & 15-pin.
Connection in accordance with ISO.
24N ISO-1185
24S ISO-3731
15-pin ISO-12098
Accessories included
2" kingpin
A galvanized steel bulkhead approx. 400 mm high.
Yellow-red air couplings on the galvanized connection strip at the front.

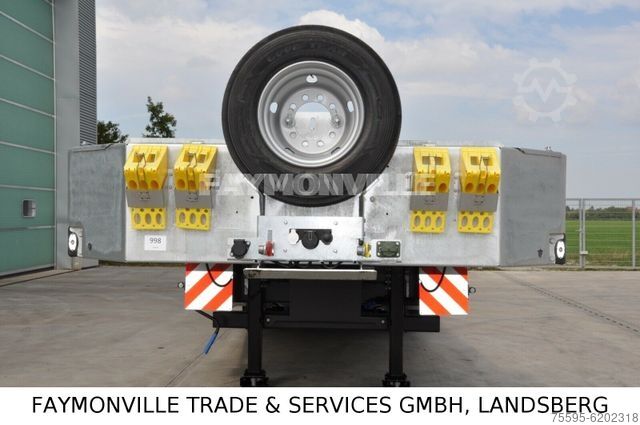

4 pieces of chocks with holder on the bulkhead. (± 5kg)
Cable for supplying the electro-hydraulic unit and/or the electric cable winch (35mm², 3.5 m long, max. 250A) between the trailer and tractor unit with plug connection (ANDERSON-ANDERSON)
Galvanized folding supports under the slope of the loading area.
A bracket for a rotating beacon at the rear of the trailer.
Control valves for the ramps attached to the right-hand side of the trailer. (± 4kg)
Yellow reflector tape in accordance with EU regulations on the side and rear of the Trailer.
