Низкорамный полуприцеп FAYMONVILLE Multimax Satteltieflader

Описание

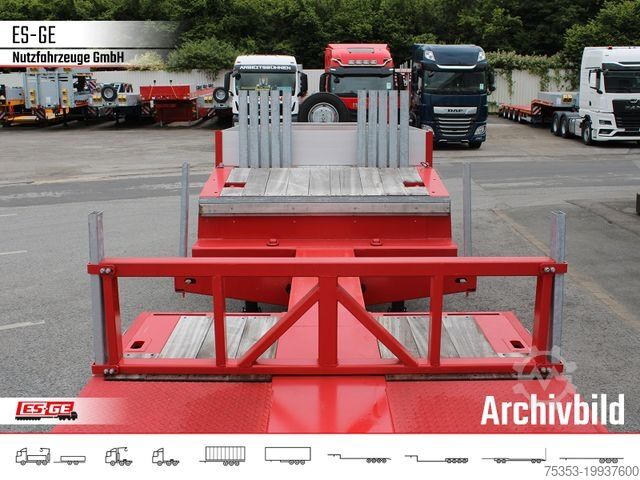

More vehicles available at Extract from the equipment features. Complete equipment list upon request. GOOSENECK Gooseneck in SNT design to optimize the loading platform length, approx. 3,700 mm long, with rear bevel approx. 1,000 mm x 10°. For tractor units: 4x2, 6x2, and 6x4. - Removable steel bulkhead, approx. 400 mm high - ASPÖCK-UNIBOX at the front connection strip with 24N, 24S & 15-pin sockets - 3 kW electro-hydraulic power unit for controlling hydraulic operations, except for hydraulic winches - Outer longitudinal beams of the gooseneck with mounting holes for bolted lashing rings. The first hole approx. 200 mm from the front, then every approx. 400 mm. 2 pairs of screw-in lashing rings included (LC 5,000 daN). - 1 pair of flat lashing rings at the rear section of the gooseneck (LC 10,000 daN). - On the gooseneck: 1 pair of detachable ALU side walls, approx. 400 mm high, anodized finish. - On the gooseneck: 1 detachable ALU rear wall, approx. 400 mm high, anodized finish. - Over the gooseneck: approx. 40 mm thick hardwood flooring, checker plate over the kingpin. - 3.5 inch kingpin - Gooseneck guiding plate for the fifth wheel, approx. 500 mm wide. - Round NATO socket at the front connection strip (Maeler & Kaege VG 96 917) - 2 pairs of lashing rings with retaining springs hanging on the outer beams of the gooseneck (LC 5,000 daN). LOAD PLATFORM Extendable load platform, approx. 8,800 mm in length with rear bevel approx. 500 mm x 10°. Pneumatic locking with conical locking bolt and reinforced locking positions, supply lines protected inside the extendable supports and automatically adapt to the current platform length. - BPW axles and suspension, 1st axle steerable, all other axles hydro-mechanical forced steering. 1st axle with electro-magnetic reversing lock, activated by reverse gear and manually. Technical axle load: 12,000 kg each. Air suspension with raising and lowering valve. - 235/75 R 17.5 3PMSF twin tires - Brand of our choice - Mechanical landing gear with 2-speed gearbox and crank. JOST Modul B - static test load = 50,000 kg - Continuous and between the axles interrupted approx. 50 mm thick hardwood flooring on the load platform (for increased friction coefficient). - Oblong holes for attachable and repositionable bridging elements: - In the front of the platform - 1 sliding intermediate table, approx. 300 mm wide, for the extension tube with large cross-section, with checker plate covering. - Front and rear with oblong holes for attachable and repositionable bridging elements. - 1 pair of lashing rings on the front cross member (LC 10,000 daN). - 7 pairs of recessed lashing rings in the outer frame of the platform, tiltable outwards (LC 10,000 daN). - Extensions (galvanized) extendable by approx. 230 mm per side (without timber planks). - 1 pair of mechanical rear supports. - Remote steering control from front and rear by cable remote, with single-track axle monitoring, no installation required on the tractor unit. - TPMS tire pressure monitoring sensors installed on all wheels - Platform locking with conically welded locking profiles every 500 mm. - Lock monitoring left and right at the semi-trailer. - For the intermediate table, approx. 300 mm wide, a mechanical lock for securing the table in the extension. - 5 pairs of threaded blocks on the extendable support for mounting bolt-on M20 rings (LC 5,000 daN). B
Dwec Ed Ddsxarmaocob

Низкорамный полуприцеп FAYMONVILLE Multimax Satteltieflader - hydr. gelenkt

Низкорамный полуприцеп FAYMONVILLE Multimax Satteltieflader - hydr. gelenkt
